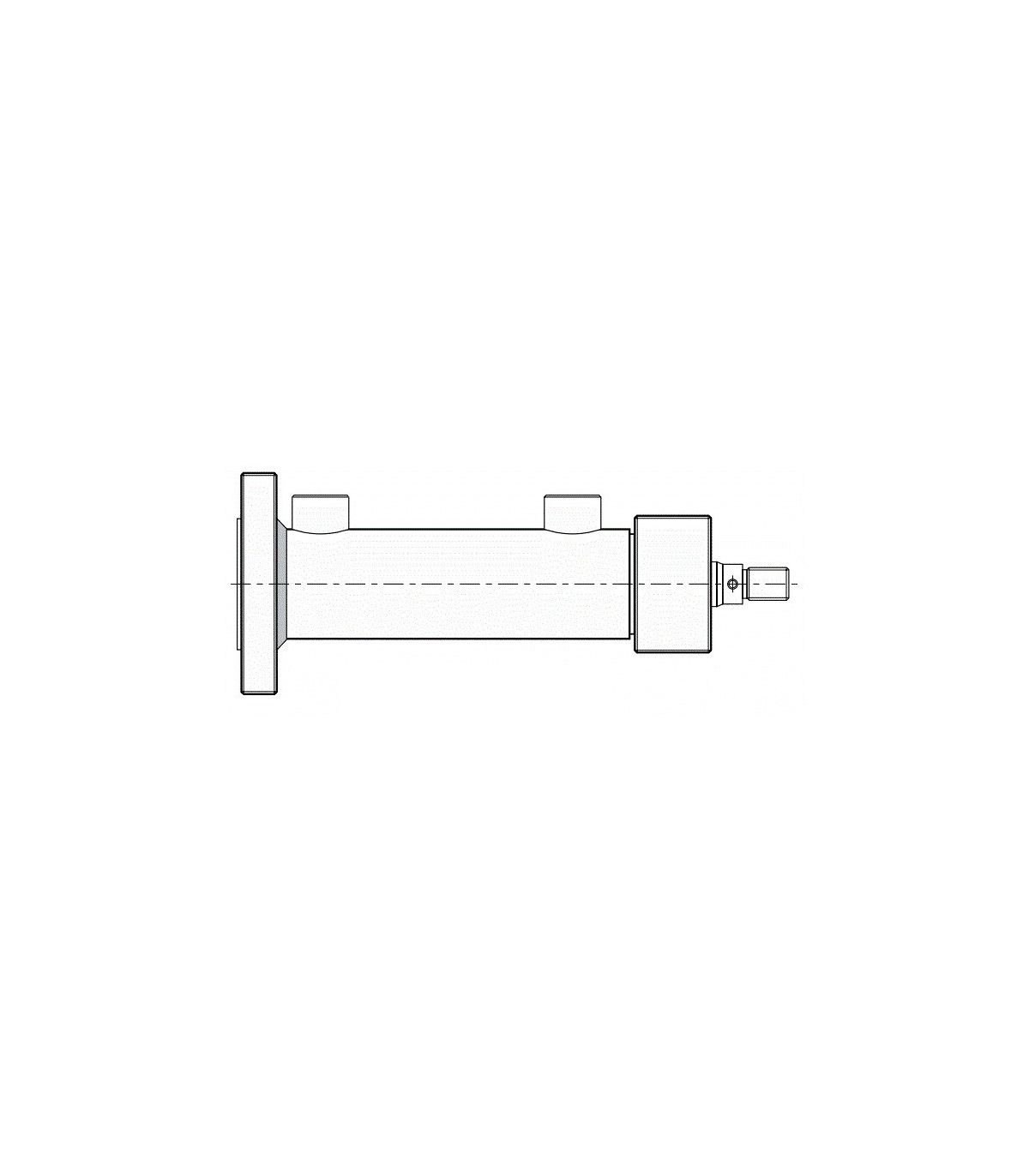

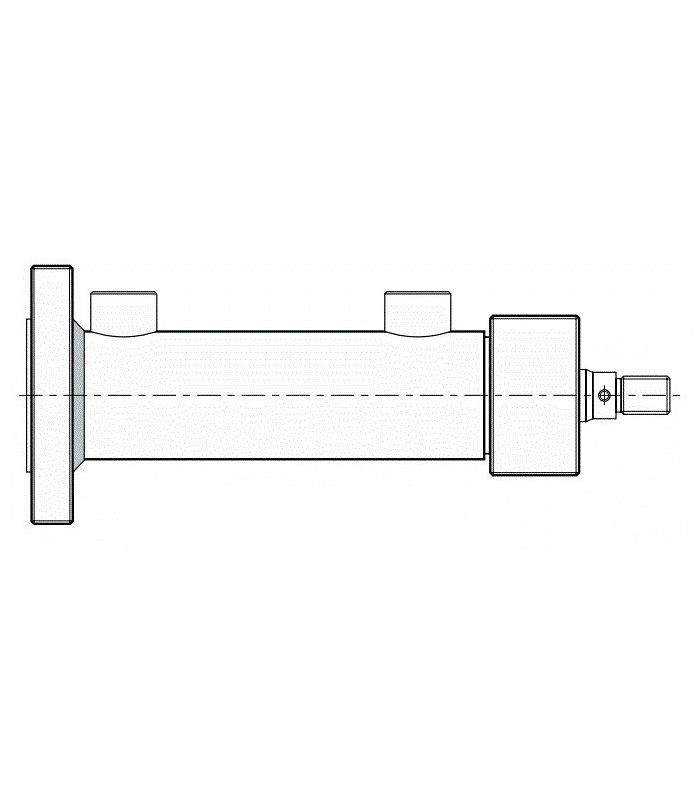

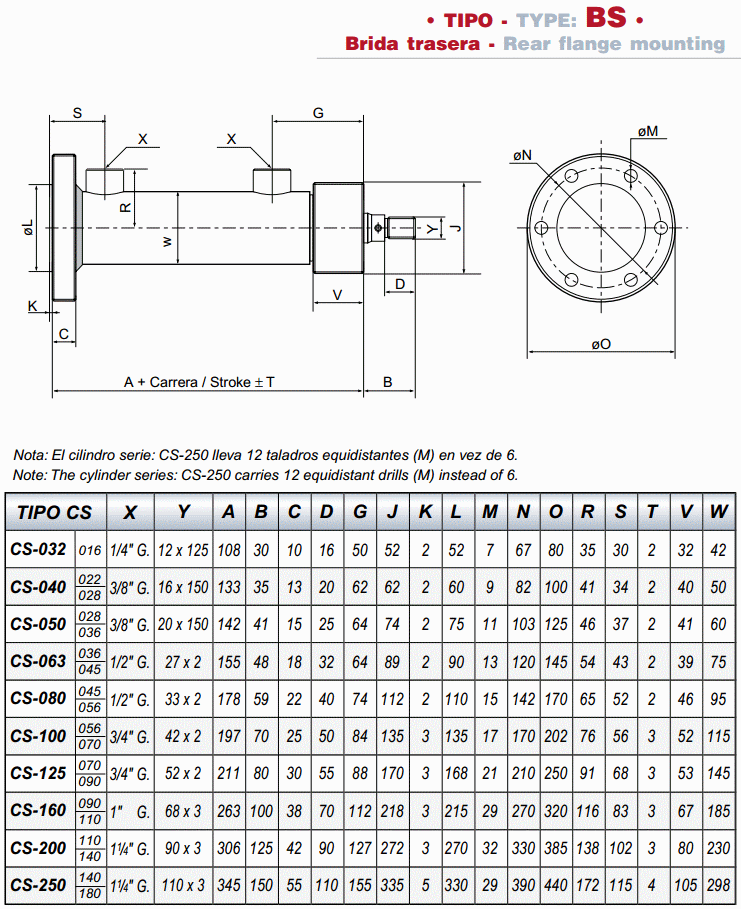

ISO-3322 HYDRAULIC CYLINDER REAR FLANGE BS
The ISO-3322 BS rear flange hydraulic cylinder uses fluid pressure to generate a linear force. The BS rear flange is a metal part bolted to the rear end of the cylinder barrel, with a specific design that complies with the BS standard. This flange is a flat metal part that allows for more rigid and versatile attachment of the cylinder to different structures or machinery.
Applications: industrial machinery, vehicles and automation.
Technical sheet:
- Working pressure 210 bar.
- Max. pressure. 250 bar.
- Available in diameters from 32mm
- Interchangeable dimensions: ISO-3322
- Shirt in ST52.2 DIN-2391 lapping
- Stem: Ground F-114 steel.
- Max speed. 0.5 m/sg. (standard joint) see other options.
- Temperature -20 / 80ºC
- Hydraulic fluid: Mineral oil ISO6743/4
- Various types of fixings.
Reference:
38040000
