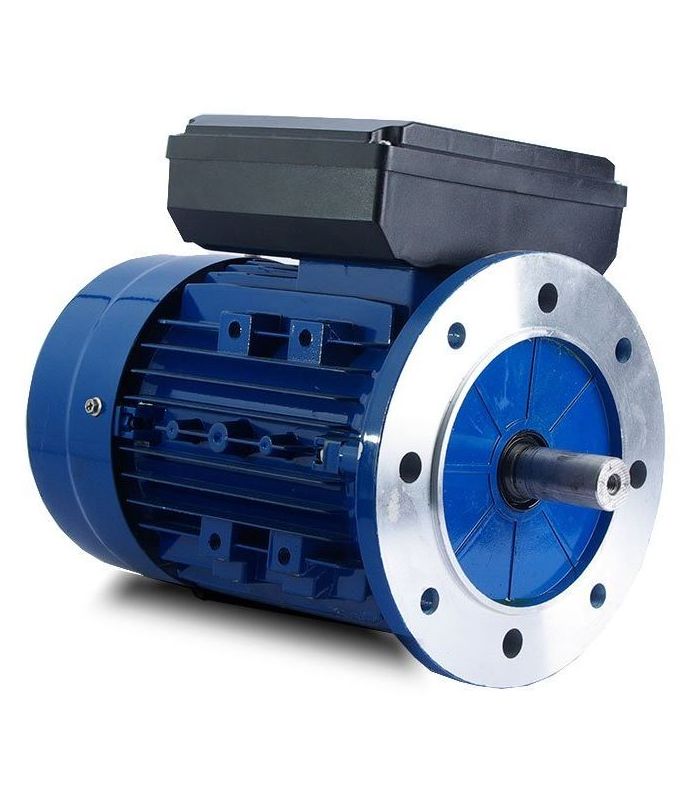

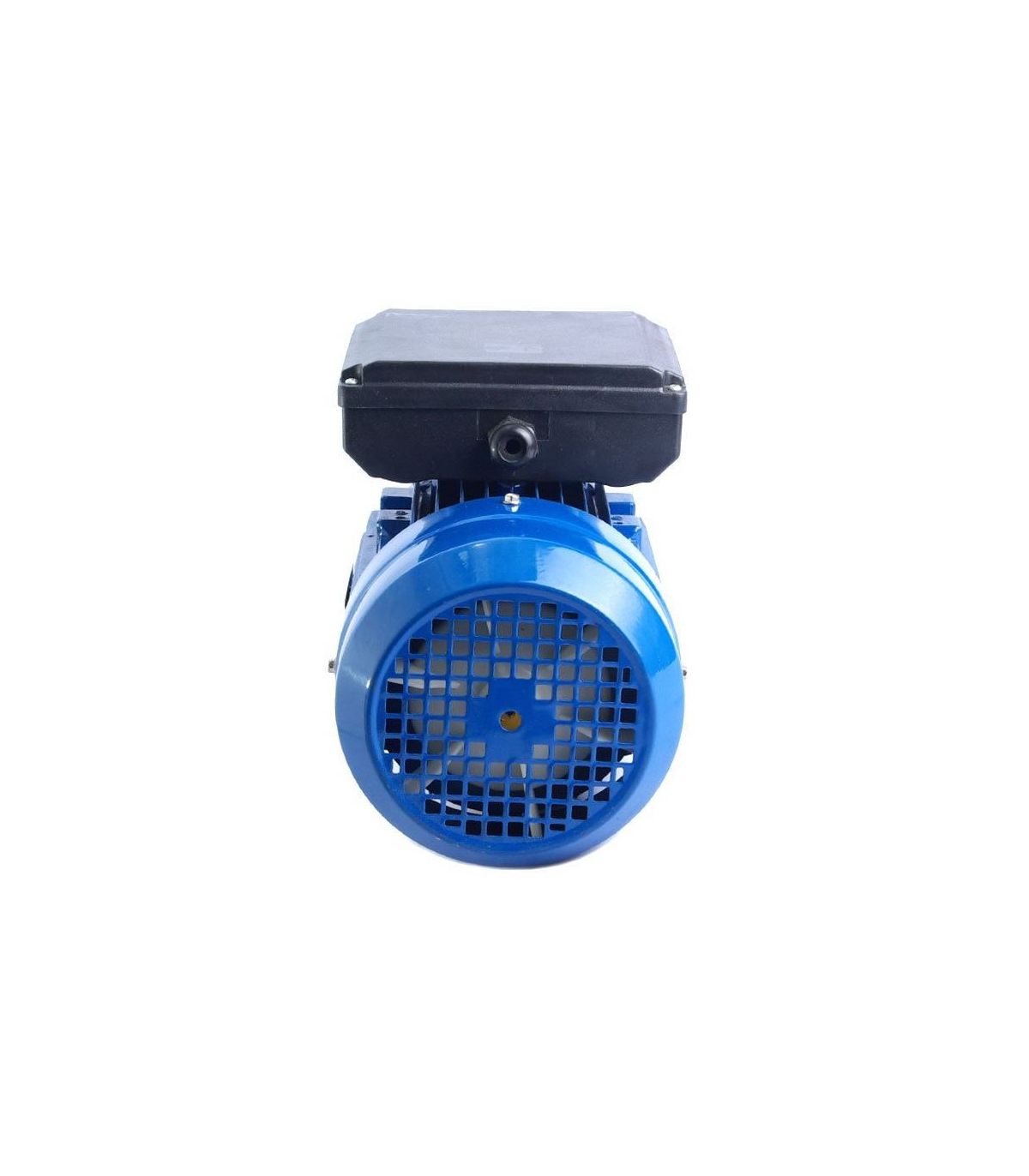

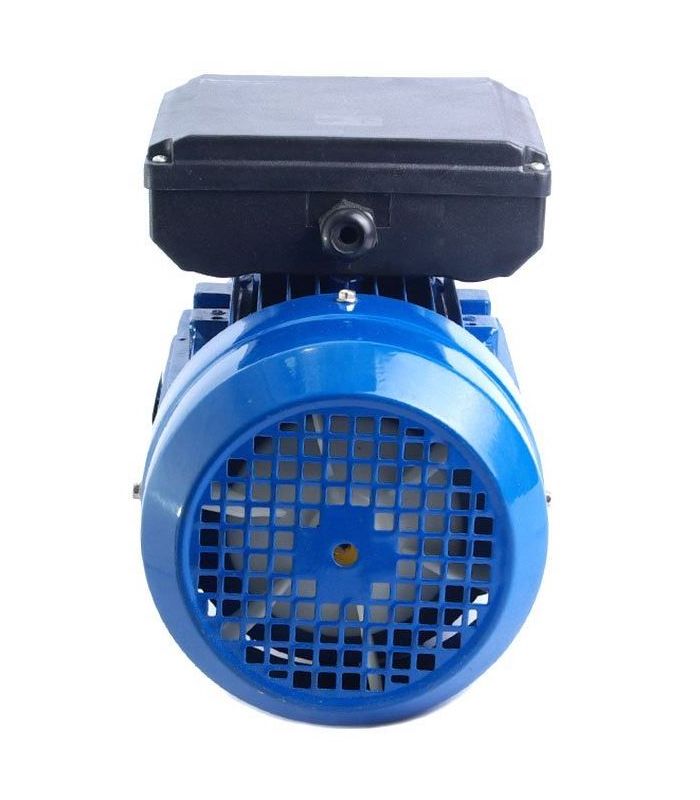

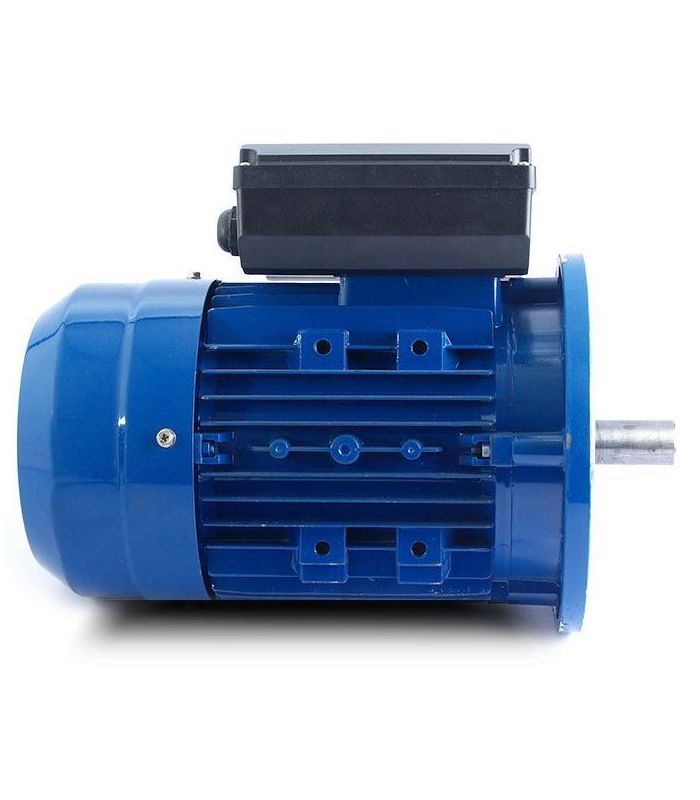

B5 SINGLE-PHASE ELECTRIC MOTOR

The B5 single-phase electric motor is a type of alternating current motor that operates on a single phase of electricity and is characterized by a specific design of its housing and mounting flanges. Generally available in lower power ratings compared to three-phase motors,

Applications: hydraulic pumps, compressors, fans and extractors, agricultural machinery and power tools.

Main features:

High torque, 1500 rpm.
Manufactured in aluminum according to European IEC standards.
Aluminum casing with cooling fins for efficient heat dissipation.
Enameled copper winding with thermosetting varnish impregnation (Class F insulation)
Voltage 230V AC 50 Hz
Number of poles: 4
Energy efficiency: IE1
Mounting type: B5 (front flange)
Indifferent turn.

€116.16 (tax included)

€96.00 (tax excl.)

POWER

Reference:

481605

Description
Comments

Description

Single-phase electric motor B5

The B5 single-phase electric motor is a rotating alternating current electrical machine designed to operate with single-phase power (230 V, 50 Hz) , used mainly in low and medium power applications.

The B5 single-phase motor combines robustness, standardized dimensional compatibility and ease of integration into industrial equipment, making it an optimal solution for hydraulic pumps, compressors, fans, extractors and agricultural or maintenance machinery .

Technical specifications

Direct start and stable operation.
High starting torque for loads with medium inertia.
Reduced maintenance thanks to its robust design and quality materials.
Design in accordance with European IEC standards, guaranteeing interchangeability with other standard motors.

Recommended applications of the B5 single-phase electric motor

Hydraulic pumps and motor pump units.
Industrial compressors and fans.
Air extractors.
Agricultural and workshop machinery.
Light automation equipment.

Technical specifications of the B5 single-phase electric motor:

Ref.	Axis	Flange diameter (mm)	RPM (max.)	Power (HP)	ØA	B	AND	L	N	P
481605	14	160	1500	0.5	10	130	30	255	110	160
481607	19	200	1500	0.75	12	165	40	290	130	200
481610	19	200	1500	1	12	165	40	290	130	200
481615	24	200	1500	1.5	12	165	50	335	130	200
481620	24	200	1500	2	12	165	50	365	130	200
481630	28	250	1500	3	15	215	60	398	180	250

Product Details

Reference 481605
