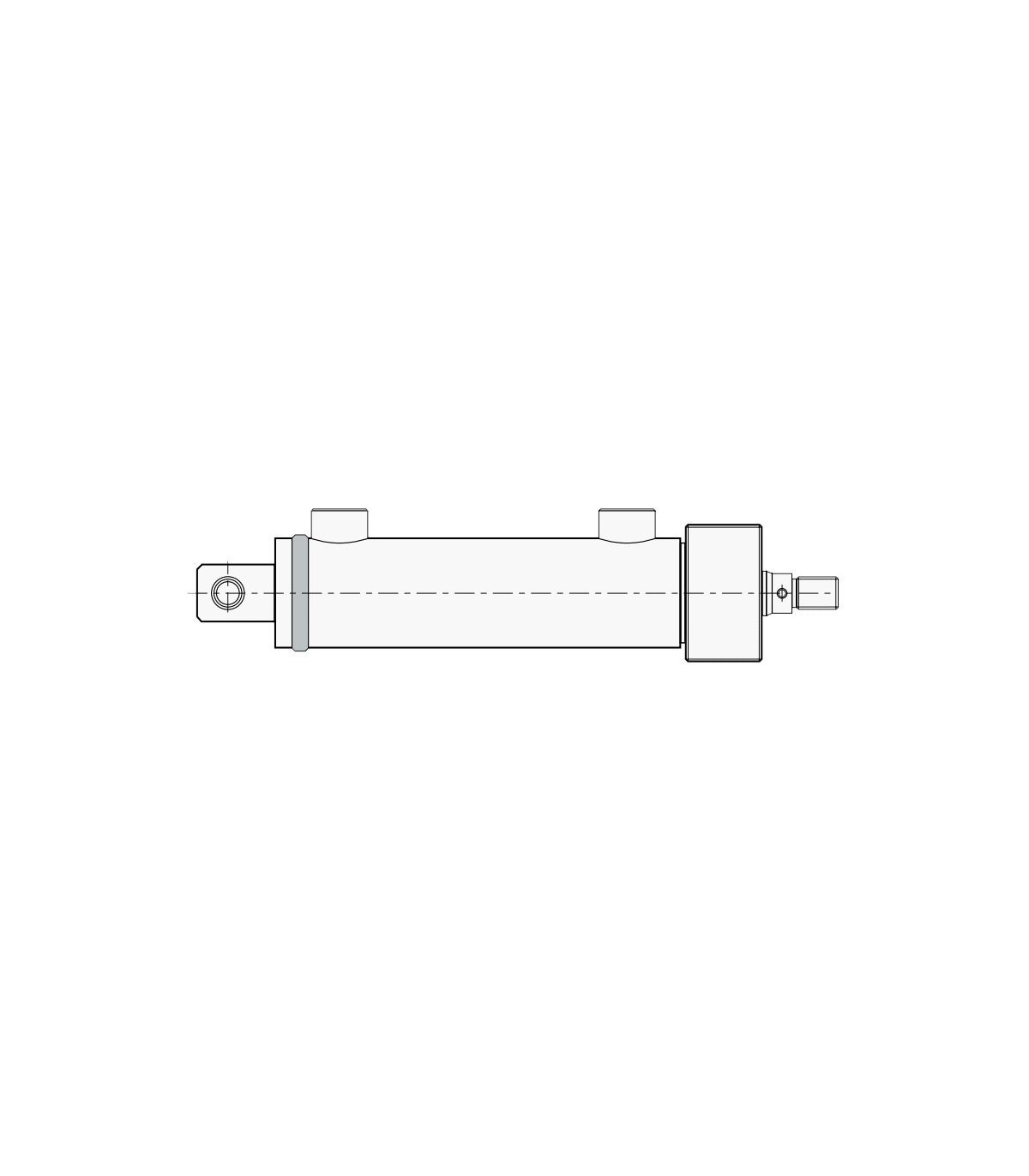

ISO-3322 HYDRAULIC CYLINDER REAR HINGE DS
The ISO-3322 DS back-hinged hydraulic cylinder is a specific type of linear actuator that uses hydraulic power to generate a linear stroke. It is used to apply force along a linear path. This power is obtained from a pressurized hydraulic fluid, usually oil. The back-hinged cylinder allows for more limited movement, although it is suitable for applications where linear motion with a specific orientation is required.
Technical sheet:
- Interchangeable dimensions: ISO-3322
- Working pressure 210 bar.
- Max pressure 250 bar.
- Available in diameters from 32 to 250 mm.
- Shirt in ST52.2 DIN-2391 lapping
- Stem: Ground F-114 steel.
- Max speed 0.5 m/s (standard joint) see other options.
- Temperature -20 / 80ºC
- Hydraulic fluid: Mineral oil ISO6743/4
- Various types of fixings.
Reference:
38020001
