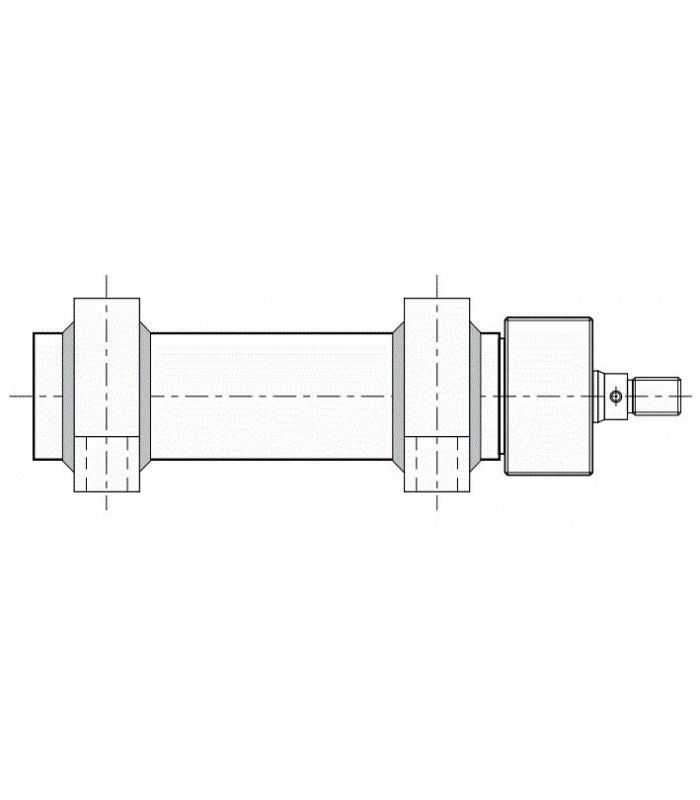

ISO-3322 HYDRAULIC CYLINDER SQUARE
The ISO-3322 ES bracket hydraulic cylinder incorporates an ES bracket, an additional element that allows the cylinder to be fixed to a surface and the force to be transmitted at a right angle.
Technical sheet:
- Interchangeable dimensions: ISO-3322
- Working pressure 210 bar.
- Max pressure 250 bar.
- Available in diameters from 32 to 250 mm.
- Shirt in ST52.2 DIN-2391 lapping
- Stem: Ground F-114 steel.
- Max speed 0.5 m/s (standard joint) see other options.
- Temperature -20 / 80ºC
- Hydraulic fluid: Mineral oil ISO6743/4
- Various types of fixings.
Reference:
38050000
ISO-3322 Hydraulic Cylinder, Square, ES
