SINGLE CONTACT 1/8"
SINGLE CONTACT 1/8"
SINGLE CONTACT 1/8"
SINGLE CONTACT 1/8"

SINGLE CONTACT 1/8"

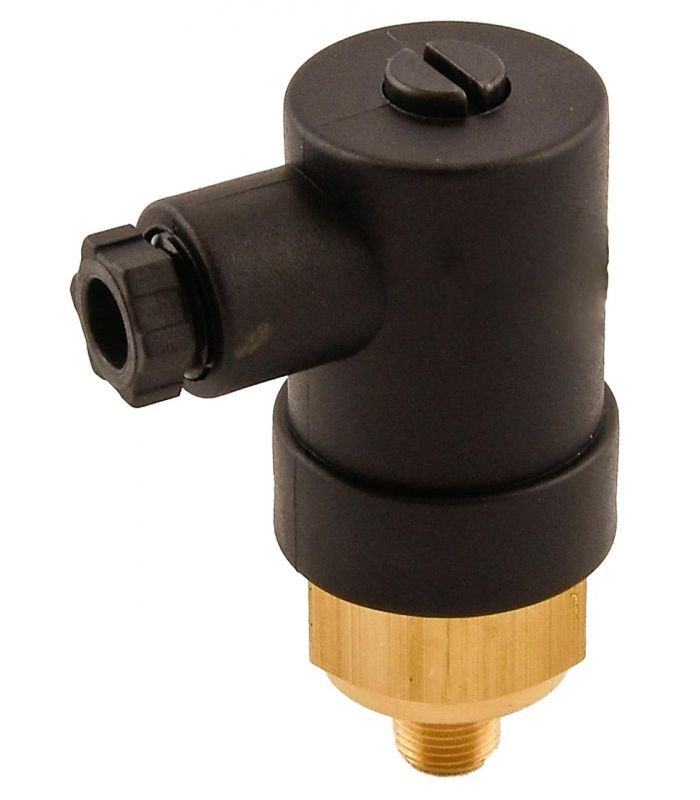

Single contact 1/8"

This is a small, specialized electrical connector for quickly and securely connecting cables or conductors with a diameter of 1/8 inch.

Its compact design allows it to be used in tight spaces. It offers a secure and long-lasting electrical connection.

Applications: Electronics, Automotive, Industry, Telecommunications.

Technical data sheet:

  • Thread: 1/8
  • Contact type: NO/NC
  • Maximum working voltage: 250 V.
  • Working temperature: -5ºC to 80ºC.
  • Adjustable pressure range: 1 - 10 bar.
  • Maximum pressure: 10 bar.
  • Body material: OT58 brass.
  • Membrane material: FKM.
  • Piston material: OT58 brass.
  • Fixed contact: Silver.
  • Mobile contact: Phosphor bronze, with silver pellet.
€30.25 (tax included)
€25.00 (tax excl.)
PRESSURE
  • 0.1 - 1 Bar
  • 1 - 10 Bar
  • 10 - 20 Bar
VOLTAGE/VOLUME
  • NOR. OPEN
  • NOR. CLOSED
Reference:
43480025
Description

Single contact 1/8"

Product Details
43480025
Comments
12 other products in the same category:
ADJUSTABLE SAFETY VALVE FOR WATER

€23.10 (tax excl.)
€27.95 (tax included)
The direct-action, flat-seat, spring- loaded safety valve is a device that relieves pressure in a system when it reaches a preset level. When the system pressure exceeds the valve's set pressure, the ball lifts off...
3-WAY BRASS BALL VALVE T-STOP

€34.80 (tax excl.)
€42.11 (tax included)
A 3-way brass T-port ball valve has three ports, allowing flow to be directed in different directions. It's ideal for mixing fluids or diverting flow to two outlets simultaneously. Common applications: Plumbing and...
SAFETY VALVE WITHOUT TARE 1/8" ADJUSTABLE 0.5-5 BAR

€5.50 (tax excl.)
€6.66 (tax included)
Safety valve without tare 1/8" adjustable 0.5-5 bar Automatically releases excess pressure in a system when the valve exceeds a preset value. Once the pressure drops below the set value, the valve closes...
BASE PLATE FOR 1/8"-1/4" VALVES

€11.20 (tax excl.)
€13.55 (tax included)
A 1/8" - 1/4" valve base plate is essential for pneumatic systems. It serves as a platform for neatly and securely mounting and connecting various valves, such as manifolds, regulators, and filters. It is often used...
FLOW REGULATOR WITH LOCK VALVE

€41.00 (tax excl.)
€49.61 (tax included)
The flow regulator with a shut-off valve allows the flow of a fluid (liquid or gas) circulating through a pipe to be controlled and adjusted. It also allows the flow of the fluid to be completely interrupted by means...

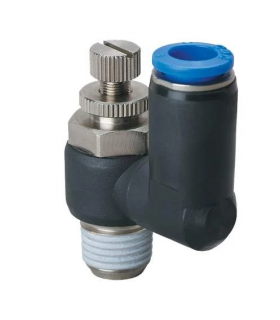

UNIDIRECTIONAL FLOW REGULATOR ADJUSTABLE 360º
