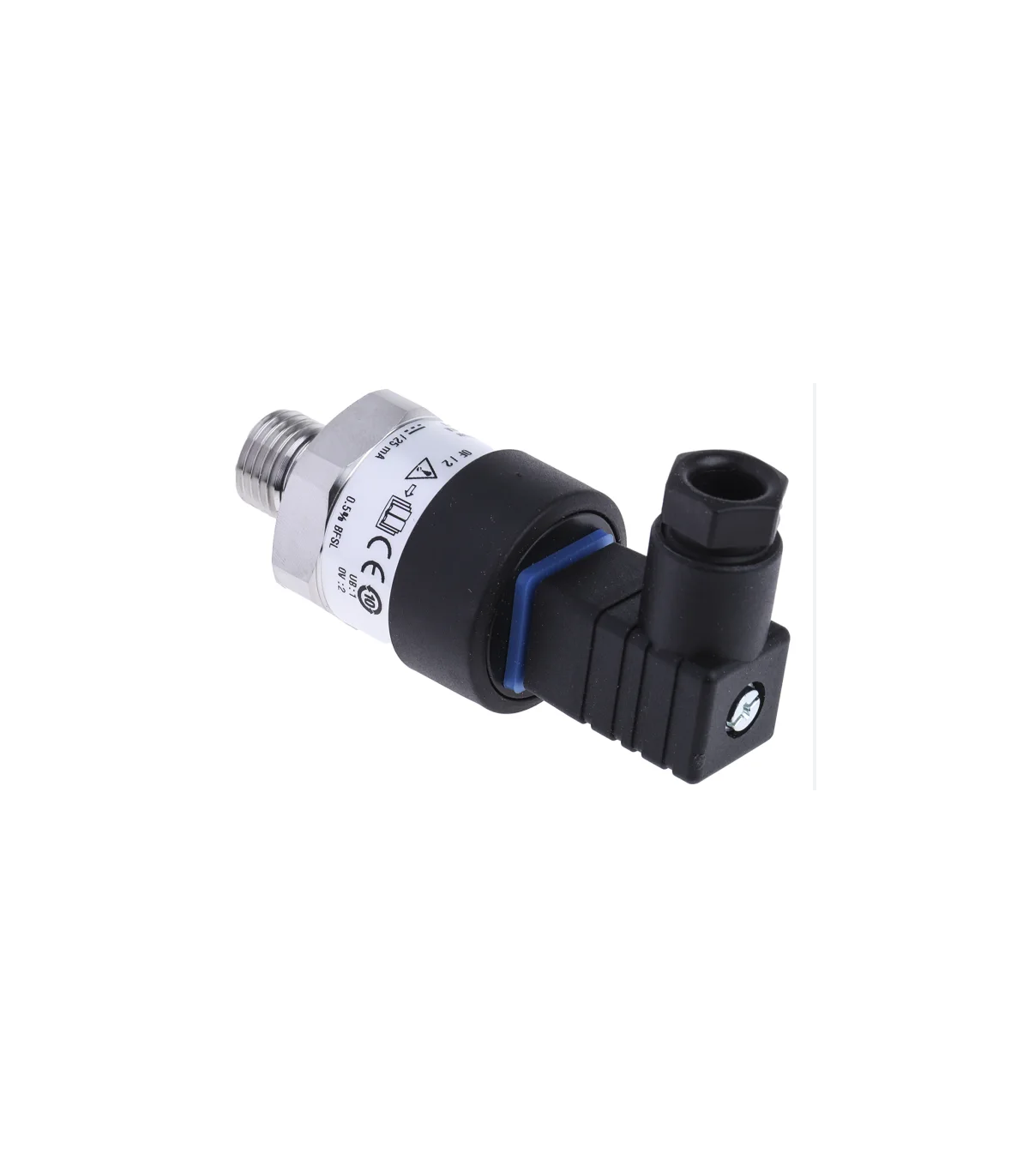

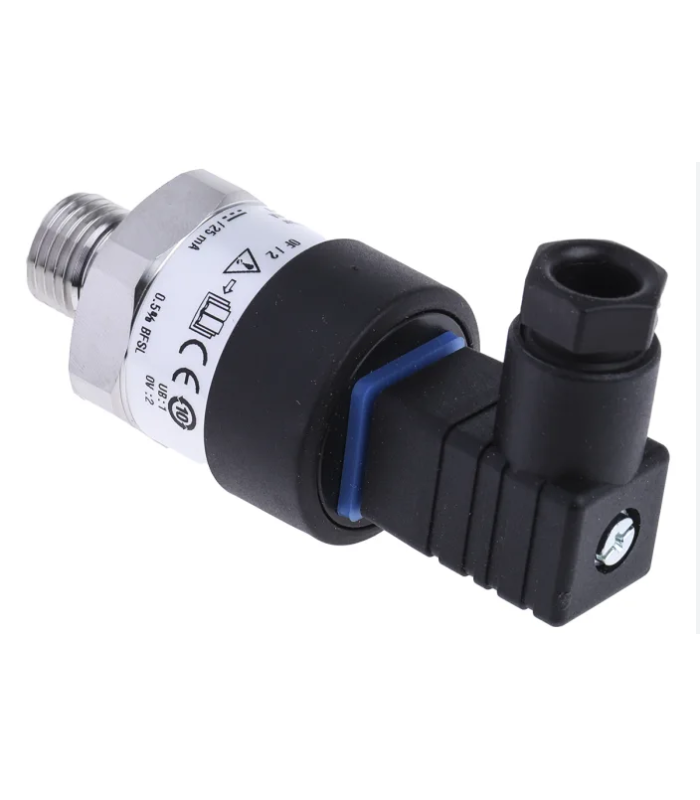

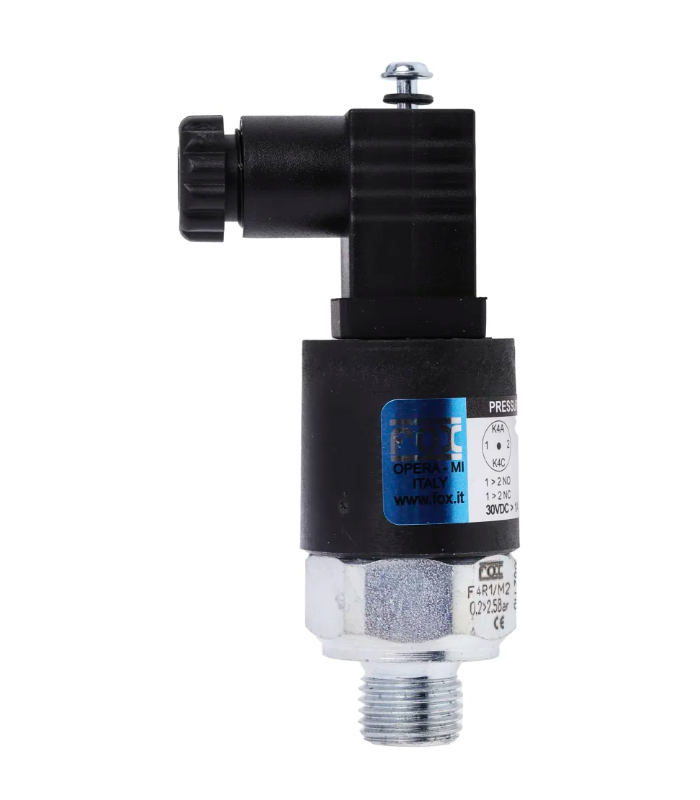

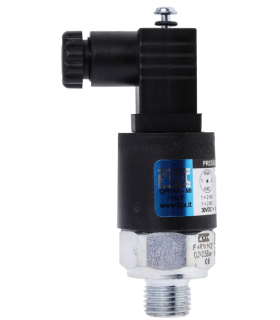

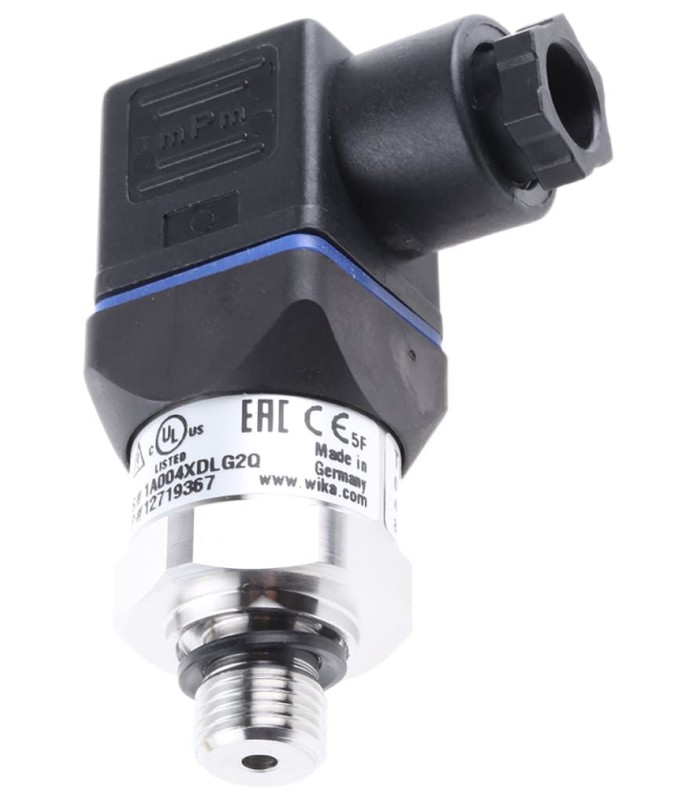

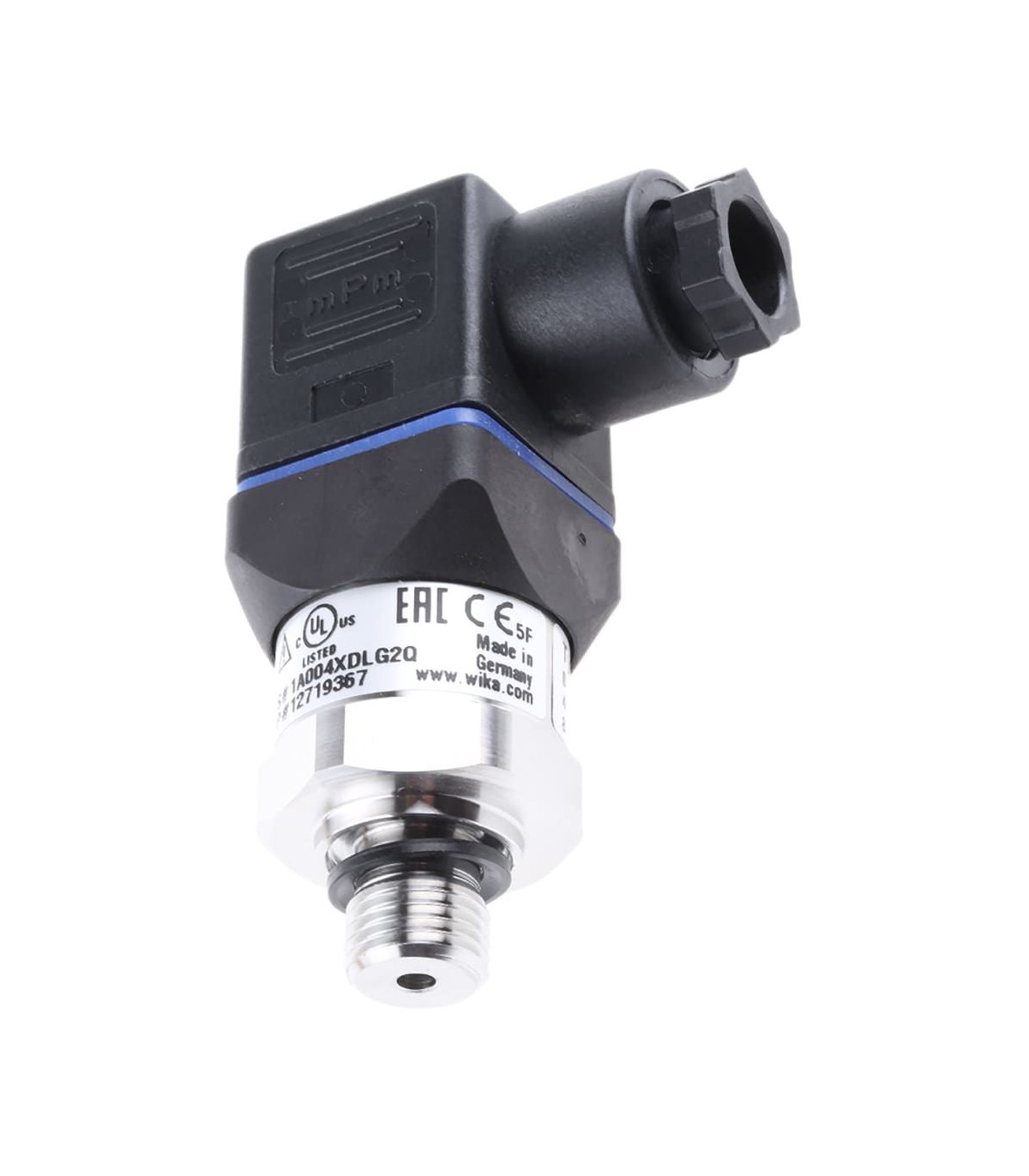

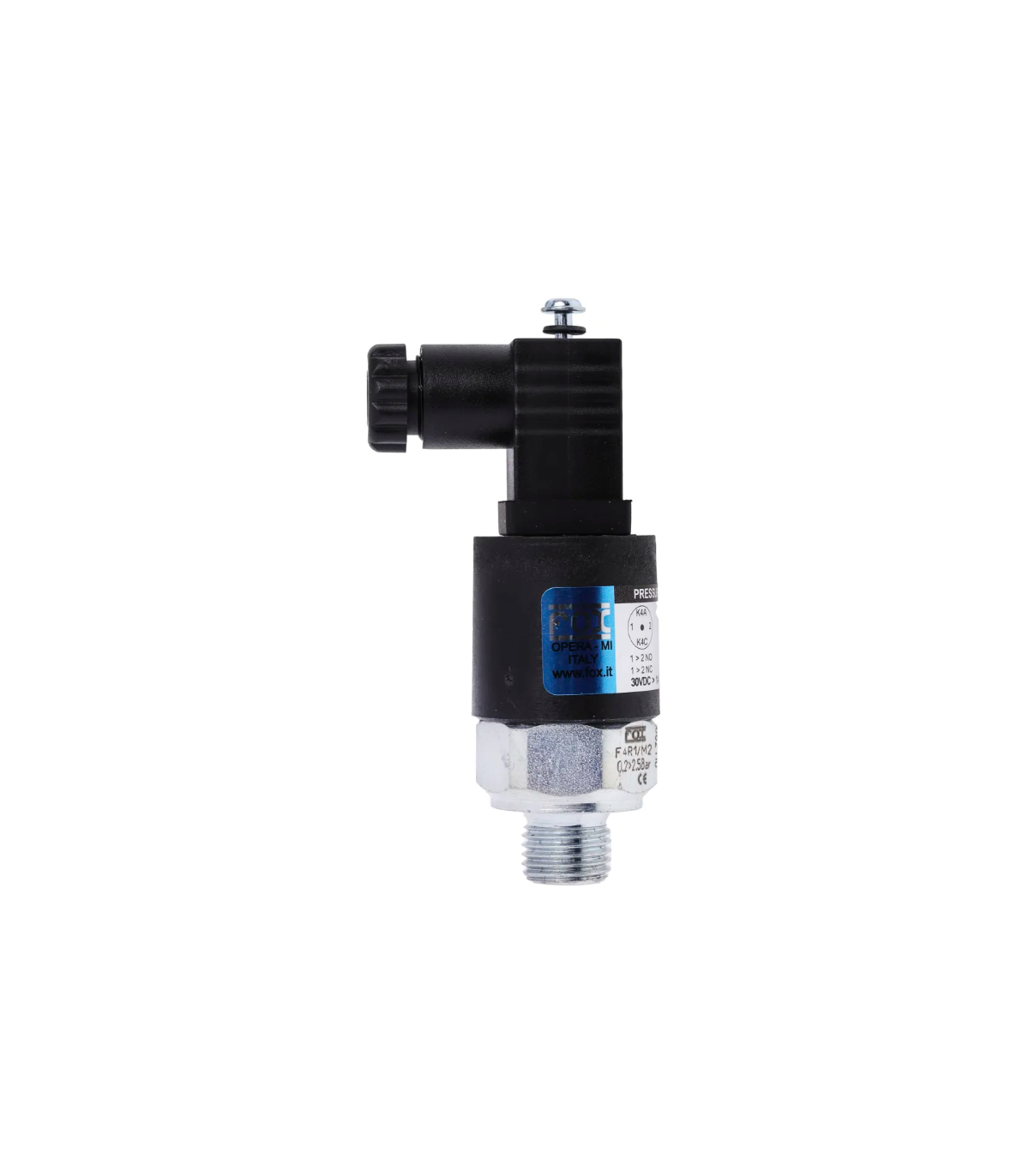

1/8" SWITCHED PRESSURE SWITCH

A 1/8" T-15 connector switching pressure switch is an electromechanical device used to detect changes in fluid pressure (air or liquid) and activate or deactivate an electrical circuit in response to these changes.

Applications: industrial automation, pneumatics, hydraulics, refrigeration, heating.

Technical specifications:

• Adjustable from 1-12 bar.
• Normally closed or open position depending on the cable connection.
• Pressure regulation via Allen screw.
• Suitable for water/oil.
• Accuracy of 4% of the pre-set pressure.
• Hysteresis 10%
• Max. inlet pressure 25 bar.
• Maximum current AC 0.5 A (250V) DC 0.15 A (110V)
• IP-54 protection
• Operating temperature -20/50ºC
