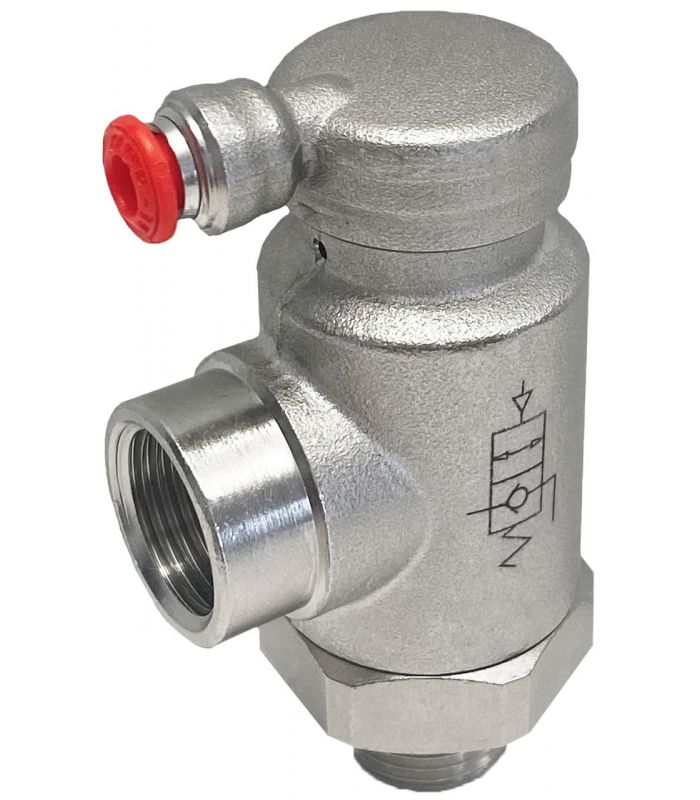

ONE WAY LOCK VALVE

One-way lock valve

Locking valves are pneumatically piloted devices for controlling the movement of a cylinder.
Mounted directly on the cylinder inlet and outlet, they allow the cylinder stroke to be blocked in the event of a drop in pilot pressure.
They are used as safety systems. In the event of an emergency stop, a broken tube or a lack of air, they block the devices moving along the cylinder, preventing damage to them or risks to the operators.
It can be used to stop a cylinder in any intermediate position if required.

Technical data sheet:

• Nominal flow rate (6 bar)-1/8 = 750 Nl/min

1/4 = 1420 Nl/min

• Fluids: Filtered air lubricated or non-lubricated
• Minimum temperature: -20 °C
• Maximum temperature: +80 °C
• Minimum pressure: 0.3 bar
• Maximum pressure: 10 bar (1 MPa)
• Pilotage Tube Ø4 or M-5
