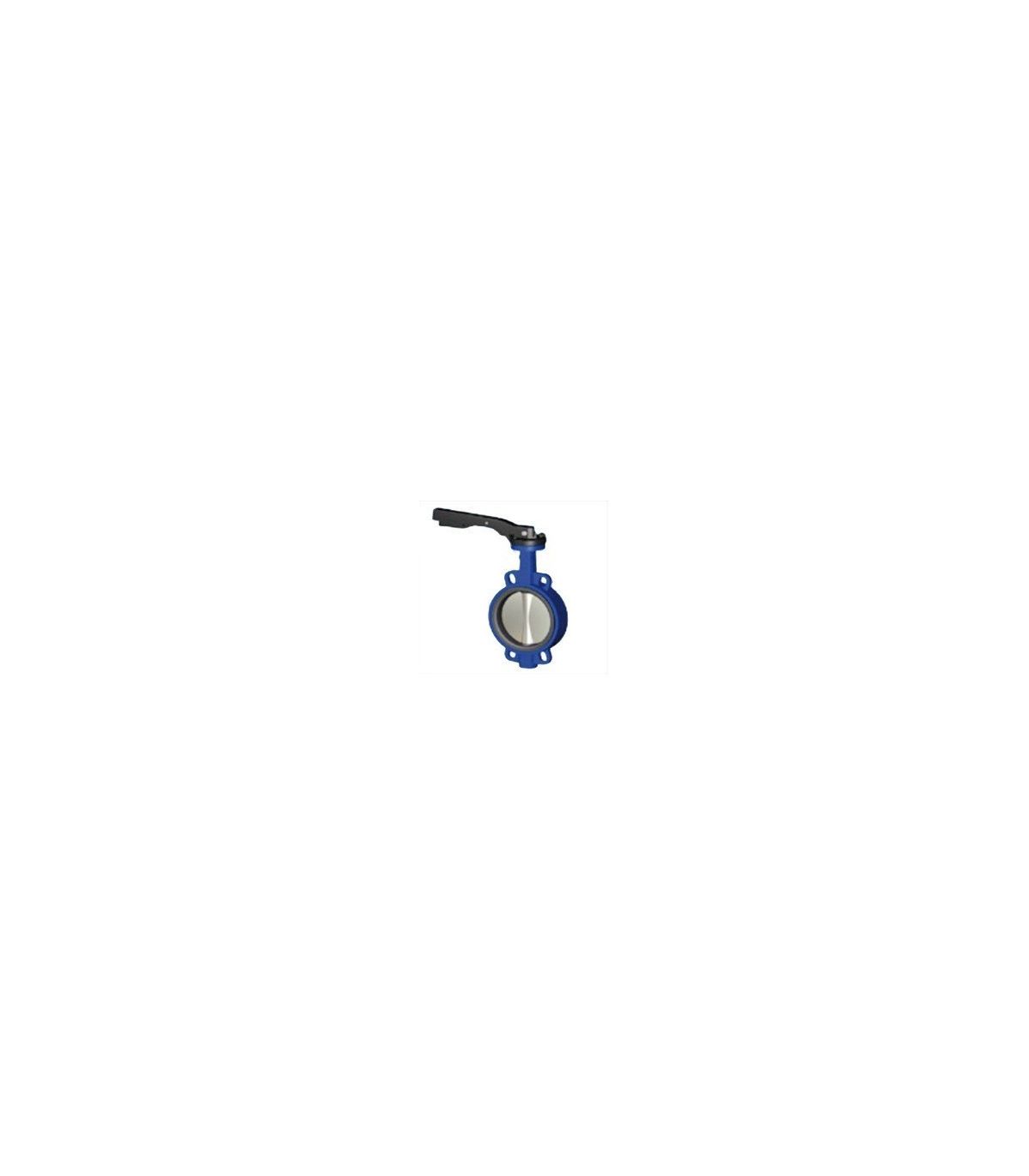

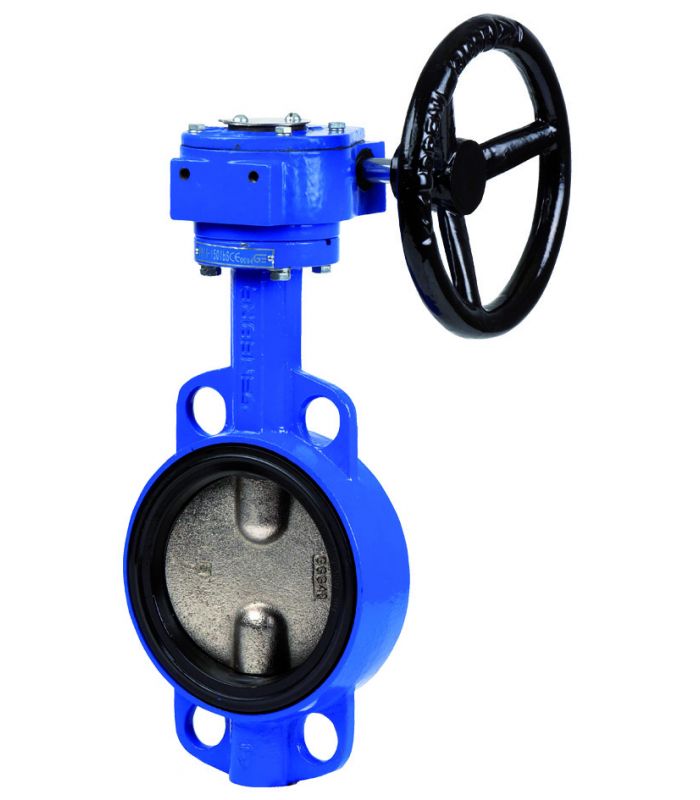

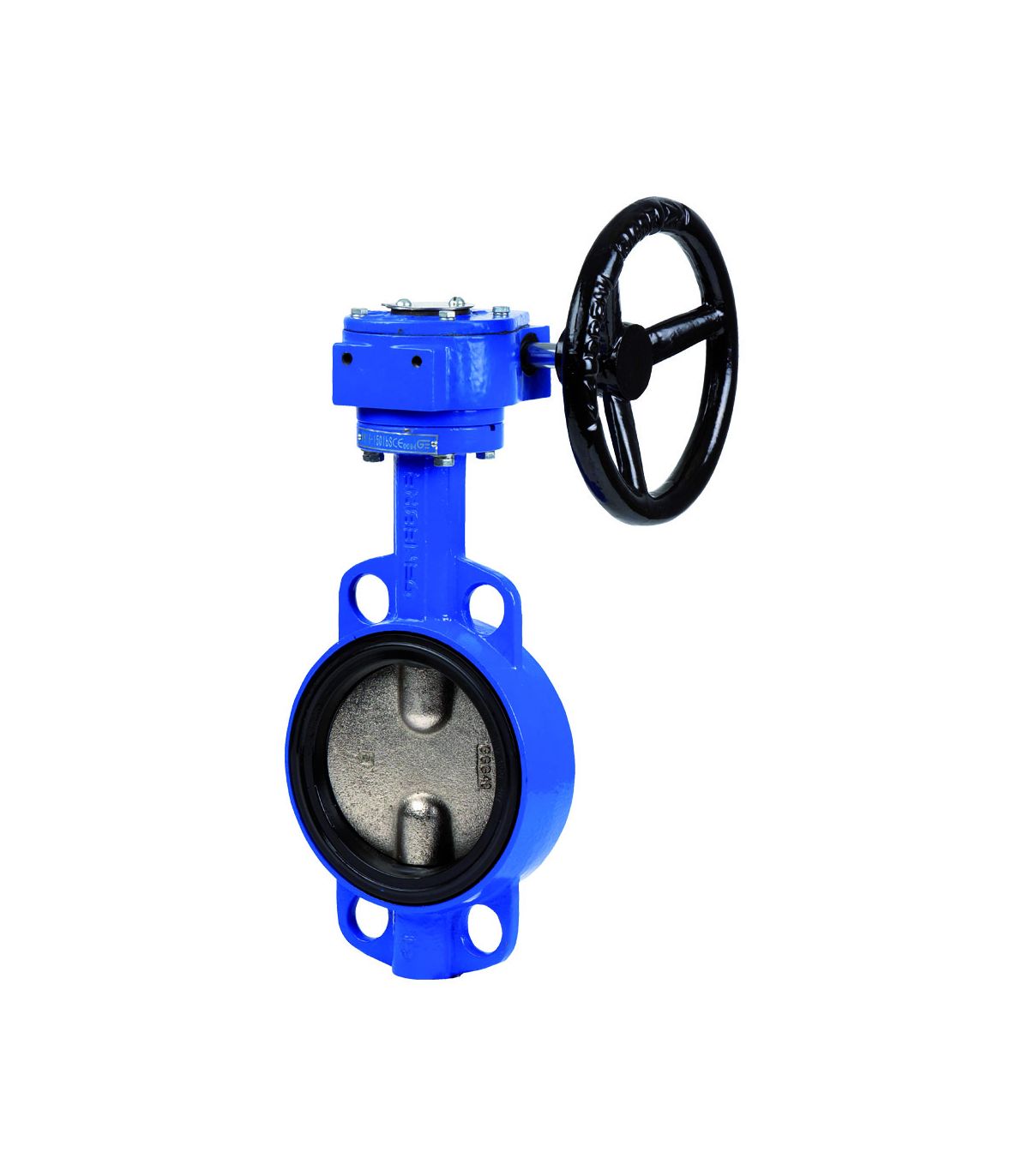

WAFER DISC CAST IRON BUTTERFLY VALVE
WAFER DISC CAST IRON BUTTERFLY VALVE
WAFER DISC CAST IRON BUTTERFLY VALVE
WAFER DISC CAST IRON BUTTERFLY VALVE
WAFER DISC CAST IRON BUTTERFLY VALVE
WAFER DISC CAST IRON BUTTERFLY VALVE

WAFER DISC CAST IRON BUTTERFLY VALVE

The cast iron wafer disc butterfly valve has the function of regulating the passage of liquids or gases through a pipe.

Applications: Drinking and wastewater systems, Chemical and petrochemical industry, Food industry, Air conditioning systems, Paper industry.

Technical specifications:

  • Manufactured in gray cast iron DN50-DN150 GG25 and ductile iron
  • Epoxy paint coating
  • Chrome-plated ductile iron disc EN-GJS-400
  • Seat material: EPDM
  • Maximum working pressure: 16 bar
  • DIN PN10-16 ANSI 125-150
  • Operating temperature -20ºC / +120ºC
  • Flange for mounting on ISO-5211 actuator
  • Lever up to 10", 12" and 14" manual reducer.
€58.08 (tax included)
€48.00 (tax excl.)
DN
  • DN-50
  • DN-65
  • DN-80
  • DN-100
  • DN-125
  • DN-150
  • DN-250
  • DN-200
  • DN-300
Reference:
25180041
Description

wafer disc cast butterfly valve

Code Measurement (inches) DN L H H1 W ØD
25180041 2" 50 43 25 131 170 125
25180046 2-1/2" 65 46 25 142 170 145
25180049 3" 80 46 25 150 170 160
25180052 4" 100 52 28 170 215 180
25180064 5" 125 56 28 185 215 210
25180055 6" 150 56 28 205 215 240
25180056 8" 200 60 30 240 265 295
25180057 10" 250 68 35 270 350 350
25180058 12" 300 78 38 310 350 400
