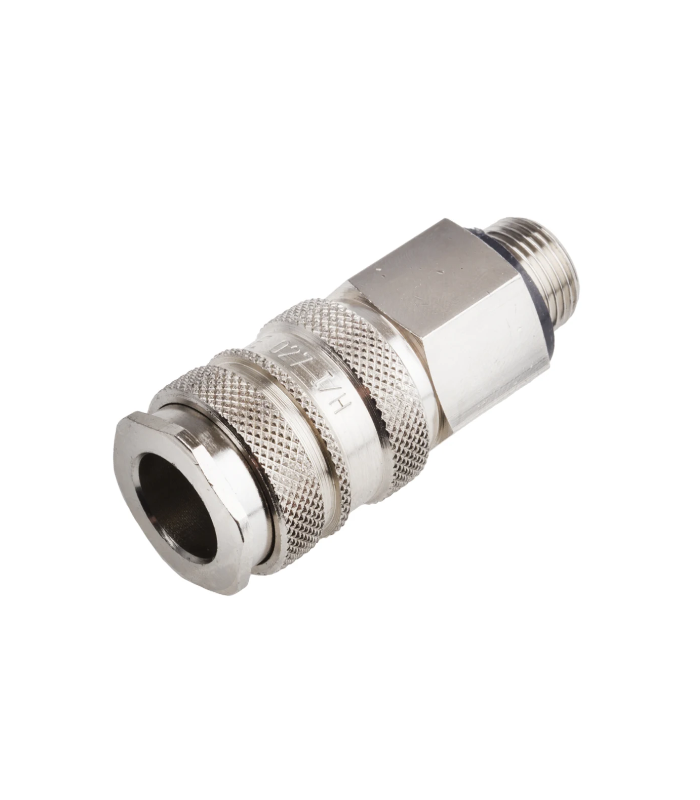

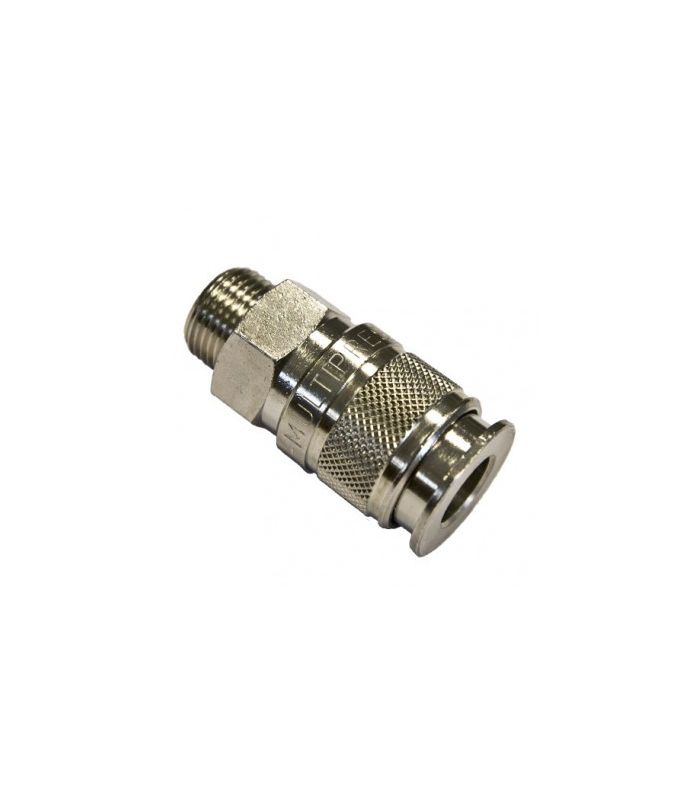

QUICK MALE MULTI-PRESS PLUG

Multi-plug male quick connector

It is a pneumatic connector designed to facilitate the quick connection and disconnection of adapters in pneumatic or fluid systems.

It incorporates a spring and ball system that ensures a secure and watertight connection.

Applications: industry, pneumatics, laboratories.

Technical data sheet:

Nickel-plated steel body.
Stainless steel spring and balls.
Interchangeable with RECTUS 22-23-24-26, CEJN 300-310-320, PARKER 30-50, ARO 210.
Working temperature -15ºC / 80ºC
Max. pressure 16 bar.
DN-5.5 mm
High air flow.

€5.66 (tax included)

€4.68 (tax excl.)

SELECT THE THREAD

1/8"
1/4"
3/8"
1/2"

Reference:

13000008

Description
Comments

Description

Multi-plug male quick connector

Product Details

Reference 13000008

Data sheet

PLUG TYPE: Universal

Comments
