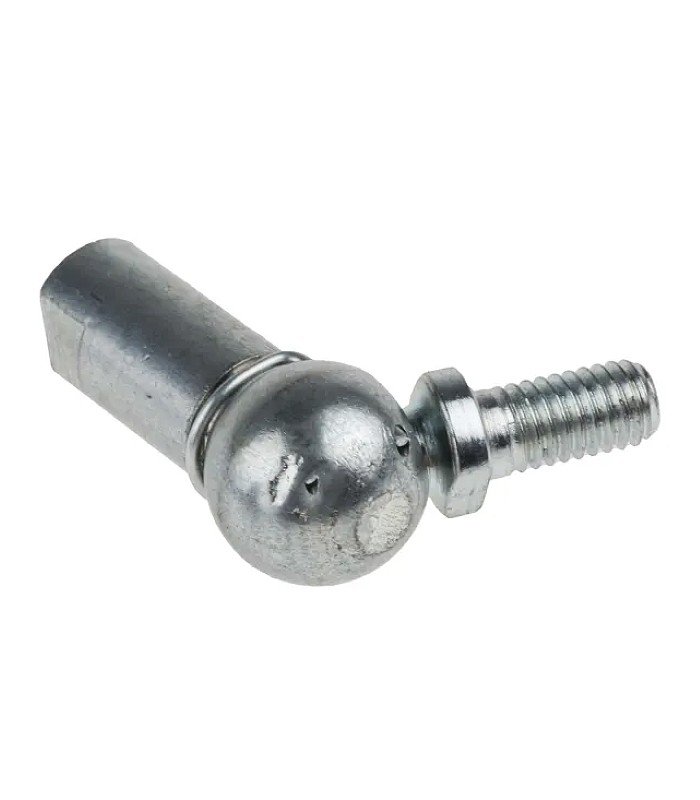

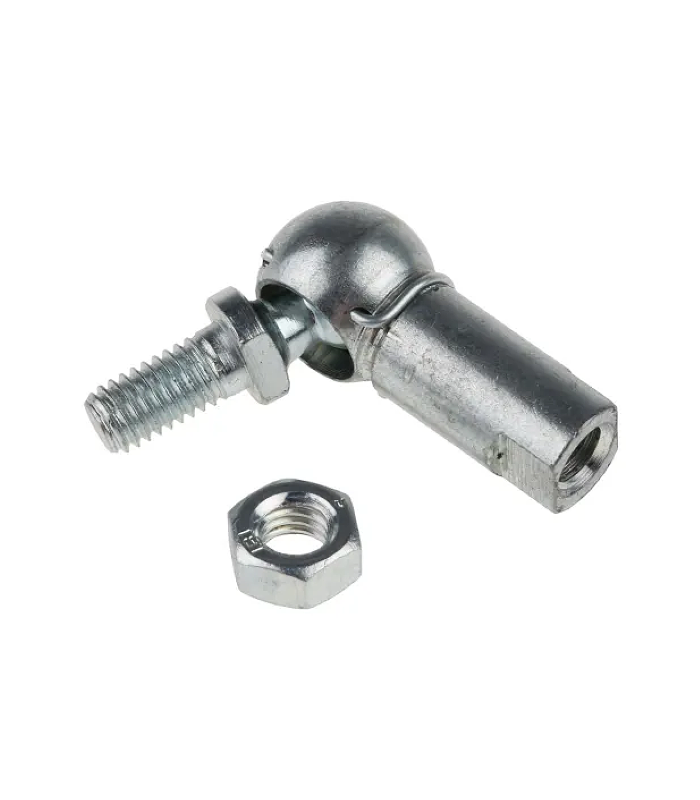

ANGULAR JOINT

An angle joint for cylinders is a mechanical component designed to connect the rod or body of a cylinder to another element of a system, allowing a turning or pivoting movement.

Applications: Industrial machinery, Packaging systems, Handling equipment, Agricultural and construction machinery.

Technical sheet:

  • Standard Din-71802
  • Made of galvanized steel.
  • A version with a safety ring is available. Request information.
€6.05 (tax included)
€5.00 (tax excl.)
SELECT THE THREAD
  • M5
  • M6
  • M8
  • M10 x 150
Reference:
55140002
Description

angular joint

ARTICULACION ANGULAR

Product Details
55140002
Comments
