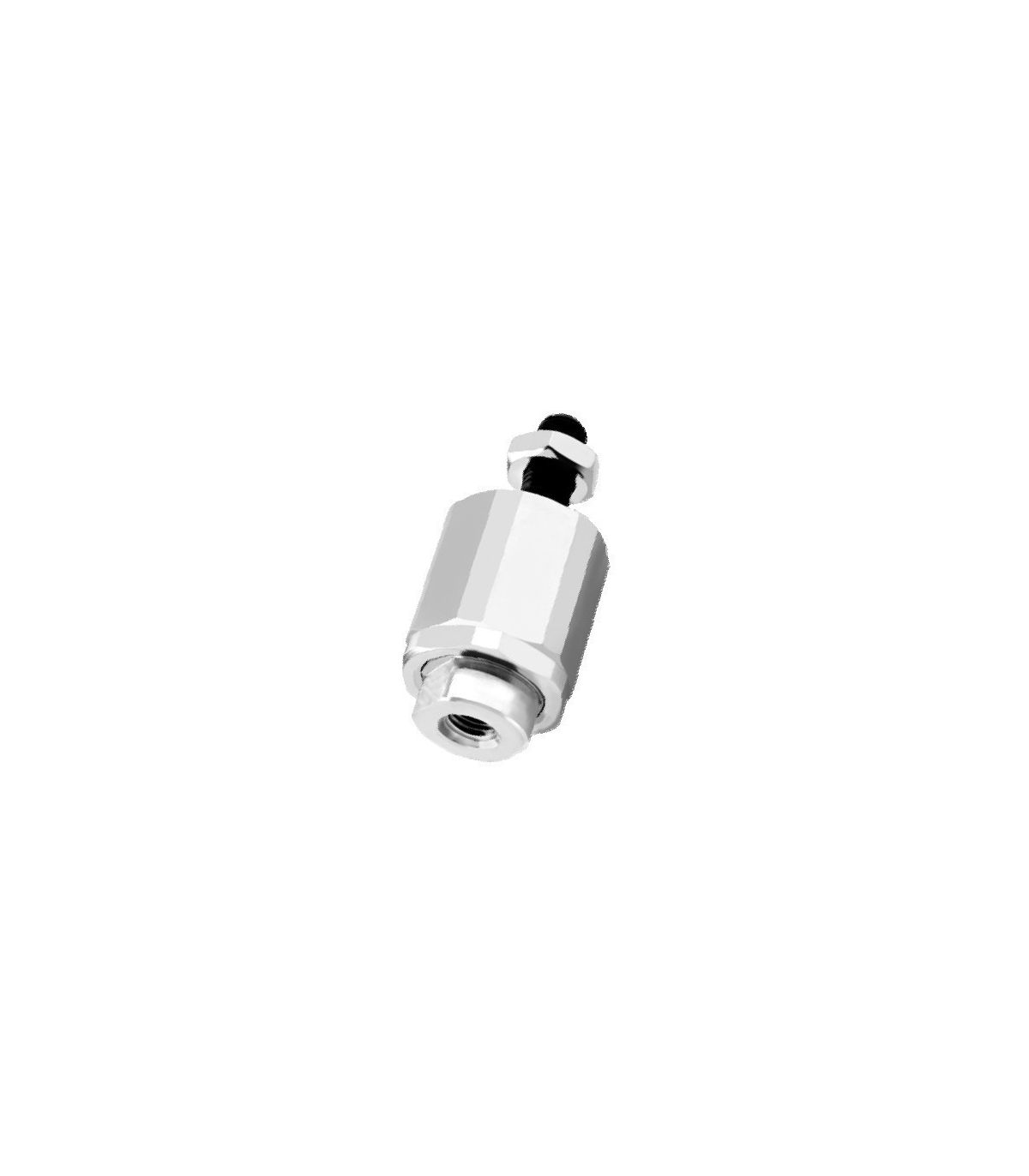

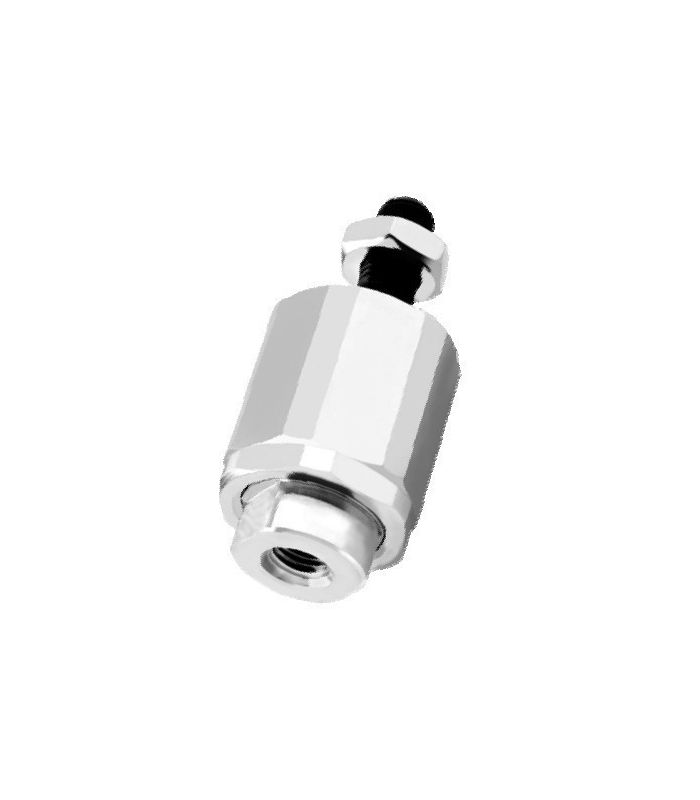

COMPENSATING BALL ALIGNMENT ISO 15552

Alignment compensating ball joint.
Prevents breakage of the cylinder rod in case of misalignment.
Made of galvanized steel.
Steel ball joint and bearing.
Angular movement 10º
Radial tolerance up to 2 mm.
Selection by cylinder diameter.

€27.13 (tax included)

€22.42 (tax excl.)

DIAMETERS

Reference:

53330031

Description
Comments

Description

ROTULA COMPENSADORA ALINEAMIENTO

Product Details

Reference 53330031

Comments
