FIXING FOR ISO-6432 GUIDE

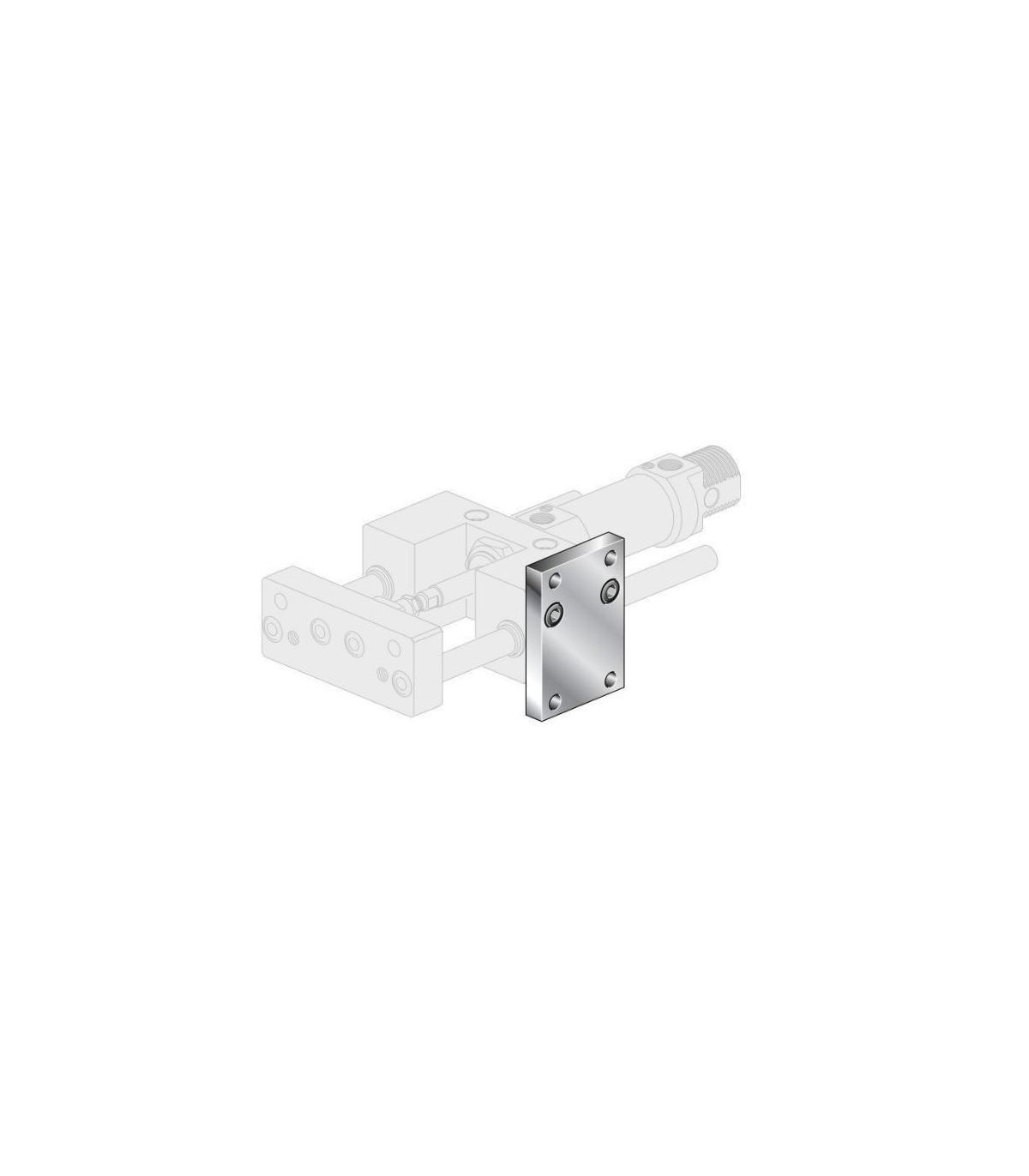

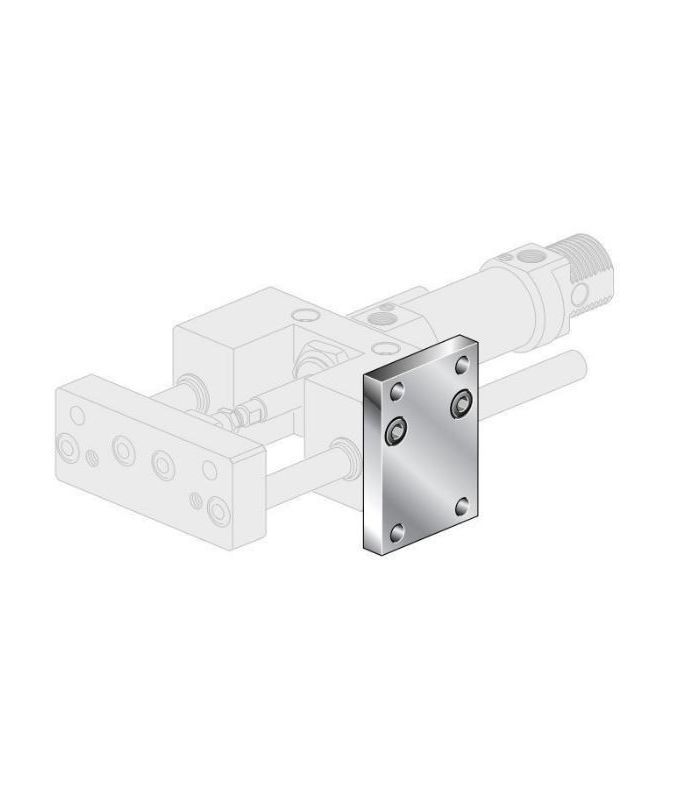

An ISO-6432 guide bracket is used to mount an external guide unit directly onto an ISO 6432 pneumatic cylinder. Its purpose is to create a robust and aligned connection between the cylinder and the guide system, ensuring that both components work together.

Applications: Pick & Place Systems, Assembly Machines, Positioning Systems, Tools, Compact Machinery.

Technical sheet:

Fixing for anchoring the guide unit in ISO-6432 cylinders.
Available for Ø 20 and Ø 25mm.
Constructed of galvanized steel.
2 fixing holes.

€14.66 (tax included)

€12.12 (tax excl.)

DIAMETERS

Ø 20
Ø 25

Reference:

53900021

Description
Comments

Description

fixing for ISO-6432 guide

Product Details

Reference 53900021

Comments
