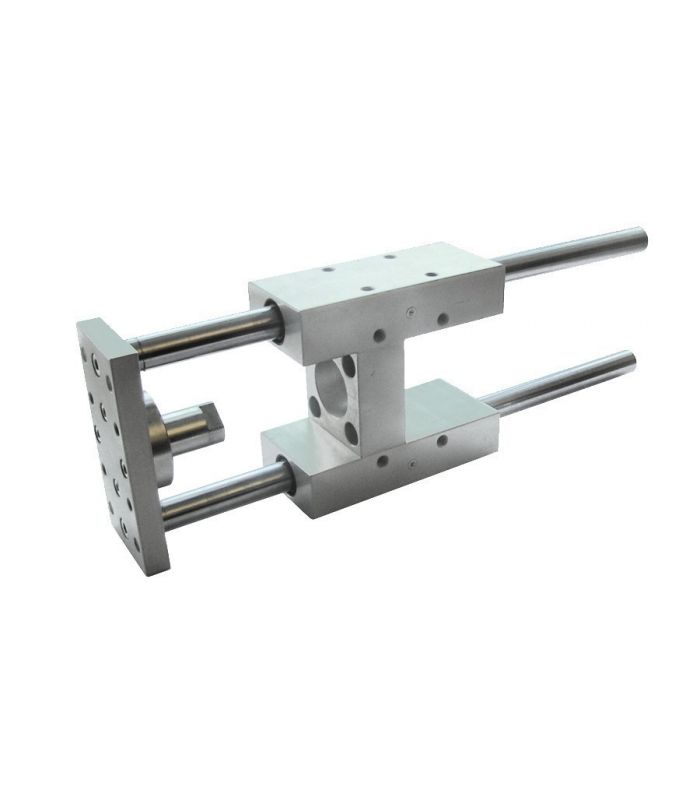

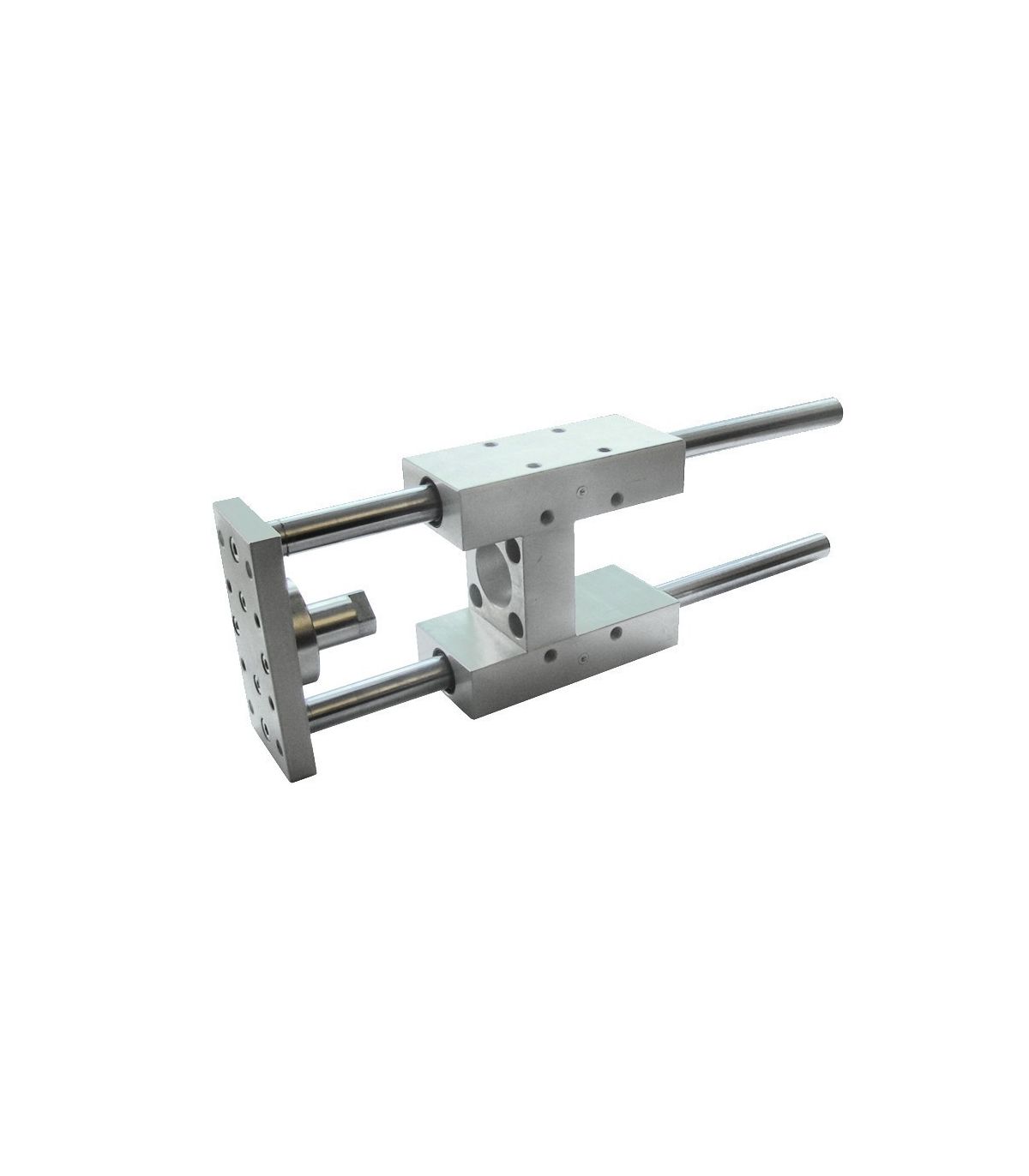

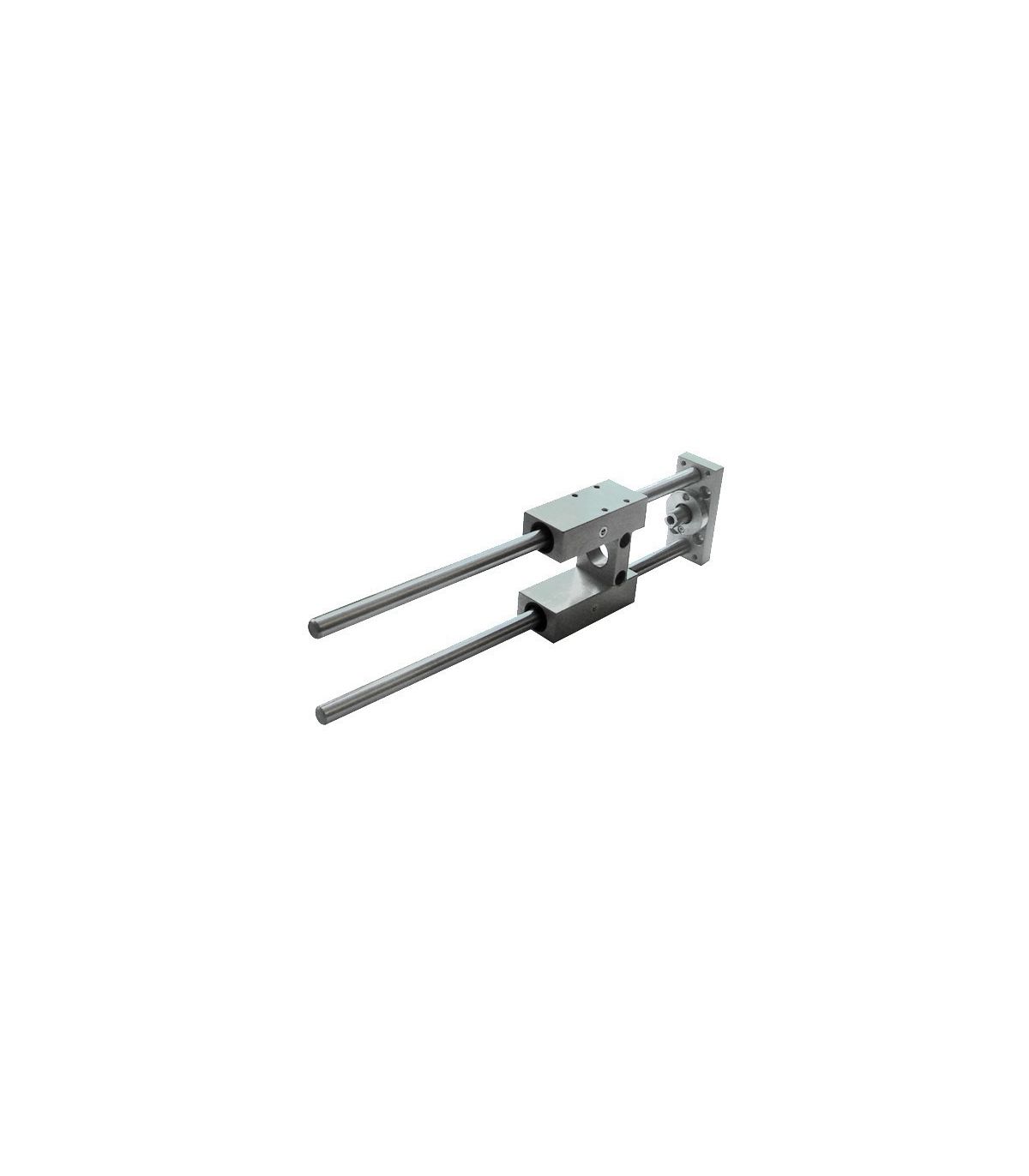

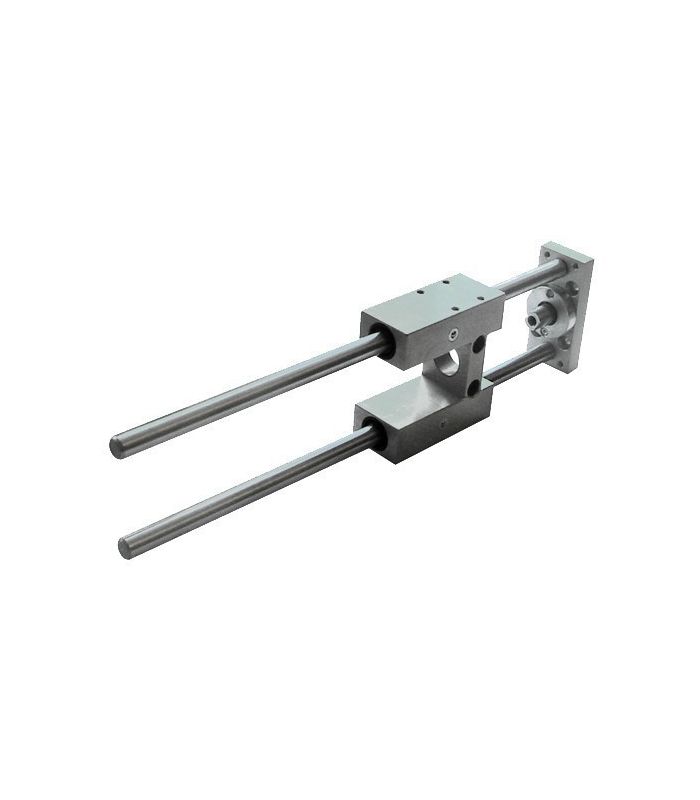

GUIDED UNIT H BUSHINGS ISO-6432
GUIDED UNIT H BUSHINGS ISO-6432
GUIDED UNIT H BUSHINGS ISO-6432
GUIDED UNIT H BUSHINGS ISO-6432

GUIDED UNIT H BUSHINGS ISO-6432

An ISO-6432 H-bearing guiding unit is designed to provide precise and stable guiding to pneumatic cylinders that comply with ISO 6432.

It is used in a wide range of industrial automation and specialized machinery applications.

Technical data sheet:

  • Max speed 1 m/s
  • Fluid: Filtered, lubricated or NOT neutral air or gas
  • Allowable pressure: 10 bar maximum
  • Temperature: - 10ºC / + 70ºC
  • Minimum stroke: 10 mm
* CHECK PRICES FOR OTHER COURSES *
€212.42 (tax included)
€175.55 (tax excl.)
BORE x STROKE
  • Ø16-50
  • Ø16-100
  • Ø16-160
  • Ø16-200
  • Ø20-50
  • Ø20-100
  • Ø20-160
  • Ø20-200
  • Ø20-250
  • Ø20-320
  • Ø25-50
  • Ø25-100
  • Ø25-160
  • Ø25-200
  • Ø25-250
  • Ø25-320
  • Ø25-400
  • Ø25-500
Reference:
53260021
Description

H-guided unit ISO-6432 bushings

GUIDANCE UNIT

  • Monobloc assembly, metal body (anodized aluminum)
  • Silver grey or black color
  • 4 self-lubricating sintered bronze plain bushings
  • 2 chrome-plated steel guide columns
  • Scraper seals at the level of the guide columns
  • High quality components

FEATURES:

  • High permissible loads
  • High guiding precision
  • Great robustness of the set
  • Coupling the cylinder rod in the guide unit by
  • Alignment compensation device.
  • ADAPTABLE CYLINDER
  • ISO 6432 standard

Product Details
53260021
