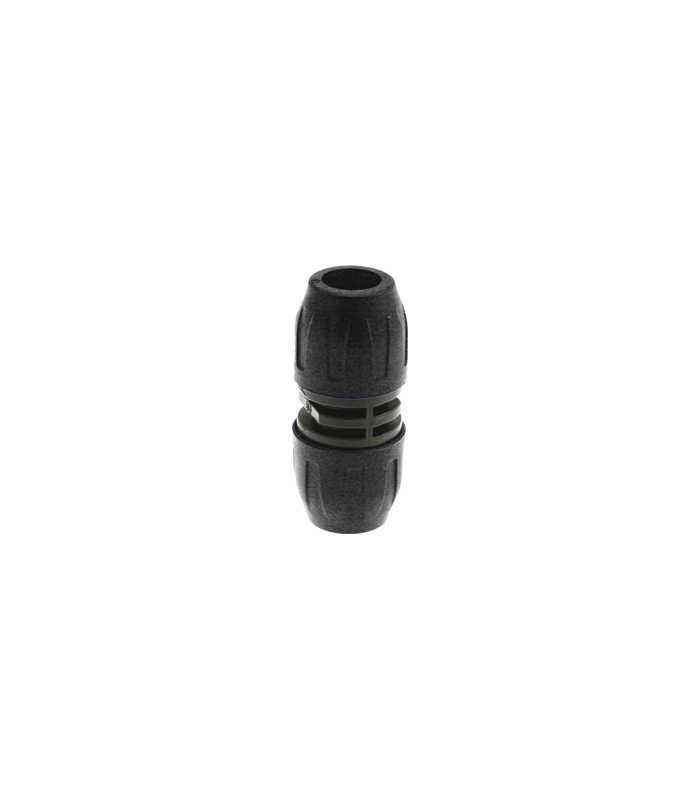

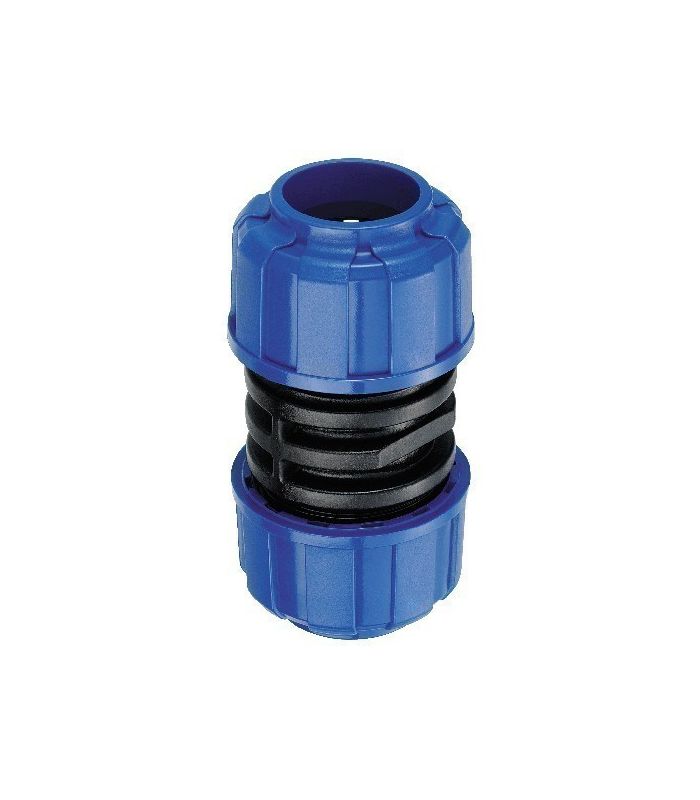

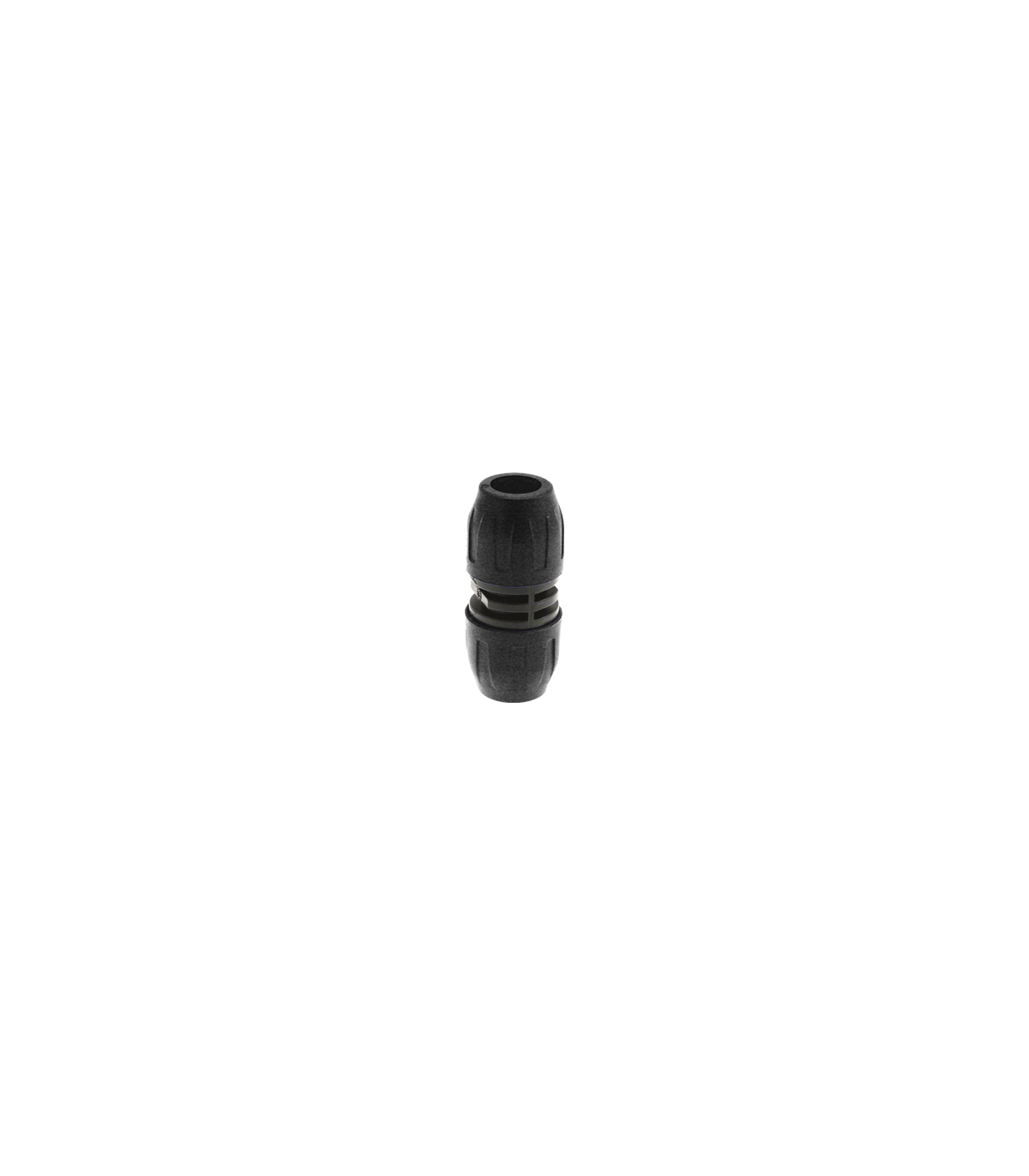

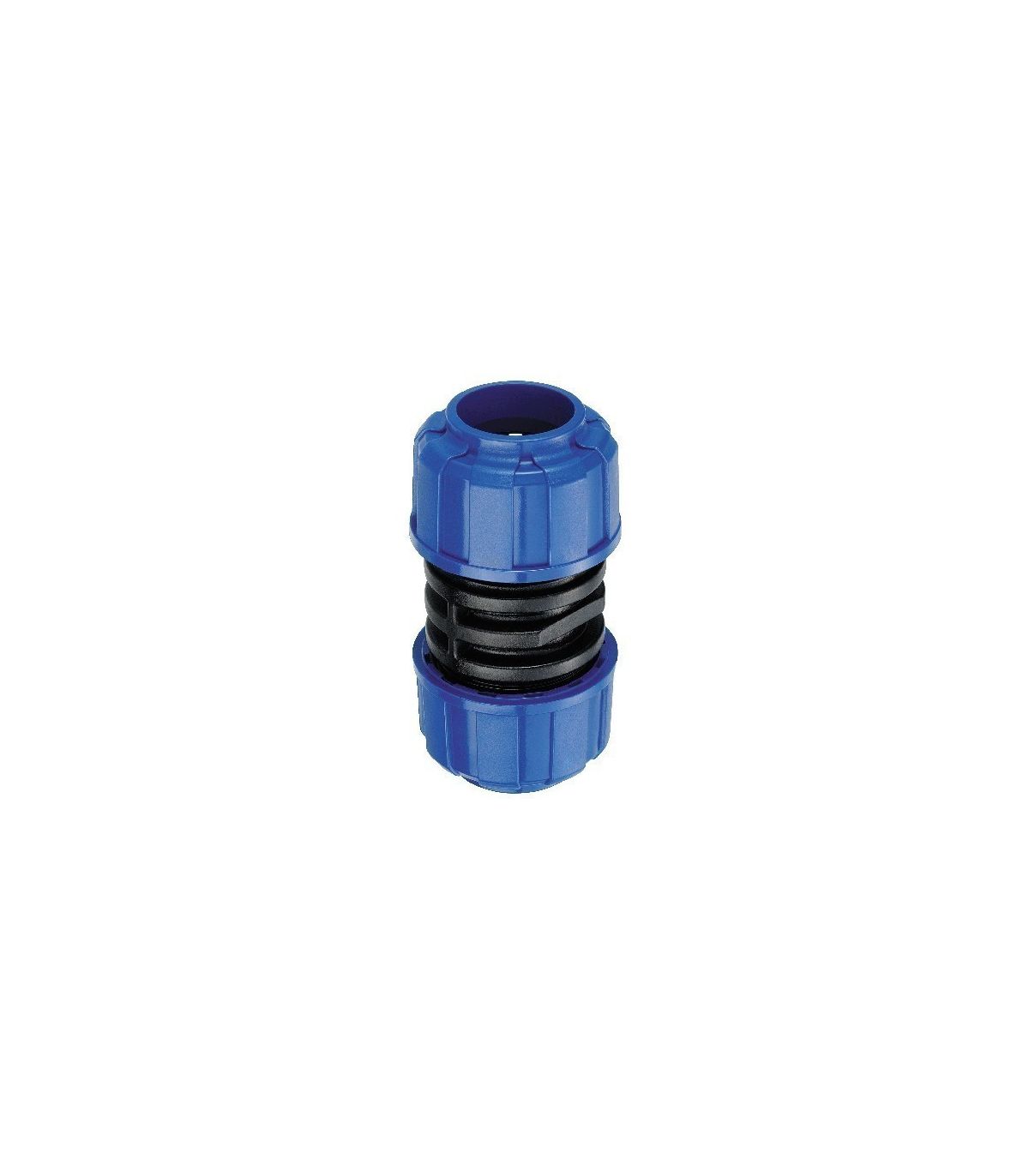

STRAIGHT PIPE CONNECTION FOR AIR NETWORKS
STRAIGHT PIPE CONNECTION FOR AIR NETWORKS
STRAIGHT PIPE CONNECTION FOR AIR NETWORKS
STRAIGHT PIPE CONNECTION FOR AIR NETWORKS

STRAIGHT PIPE CONNECTION FOR AIR NETWORKS

Straight pipe fitting for compressed air networks

A straight tube fitting for compressed air networks is a pneumatic connector used to join two tubes in alignment, allowing the continuity of airflow without changes in direction.

Main features:

  • Technopolymer fitting (stainless steel ring)
  • Suitable for: Compressed air, inert gases, vacuum.
  • Temperature -30ºC / 80ºC
  • Available diameters 16-20-25-32-40-50-63
  • Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
  • Easy assembly.

DEMO VIDEO

€8.25 (tax included)
€6.82 (tax excl.)
DIAMETERS
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
Reference:
14010002
Description

Straight pipe fitting for compressed air networks

A straight pipe fitting for compressed air networks is designed to connect two sections of pipe of the same diameter in a straight line, ensuring a leak-proof, quick and secure joint within compressed air installations.

Main features

  • Straight splice: maintains the circuit direction without deviations.
  • Tube connection: compatible with pneumatic tubes (PU, PA, PE or others).
  • Quick (instant) connection system.

Applications

  • Industrial compressed air networks
  • Pneumatic automation
  • Maintenance and expansion of facilities
  • Repair or extension of pneumatic lines

Technical data sheet for a straight pipe splice for air networks:

Code D L AND C
14010024 16 81 37 38
14010012 20 98 45 48
14010002 25 106 51 52
14010003 32 124 61 62
14010004 40 142 75 70
14010005 50 161 87 79
14010046 63 170 108 80.5
