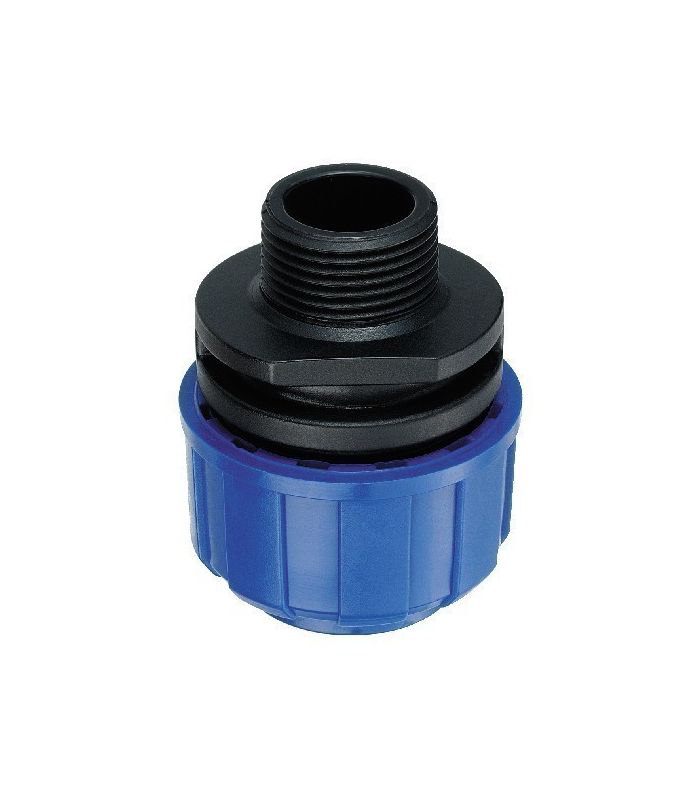

Straight union for tapered threaded pipe for networks
A straight pipe-to-conical thread union for networks is a connection fitting used to join a pipe with a threaded component in fluid networks, ensuring a leak-proof and straight connection thanks to its conical thread.
Applications: Water networks, Pneumatic systems, Hydraulic circuits, Gas installations.
Main features :
A straight pipe-to-tapered threaded coupling for networks is a fitting designed with one end for pipe connection and one end with a tapered thread, which creates a seal by tightening the thread when screwed onto the corresponding component. It is primarily intended for water, air, gas, or industrial fluid systems.
Technical data sheet for a straight pipe-to-conical threaded union for networks:
| Code | D | d | L | AND | C |
| 14070055 | 16 | 1/2" | 64 | 37 | 38 |
| 14070037 | 20 | 1/2" | 68 | 45 | 48 |
| 14070038 | 20 | 3/4" | 68 | 45 | 48 |
| 14070040 | 25 | 1/2" | 71 | 51 | 52 |
| 14070041 | 25 | 3/4" | 73 | 51 | 52 |
| 14070042 | 25 | 1" | 76 | 51 | 52 |
| 14070046 | 32 | 1" | 85 | 61 | 62 |
| 14070047 | 32 | 1-1/4" | 87 | 61 | 62 |
| 14070048 | 40 | 1-1/4" | 97 | 75 | 70 |
| 14070049 | 40 | 1-1/2" | 98 | 75 | 70 |
| 14070050 | 50 | 1-1/2" | 108 | 87 | 79 |
| 14070051 | 50 | 2" | 111 | 87 | 79 |
