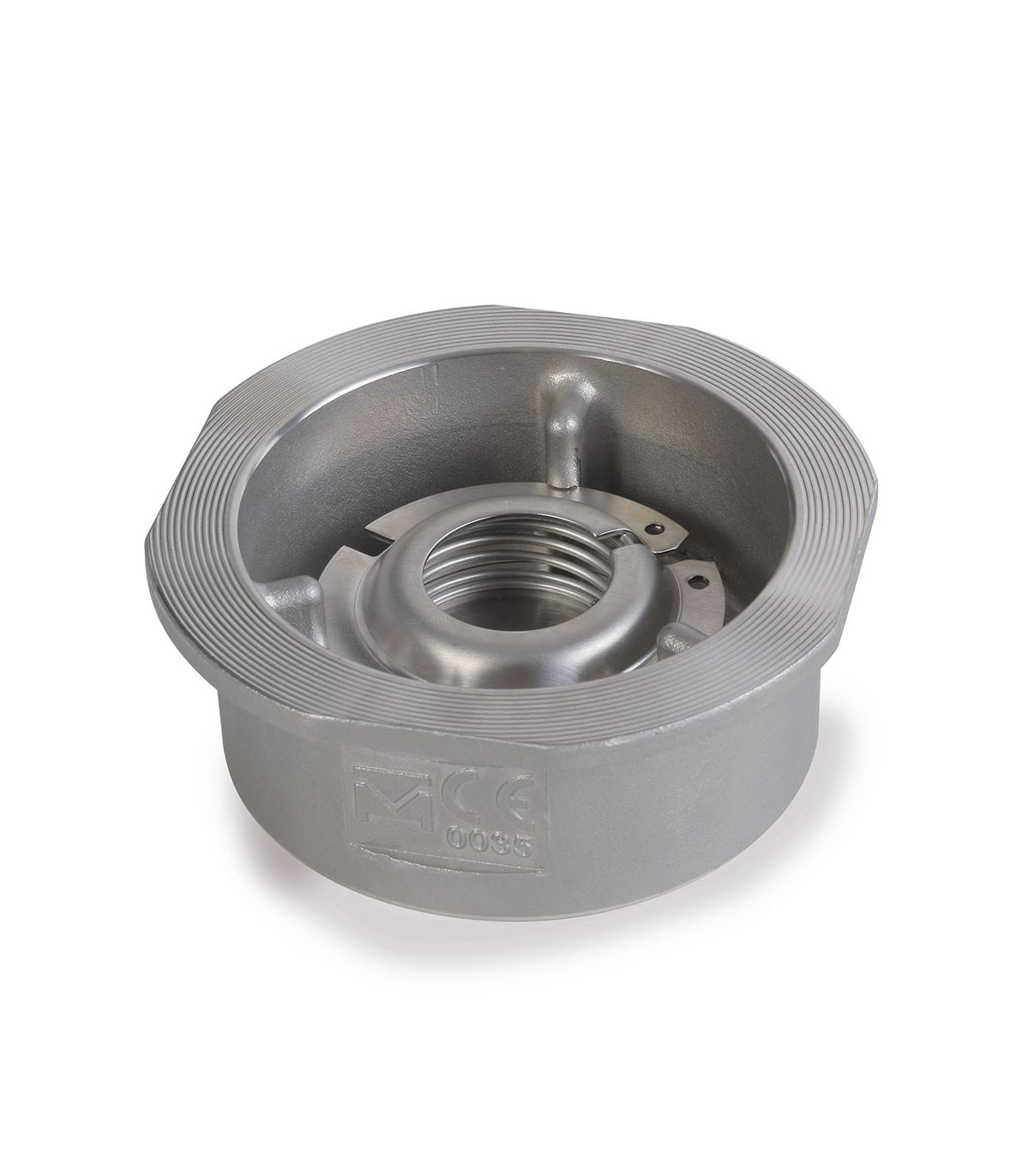

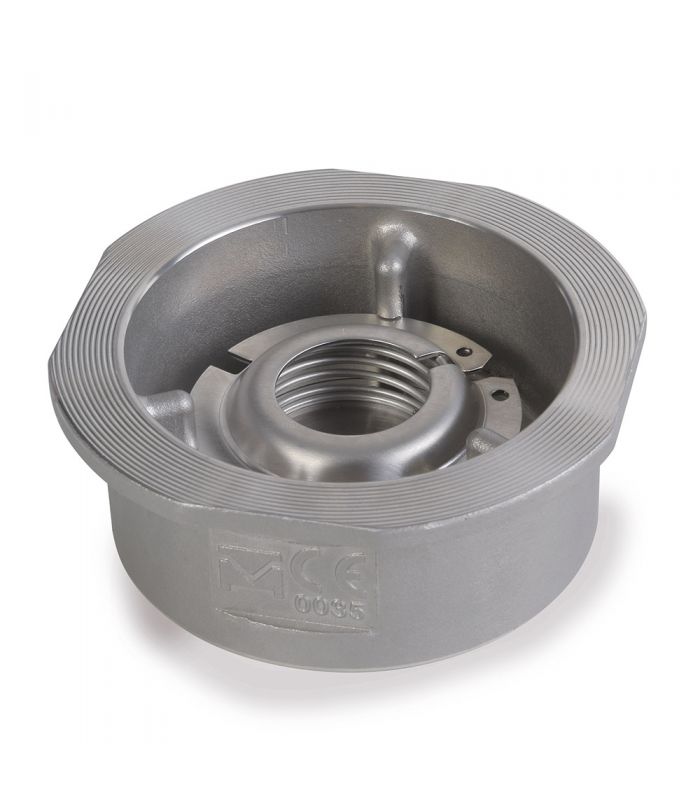

STAINLESS STEEL WAFER DISC CHECK VALVE

STAINLESS STEEL WAFER DISC CHECK VALVE

Wafer check valve with stainless steel disc

A stainless steel wafer disc check valve allows fluid to flow in only one direction, preventing backflow that could damage the system or disrupt the process. Its wafer design makes it compact, facilitating installation between flanges.

Applications: industrial systems, HVAC, drinking water, chemical and food processes.

Main features :

  • Sizes: from DN-15 to DN-300
  • Made of INOX-316
  • Distance between flanges according to EN558 standard
  • Pressure PN-40
  • Operating temperature -50ºC / 350ºC
  • Suitable for water, steam, oil, gas, acids, petroleum, etc.
€22.57 (tax included)
€18.65 (tax excl.)
DN
  • DN-15
  • DN-20
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
  • DN-125
  • DN-150
  • DN-200
Reference:
100601
Description

Wafer check valve with stainless steel disc

A stainless steel wafer disc check valve is a type of valve that allows fluid (water, air, gas, chemicals, etc.) to flow in only one direction and prevents backflow, protecting pumps, pipes, and equipment.

Main features

  • Material: Corrosion-resistant stainless steel
  • Type: Wafer, retaining disc
  • Function: Prevents reverse fluid flow
  • Installation: Compact, between flanges
  • Applications: Industrial, chemical, food, water, HVAC

Product Details
100601
