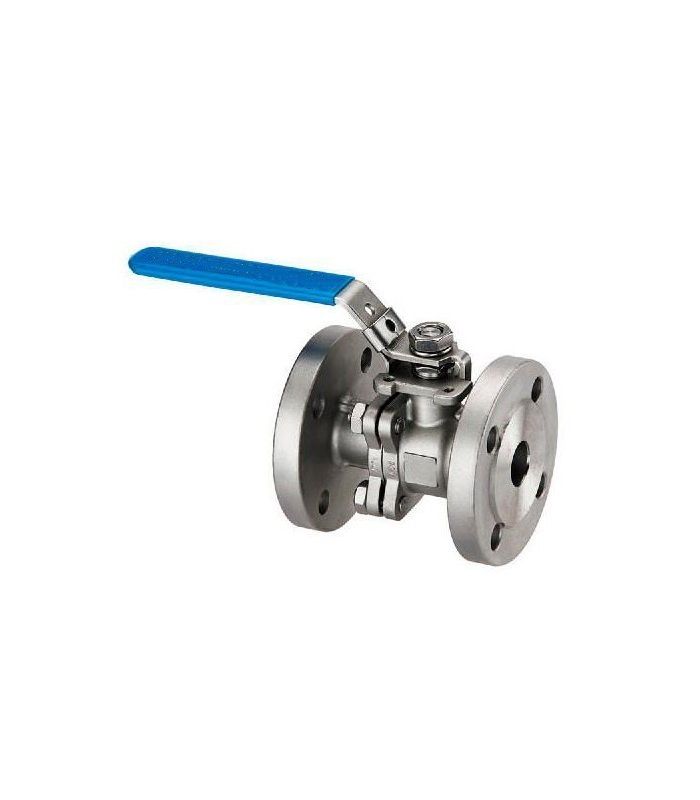

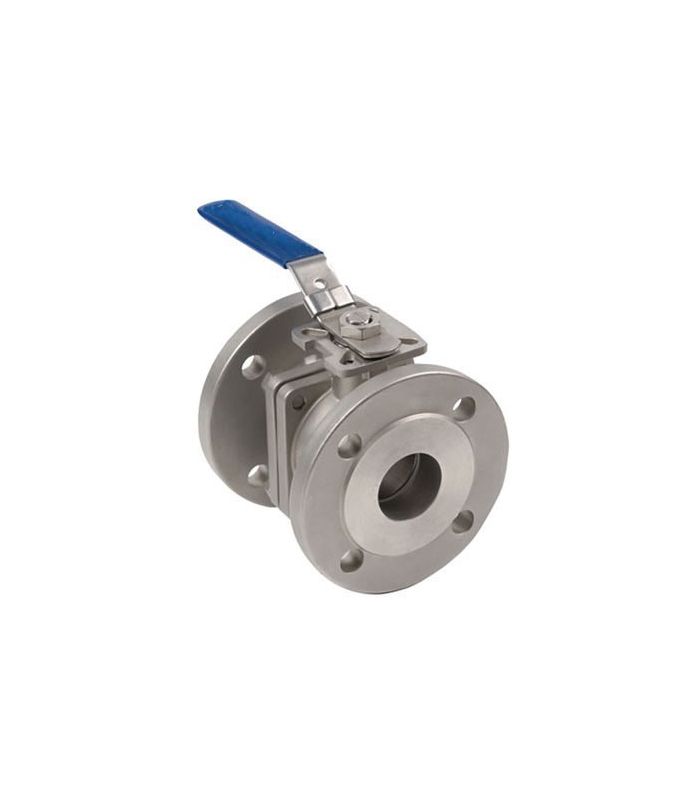

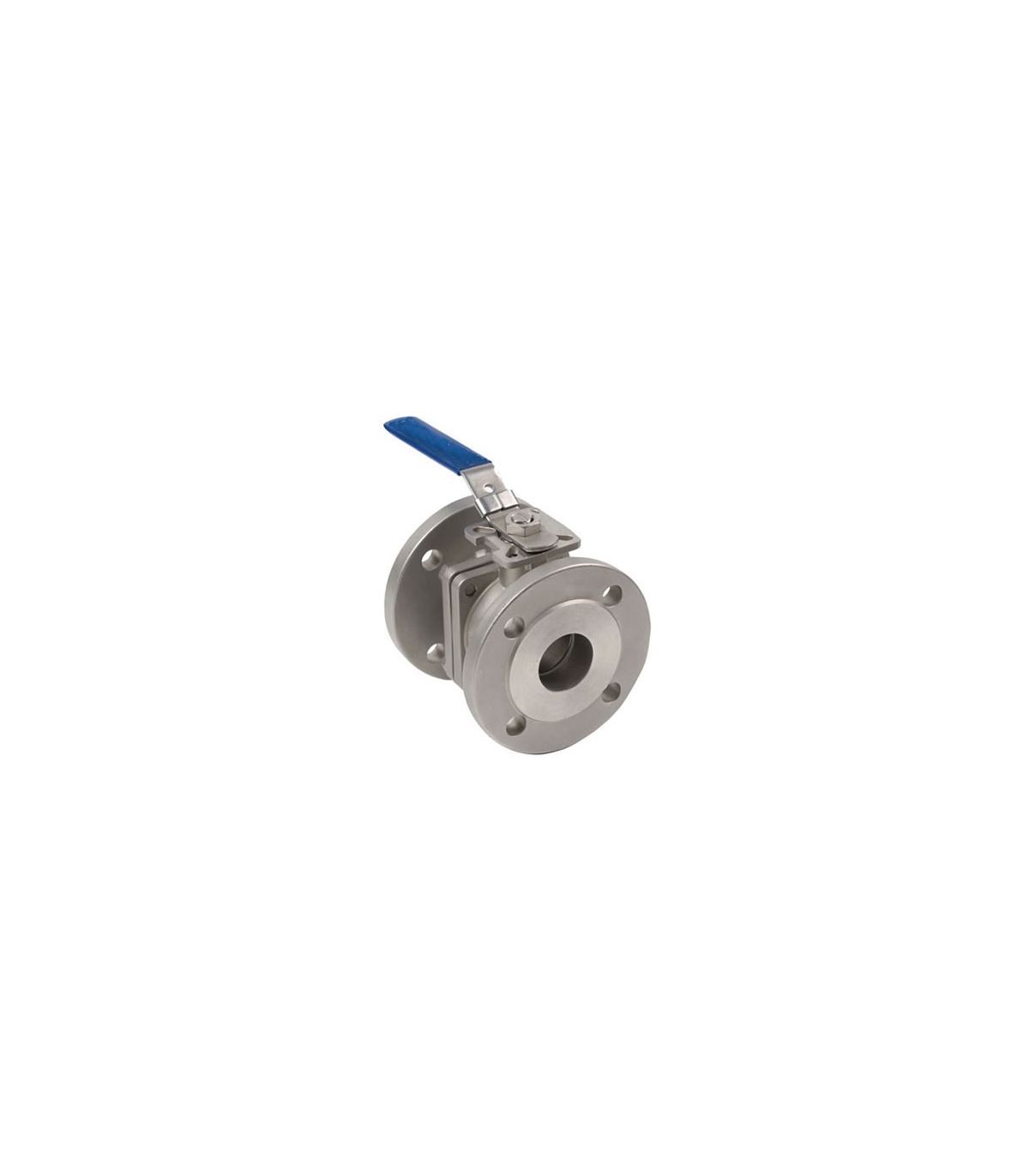

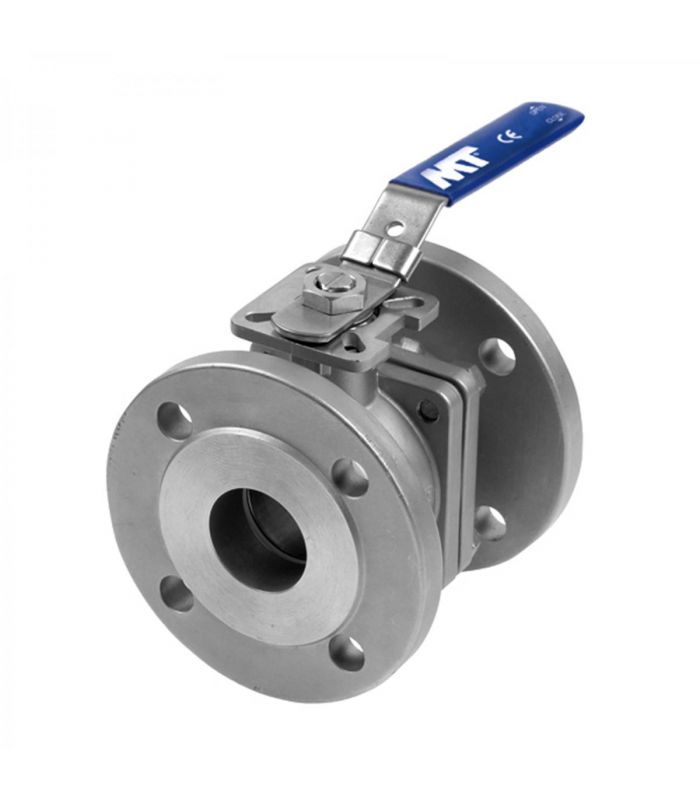

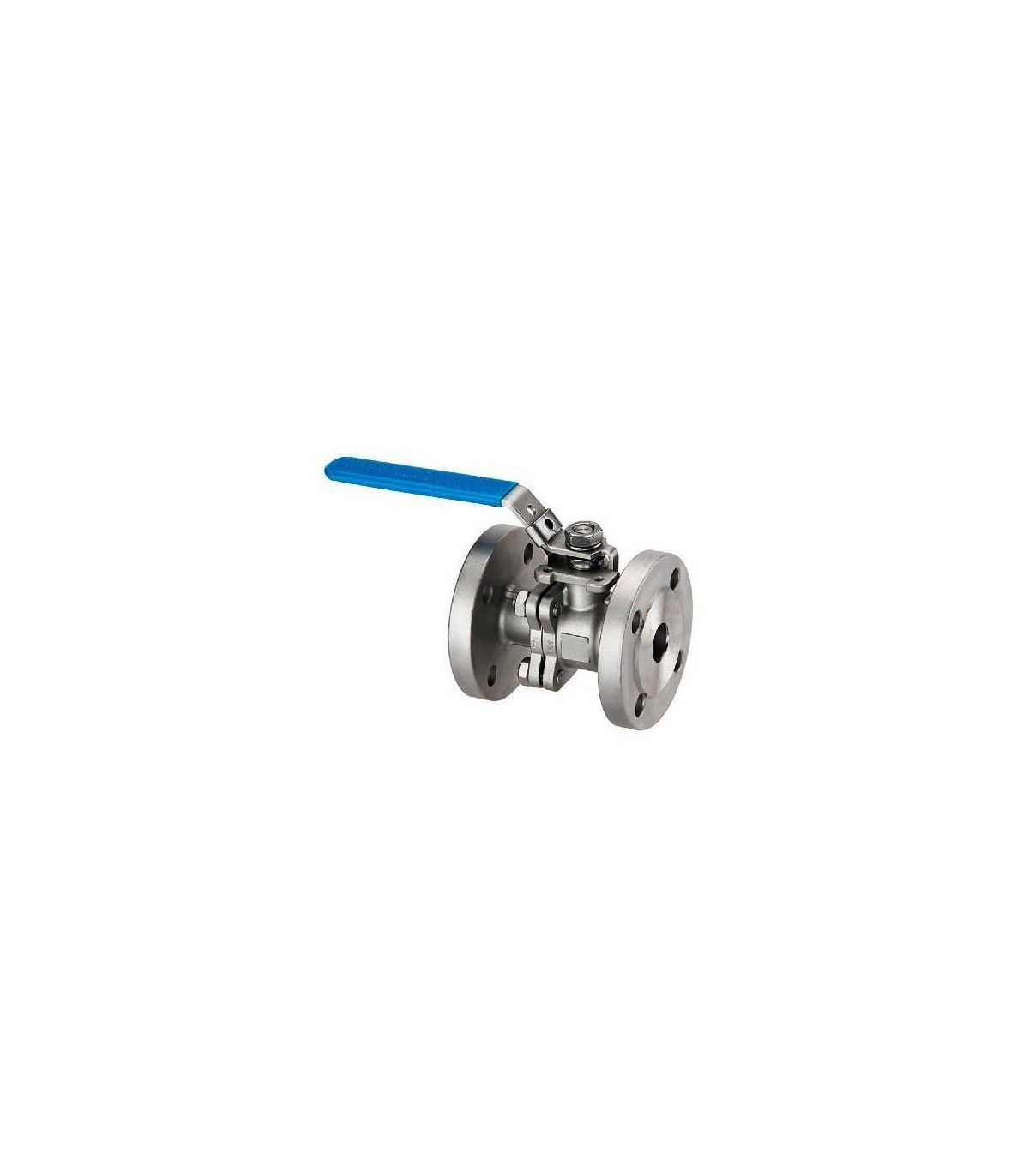

STAINLESS STEEL BALL VALVE FLANGE ANSI 150 ISO-5211

The ANSI 150 ISO-5211 flanged stainless steel ball valve is used to control fluid flow by means of a perforated sphere that rotates to open or close the passage of the fluid.

Applications: Chemical and petrochemical industries, Food and beverage processes, Water treatment systems, General fluid control systems, Systems requiring automation and flanged connections.

Technical specifications:

  • PTFE gasket and seats
  • ANSI B-16.5 S-150 LBS Flange
  • Pressure 150 pounds
  • Temperature -30 / 180ºC
  • Possibility of mounting actuator on an ISO-5211 base.
Read moreShow less
€94.59 (tax incl.)
€78.17 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
  • 6"
  • 8"
Reference:
25200019
Description

Stainless steel flanged ball valve ANSI 150 ISO-5211

The ANSI 150 ISO-5211 flanged stainless steel ball valve is designed for controlling the opening and closing of fluids in industrial installations. It features flanged connections according to ANSI 150 and an ISO 5211 mounting interface to facilitate the installation of compatible pneumatic or electric actuators.

The valve can be supplied with manual operation or prepared for the installation of a pneumatic or electric actuator, depending on the version selected.

Applications

  • Water installations and industrial circuits.
  • Chemical and petrochemical industry, after verification of compatibility.
  • Food industry, provided the design and materials meet the required hygienic standards.
  • Process facilities and fluid distribution systems.
  • Automation of industrial processes using actuators compatible with ISO 5211.

Technical data sheet for an ANSI 150 ISO-5211 flanged stainless steel ball valve

Reference Extent DN Ød L ØR ØD ØC F T N Oh G H H1 M ØA1 ØA2 ØB1 ØB2 W
25200019 1/2" 15 15 108 35 89 60.5 2 10.1 4 16 9 48 78 9 6 6 36 42 145
25200026 3/4" 20 20 117 43 98 70 2 10.9 4 16 9 53 84 9 6 7 36 50 145

25200030

 1" 25 25 127 51 108 79.2 2 11.6 4 16 11 58.5 89.3 11 6 7 42 50 175
25200035 1-1/4" 32 32 140 63.5 117 88.9 2 13.2 4 16 11 71 102 11 6 9 42 50 175
25200039 1-1/2" 40 38 165 73.2 127 98.6 2 14.6 4 16 14 76 107 14 7 9 50 70 190
25200042 2" 50 50 178 92 152 120.7 2 16.3 4 19 14 81 112 14 7 9 50 70 190
252000447 2-1/2" 65 63.5 190 104.7 178 139.7 2 17.7 4 19 17 102 150 17 9 11 70 102 267
25200050 3" 80 76 203 127 190 152.4 2 19.5 4 19 17 111.5 176 17 9 11 70 102 300
25200053 4" 100 100 229 157 228 190.5 2 24.3 8 19 22 140 204 22 - 11 - 102 400
25200056 6" 150 150 394 216 279 241.3 2 25.8 8 22.3 27 203 275 27 14 - 125 - 800
25200057 8" 200 200 457 270 342.9 298.5 2 28.9 8 22.3 27 252.5 328 27 14 - 125 - 800
Read moreShow less
