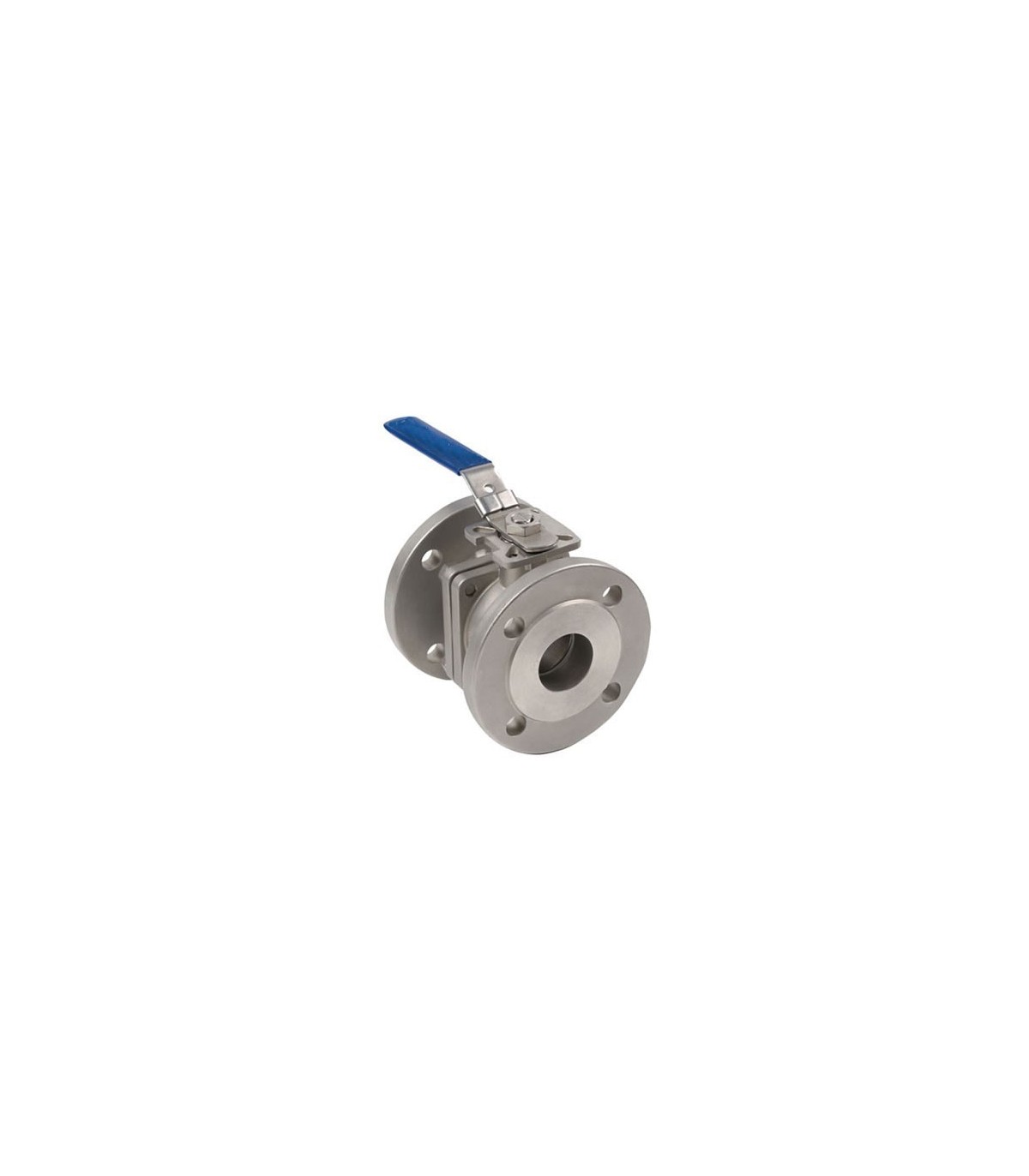

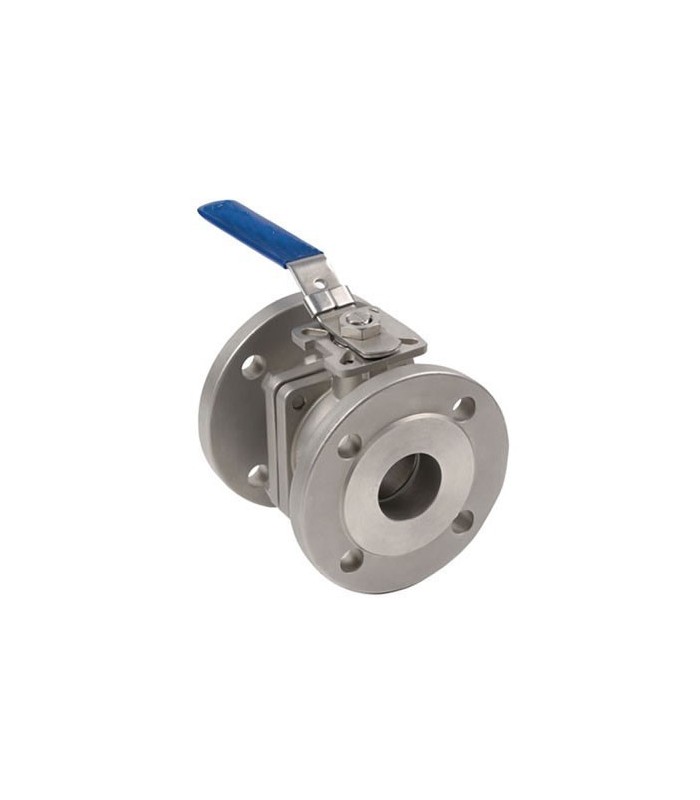

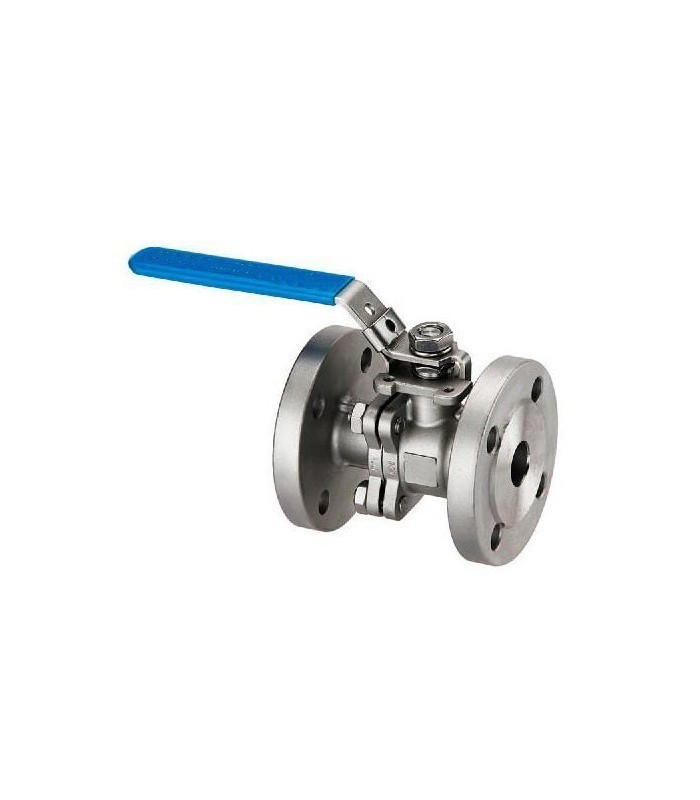

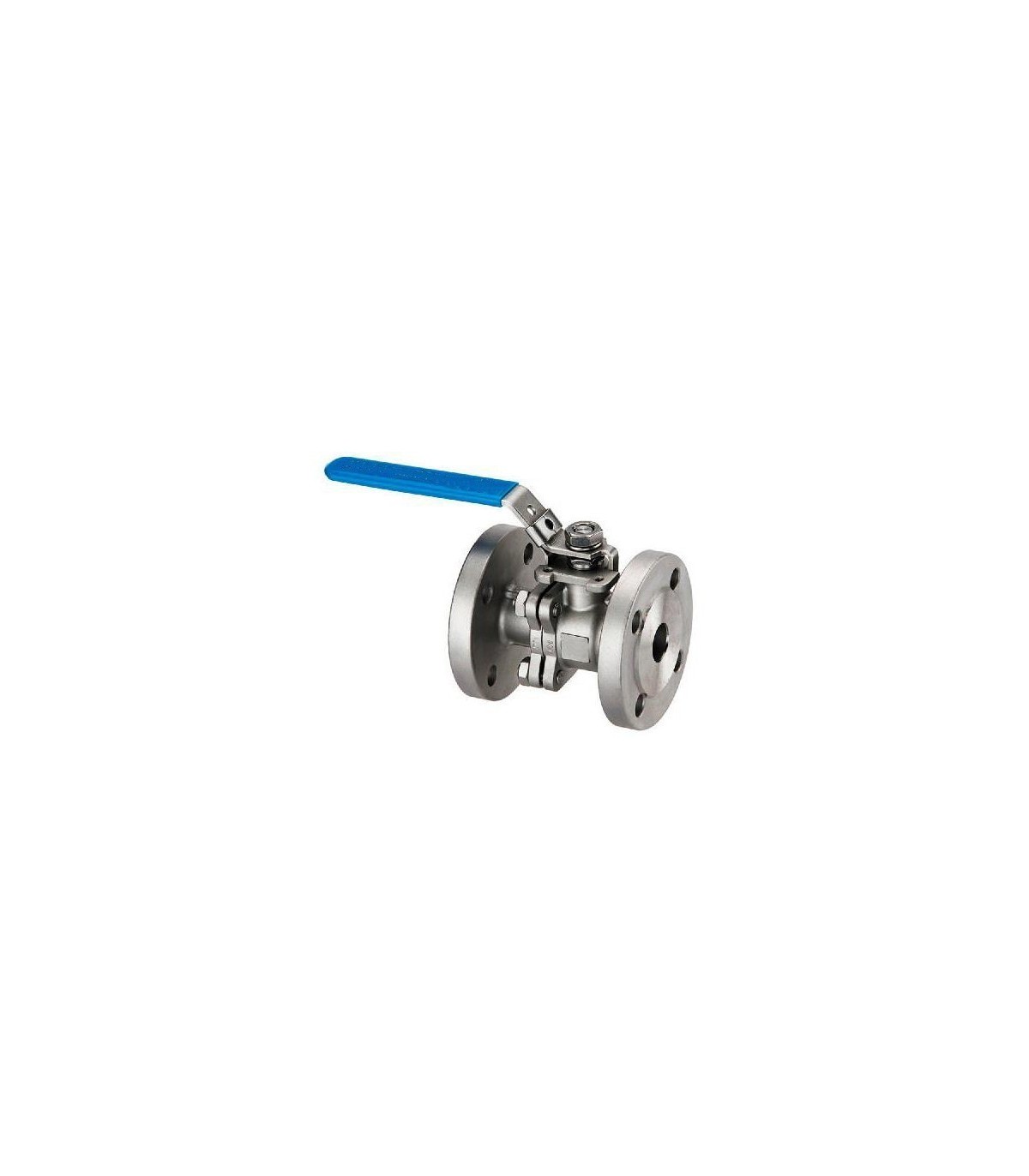

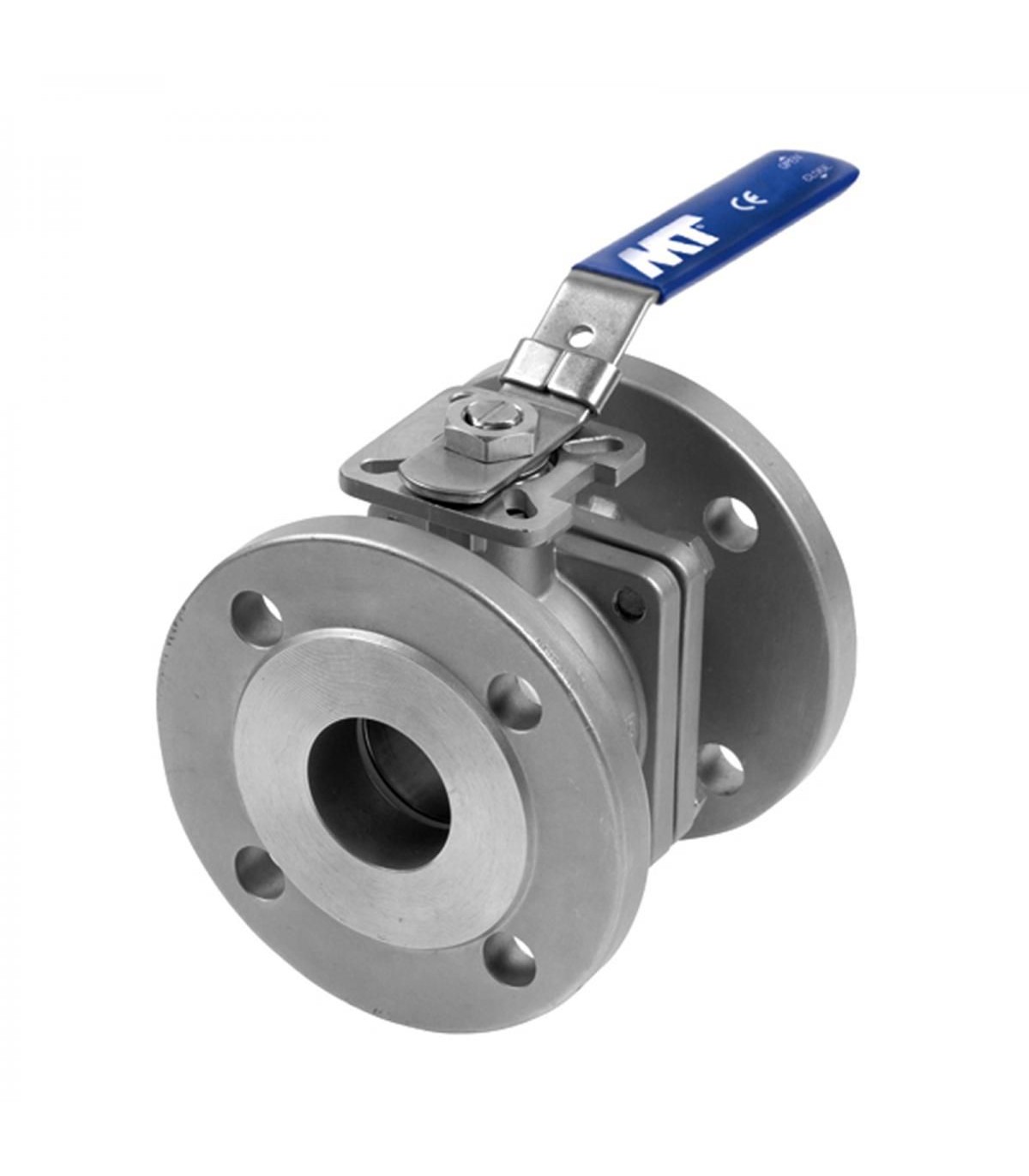

STAINLESS STEEL BALL VALVE FLANGE ANSI 300 ISO-5211

The Inox flanged ball valve ANSI 300 ISO-5211 is an industrial valve designed to allow or interrupt the passage of fluids by means of a perforated ball that rotates 90°.

Applications: Chemical industry, petrochemical industry, water, industrial processes

Technical specifications:

  • PTFE gasket and seats
  • ANSI B-16.5 S-300 LB Flange
  • Pressure 150 pounds
  • Temperature -30 / 180ºC
  • Possibility of mounting actuator on an ISO-5211 base.
Read moreShow less
€141.27 (tax incl.)
€116.75 (tax excl.)
SIZE
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
  • 6"
  • 8"
Reference:
25200058
Description

Stainless steel flanged ball valve ANSI 300 ISO-5211

The ANSI 300 ISO-5211 flanged stainless steel ball valve is designed for controlling the opening and closing of fluids in industrial installations. It features flanged connections according to ASME/ANSI Class 300 and a mounting platform compliant with ISO 5211, allowing for the direct installation of compatible pneumatic or electric actuators.

Main advantages

  • High corrosion resistance, depending on the grade of stainless steel selected.
  • Robust flanged connection, suitable for industrial installations.
  • Easy automation, thanks to the ISO 5211 mounting interface.
  • Quick opening and closing, by means of a quarter turn.
  • Simplified maintenance and replacement, depending on the construction design.
  • Versatility of application in different process circuits.

Applications

  • Chemical and petrochemical industry
  • Water treatment and industrial facilities
  • Process automation

Technical data sheet for an ANSI 300 ISO-5211 flanged stainless steel ball valve

Reference Extent DN Ød L ØR ØD ØC F T N Oh G H H1 M ØA1 ØA2 ØB1 ØB2 W
25200058 1/2" 15 15 140 35 95.3 66.5 2 14.7 4 16 9 48 78 9 6 6 36 42 145
25200059 3/4" 20 20 152 43 117.4 82.6 2 16.3 4 19 9 53 84 9 6 6 36 42 145
25200060 1" 25 25 165 51 124 88.9 2 17.9 4 19 11 58.5 89.3 11 6 7 42 50 175
25200061 1-1/2" 40 38 190 73.2 155.5 114.3 2 21.1 4 22.3 14 76 107 14 7 9 50 70 190
25200062 2" 50 50 216 92 165.1 127 2 22.7 8 19 14 81 112 14 7 9 50 70 190
25200063 2-1/2" 65 63.5 241 104.7 190 149.4 2 25.9 8 22.3 17 102 150 17 9 11 70 102 267
25200064 3" 80 76 282 127 210 168 2 29 8 22.3 17 111.5 176 17 9 11 70 102 300
25200065 4" 100 100 305 157 254 200 2 32.2 8 22.3 22 140 204 22 - 11 - 102 400
25200066 6" 150 150 403 216 317.5 269.8 2 37 12 22.3 27 203 275 27 14 - 125 - 800
25200067 8" 200 200 502 270 381 330.2 2 41.6 12 25.4 27 252.5 328 27 14 - 125 - 800

Read moreShow less
