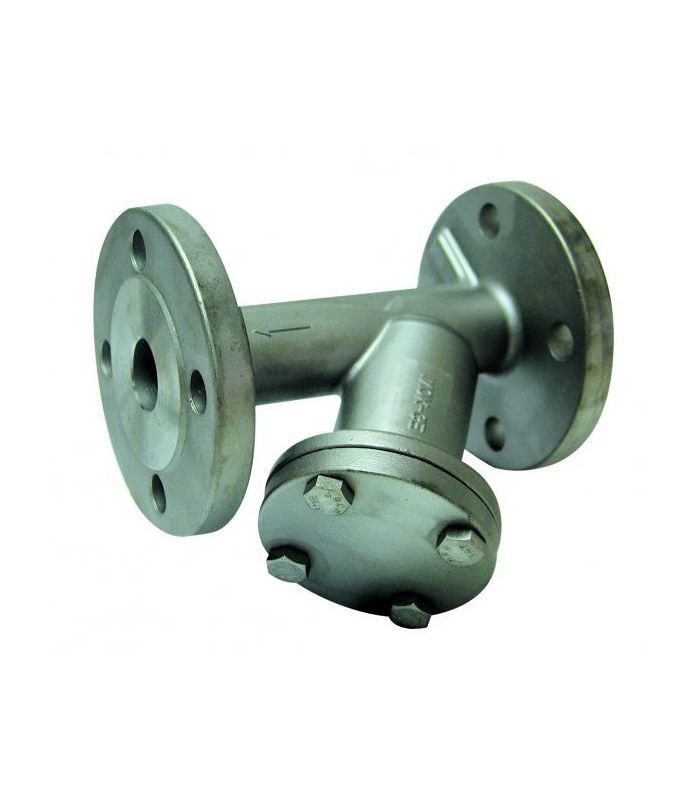

FILTER AND WITH DIN INOX FLANGE

FILTER AND WITH DIN INOX FLANGE

The stainless steel DIN flange Y strainer is a pipe fitting used to retain impurities and solid particles present in a fluid, thereby protecting pumps, valves, and other system components. Its Y-shaped design allows for efficient flow and makes the filter easy to clean.

Applications: water systems, compressed air systems, oil systems, chemical and petrochemical industries.

Technical sheet:

  • Y-filter connection by DIN EN 1092 flanges
  • Y-body made of Inox-316
  • DIN flange welded to the filter body, allowing fixing to the pipe using screws or bolts.
  • From DN-65 onwards, it has a purge plug, which allows the extraction of impurities accumulated in the filter basket.
  • Pressure PN-16 bar
  • Temperature -30º / 240ºC.
  • Length between faces according to EN-558
€278.30 (tax included)
€230.00 (tax excl.)
DN
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
  • DN-125
  • DN-150
Reference:
100701
Description

Y filter with stainless steel DIN flange

Product Details
100701
