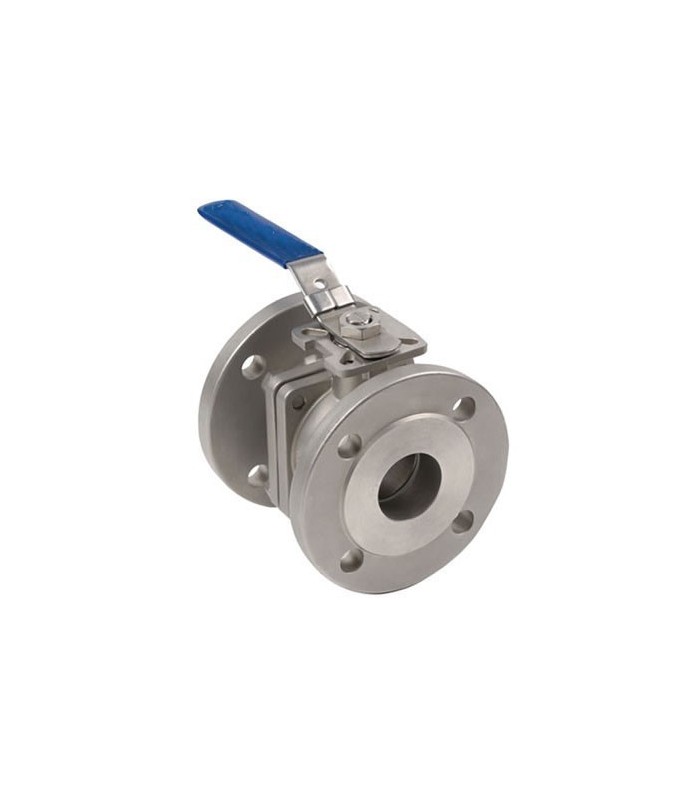

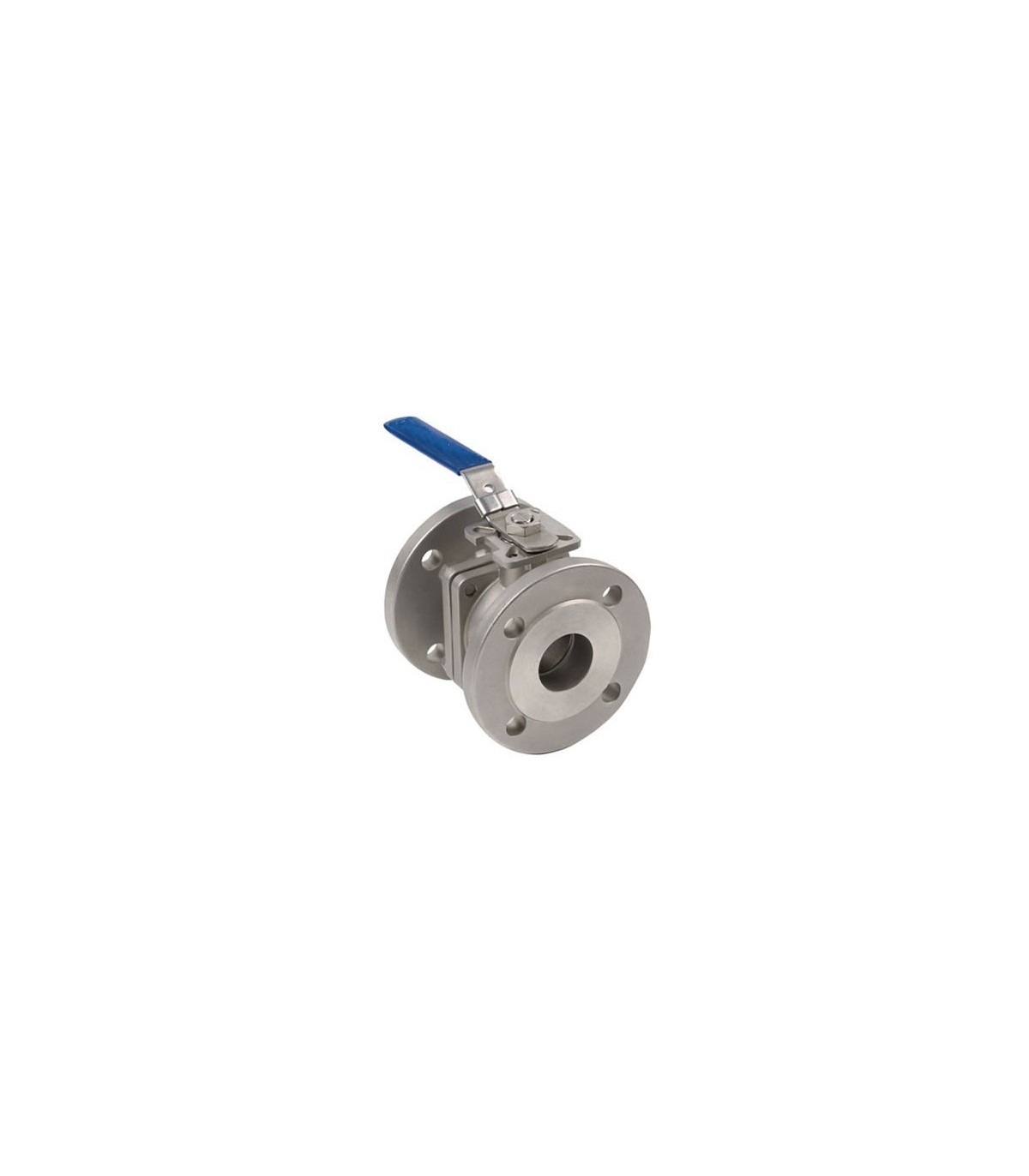

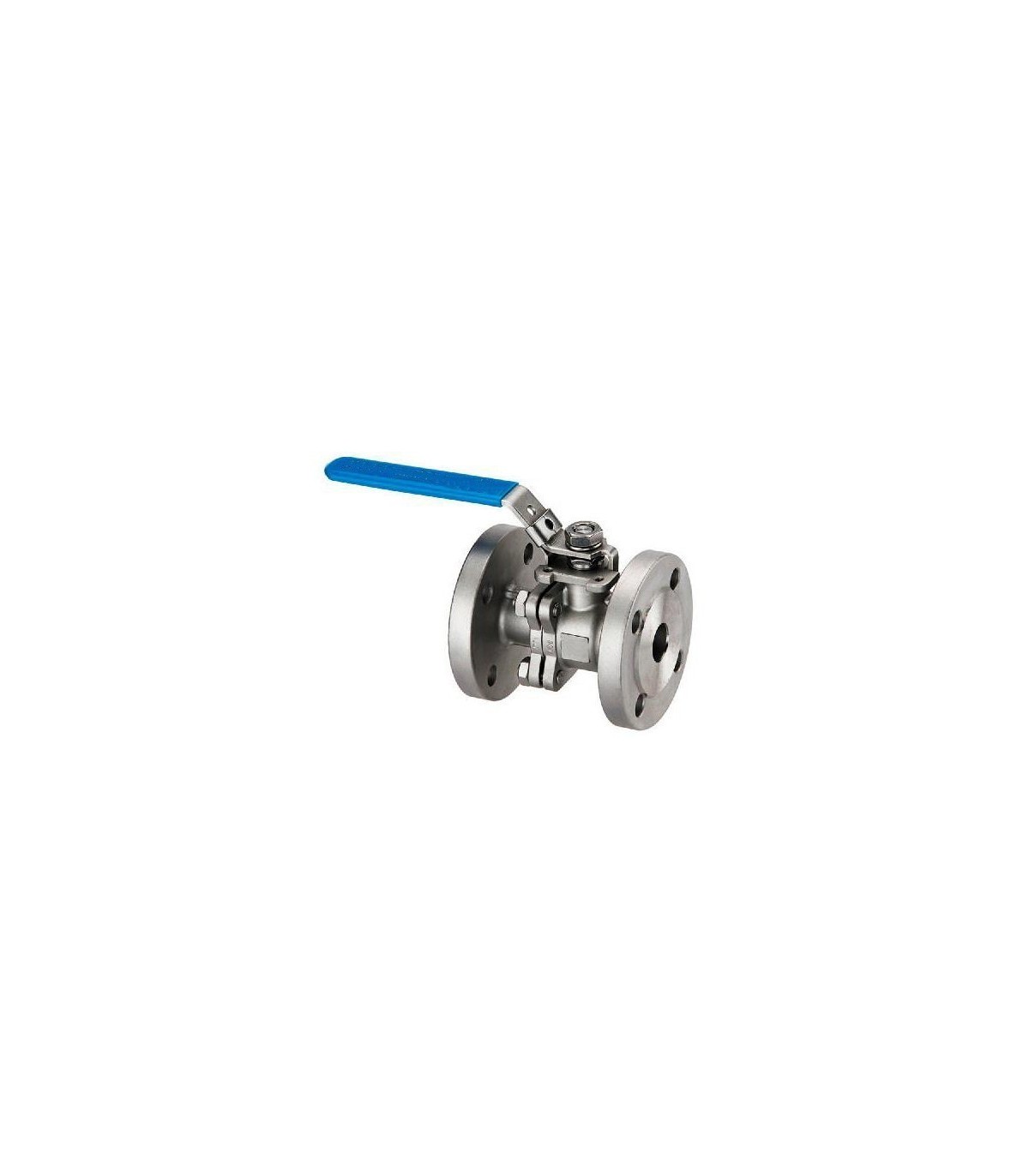

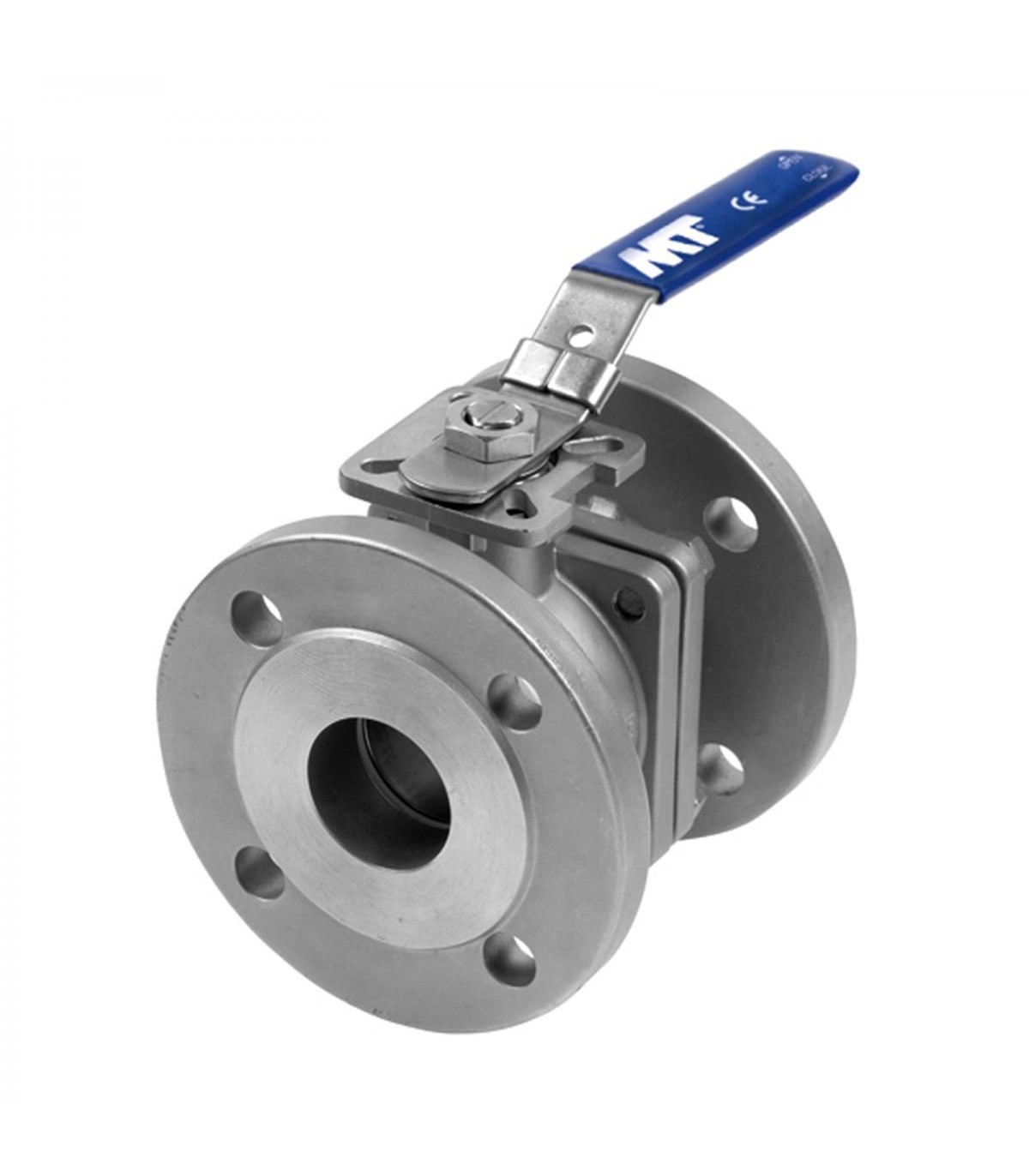

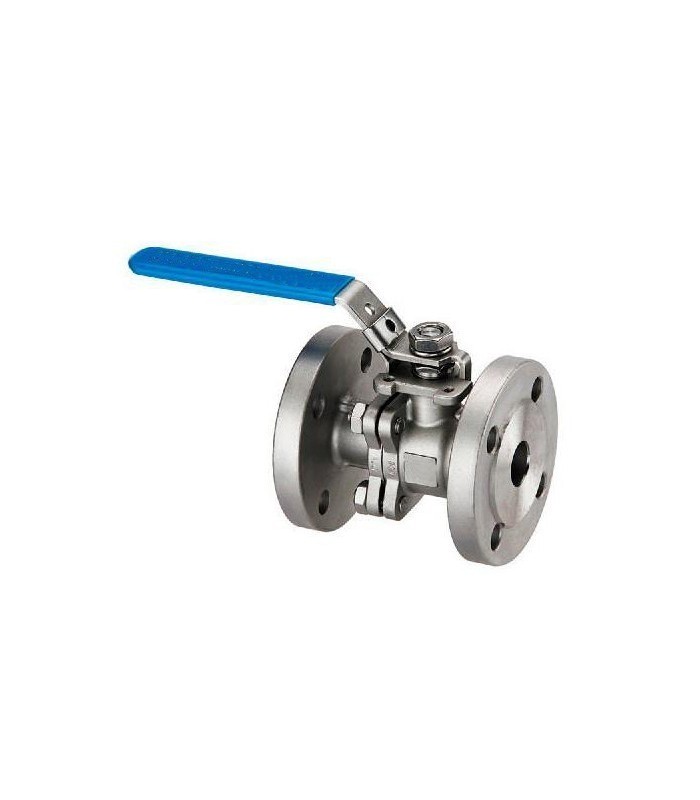

The ANSI 600 ISO-5211 flanged steel ball valve is designed for shutting off and isolating fluids in high-pressure installations. It is manufactured from carbon steel and features flanged connections according to ANSI Class 600.
Applications: Chemical industry, petrochemical industry, gas industry, water, automated process systems.
Technical specifications:
The ANSI 600 ISO-5211 flanged steel ball valve is designed for the isolation and control of fluid flow in industrial installations subjected to high pressure conditions.
Its robust construction offers mechanical strength and operational reliability. The 90° rotating drive allows for quick opening and closing maneuvers, while the ISO 5211 interface facilitates the connection of compatible pneumatic or electric actuators.
It is suitable for applications in petrochemical industries, power generation plants, oil and gas facilities and fluid handling systems, provided that the service conditions are compatible with the construction and sealing materials.
Technical data sheet for a steel flanged ball valve ANSI 600 ISO-5211
| Reference | Extent | DN | Ød | L | ØR | ØD | ØC | F | T | N-Øh | H | H1 | P | ØE | ØU | W |
| 25200068 | 1/2" | 15 | 15 | 165 | 35 | 95 | 66.5 | 6.4 | 14.2 | 4-Ø16 | 39 | 86 | 9 | 42 | 6 | 147 |
| 25200069 | 3/4" | 20 | 20 | 190 | 43 | 117 | 82.6 | 6.4 | 15.7 | 4-Ø19 | 46.3 | 96 | 9 | 42 | 6 | 147 |
| 25200070 | 1" | 25 | 25 | 216 | 51 | 124 | 88.9 | 6.4 | 17.5 | 4-Ø19 | 53 | 107 | 11 | 50 | 7 | 177 |
| 25200071 | 1-1/4" | 32 | 32 | 229 | 63.5 | 133 | 98.6 | 6.4 | 20.6 | 4-Ø19 | 59.5 | 115 | 11 | 50 | 7 | 177 |
| 25200072 | 1-1/2" | 40 | 38 | 241 | 73.2 | 155 | 114.3 | 6.4 | 22.4 | 4-Ø22.3 | 66 | 127 | 14 | 70 | 9 | 197 |
| 25200073 | 2" | 50 | 50 | 292 | 92 | 165 | 127 | 6.4 | 25.4 | 8-Ø19 | 77 | 136 | 14 | 70 | 9 | 197 |
| 25200074 | 2-1/2" | 65 | 63.5 | 330 | 104.7 | 190 | 149.4 | 6.4 | 28.4 | 8-Ø22.3 | 98.5 | 166 | 17 | 102 | 11 | 300 |
| 25200075 | 3" | 80 | 76 | 356 | 127 | 210 | 168.1 | 6.4 | 31.8 | 8-Ø22.3 | 108 | 206 | 17 | 102 | 11 | 300 |
| 25200076 | 4" | 100 | 100 | 432 | 157.2 | 273 | 215.9 | 6.4 | 38.1 | 8-Ø25.4 | 136 | 240 | 22 | 102 | 11 | 400 |
