90° ELBOW JOINT
90° ELBOW JOINT
90° ELBOW JOINT
90° ELBOW JOINT

90° ELBOW JOINT

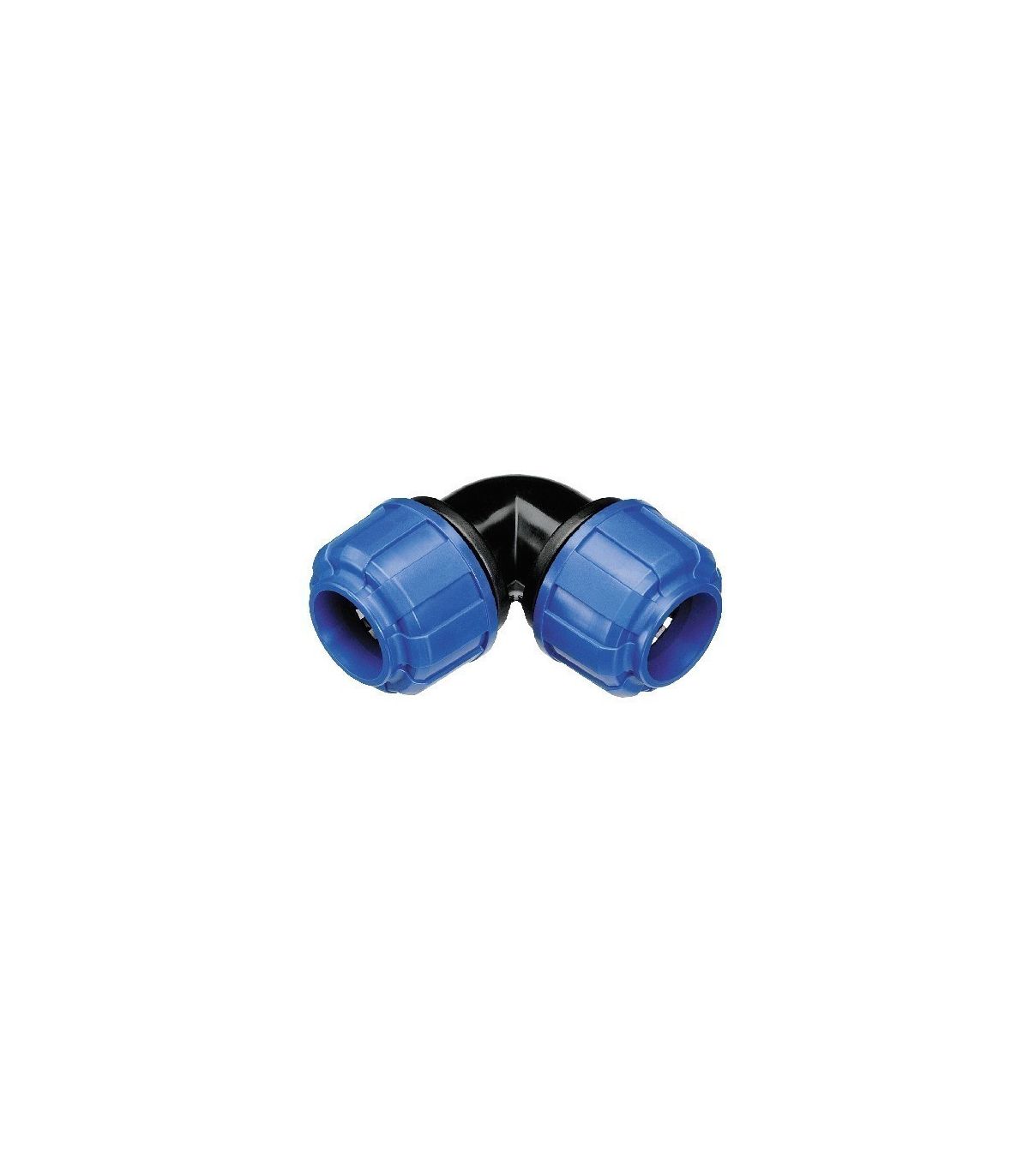

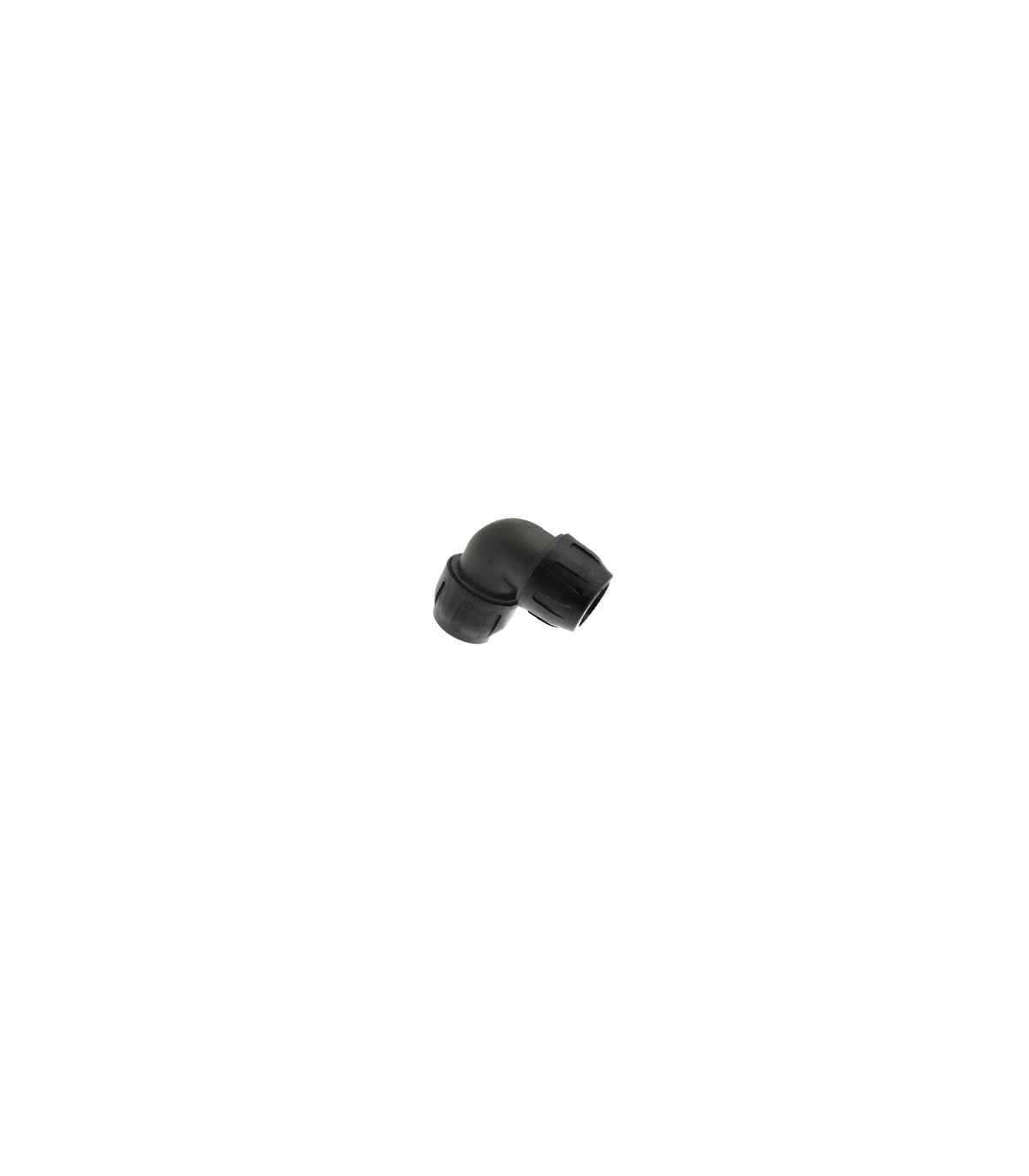

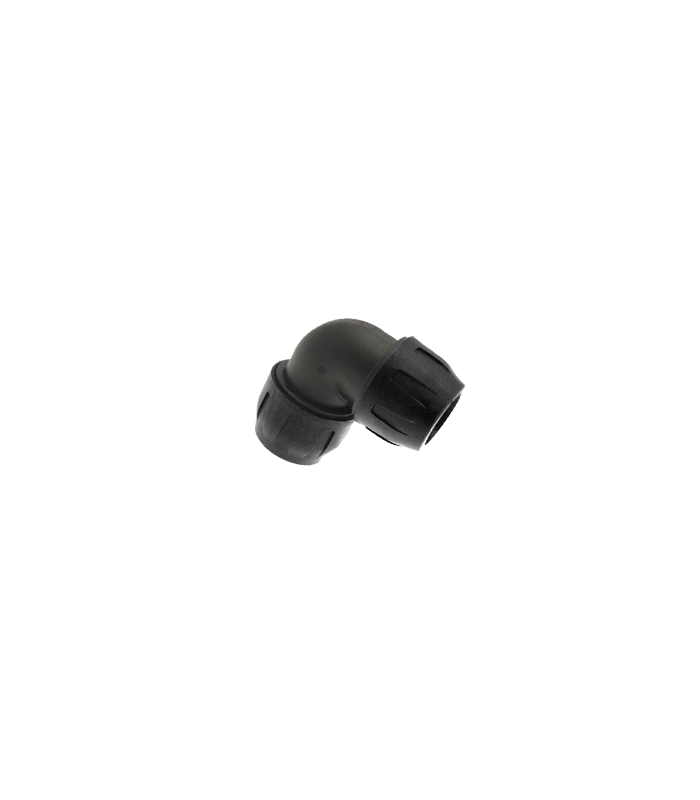

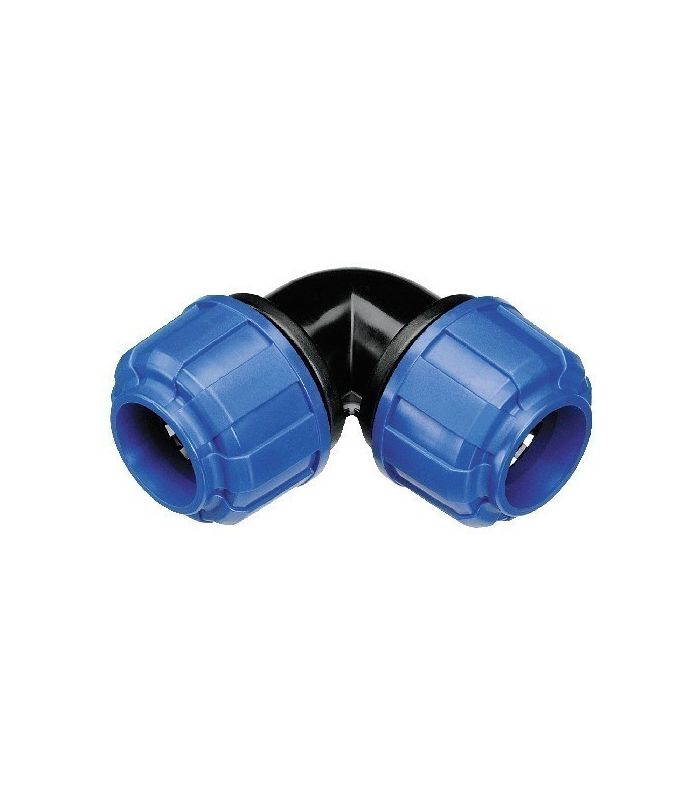

90° elbow joint

A 90° elbow fitting is a pneumatic component that allows pipes or hoses to be connected at a right angle, ensuring an efficient change of direction of compressed air, with high sealing and reliability.

Applications: Industrial compressed air installations, workshops, factories and production lines, fixed or modular pneumatic networks.

Main features:

  • Made of technopolymer (ring in stainless steel)
  • Suitable for: Compressed air, inert gases, vacuum.
  • Temperature -30ºC / 80ºC
  • Available diameters 16-20-25-32-40-50-63
  • Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
  • Easy assembly.

DEMO VIDEO

€7.62 (tax included)
€6.30 (tax excl.)
DIAMETERS
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
Reference:
14030012
Description

90° elbow joint

A 90° elbow fitting for air networks is a pneumatic connection fitting designed to join two sections of pipe or hose at a 90-degree angle , allowing the direction of airflow to be changed within an installation. Its use facilitates the design and efficient distribution of compressed air networks , optimizing space and maintaining system airtightness.

Technical specifications

  • Angle 90°.
  • Change in airflow direction.
  • Splice type connection
  • For compressed air networks.
  • Material: technopolymer
  • Watertightness: Ensures a secure and leak-free connection.

Common applications

  • Industrial compressed air installations.
  • Workshops, factories and production lines.
  • Fixed or modular pneumatic networks.
Product Details
14030012
