GUIDED UNIT H BUSHINGS ISO15552
GUIDED UNIT H BUSHINGS ISO15552
GUIDED UNIT H BUSHINGS ISO15552
GUIDED UNIT H BUSHINGS ISO15552

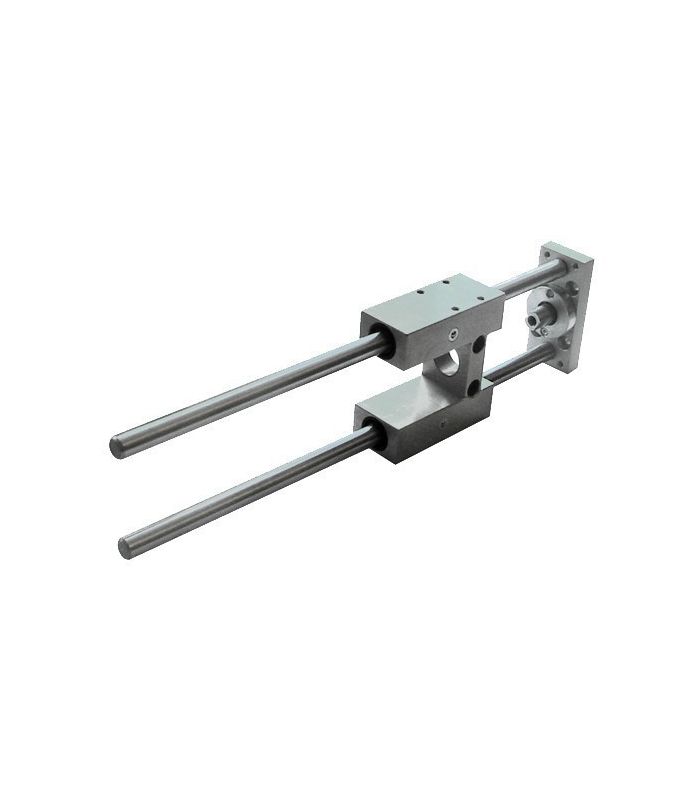

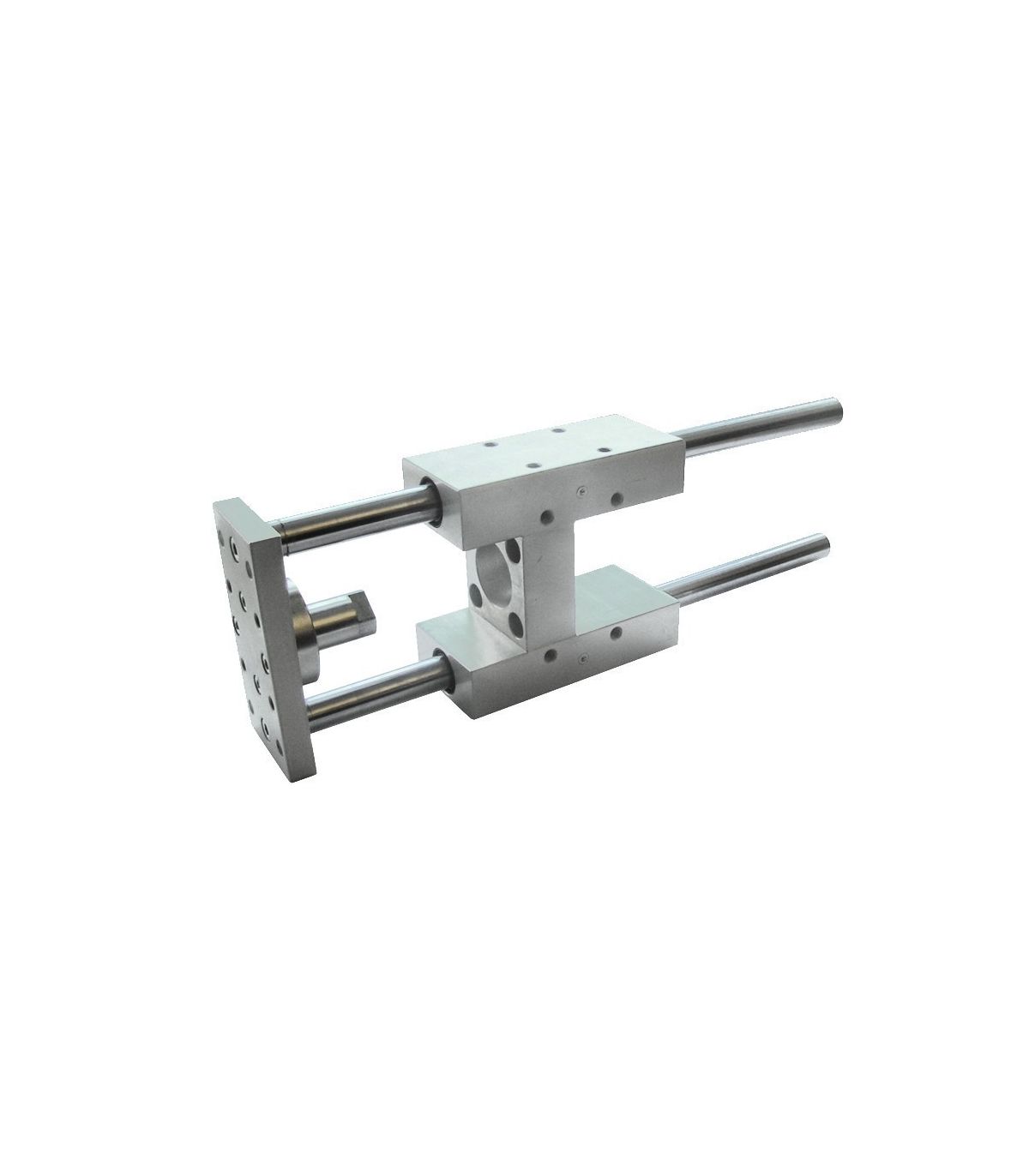

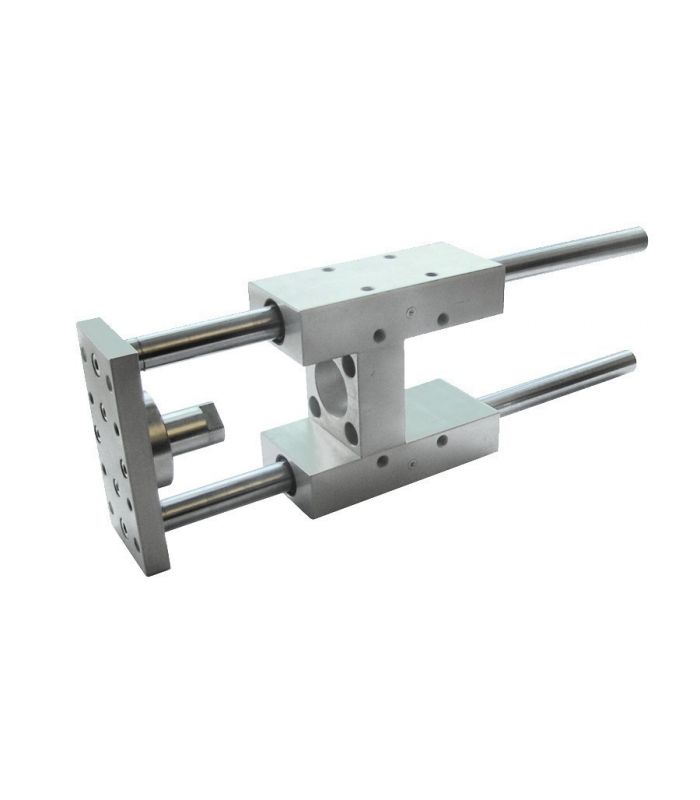

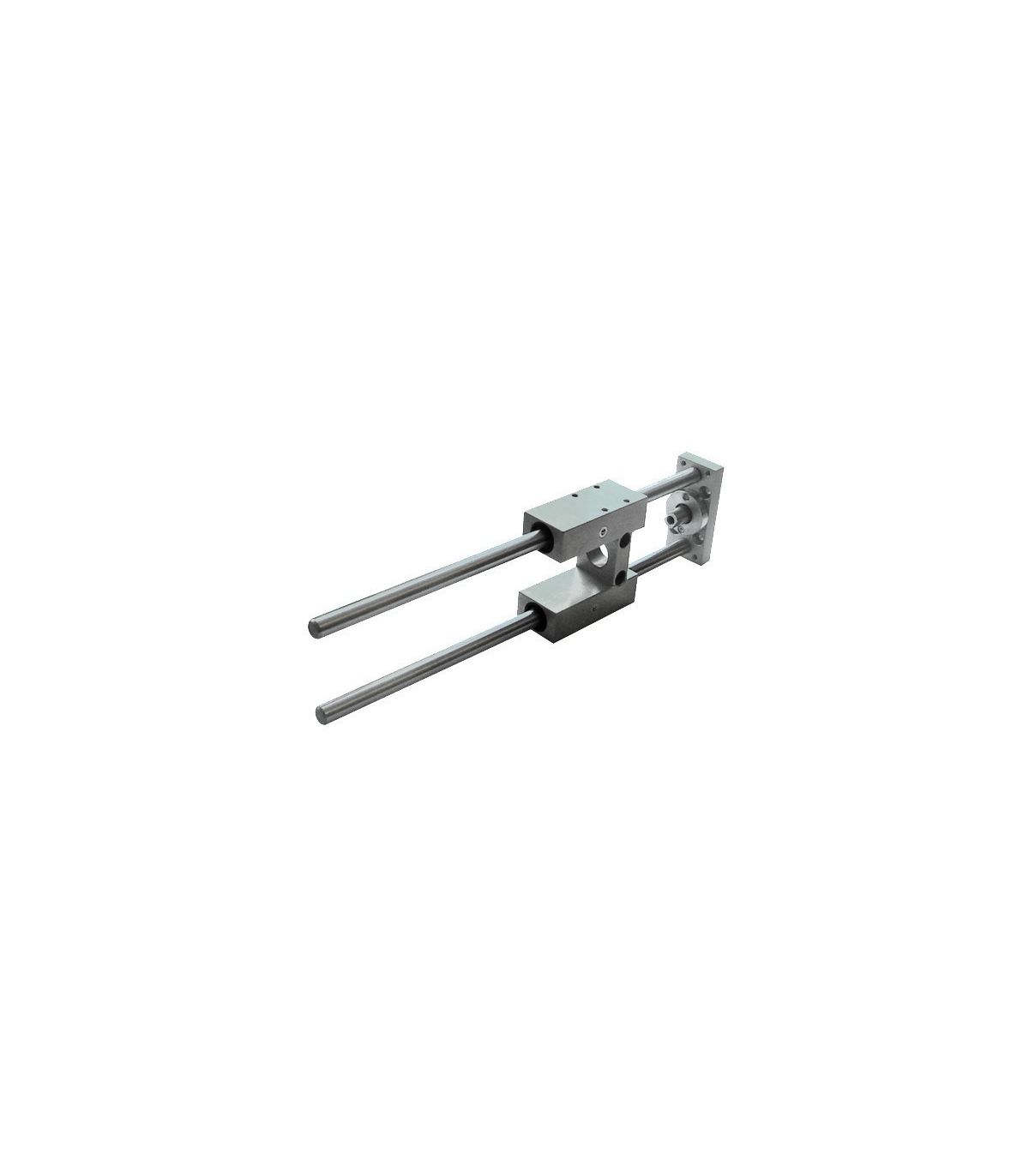

GUIDED UNIT H BUSHINGS ISO 15552

GUIDANCE UNIT

  • Monobloc assembly, metal body (anodized aluminum)
  • Silver gray or black color
  • 4 self-lubricated sintered bronze smooth bushings
  • 2 chrome-plated steel guide columns
  • Scraper seals at the level of the guide columns
  • High quality components that give it excellence

BENEFITS:

  • High allowable loads
  • Great guidance precision
  • Great robustness of the whole
  • Engagement of the cylinder rod in the guide unit
  • Alignment compensating device.
  • ADAPTABLE CYLINDER
  • ISO 6431 ISO15552 Standards Made of profiled tube or braces.
  • With or without pneumatic cushioning
  • Whether or not intended for magnetic position detectors.
SPECIFICATIONS:
  • MAX SPEED 1 m/s
  • FLUID: Filtered air or neutral gas, lubricated or NOT
  • ALLOWABLE PRESSURE: 10 bar maximum
  • TEMPERATURE - 10º C, + 70º C
  • MINIMUM STROKE: 10 mm
CHECK PRICES FOR OTHER CAREERS
Read moreShow less
€212.42 (tax incl.)
€175.55 (tax excl.)
BORE x STROKE
  • Ø32-50
  • Ø32-100
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø32-320
  • Ø32-400
  • Ø40-50
  • Ø40-100
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø40-320
  • Ø40-400
  • Ø40-500
  • Ø50-50
  • Ø50-100
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-320
  • Ø50-400
  • Ø50-500
  • Ø63-50
  • Ø63-100
  • Ø63-160
  • Ø63-200
  • Ø63-250
  • Ø63-320
  • Ø63-400
  • Ø63-500
  • Ø80-50
  • Ø80-100
  • Ø80-160
  • Ø80-200
  • Ø80-250
  • Ø80-320
  • Ø80-400
  • Ø80-500
  • Ø100-50
  • Ø100-100
  • Ø100-160
  • Ø100-200
  • Ø100-250
  • Ø100-320
  • Ø100-400
  • Ø100-500
Reference:
53180036
Description

UNIDAD GUIADO H CASQUILLOS ISO15552

Read moreShow less
Product Details
53180036
