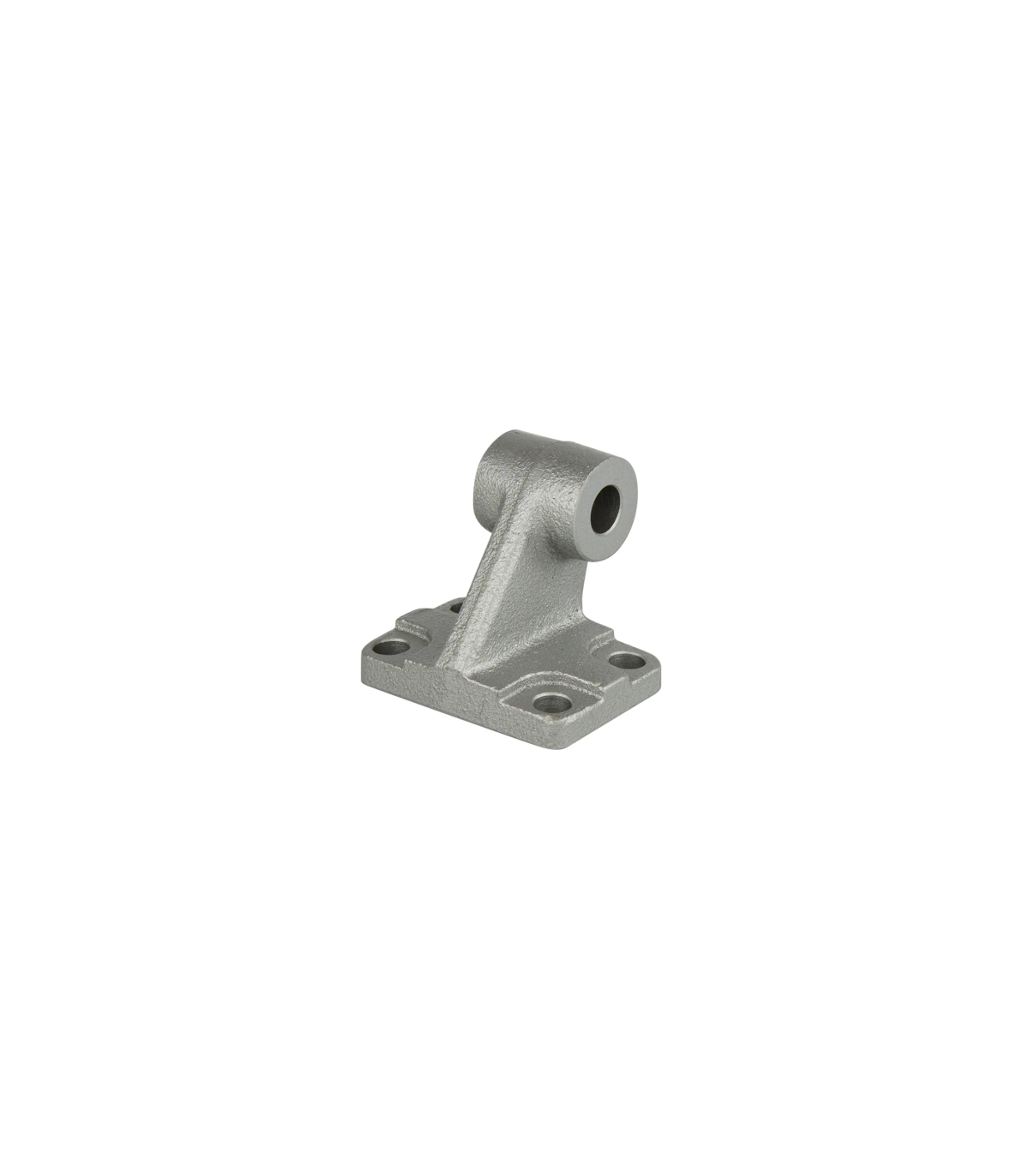

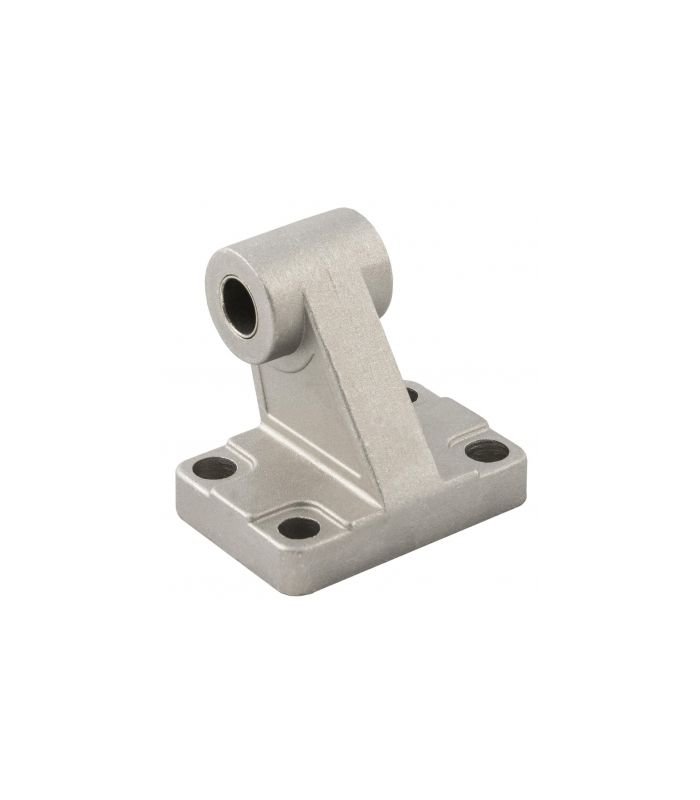

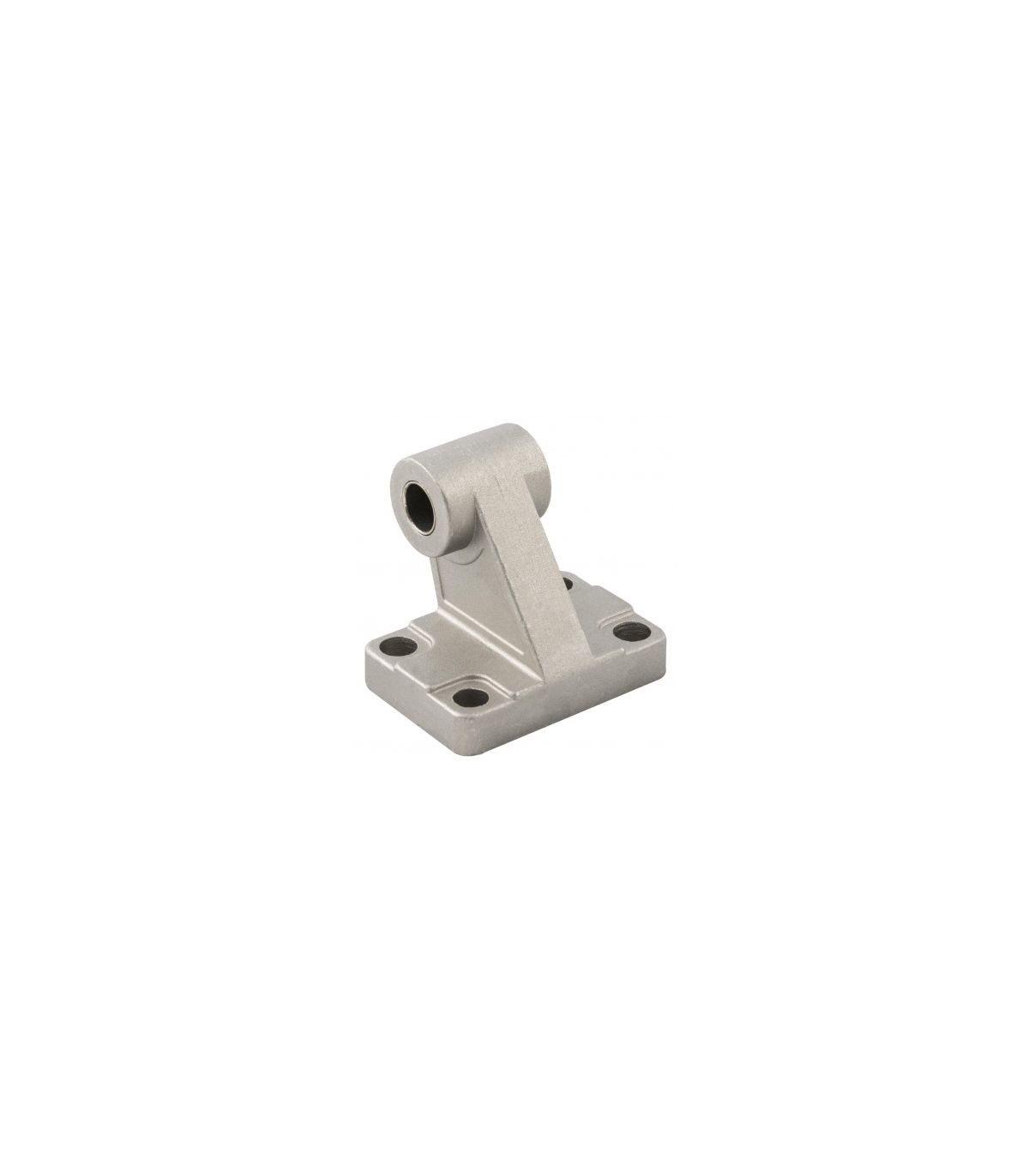

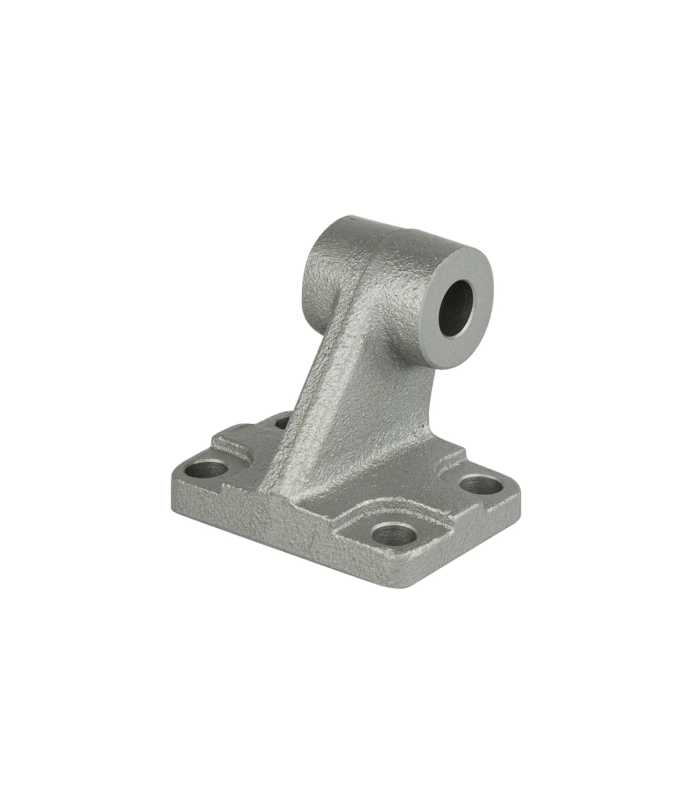

MALE OSCILLATING REAR FIXATION 90
MALE OSCILLATING REAR FIXATION 90
MALE OSCILLATING REAR FIXATION 90
MALE OSCILLATING REAR FIXATION 90

MALE OSCILLATING REAR FIXATION 90

Male swing rear bracket 90

Its function is to connect the cylinder to a structure or support in such a way that it allows angular movement.

Applications: Industrial automation, Agricultural machinery, Medical equipment, Packaging.

Technical data sheet:

  • Based on standard -ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Corrosion resistance class KBK -2
  • Ambient temperature -40 to +150 °C
  • RoHS Compliant
  • Made of die-cast aluminum
  • Galvanized steel bolts.
€9.80 (tax included)
€8.10 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53040018
Description

Male swing rear bracket 90

FIJACION TRASERA OSCILANTE MACHO 90

Product Details
53040018
