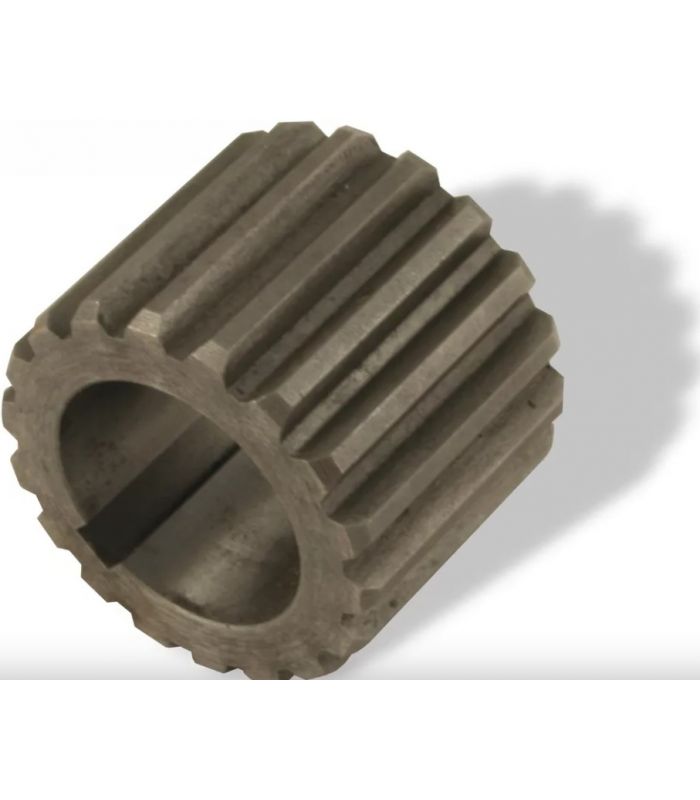

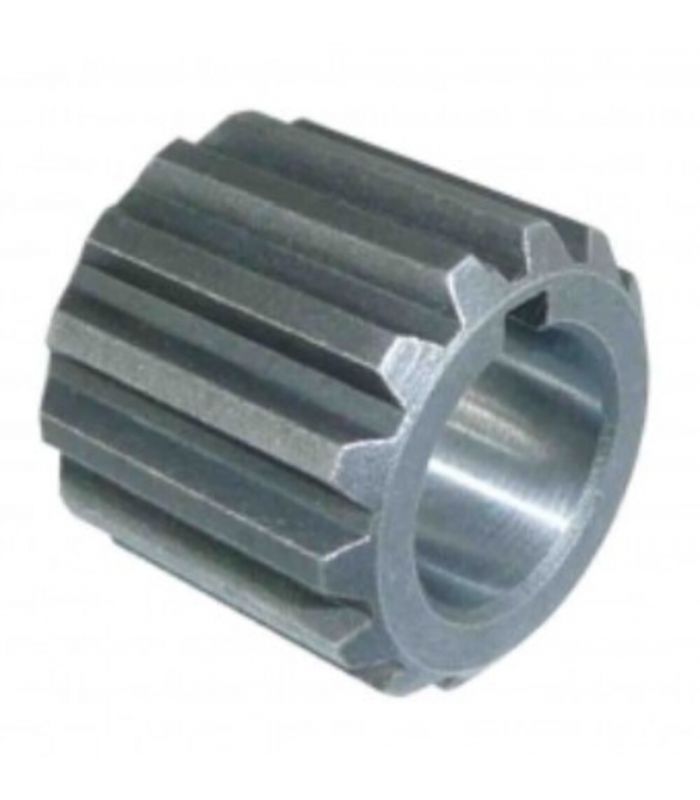

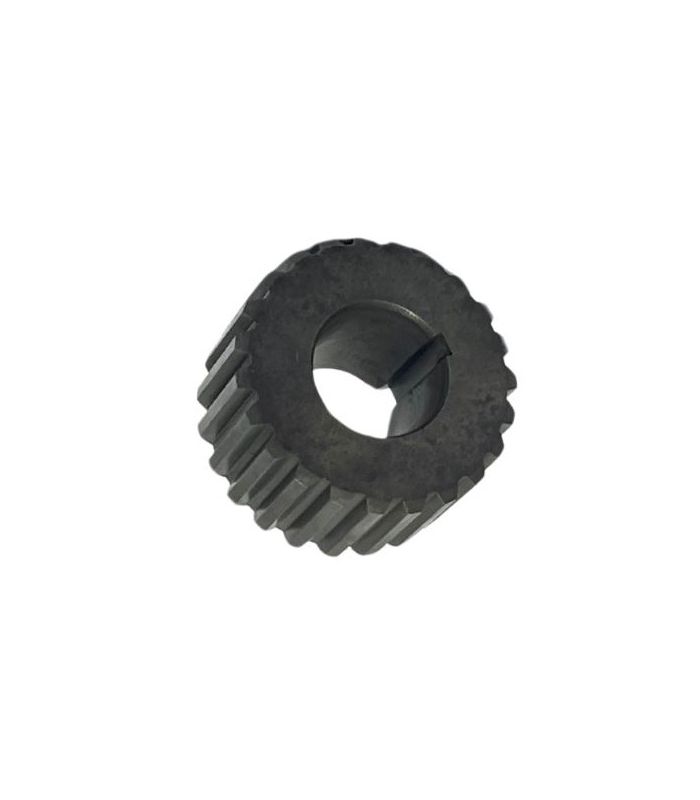

PUMP TO MULTIPLIER ADAPTER SLEEVE

The pump to speed multiplier adapter sleeve It is coupled to the pump shaft, and the pinion to the speed multiplier shaft. The rotation of the pinion rotates the sleeve, which transmits the pump's power to the speed multiplier.

Its function is to transmit the power and rotary motion of the pump to the multiplier, but also to adapt the dimensions and characteristics of the pump shaft to the input shaft of the multiplier.

These adapter sleeves are used in industrial hydraulic systems, agriculture or automation.

Technical sheet:

• Made of black-blued F-114 steel
• It has built-in machining for the keyway
• Taper 1:8
• Pinion insert according to DIN-5482

Check other configurations
