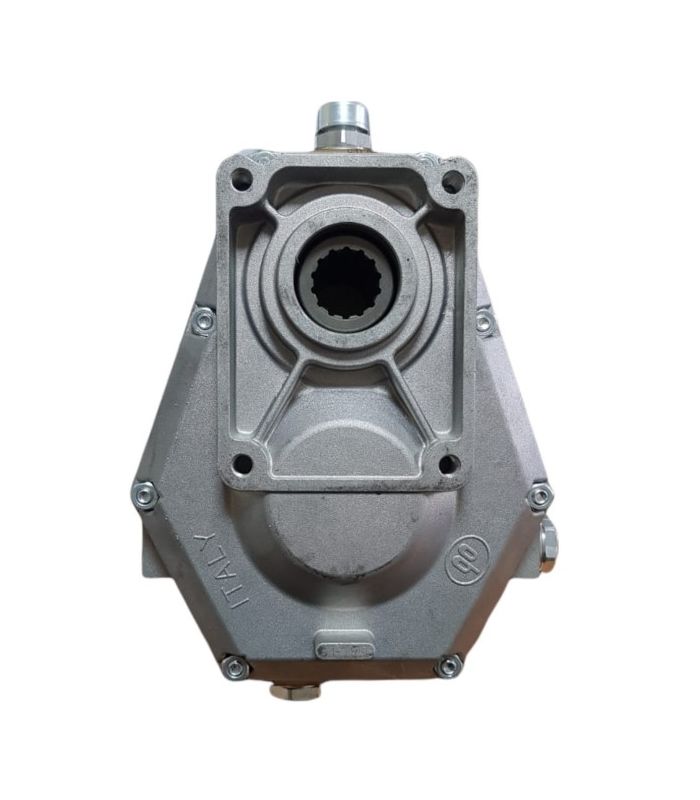

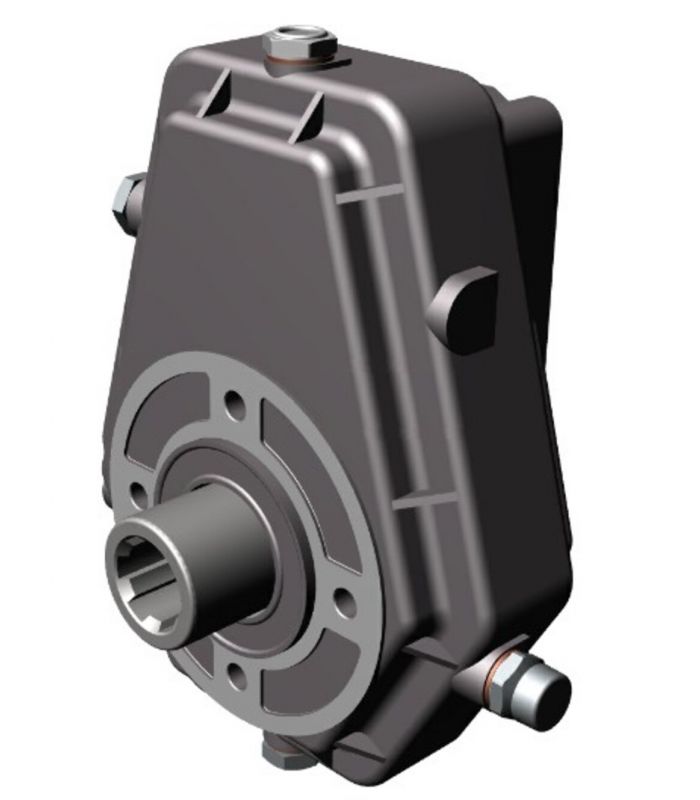

SPEED MULTIPLIER FEMALE TRACTOR TAKE

The female tractor PTO speed multiplier is a mechanism used to adapt the power and speed generated by an engine. Therefore, a PTO speed multiplier works to connect the high-pressure hydraulic pump to the tractor's PTO.

Applications: agricultural and industrial applications where higher rotation speeds are required to drive equipment such as hydraulic pumps, mowers, choppers, among others.

Technical sheet:

• For mounting on GR-3 and GR-2 type pumps
• Female tractor socket shaft DIN-9611 1"-3/8 35mm (6 teeth)
• Maximum 540 rpm on tractor intake.
• Max. pressure 200 bar
• DIN-5482 motor crown
• Multiplication ratio 1 : 3.5
• Supplied without oil, we recommend SAE-90 type oil
• Maximum temperature: 120ºC
• Designed to withstand the most demanding conditions of agricultural or industrial work.
• They are ideal for tractor implements (loader, forestry crane, wood splitter, chipper, backhoe, etc.)
