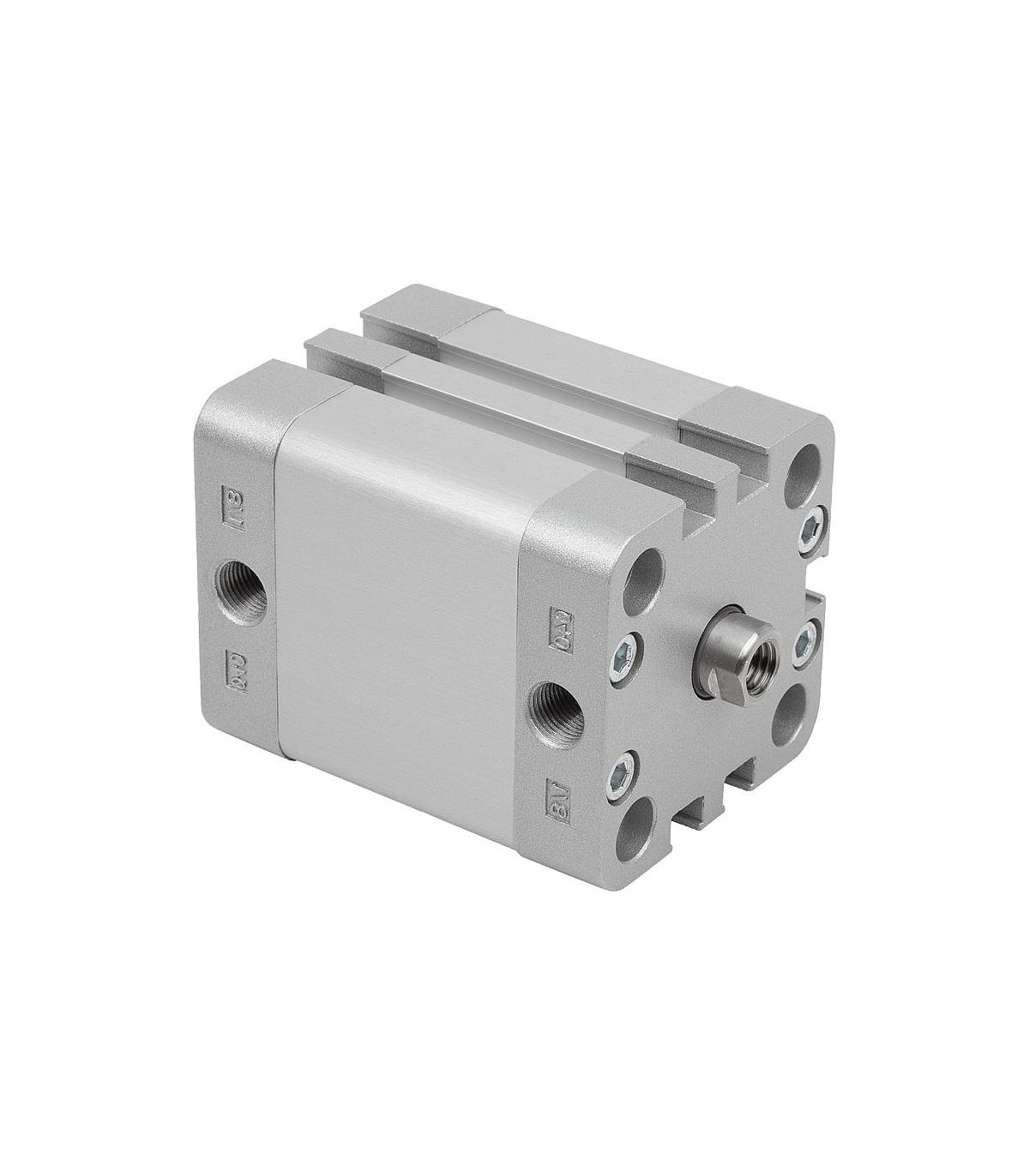

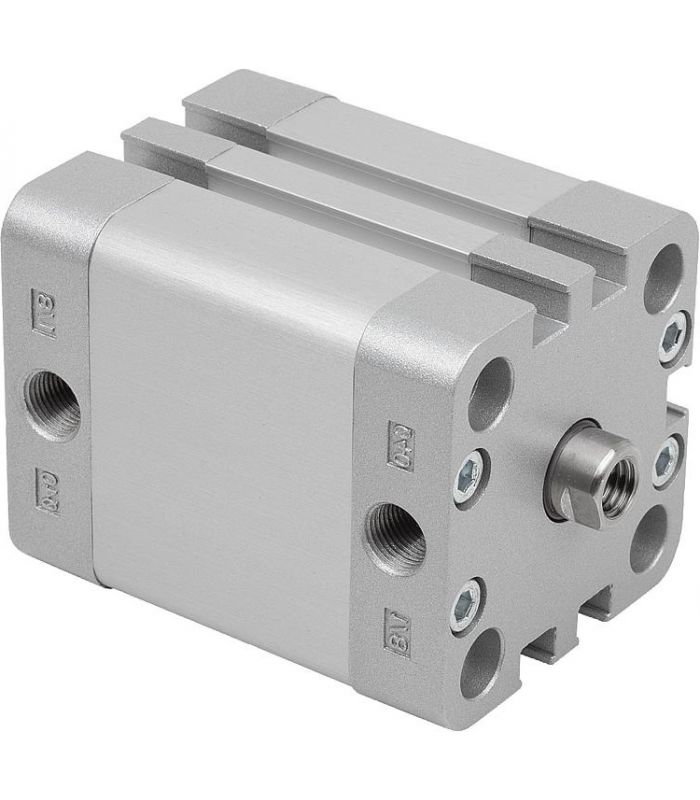

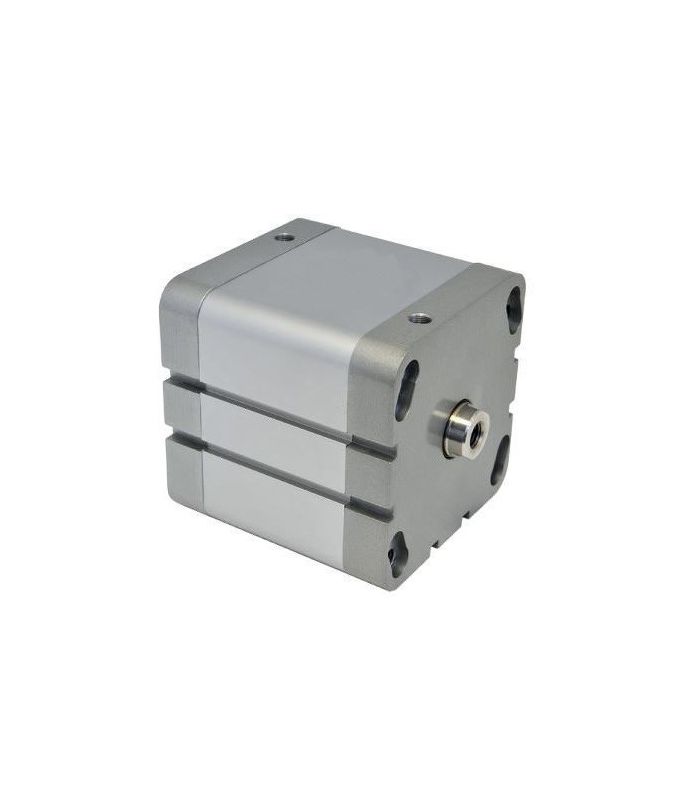

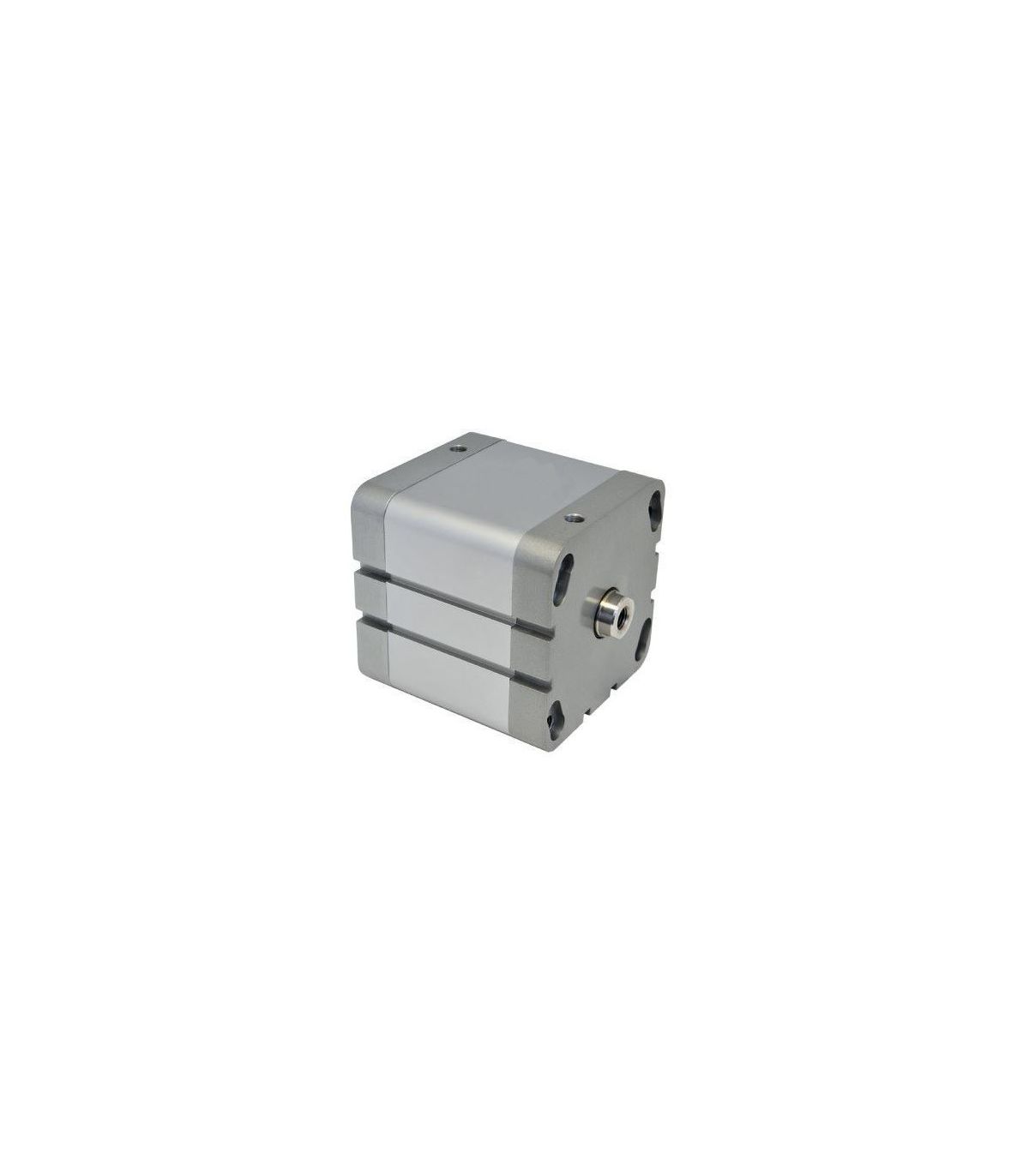

An ISO-21287 compact cylinder is designed with a high-strength aluminum tube and cylinder heads, ensuring a lightweight yet robust structure. Its main advantage is its compact design , which allows for high thrust and pull forces in confined spaces while maintaining the same piston diameter as a standard cylinder.
ISO 21287 compact cylinders are widely used in industrial automation, assembly, parts handling, and pneumatic systems where high precision and reliability are required in confined spaces. Manufactured from anodized aluminum or stainless steel, they offer high corrosion resistance and a long service life.
Main features:
Explore other careers or options
He compact cylinder ISO 21287 It is a pneumatic actuator designed according to the ISO 21287 standard, which standardizes its dimensions and mounting points to guarantee the interchangeability between manufacturers.
These cylinders are generally constructed with aluminum body and cylinder heads, , chrome-plated steel stem and low friction joints, which guarantees reliability, long service life and smooth operation.
Thanks to your versatility, precision and small size, The ISO 21287 compact cylinder is widely used in industrial automation systems, assembly machinery, material handling and pneumatic equipment where installation space is limited.
| Ø interior | TO | B | C | D | AND | F | G | H | Yo | J | K | L | M | N | EITHER | P | P1 | P2 | Q | Q1 | R | R1 |
| 12 | 9 | 2.1 | 2 | 16 | 27.5 | 5.5 | M5x0.8 | 3.7 | 6 | M4x0.7 | 10 | 18.3 | 35 | 40 | 5 | 5 | 6 | 3.5 | M3x0.5 | 3.3 | 8 | 1.5 |
| 16 | 9 | 2.1 | 2 | 18 | 30 | 5.5 | M5x0.8 | 3.7 | 8 | M4x0.7 | 10 | 18.3 | 35 | 40 | 5 | 7 | 6 | 3.5 | M4x0.7 | 4.5 | 10 | 1.5 |
| 20 | 9 | 2.1 | 2 | 22 | 35.5 | 6 | M5x0.8 | 4.5 | 10 | M5x0.8 | 10.5 | 23.8 | 37 | 43 | 6 | 9 | 9 | 4.8 | M6x1.0 | 6.5 | 14 | 2.6 |
| 25 | 9 | 2.1 | 2 | 26 | 40 | 6 | M5x0.8 | 4.5 | 10 | M5x0.8 | 11 | 23.8 | 39 | 45 | 6 | 9 | 9 | 4.8 | M6x1.0 | 6.5 | 14 | 2.6 |
| 32 | 9 | 2.1 | 3 | 32.5 | 49.5 | 7.6 | G1/8 | 5 | 12 | M6x1.0 | 14 | 28.3 | 44 | 51 | 7 | 10 | 9 | 4.8 | M8x1.25 | 8.5 | 16 | 3.3 |
| 40 | 9 | 2.1 | 3 | 38 | 55 | 7.6 | G1/8 | 5 | 12 | M6x1.0 | 14.3 | 28.3 | 45.5 | 52.5 | 7 | 10 | 9 | 4.8 | M8x1.25 | 8.5 | 16 | 3.3 |
| 50 | 12 | 2.6 | 3 | 46.5 | 65.5 | 7.6 | G1/8 | 6 | 16 | M8x1.25 | 14.3 | 30.3 | 45.5 | 53.5 | 8 | 13 | 11 | 4.8 | M10x1.5 | 10.5 | 20 | 4.7 |
| 63 | 12 | 2.6 | 4 | 56.5 | 75.5 | 7.6 | G1/8 | 6 | 16 | M8x1.25 | 15 | 30.3 | 49 | 57 | 8 | 13 | 11 | 4.8 | M10x1.5 | 10.5 | 20 | 4.7 |
| 80 | 12 | 2.6 | 6 | 72 | 95.5 | 8.5 | G1/8 | 7 | 20 | M10x1.5 | 16 | - | 54 | 63 | 9 | 17 | 15 | 2.6 | M12x1.75 | 12.5 | 20 | 6.1 |
| 100 | 12 | 2.6 | 7 | 89 | 113.5 | 10.5 | G1/8 | 7 | 20 | M10x1.5 | 19 | - | 67 | 76 | 9 | 17 | 15 | 2.6 | M12x1.75 | 12.5 | 20 | 6.1 |
| 125 | 12 | 2.6 | 8 | 110 | 134.5 | 10.5 | G1/4 | 9 | 25 | M12x1.75 | 20 | - | 81 | 92 | 11 | 21 | - | - | M16x2.0 | 16.5 | 25 | 7 |
