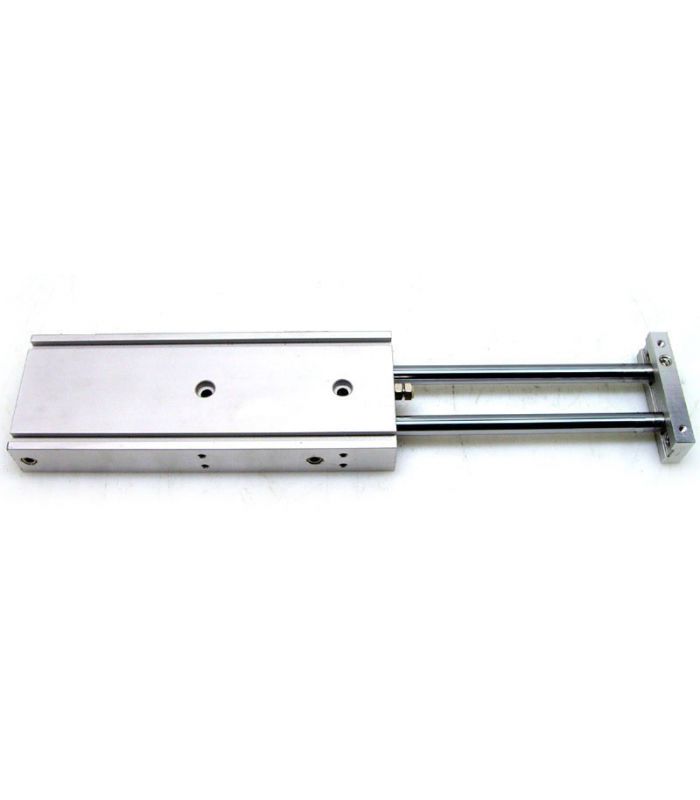

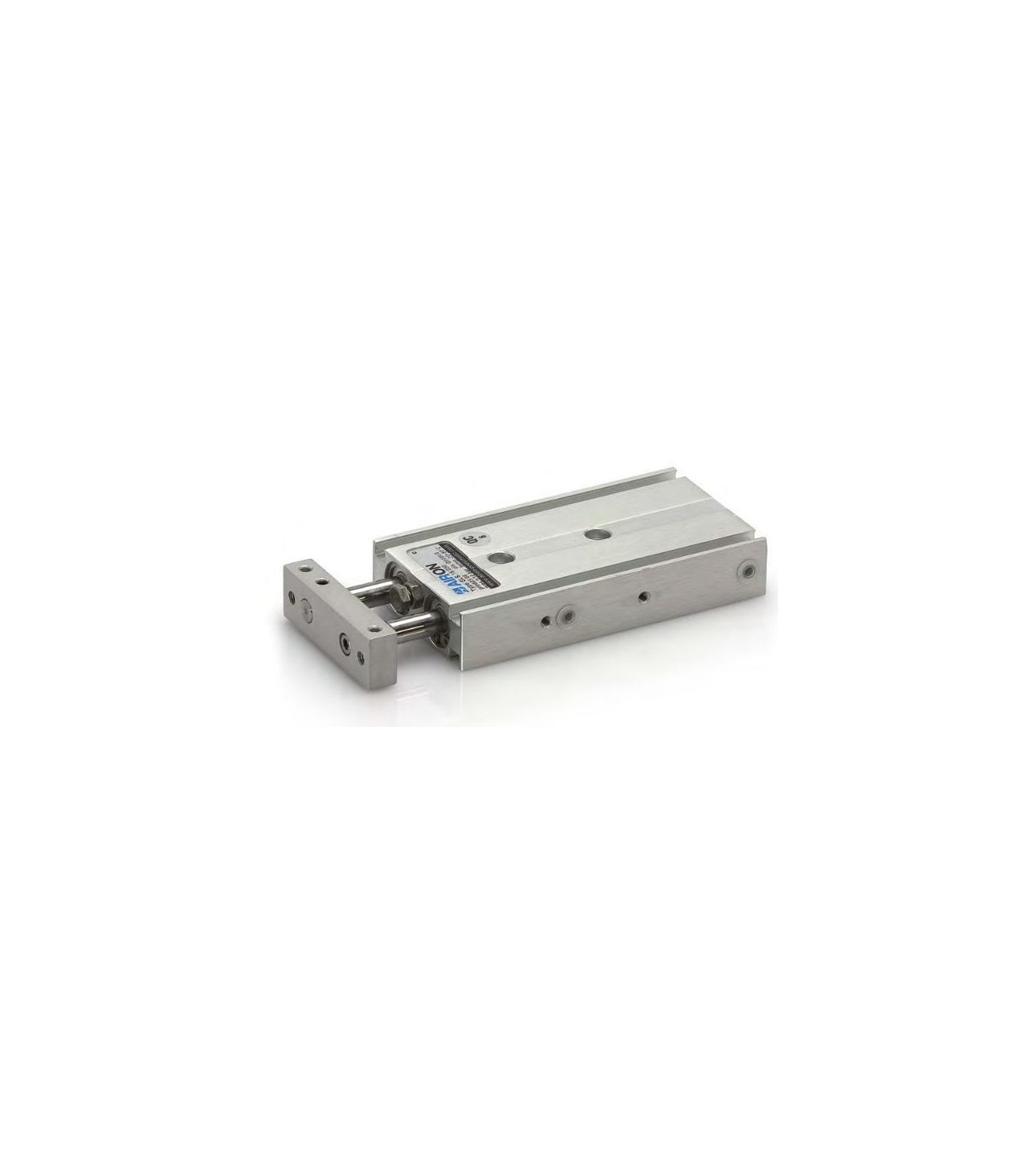

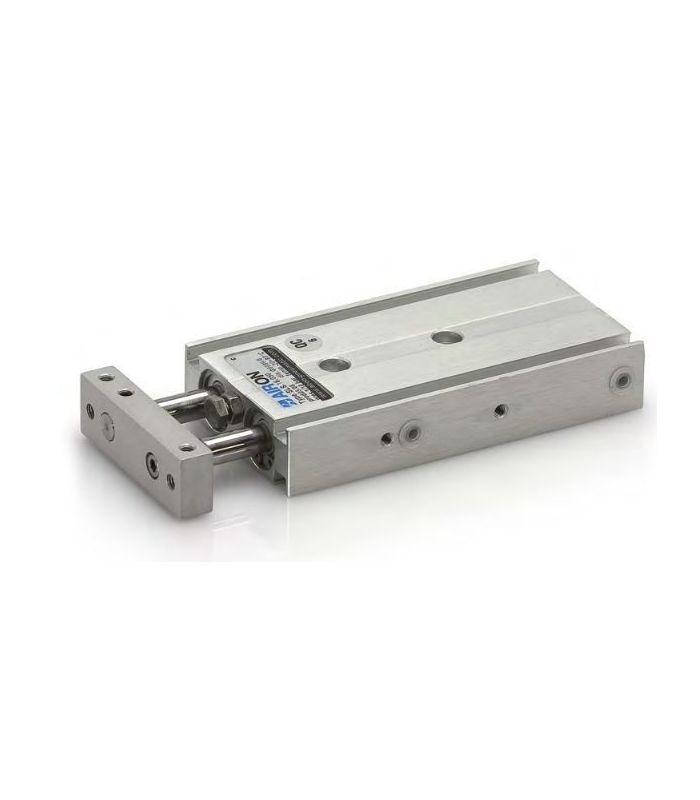

SLS GUIDED LINEAR CYLINDER
SLS GUIDED LINEAR CYLINDER
SLS GUIDED LINEAR CYLINDER
SLS GUIDED LINEAR CYLINDER

SLS GUIDED LINEAR CYLINDER

“SL” series linear actuators are precision linear cylinders.
Made in versions with "SLS" bushings for high loads and "SLR" ball bearings for high speeds, they are available in diameters 10, 16, 20, 25, 32 mm and strokes up to 200 mm.
The "SL" linear actuator due to its design features allows anti-rotation of the magnitude of the load and weight.
The high structural rigidity of the assembly, the double force developed with respect to the nominal diameter, the ability to adjust the entry stroke, prepared for the mounting of a magnetic retractable sensor, as well as the numerous mounting options, are some of the elements that facilitate convenient use in industrial automation applications.

  • Guided cylinder with bushings.
  • Great precision and high loads.
  • Anti-rotation and development of double the force.
  • Input stroke adjustment.
  • Prepared for magnetic detection.
  • Aluminum body and covers.
  • Axle and guides in Inox-420.
  • Polyurethane joints.
  • Working pressure 1-10 bar.
  • Temperature -0 / 80ºC.
  • Max speed 0.3 m/s.

€130.35 (tax included)
€107.72 (tax excl.)
BORE x STROKE
  • Ø10-10
  • Ø10-25
  • Ø10-50
  • Ø16-10
  • Ø16-25
  • Ø16-50
  • Ø16-80
  • Ø16-100
  • Ø16-125
  • Ø16-160
  • Ø20-10
  • Ø20-20
  • Ø20-25
  • Ø20-30
  • Ø20-40
  • Ø20-50
  • Ø20-60
  • Ø20-80
  • Ø20-100
  • Ø20-125
  • Ø20-160
  • Ø25-10
  • Ø25-20
  • Ø25-25
  • Ø25-30
  • Ø25-40
  • Ø25-50
  • Ø25-60
  • Ø25-80
  • Ø25-100
  • Ø25-125
  • Ø25-160
  • Ø25-200
  • Ø32-10
  • Ø32-20
  • Ø32-25
  • Ø32-30
  • Ø32-40
  • Ø32-50
  • Ø32-60
  • Ø32-75
  • Ø32-80
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
Reference:
50300010
Description

CILINDRO LINEAL GUIADO SLS

Product Details
50300010
