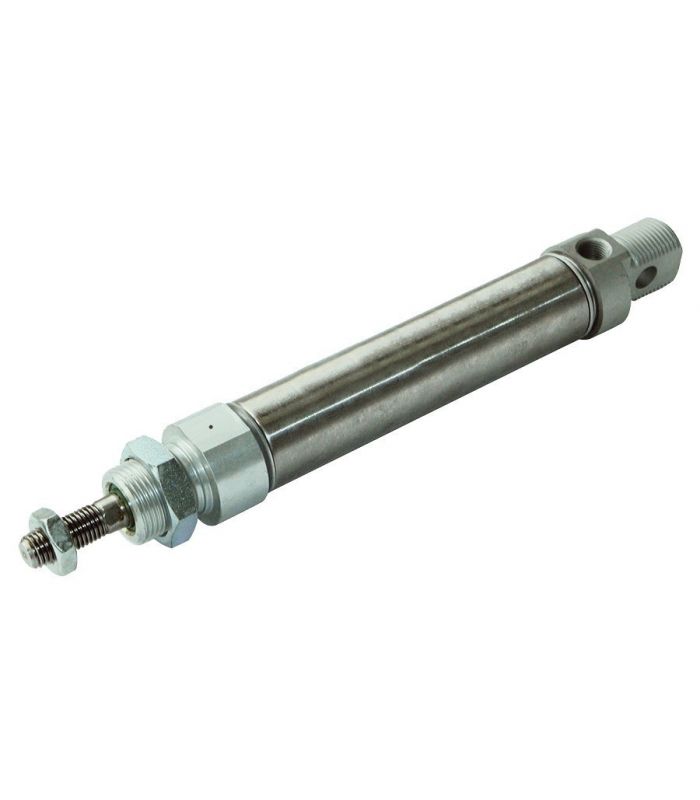

ISO-6432 SINGLE EFFECT RETRACTED STEM CYLINDER

ISO-6432 SINGLE EFFECT RETRACTED STEM CYLINDER

ISO-6432 single-acting cylinder with retracted rod

It is a pneumatic linear actuator that converts compressed air energy into linear mechanical motion. It only exerts force in one direction.

Technical data sheet:

  • Stem retracted into resting position.
  • Spring return.
  • Provided for magnetic detection.
  • Polyurethane seals ensure low-friction, long-lasting operation.
  • Stainless steel-304 shirt
  • Stem in stainless steel-303
  • Anodized aluminum cylinder heads.
  • Working temperature -20 / 70ºC
  • Pressure 10 bar.

* See other careers or options *

€33.08 (tax included)
€27.34 (tax excl.)
BORE x STROKE
  • Ø8-10
  • Ø8-25
  • Ø8-50
  • Ø10-10
  • Ø10-25
  • Ø10-50
  • Ø12-10
  • Ø12-15
  • Ø12-25
  • Ø12-80
  • Ø16-10
  • Ø16-25
  • Ø16-50
  • Ø20-10
  • Ø20-25
  • Ø20-50
  • Ø25-10
  • Ø25-25
  • Ø25-50
Reference:
50100004
Description

ISO-6432 single-acting cylinder with retracted rod

Product Details
50100004
