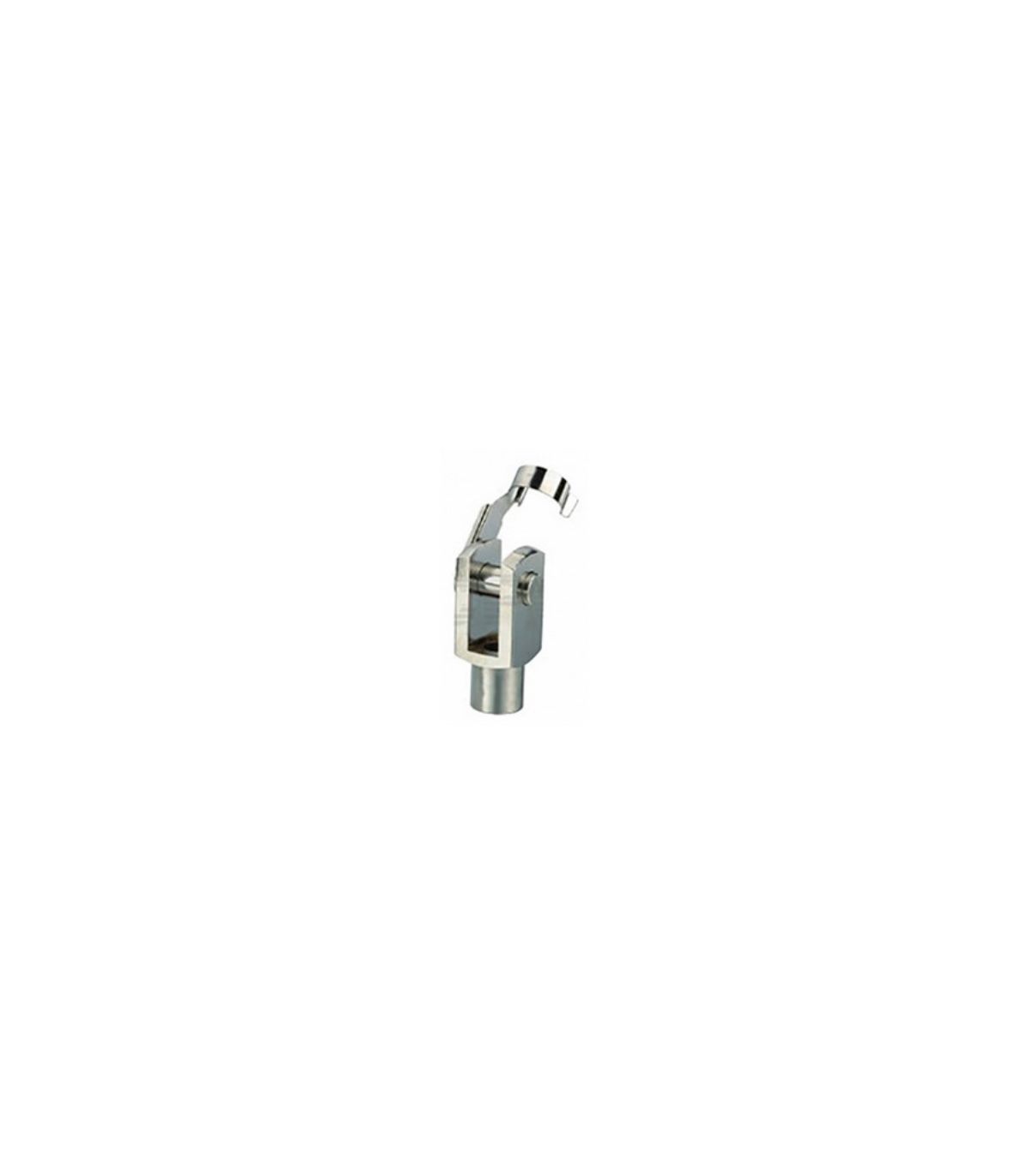

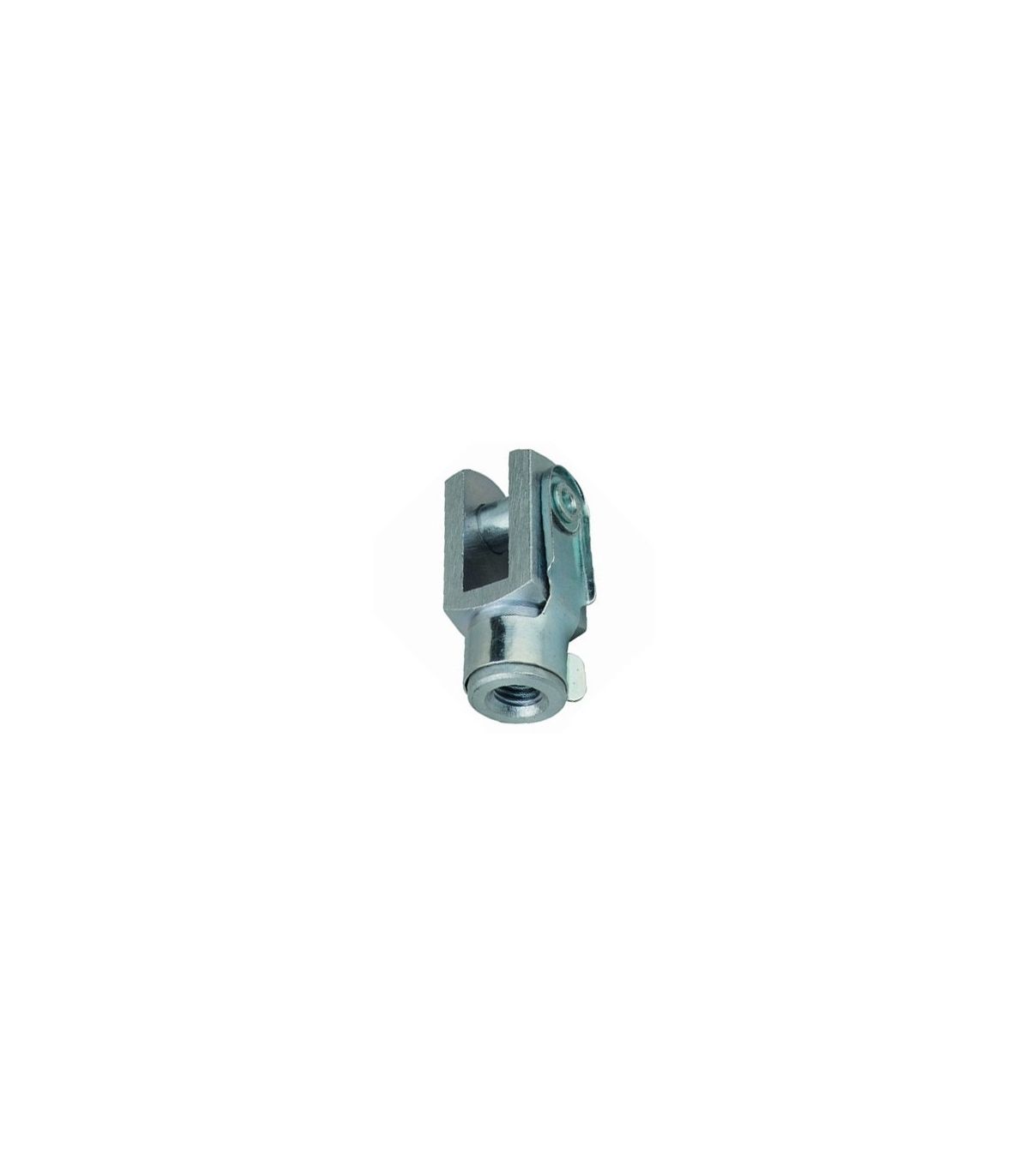

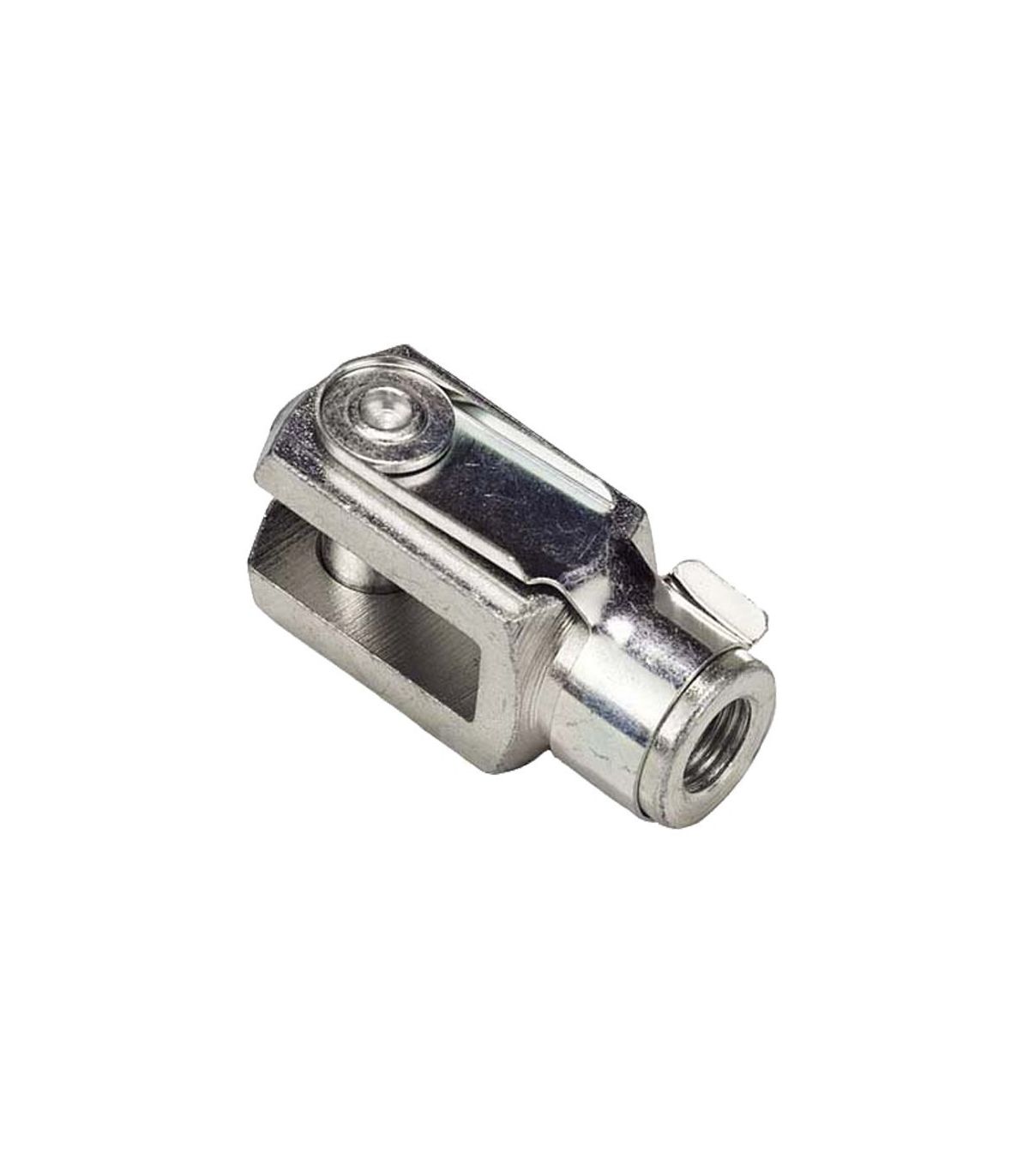

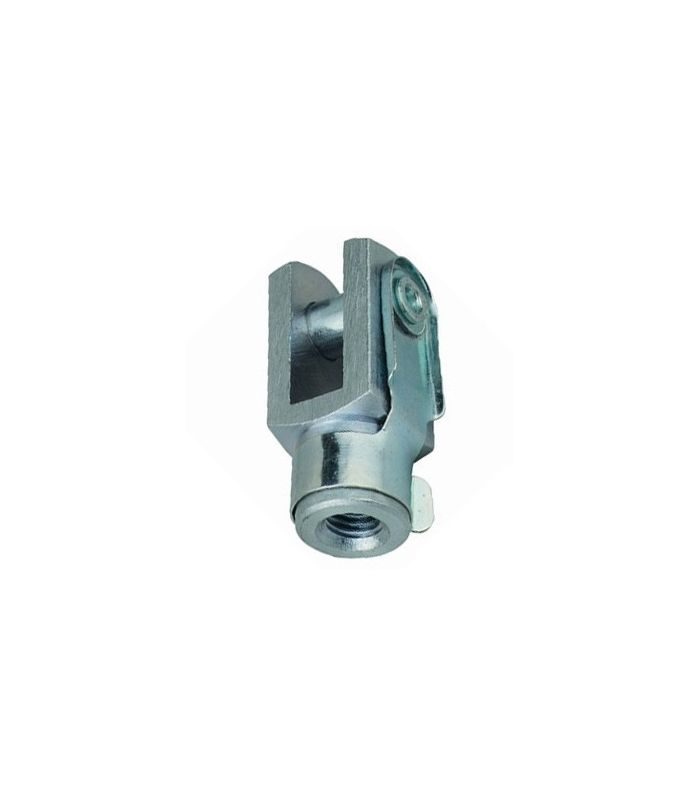

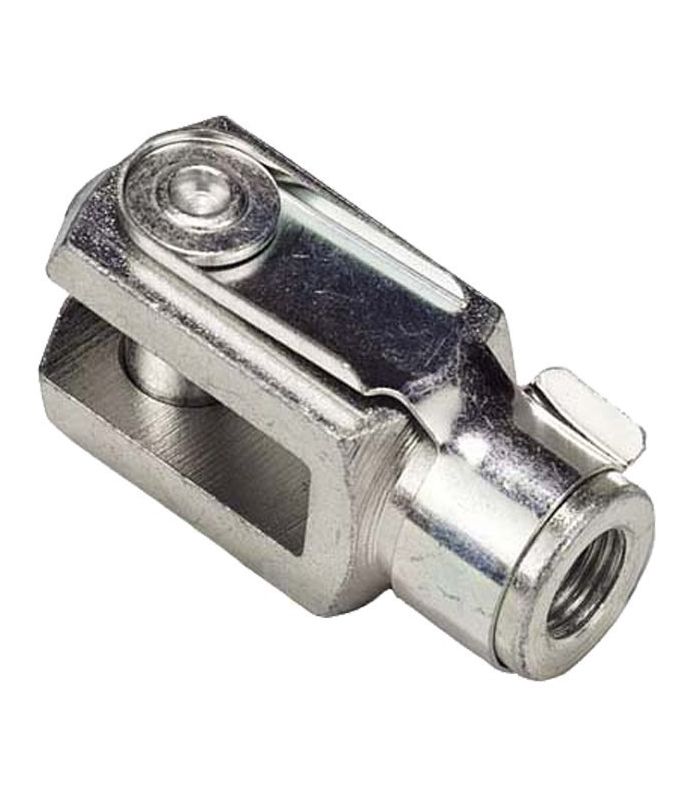

Fork stem ISO-6432

It is specifically used in pneumatic cylinders that comply with ISO-6432. It is attached to the end of the cylinder rod to connect the cylinder to other elements of a machine or system.

Typical applications: Industrial automation, Agricultural machinery, Medical equipment, Packaging machines.

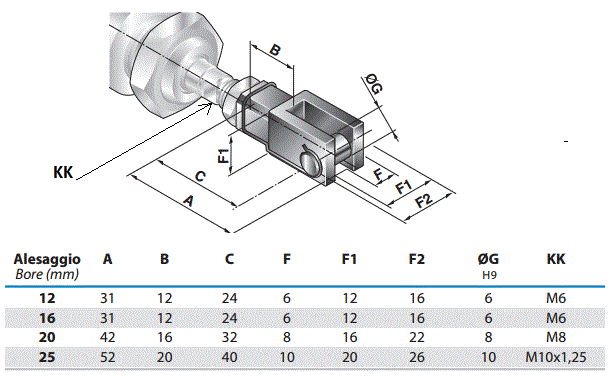

Technical data sheet:

  • Manufactured according to DIN 648-K – ISO 6126
  • Coupling: STEEL
€3.48 (tax included)
€2.88 (tax excl.)
DIAMETERS
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
Reference:
53000005
Description

Fork stem ISO-6432

Product Details
53000005
