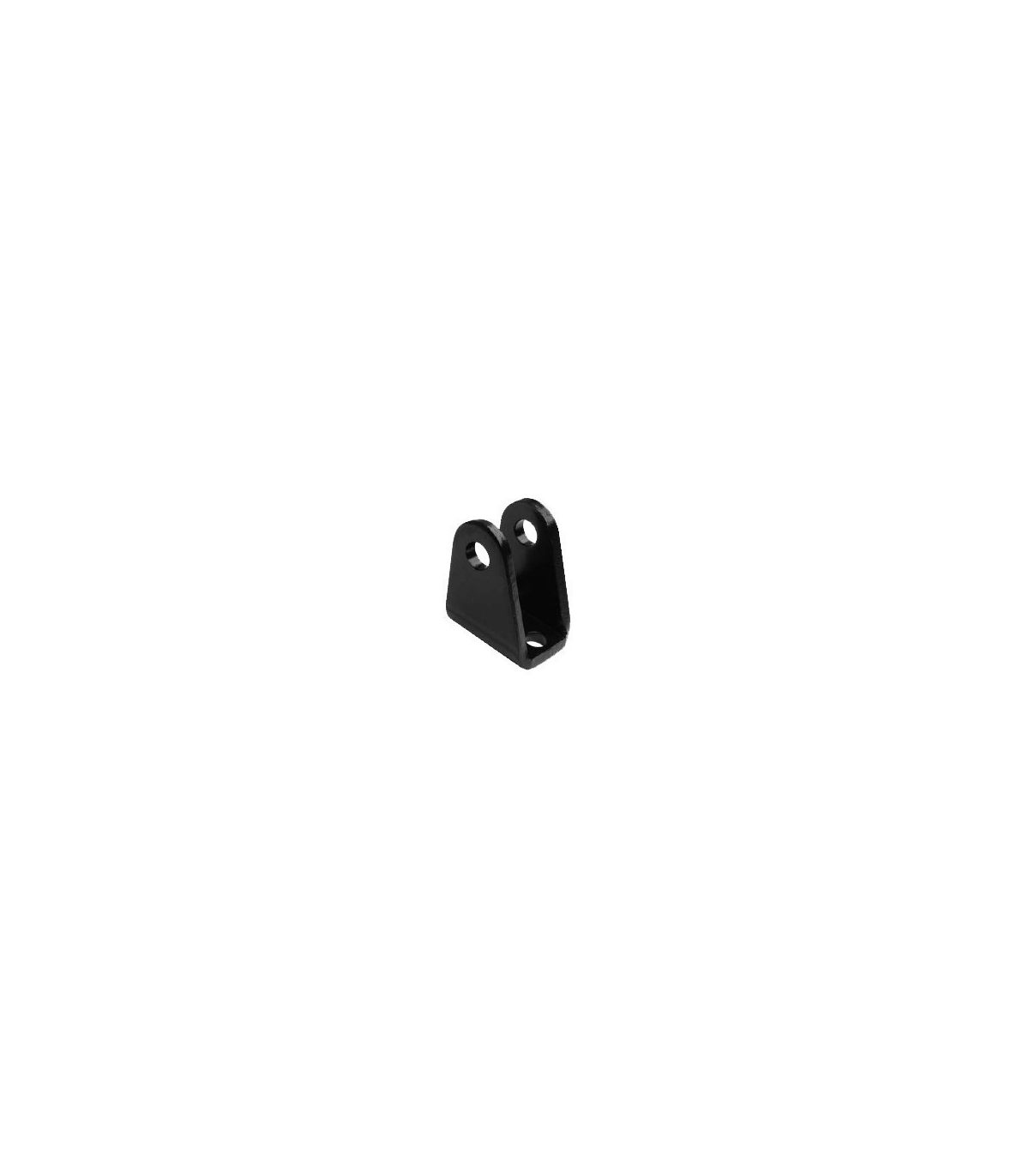

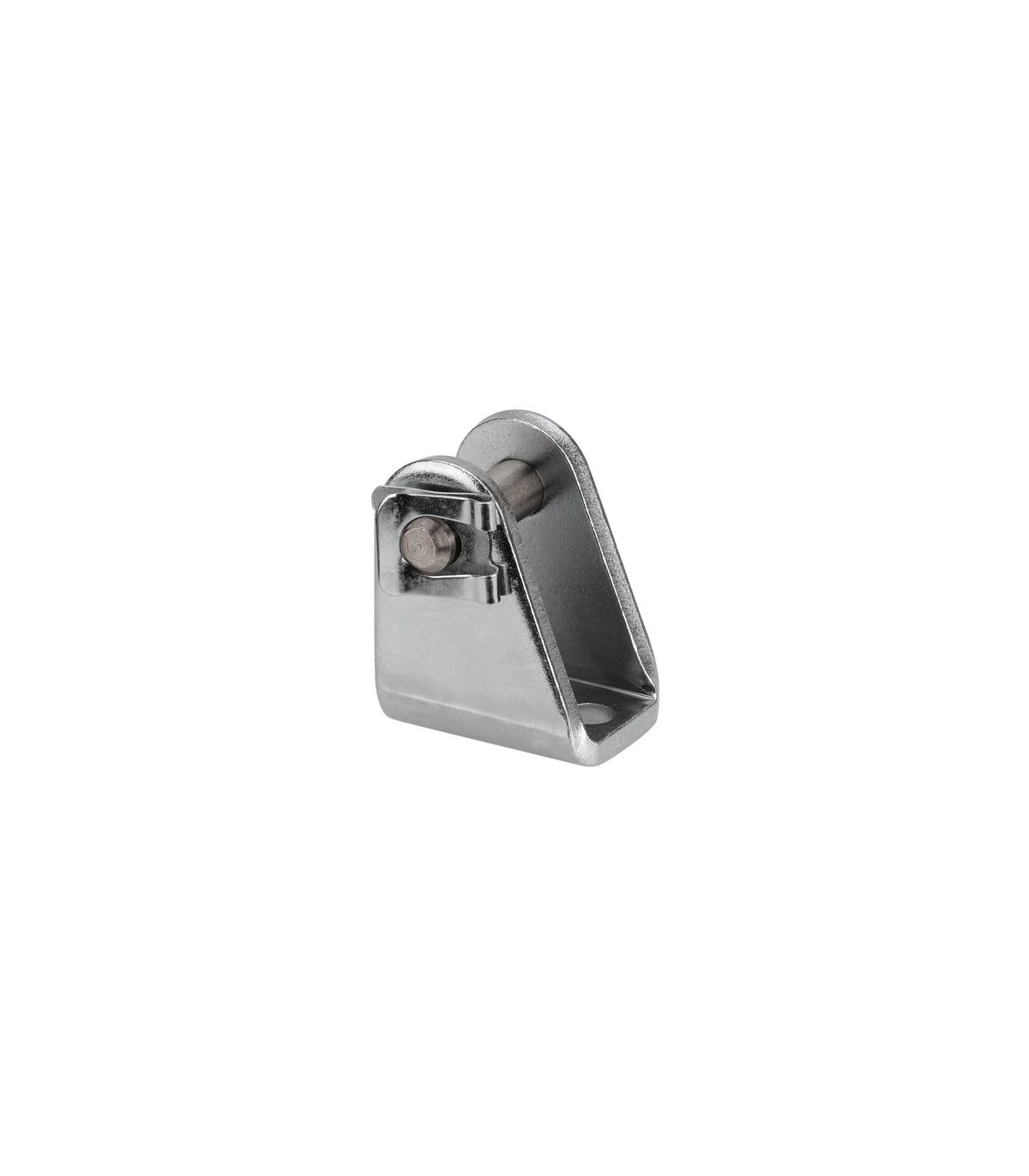

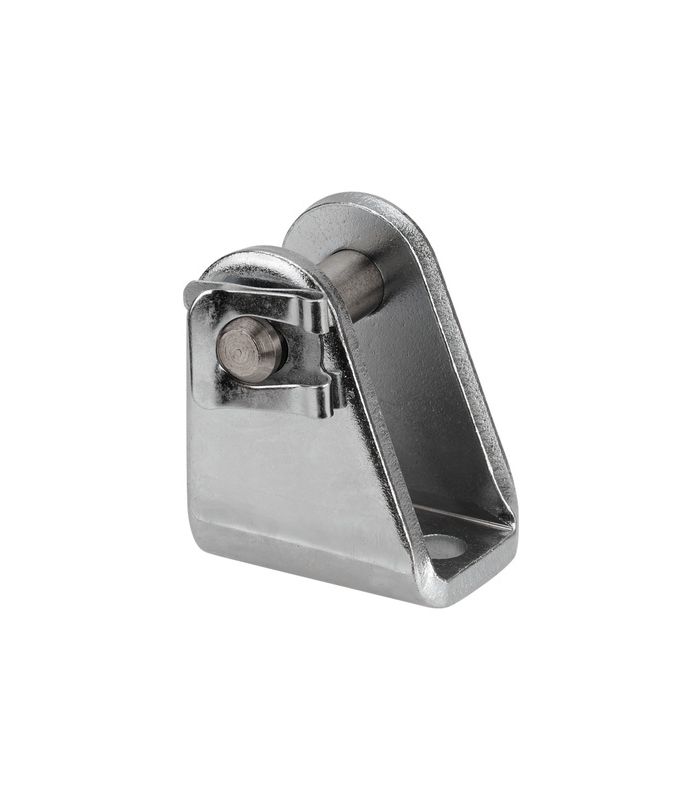

OSCILLATING REAR FIXING DIN-6432
OSCILLATING REAR FIXING DIN-6432
OSCILLATING REAR FIXING DIN-6432
OSCILLATING REAR FIXING DIN-6432

OSCILLATING REAR FIXING DIN-6432

A DIN-6432 oscillating rear attachment is an accessory for pneumatic cylinders that comply with DIN ISO 6432. It allows the cylinder to oscillate in a given plane around a fixing point at its rear, while pushing or pulling a load.

Applications: Automation and robotics, Packaging machinery, Electronics and microelectronics, Medical and laboratory equipment, Tools.

Technical sheet:

  • Rear oscillating fixing for ISO-6432 cylinder
  • Supplied with pin and circlips.
€6.52 (tax included)
€5.39 (tax excl.)
DIAMETERS
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
Reference:
53220005
Description

rear oscillating fixing DIN-6432

FIJACION TRASERA OSCILANTE

Product Details
53220005
Comments
