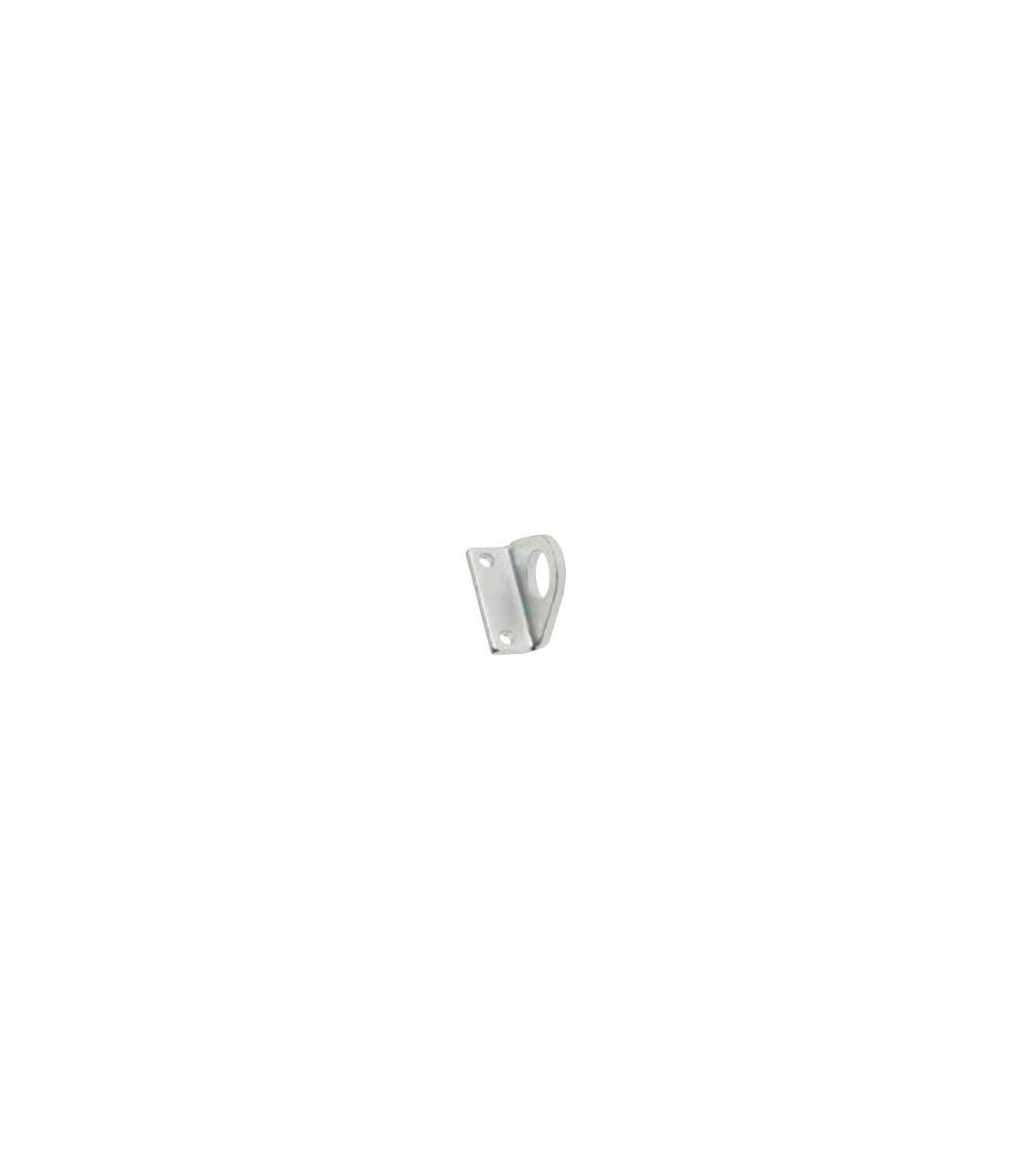

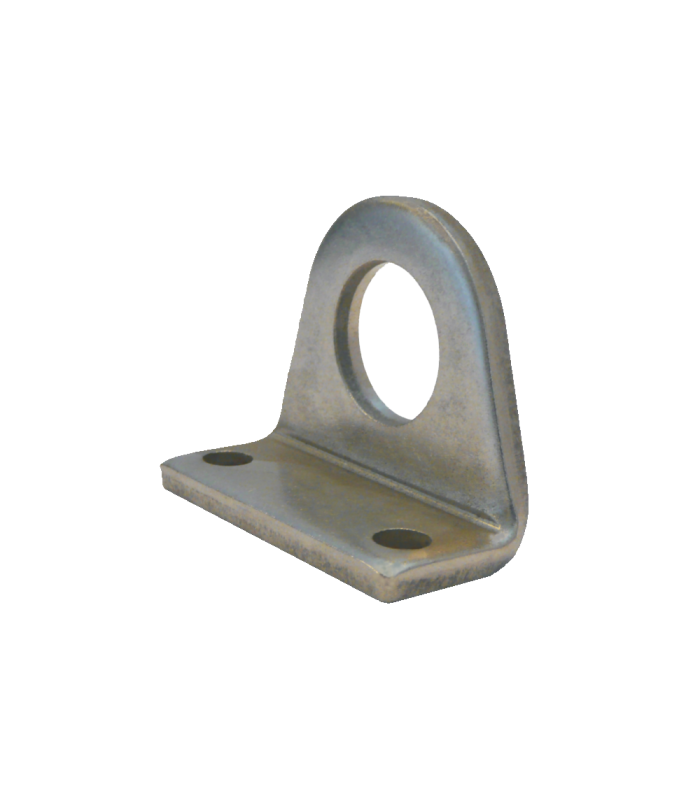

ISO-6432 SQUARE
ISO-6432 SQUARE
ISO-6432 SQUARE
ISO-6432 SQUARE

ISO-6432 SQUARE

An ISO-6432 bracket is an accessory designed for the safe and stable mounting of small diameter cylinders, allowing their installation on structures, frames or industrial machinery.

Main features:

  • Bracket for mounting on ISO-6432 cylinders. MS3
  • Made of steel.
€4.17 (tax included)
€3.45 (tax excl.)
DIAMETERS
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
Reference:
53200005
Description

ISO-6432 Square

The ISO 6432 pneumatic cylinder fixing bracket is an accessory designed for the safe and stable mounting of small diameter cylinders, allowing their installation on structures, frames or industrial machinery.

Made with high-strength materials, this bracket guarantees a robust fixation, facilitating the correct alignment of the cylinder and ensuring efficient operation.

Compatible with standard cylinders according to ISO 6432 , it is a versatile solution for multiple industrial applications.

Main features

  • Compatible with ISO 6432 pneumatic cylinders
  • Square design for fixed mounting
  • High mechanical resistance
  • Quick and easy installation
  • Available for different cylinder diameters

Applications

  • Industrial automation
  • Assembly machinery
  • Pneumatic systems
  • Production lines
  • Handling equipment

Technical specifications of an ISO-6432 square:

Product Details
53200005
