Bottom nut.
To be placed in ISO-6432 cylinders.
Made of steel.

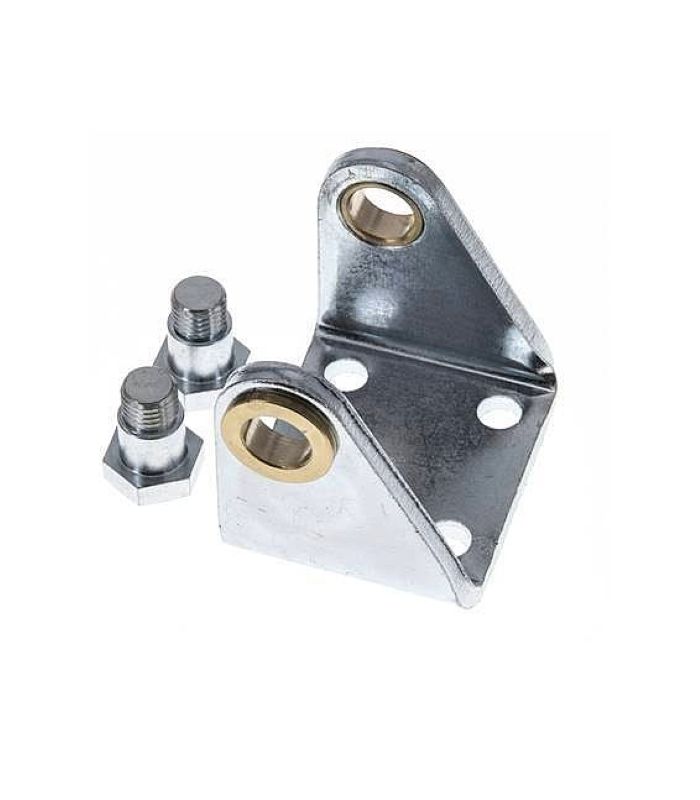

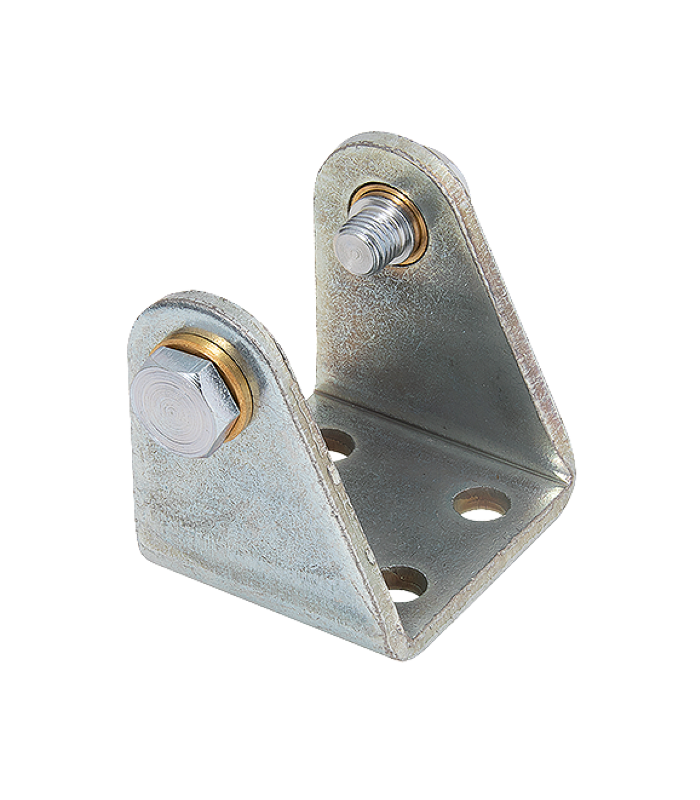

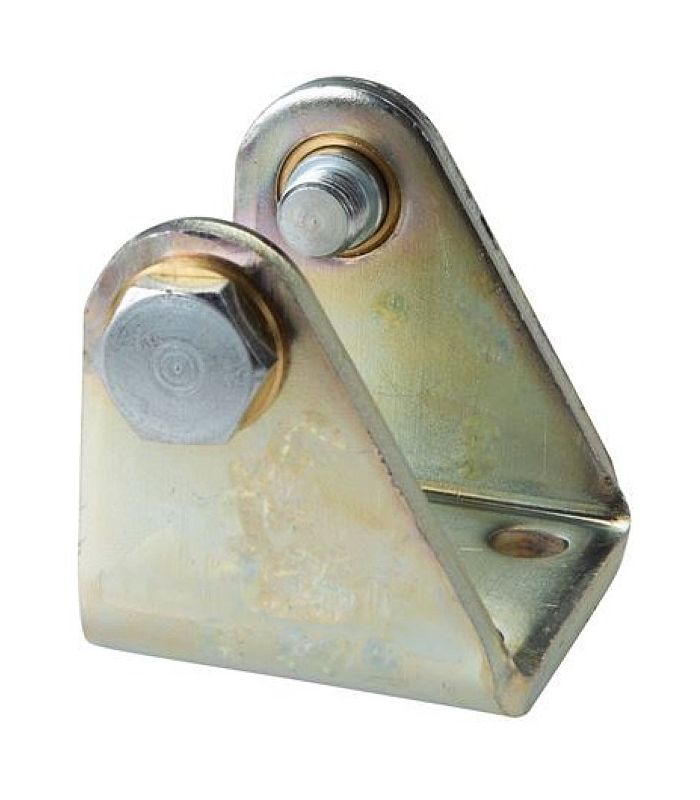

SWING FIXING Ø32-Ø63
A swivel fitting Ø32 to Ø63 is used to couple an ISO 6432 pneumatic cylinder to a structure or machine, allowing the cylinder to oscillate freely during operation.
Applications: Industrial machinery, Agricultural and construction machinery, Packaging equipment, Lifting and transport systems.
Technical sheet:
- Oscillating fixing for ISO-6432 cylinder from Ø32 to Ø63
- Supplied with bolt.
- Made of galvanized steel.
€23.75
(tax included)
€19.63
(tax excl.)
Reference:
53921
