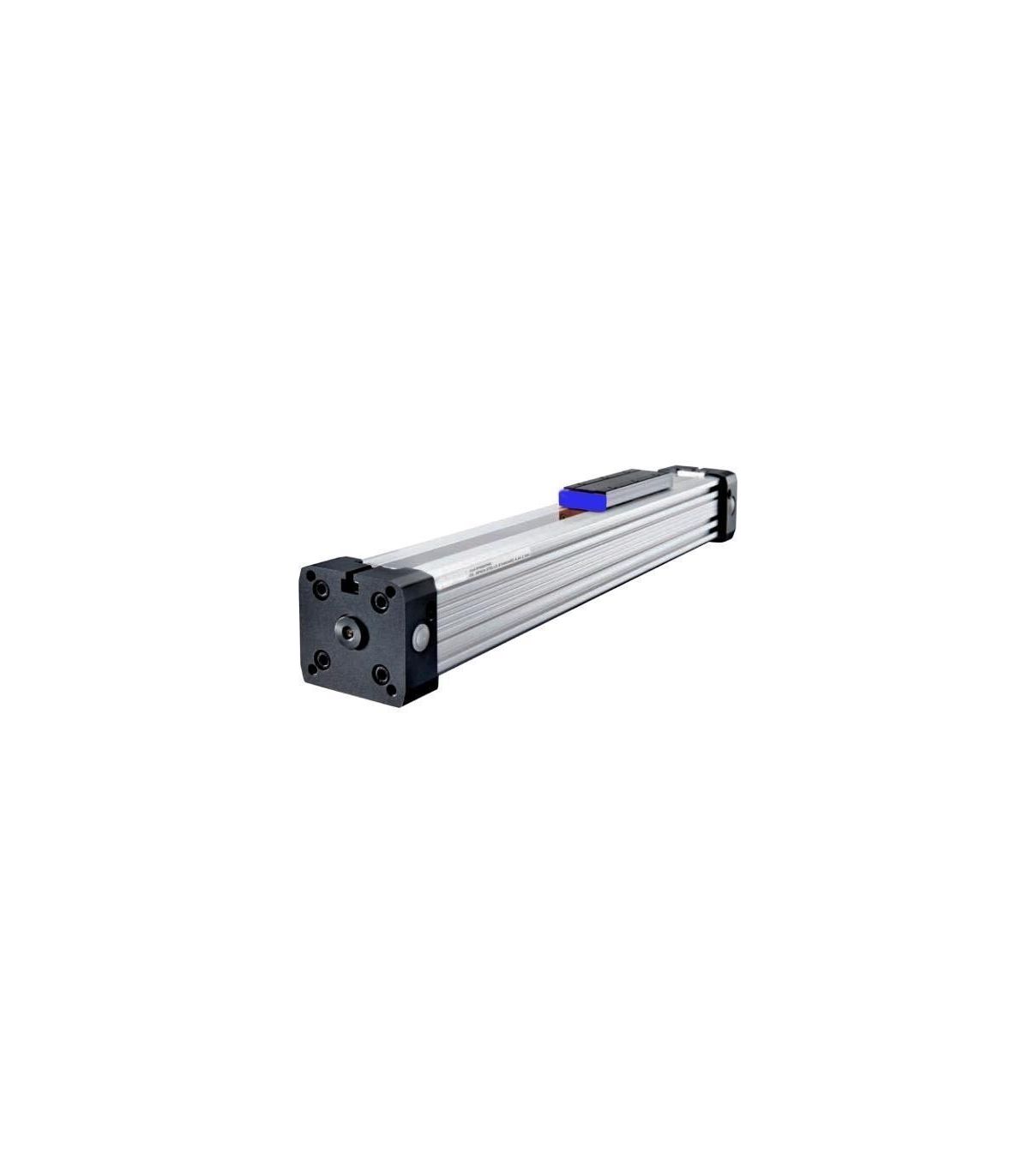

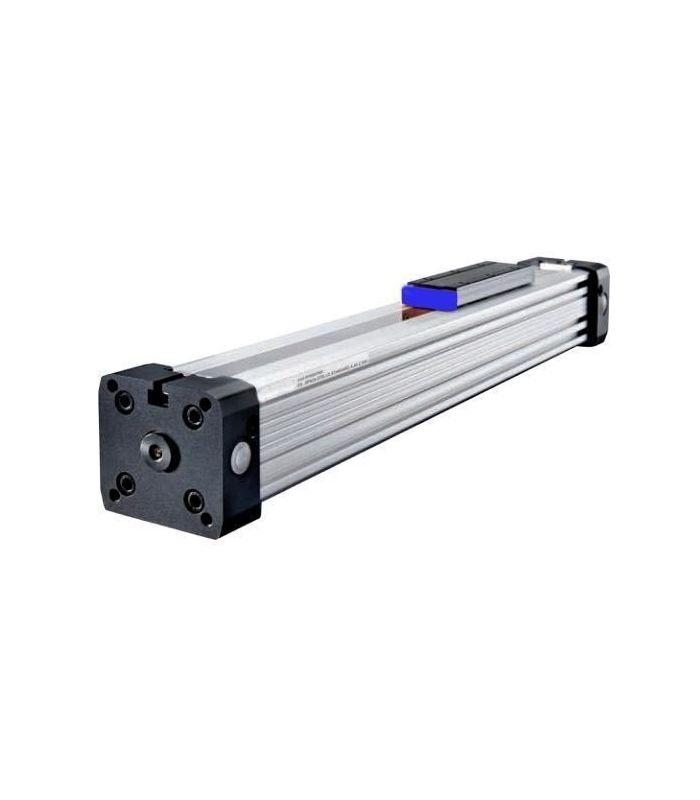

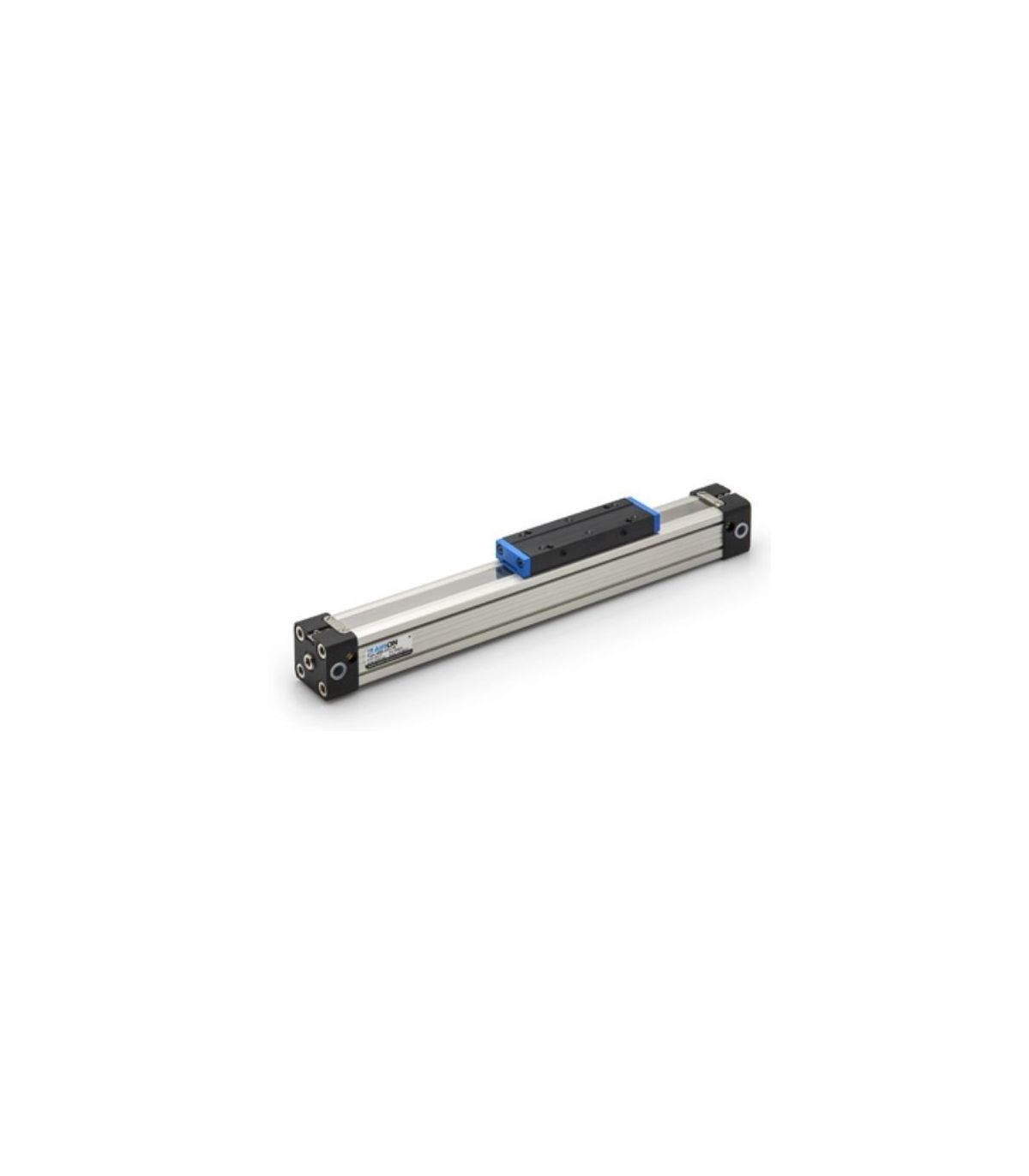

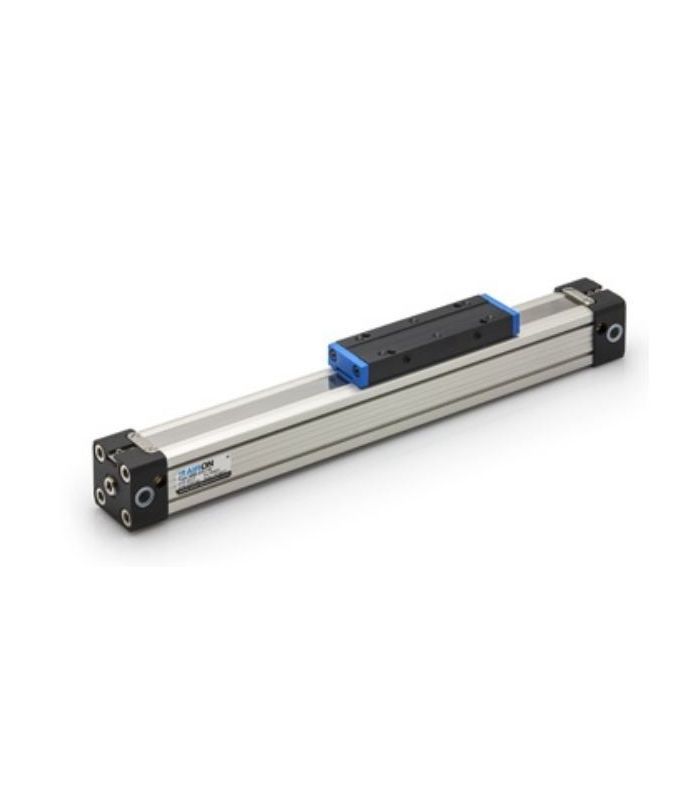

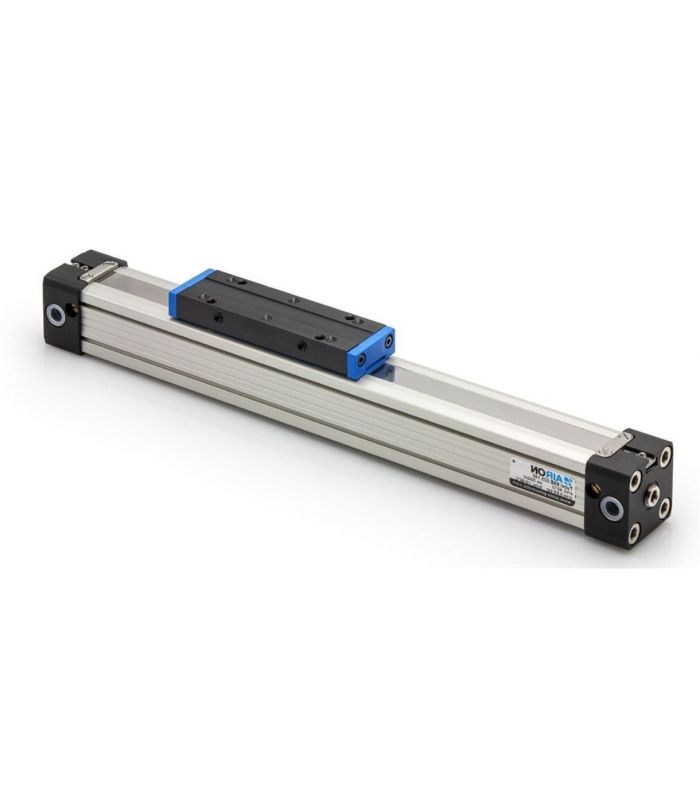

RODLESS CYLINDER
RODLESS CYLINDER
RODLESS CYLINDER
RODLESS CYLINDER
RODLESS CYLINDER
RODLESS CYLINDER

RODLESS CYLINDER

Rodless cylinders are pneumatic actuators that, as their name suggests, do not have a rod and are still capable of moving a load following a linear path.

Technical information:

  • Prepared for magnetic detection.
  • Working temperature -10ºC / 80ºC
  • Working pressure 0.5 - 8 bar.
  • Max speed. 1 m/sec
  • Diameters from 16 to 63 mm.
  • Strokes up to 5000 mm.
  • Possibility of serving with Viton gaskets (FKM)
  • Adjustable pneumatic end-of-stroke cushioning.
  • It can be supplied with a guided carriage and with a bearing-guided skate.

* Consult other careers or options*

€316.92 (tax included)
€261.91 (tax excl.)
BORE x STROKE
  • Ø16-100
  • Ø16-200
  • Ø25-50
  • Ø25-100
  • Ø25-200
  • Ø25-250
  • Ø25-400
  • Ø25-500
  • Ø32-50
  • Ø32-100
  • Ø32-200
  • Ø32-250
  • Ø32-500
  • Ø32-800
  • Ø32-1000
  • Ø40-50
  • Ø40-100
  • Ø40-200
  • Ø40-300
  • Ø40-500
  • Ø40-700
  • Ø40-800
  • Ø40-900
  • Ø40-1000
  • Ø50-50
  • Ø50-80
  • Ø50-100
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-300
  • Ø50-500
  • Ø50-600
  • Ø50-1000
  • Ø63-50
  • Ø63-100
  • Ø63-200
  • Ø63-300
  • Ø63-400
  • Ø63-500
  • Ø63-600
  • Ø63-700
  • Ø63-800
  • Ø63-900
  • Ø63-1000
Reference:
50170030
Description

CILINDRO SIN VASTAGOCILINDRO SIN VASTAGO

Product Details
50170030
