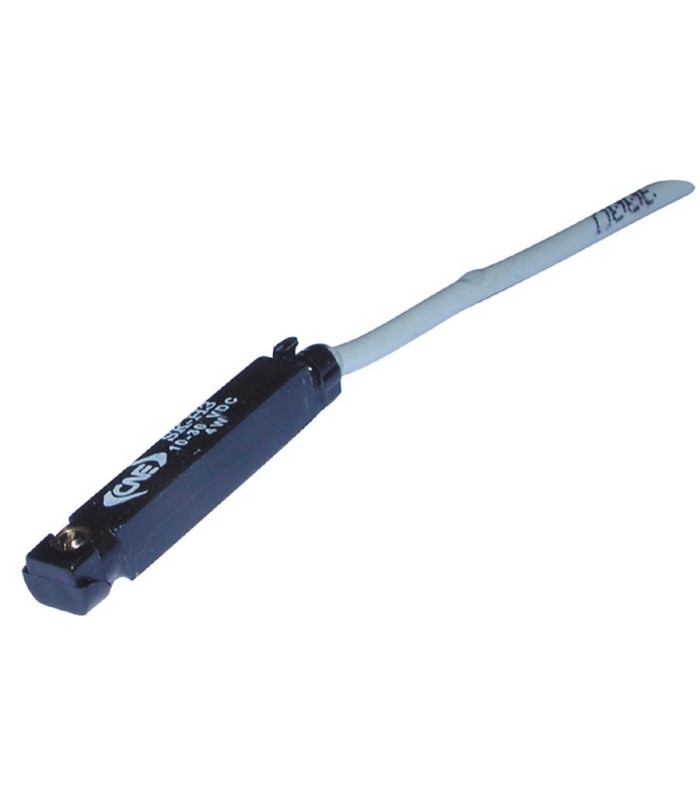

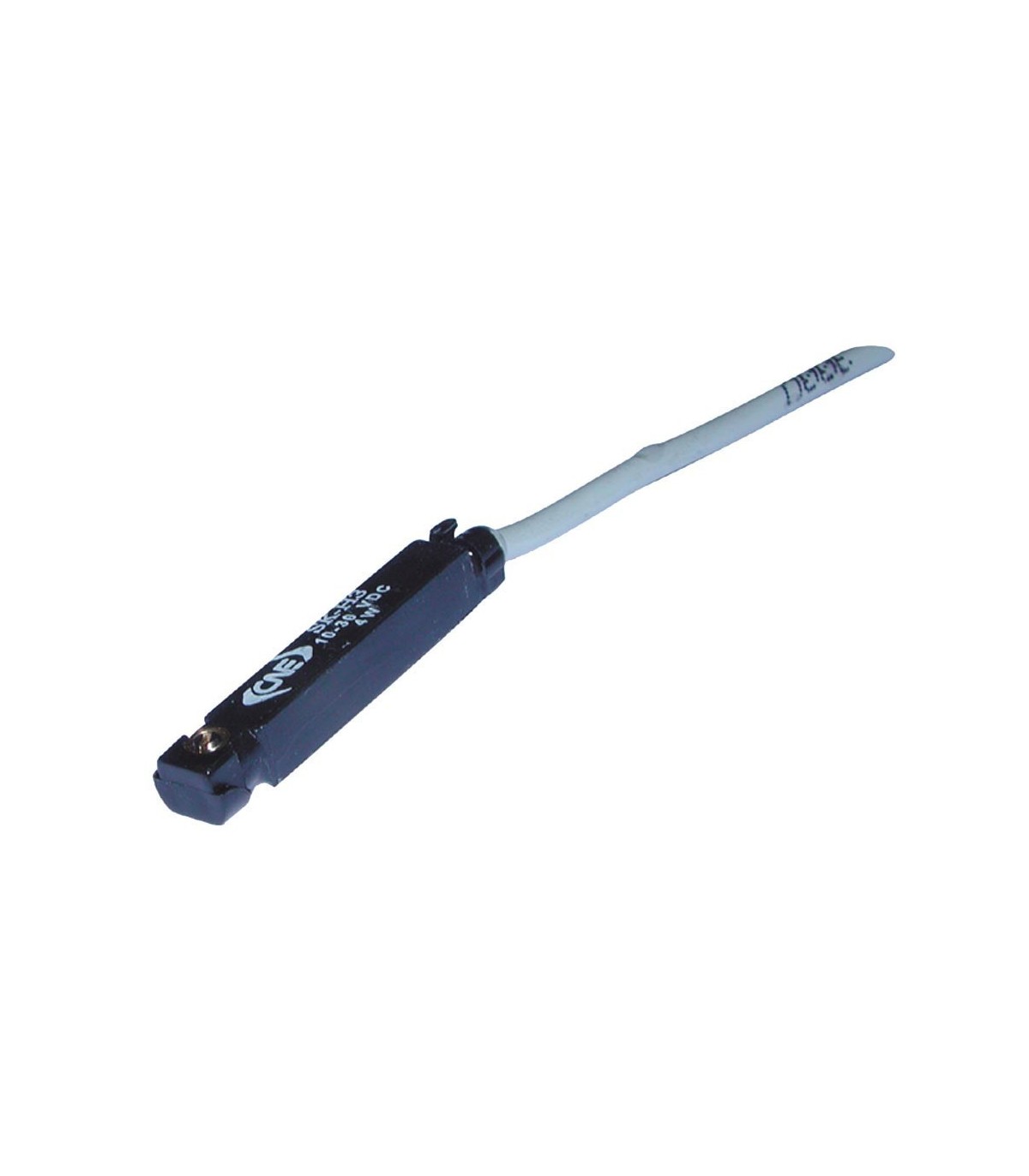

REED SENSOR CABLE 2m

The 2m reed sensor cable is a type of magnetic switch used to detect the presence or absence of a magnetic field. It is a passive device that does not require electrical power to function as a sensor, and it is activated by bringing a magnet close to it.

Applications: Industrial automation, Security systems, Counters and Robotics.

Technical specifications:

• Electrical input: Direct 2-wire output. Normally open (The circuit is open when there is no magnet and closes when the magnet is brought near)
• Voltage 5-240V DC/AC
• Charging current: 5 to 50mA. Max. 100 mA
• Response time 0.1 ms
• Operating temperature -10ºC - 70ºC
• 2-meter cable in PUR resistant to cutting oils.
• Signal by red LED diode.
