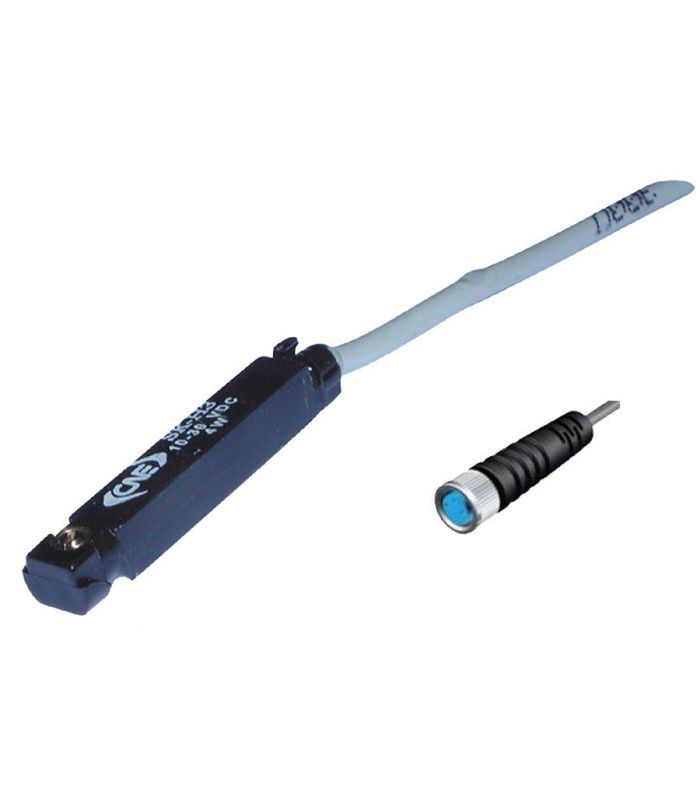

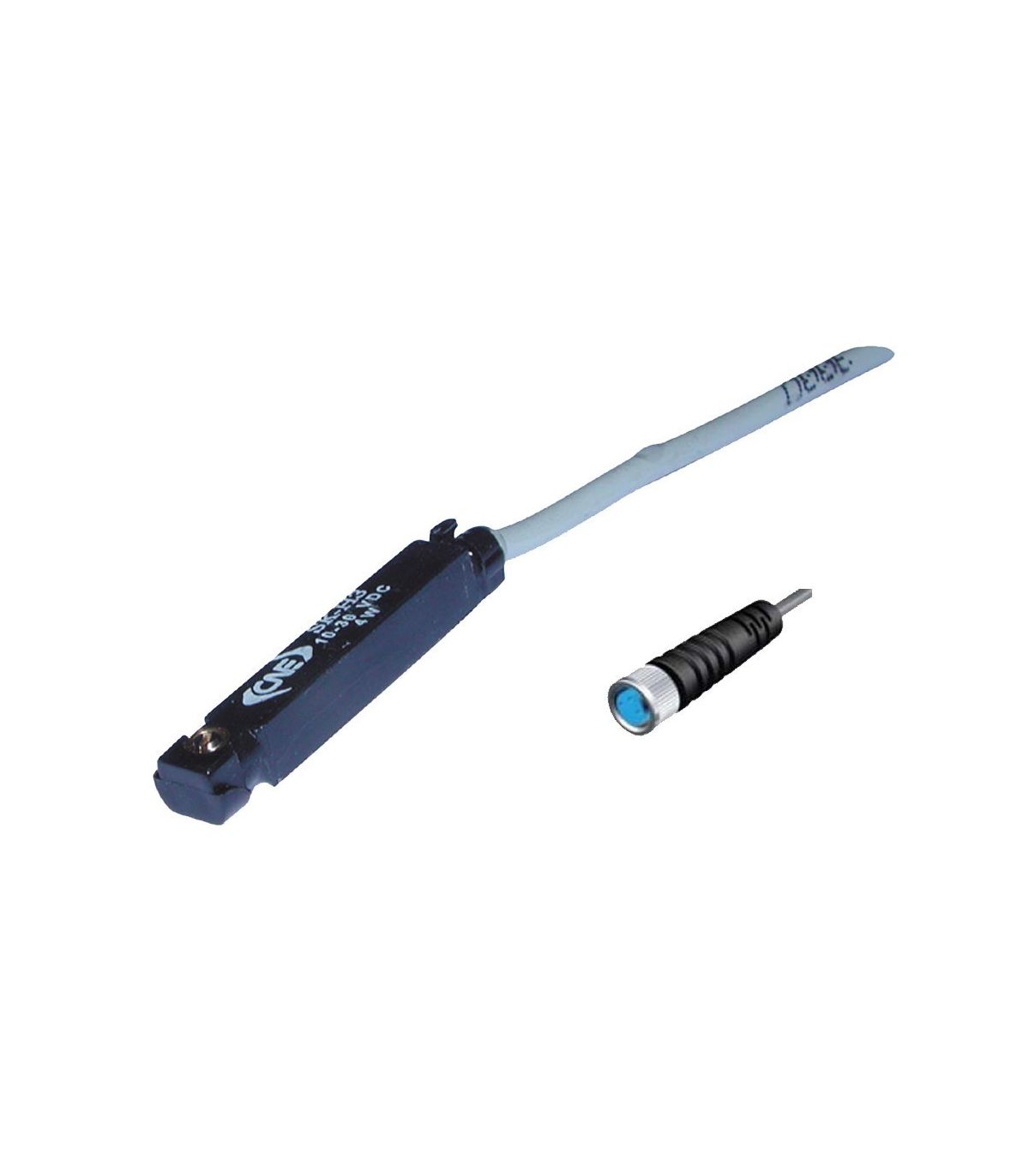

REED SENSOR M-8 CONNECTOR

REED SENSOR M-8 CONNECTOR

An M-8 connector reed sensor is a magnetic switch that detects the presence of a magnetic field, and whose characteristic is that its electrical connection is not through loose cables, but through an M8 connector.

Applications: Position detection in pneumatic and hydraulic cylinders, Opening/closing detection, Machine tools and automation, Conveying and sorting systems.

Technical sheet:

  • Electrical entry: Output for M-8 cable. Normally open.
  • Voltage 5-240V DC/AC
  • Charging current: 5 to 50 mA. Max. 100 mA
  • Response time 0.1 ms
  • Operating temperature -10ºC - 70ºC
  • PUR cable resistant to cutting oils.
  • Signal by red LED diode.
€24.92 (tax included)
€20.59 (tax excl.)
Reference:
5201
Description

Reed sensor connector M-8

SENSOR REED CONECTOR M-8SENSOR REED CONECTOR M-8

Product Details
5201
Comments
