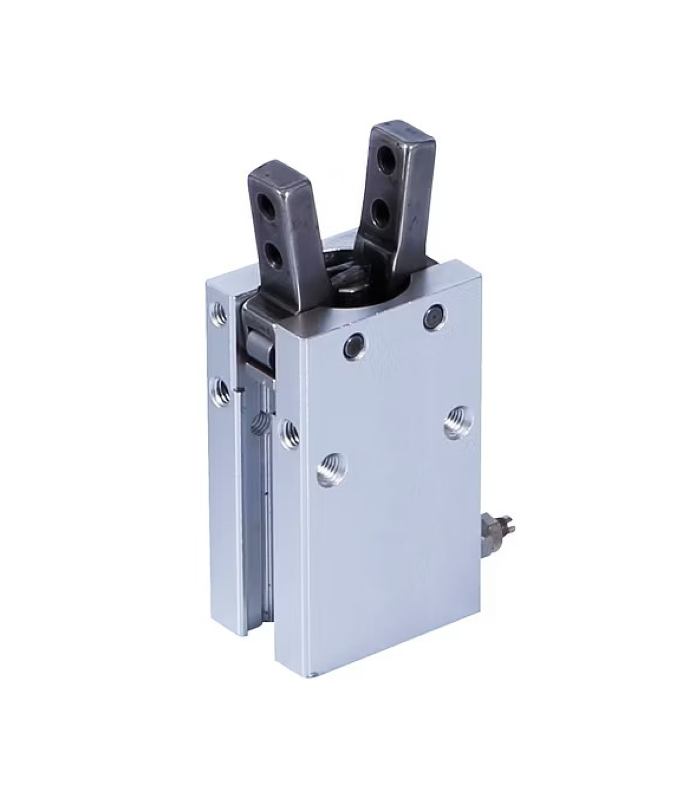

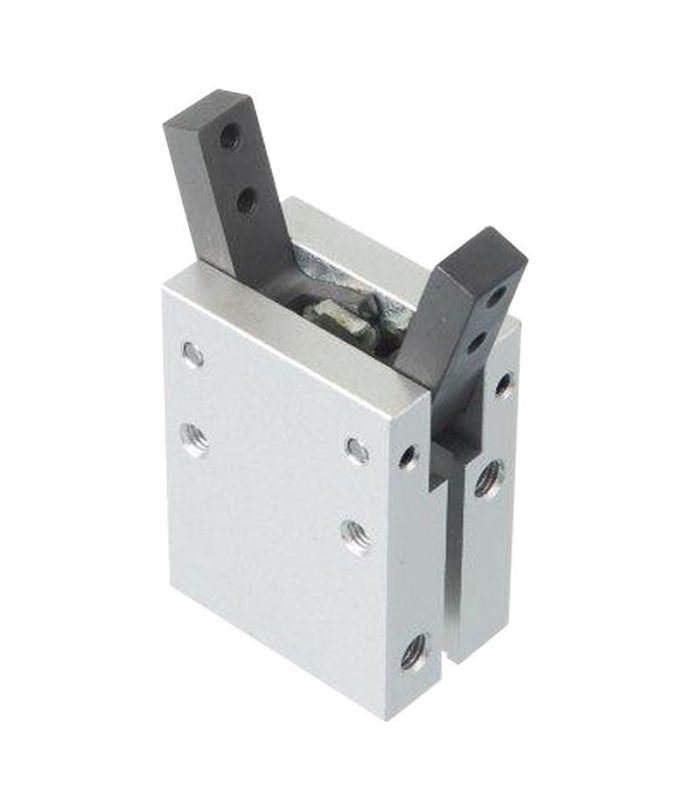

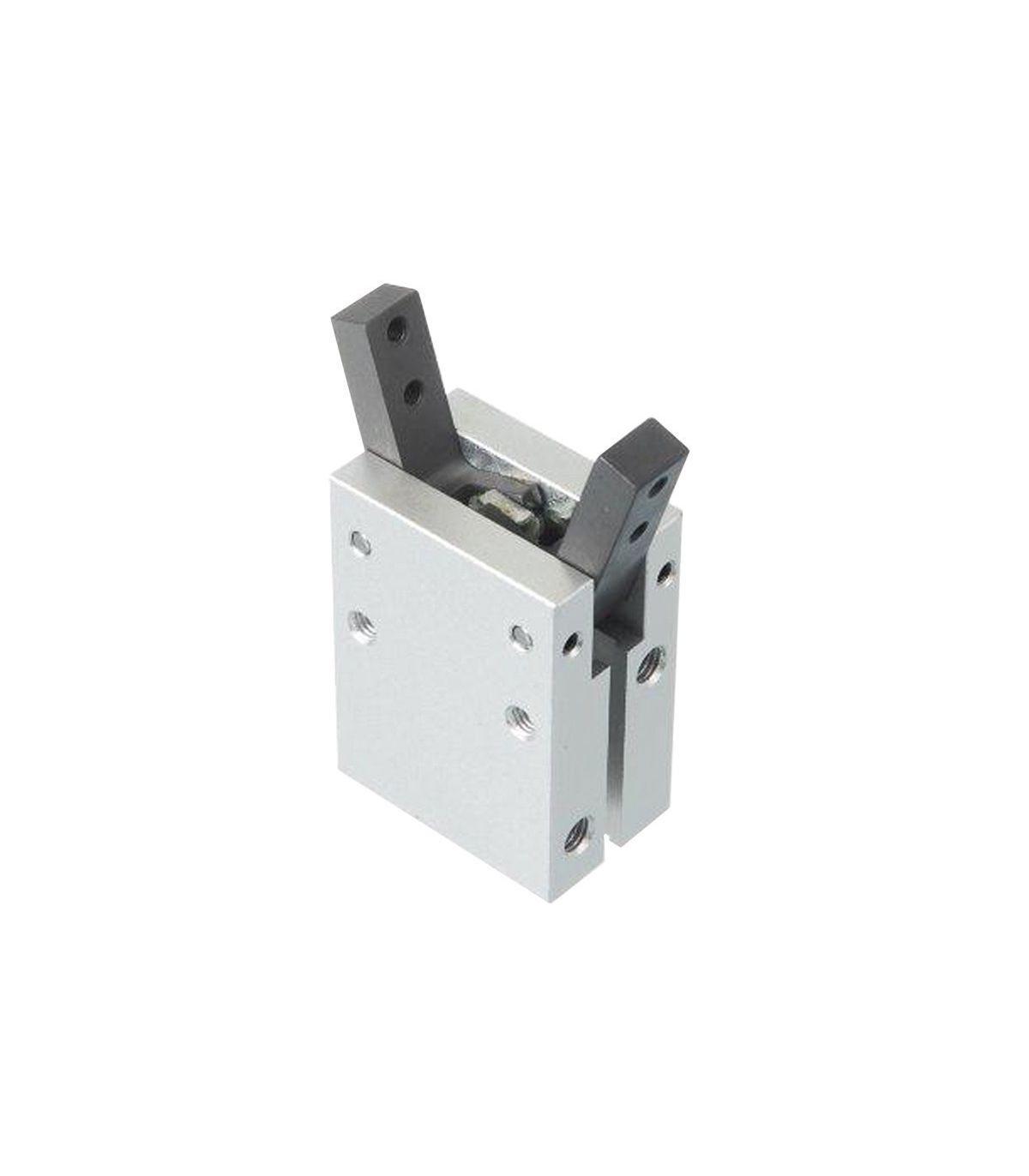

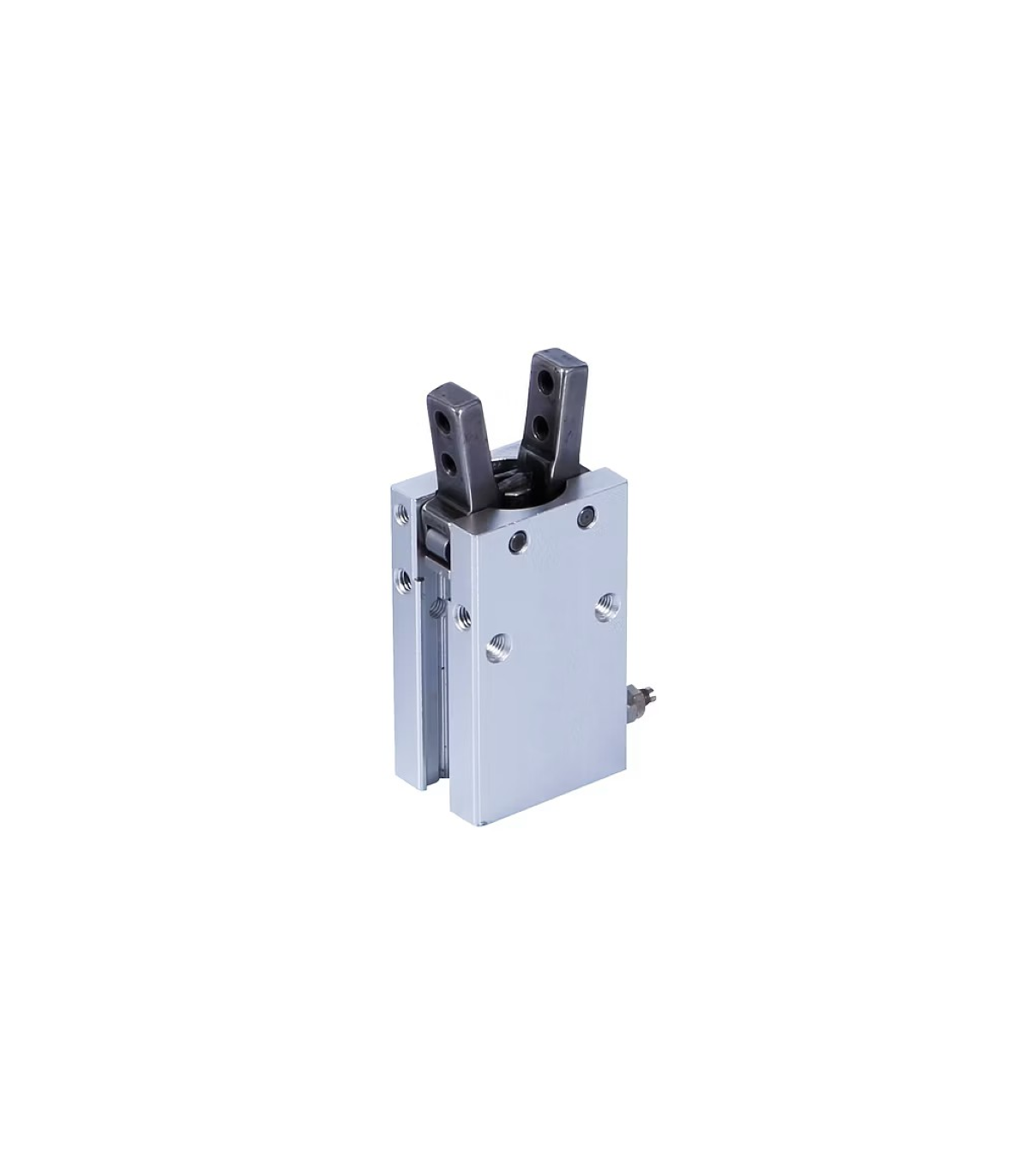

ANGULAR OPENING PLIERS

The angle opening pliers It is a pneumatic clamping element designed to perform opening movements by means of an angular rotation, allowing fast and precise clamping, positioning or release of parts in automated processes.

Main features:

Double effect function.
Prepared for magnetic detection.
Available in 4 diameters, Ø16-Ø20-Ø25-Ø32
Temperature 0 / 60ºC
Working pressure 1.5 - 7 bar.

€284.52 (tax included)

€235.14 (tax excl.)

DIAMETERS

Ø 16
Ø 20
Ø 25
Ø 32

Reference:

50250017

Description
Comments

Description

Angle opening pliers

The angle opening gripper offers safe and efficient handling of parts in automated processes.

Its compact and robust design makes it an ideal solution for applications where space is limited and free access is required during loading and unloading operations.

Thanks to its pneumatic drive, it offers reliable, repetitive and high-speed operation, optimizing production times and improving efficiency in automation lines.

Applications

Industrial automation.
Manipulation robots.
Assembly lines.
Pick & Place Systems.
Packaging industry.
Electronics industry.
Assembly machinery.

Technical specifications of an angle-opening pliers:

Product Details

Reference 50250017

Comments

12 other products in the same category:

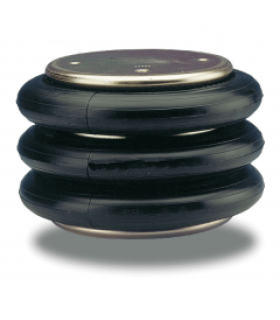

3-LIP BELLOWS CYLINDER

€922.48 (tax excl.)

€1,116.20 (tax included)

Bellows cylinder with 3 lips Admissible fluids: compressed air, nitrogen and oil. Resistant to the effects of weather conditions. Working temperature -40º / 70ºC Maintenance free. Excellent durability, friction-free....

AIR OIL CYLINDER

€127.92 (tax excl.)

€154.78 (tax included)

Air-oil converter cylinder, It allows the accumulation of energy from a fluid. Usually used for the progressive exit of a pneumatic cylinder. Cylinder diameter 100 mm Volume depending on the length of the shirt....

SINGLE ACTING CARTRIDGE CYLINDER

€14.35 (tax excl.)

€17.37 (tax included)

Cartridge cylinder Stainless steel stem Nickel-plated brass shirt Supplied with 2 Nuts. Polyurethane gaskets steel spring Single acting cylinder. It can be supplied without or with thread on the stem.

PNEUMATIC DISPENSER

€4,305.60 (tax excl.)

€5,209.78 (tax included)

The pneumatic dispenser is used to dispense liquid or pasty products using compressed air. The compressed air drives a piston or diaphragm which, in turn, pushes the product through a nozzle. The dosing units are...

2-LIP BELLOWS CYLINDER

€110.24 (tax excl.)

€133.39 (tax included)

Bellows cylinder with 2 lips. Admissible fluids: compressed air, nitrogen and oil. Resistant to the effects of weather conditions. Working temperature -40º / 70ºC Maintenance free. Excellent durability, friction-free....

PARALLEL OPENING PLIERS

€314.50 (tax excl.)

€380.54 (tax included)

The parallel opening gripper is a pneumatic actuator designed for the manipulation, clamping, and precise positioning of parts in automated processes. Applications: industrial automation, robotics, assembly and...

ISO-6432 STAINLESS STEEL CYLINDER

€75.93 (tax excl.)

€91.88 (tax included)

ISO 6432 stainless steel cylinder Double effect provided with magnetic detection. The stem is made of Inox-316 The jacket is made of 304 stainless steel. Pressure 10 bar. Service temperature -20ºC / 80ºC Polyurethane...

SINGLE ACTING PRESSURE CYLINDER

€78.00 (tax excl.)

€94.38 (tax included)

Technical data sheet for single-acting pressure cylinder: Anti-twist hexagonal stem. Available in 45 and 40 mm diameters (refers to the outer diameter) Strokes 70/75 and 115 mm. Air inlet thread 1/8" Working pressure...

CYLINDER WITH POSITION TRANSDUCER

€613.55 (tax excl.)

€742.39 (tax included)

The cylinder with position transducer system of the POT series are pneumatic actuators under ISO 15552 standard equipped with a linear potentiometer integrated into the cylinder. This device allows the position of the...

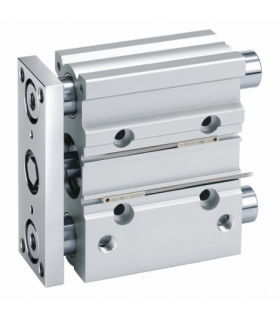

GUIDED CYLINDER WITH BRONZE BUSHINGS
