DOUBLE-ACTING CYLINDER ISO-15552
DOUBLE-ACTING CYLINDER ISO-15552
DOUBLE-ACTING CYLINDER ISO-15552
DOUBLE-ACTING CYLINDER ISO-15552

DOUBLE-ACTING CYLINDER ISO-15552

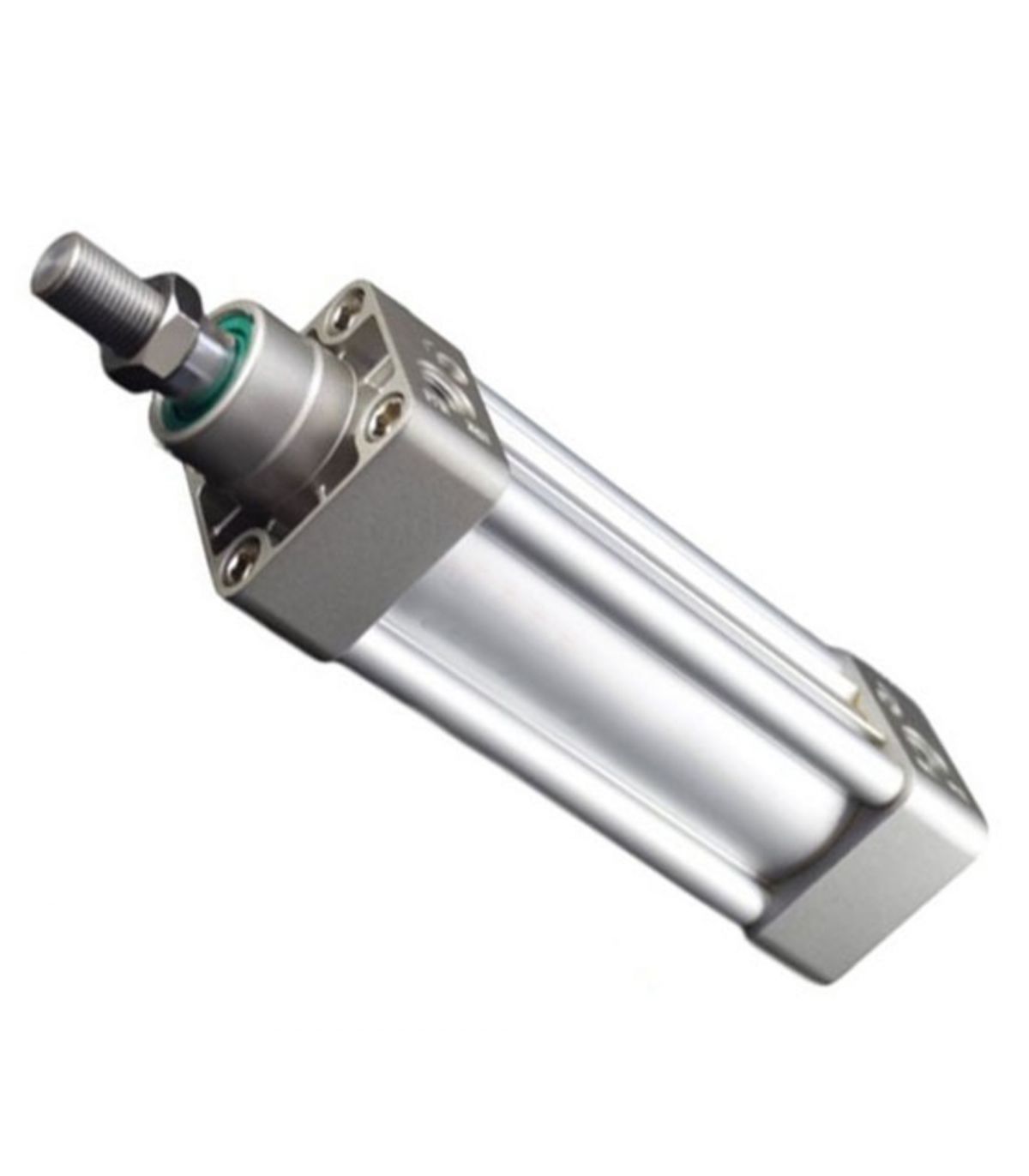

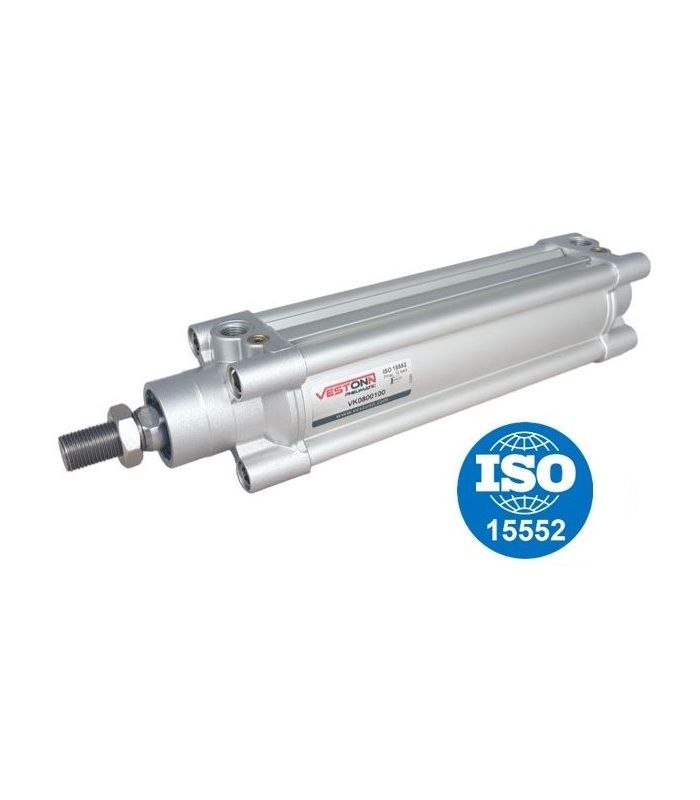

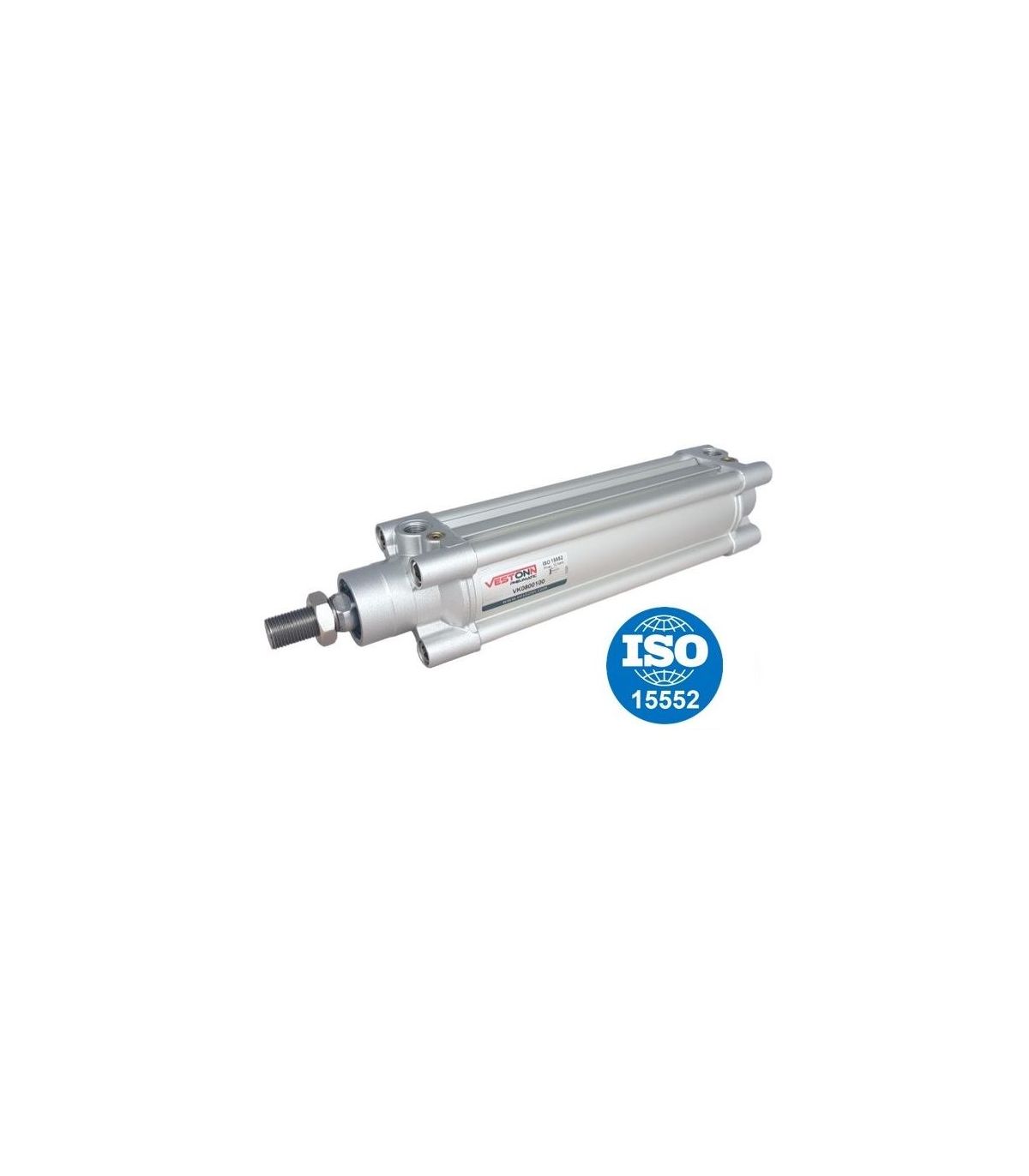

The ISO-15552 double-acting cylinder converts pneumatic energy (compressed air) into linear mechanical motion. It is commonly used in industrial automation, machinery, robotics, and medical equipment.

Technical specifications:

  • Compliant with ISO-6431, ISO-15552, VDMA-254
  • Custom manufacturing
  • Double-acting cylinder with magnetic detection.
  • Adjustable damping.
  • The sensors are integrated into the shirt's profile (no support is needed)
  • Polyurethane seals that ensure low friction operation and long lifespan.
  • Aluminum liner and cylinder heads.
  • Stem in chromed steel.
  • Working pressure 10 bar.
  • Admissible temperature -20ºC / 70ºC.

Check out other configurations or races.

€43.23 (tax included)
€35.72 (tax excl.)
BORE x STROKE
  • Ø32-25
  • Ø32-50
  • Ø32-80
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø32-300
  • Ø32-320
  • Ø32-400
  • Ø32-500
  • Ø32-600
  • Ø32-700
  • Ø32-800
  • Ø32-900
  • Ø32-1000
  • Ø40-15
  • Ø40-25
  • Ø40-50
  • Ø40-80
  • Ø40-100
  • Ø40-125
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø40-300
  • Ø40-320
  • Ø40-400
  • Ø40-500
  • Ø40-600
  • Ø40-700
  • Ø40-800
  • Ø40-900
  • Ø40-1000
  • Ø50-25
  • Ø50-50
  • Ø50-80
  • Ø50-100
  • Ø50-125
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-300
  • Ø50-320
  • Ø50-400
  • Ø50-500
  • Ø50-600
  • Ø50-700
  • Ø50-800
  • Ø50-900
  • Ø50-1000
  • Ø63-25
  • Ø63-50
  • Ø63-80
  • Ø63-100
  • Ø63-125
  • Ø63-160
  • Ø63-200
  • Ø63-250
  • Ø63-300
  • Ø63-320
  • Ø63-400
  • Ø63-500
  • Ø63-600
  • Ø63-700
  • Ø63-800
  • Ø63-900
  • Ø63-1000
  • Ø80-25
  • Ø80-50
  • Ø80-80
  • Ø80-100
  • Ø80-125
  • Ø80-160
  • Ø80-200
  • Ø80-250
  • Ø80-300
  • Ø80-320
  • Ø80-400
  • Ø80-500
  • Ø80-600
  • Ø80-700
  • Ø80-800
  • Ø80-900
  • Ø80-1000
  • Ø100-25
  • Ø100-50
  • Ø100-80
  • Ø100-100
  • Ø100-125
  • Ø100-160
  • Ø100-200
  • Ø100-250
  • Ø100-300
  • Ø100-320
  • Ø100-400
  • Ø100-500
  • Ø100-600
  • Ø100-700
  • Ø100-800
  • Ø100-900
  • Ø100-1000
  • Ø125-25
  • Ø125-50
  • Ø125-80
  • Ø125-100
  • Ø125-125
  • Ø125-160
  • Ø125-200
  • Ø125-250
  • Ø125-320
  • Ø125-400
  • Ø125-500
  • Ø125-600
  • Ø125-700
  • Ø125-800
  • Ø125-900
  • Ø125-1000
Reference:
50020077
Description

Double-acting cylinder ISO-15552

The ISO 15552 double-acting pneumatic cylinder is a linear actuator designed to transform compressed air energy into reciprocating mechanical motion, applying force in both directions of its stroke (forward and return). Manufactured in accordance with ISO 15552 , it guarantees dimensional and mounting interchangeability between different manufacturers.

Applications

  • Industrial automation.
  • Assembly machinery.
  • Transportation systems.
  • Pneumatic presses.
  • Any process that requires precise and repetitive linear movements.

+ (career)

EITHER ØBd11 YOU GOES L2 WH ØMM SW KK A.M SW1 Z L8 BG RT SW2 AND TG EE PL J3 J2 L7 SW3
32 30 10 4 20 26 12 20 M10x1.25 22 17 120 94 18 M6 6 46 32.5 G1/8 18 4 6.5 2 2.5
40 35 10.5 4 22 30 16 13 M12x1.25 24 19 135 105 18 M6 6 54 38 G1/4 17.5 3.5 8 5.8 2.5
50 40 11.5 4 28 37 20 17 M16x1.5 32 22 143 106 20 M8 8 64 46.5 G1/4 20.5 7 10 2 4
63 45 15 4 29 37 20 17 M16x1.5 32 22 158 121 20 M8 8 74 56.5 G3/8 22 11 8.5 4 4
80 45 17.5 4 35 46 25 22 M20x1.5 40 30 174 128 19 M10 6 94 72 G3/8 22 11 8.5 4 4
100 55 19.2 4 38 51.5 25 22 M20x1.5 40 30 189.5 138 19 M10 6 111 89 G1/2 26 9 12.5 5 4
125 60 20 6 50 65 32 27 M27x2 54 41 228 160 21 M12 8 135 110 G1/2 30 9 12.5 2.5 4

Product Details
50020077
Comments
Related products
REED SENSOR M-8 CONNECTOR REED SENSOR M-8 CONNECTOR

€20.59 (tax excl.)
€24.92 (tax included)
An M-8 connector reed sensor is a magnetic switch that detects the presence of a magnetic field, and whose characteristic is that its electrical connection is not through loose cables, but through an M8 connector....
BALL JOINT STEM ISO-15552 BALL JOINT STEM ISO-15552

€5.98 (tax excl.)
€7.24 (tax included)
An ISO-15552 rod end joint is used to connect the rod end of a pneumatic or hydraulic cylinder to a moving component or a fixed structure of a machine. Applications: Industrial Automation, Processing Machinery,...
FORK STEM ISO 15552 FORK STEM ISO 15552

€3.60 (tax excl.)
€4.36 (tax included)
Fork stem ISO 15552 The ISO 15552 rod end clevis is a mechanical accessory used in pneumatic cylinders standardized according to ISO 15552. It is installed on the end of the cylinder rod and provides a hinged...
COMPENSATING BALL ALIGNMENT ISO 15552 COMPENSATING BALL ALIGNMENT ISO 15552

€22.42 (tax excl.)
€27.13 (tax included)
Alignment compensating ball joint. Prevents breakage of the cylinder rod in case of misalignment. Made of galvanized steel. Steel ball joint and bearing. Angular movement 10º Radial tolerance up to 2 mm. Selection by...
GUIDED UNIT U BUSHINGS ISO-15552 GUIDED UNIT U BUSHINGS ISO-15552

€162.50 (tax excl.)
€196.63 (tax included)
GUIDANCE UNIT Monobloc assembly, metal body (anodized aluminum) Silver gray or black color 4 self-lubricated sintered bronze smooth bushings 2 chrome-plated steel guide columns Scraper seals at the level of the guide...
