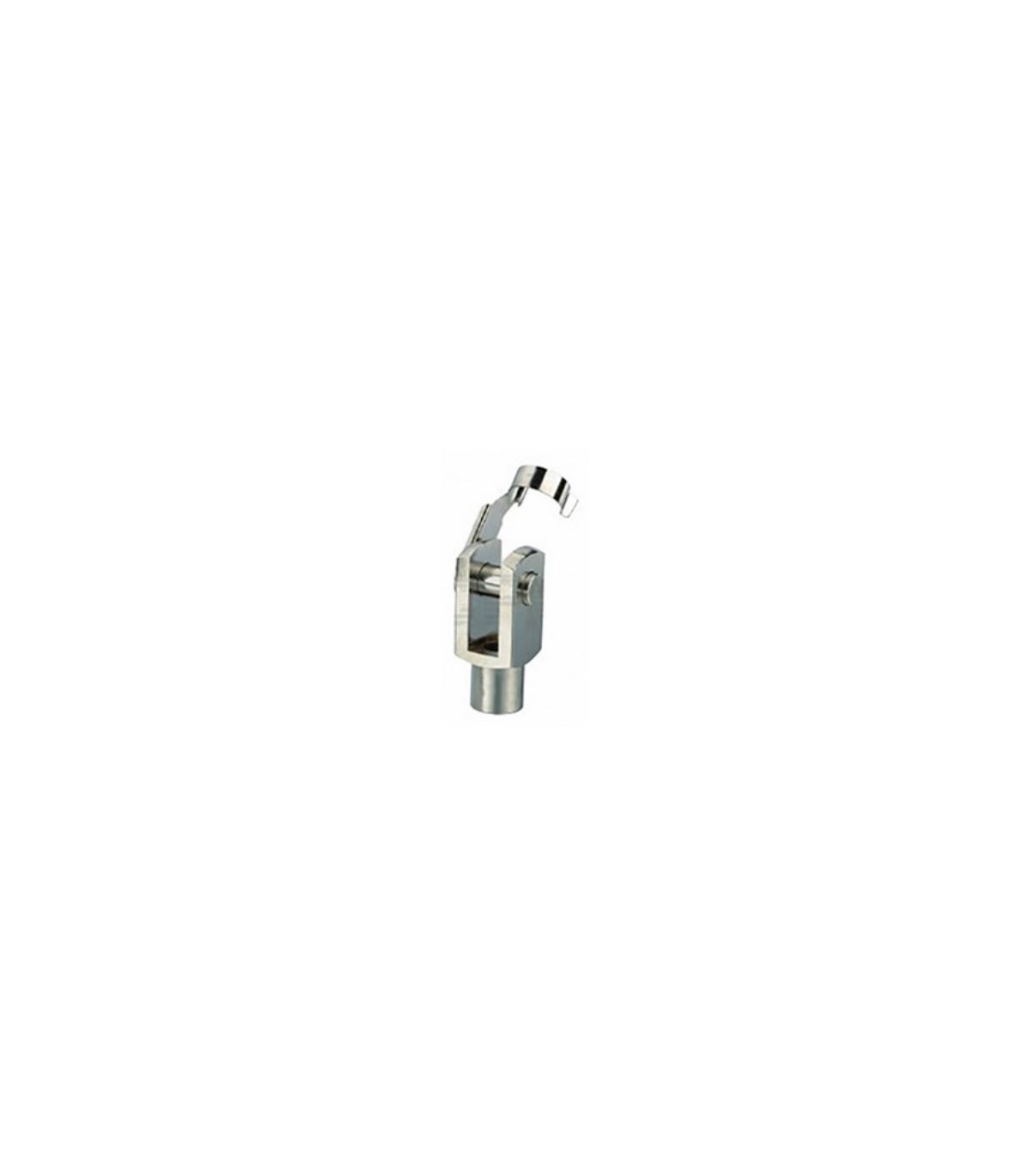

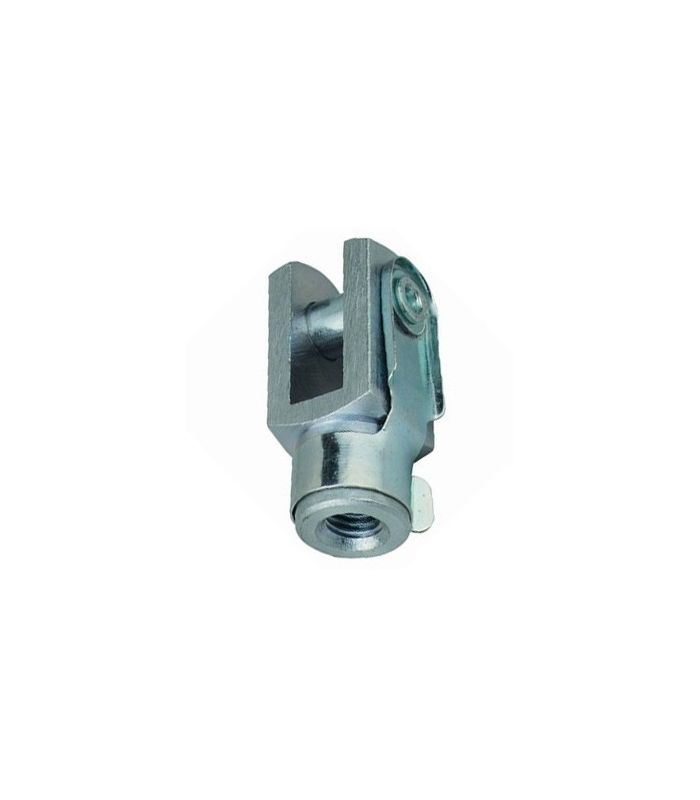

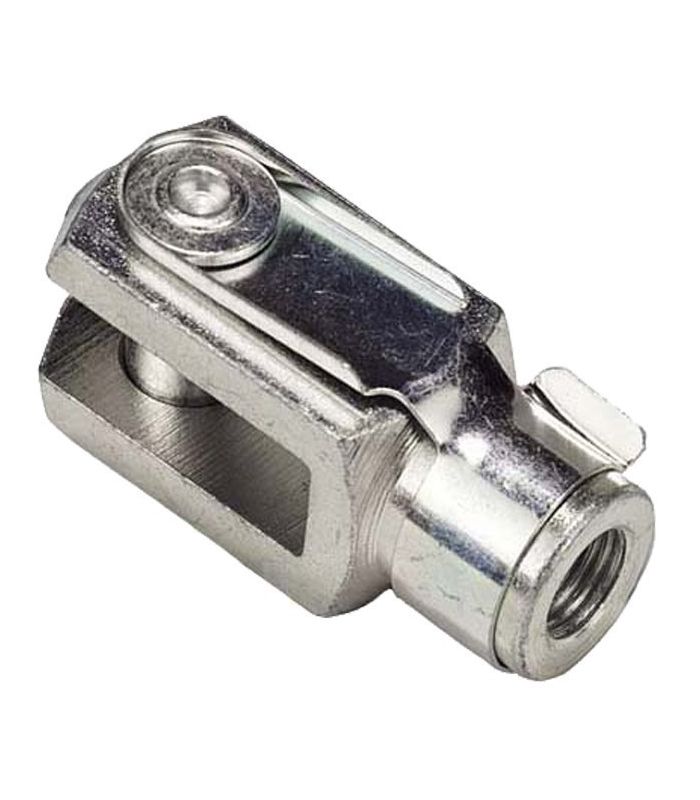

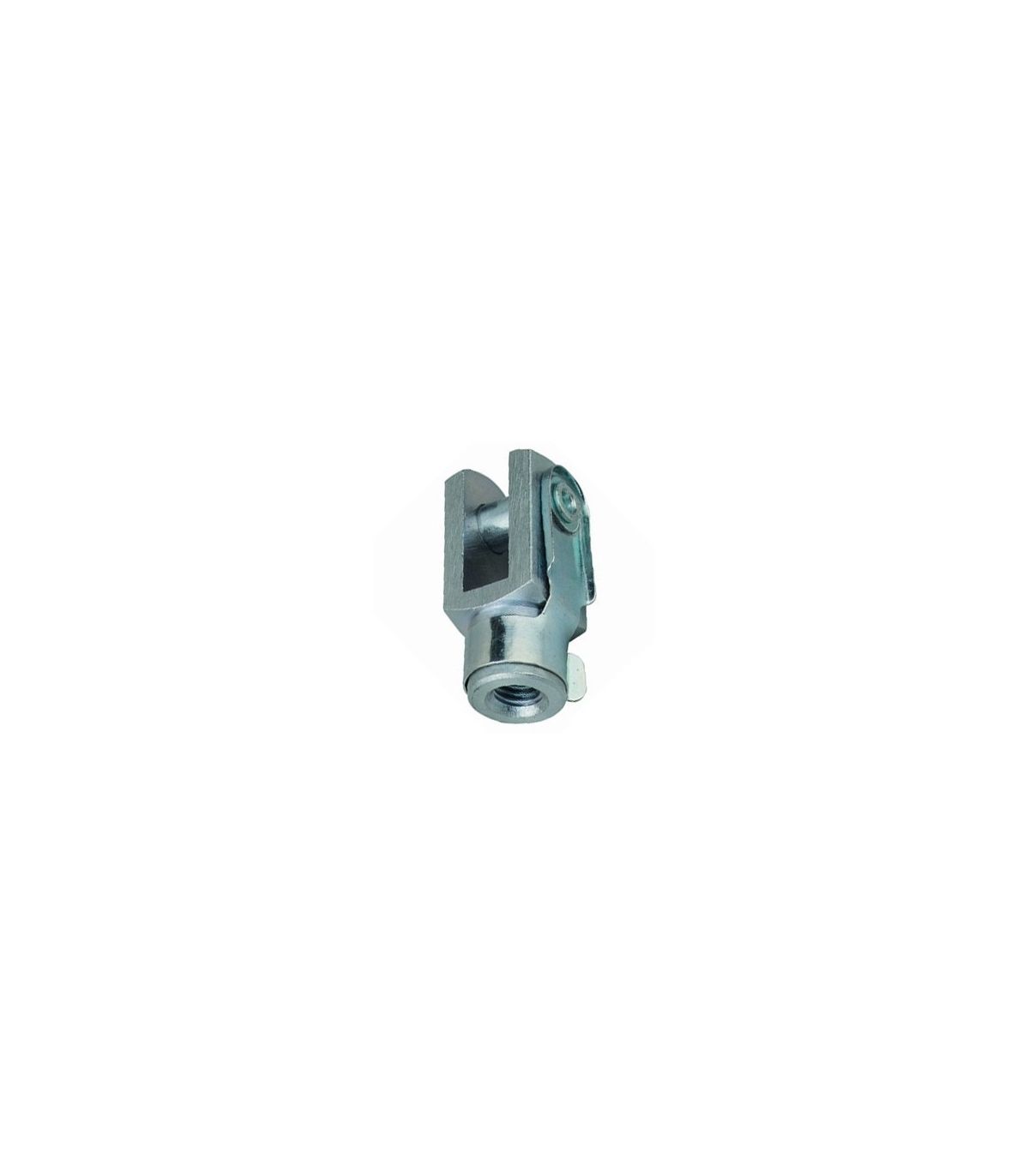

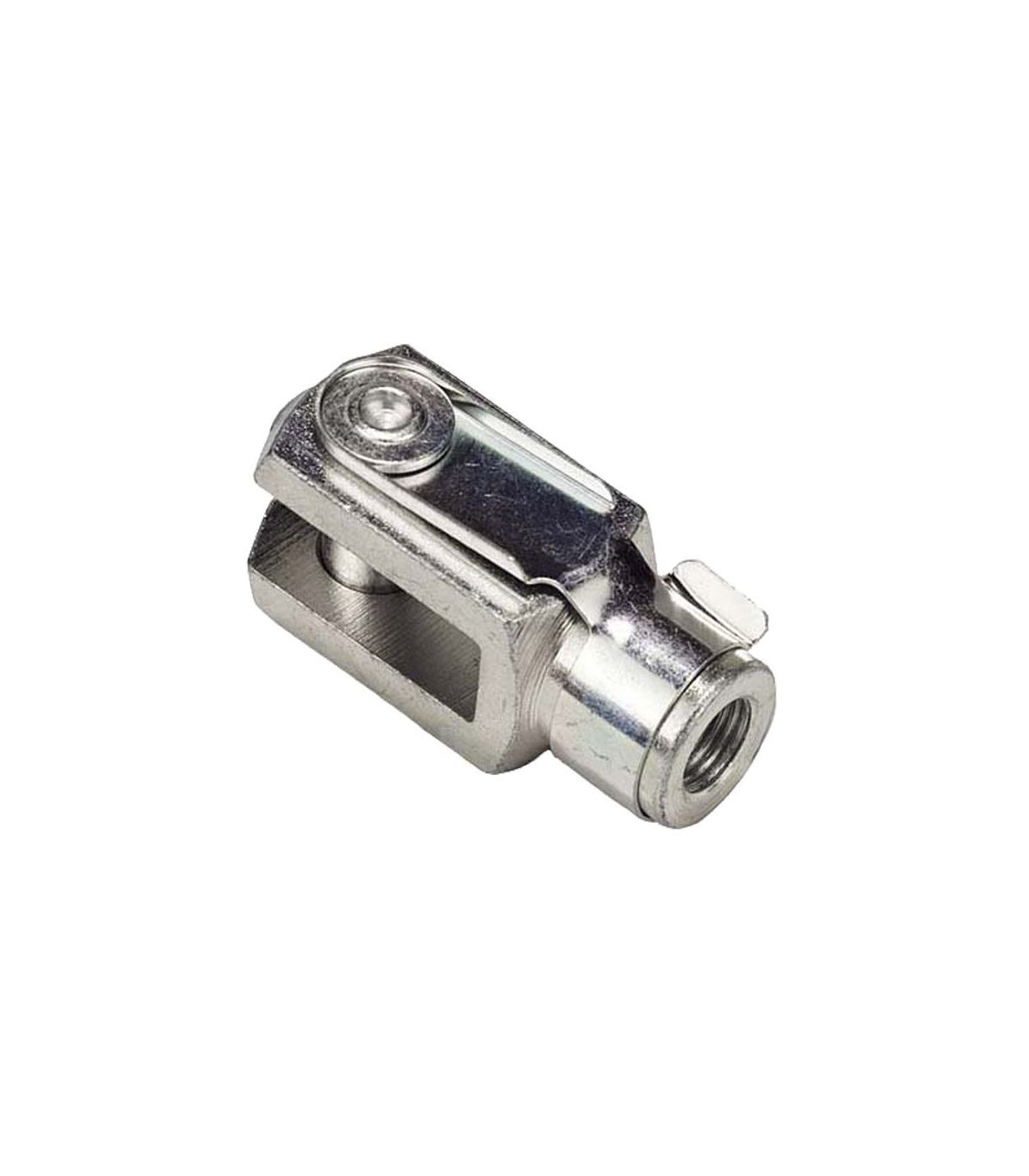

Fork stem ISO 15552

The ISO 15552 rod end clevis is a mechanical accessory used in pneumatic cylinders standardized according to ISO 15552. It is installed on the end of the cylinder rod and provides a hinged connection, allowing angular freedom of movement between the actuator and the actuated element. Its standardized design ensures dimensional compatibility with ISO cylinders and facilitates mounting using a pin or bolt.

Applications: Industrial automation, Handling, transport and positioning, Special machinery and pneumatic systems.

Main features :

  • Manufactured according to DIN 648-K – ISO 6126 standards
  • Coupling: steel
€4.36 (tax included)
€3.60 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53300018
Description

Fork stem ISO 15552

The ISO 15552 rod fork is a mechanical accessory used in pneumatic cylinders standardized according to ISO 15552. It is mounted on the end of the cylinder rod and provides a fork-type articulation, allowing controlled pivoting movement between the actuator and the machine element to which it is connected.

Its fork-shaped design provides a robust and precise connection, allowing the transmission of the cylinder's thrust or pull even in applications with slight misalignment. It is typically used in conjunction with a compatible pin or bolt.

Main features

  • Compatible with ISO 15552 cylinders .
  • It provides articulation at the end of the stem.
  • Usually made of steel .
  • High mechanical resistance and long service life.
  • It allows compensation for small misalignments in movement.
  • It is mounted by threading onto the stem and securing with a pin.

Applications

  • Pneumatic cylinders in industrial machinery.
  • Automation and assembly systems.
  • Equipment with reciprocating push/pull motion.
  • Articulated connections in linear mechanisms.
