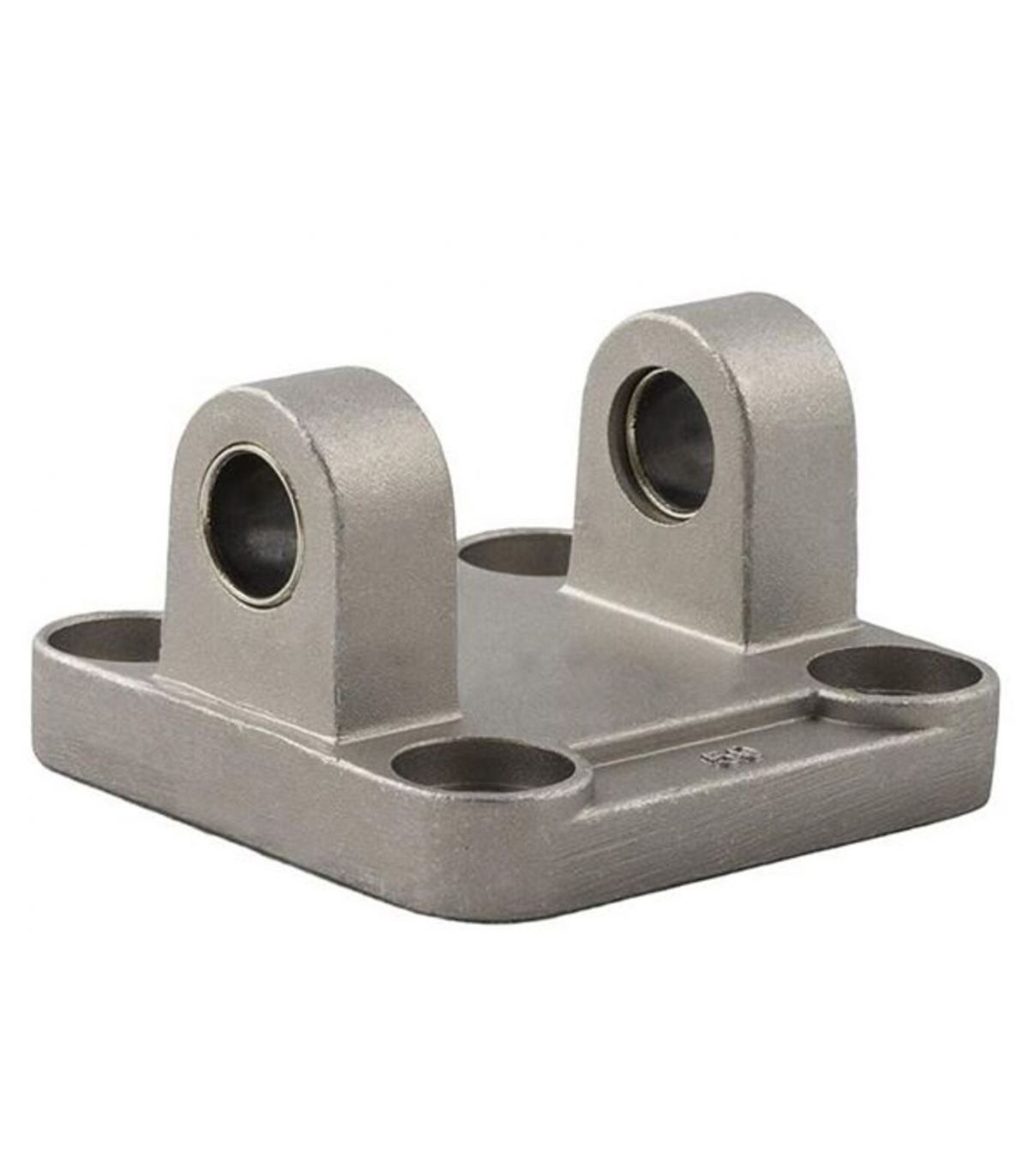

FEMALE SWING FIXATION MP2

An MP2 female swivel fitting is used in pneumatic systems, primarily to connect the rear end of a pneumatic cylinder to a structure or machine. It allows the cylinder to perform angular or oscillating movements as it extends and retracts.

Applications: Automation machinery, robotics, clamping and positioning equipment, vehicles and special machinery.

Technical sheet:

Based on ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
Corrosion resistance class KBK -2
Ambient temperature -40 / 150 °C
RoHS Compliant
Made of die-cast aluminum
Zinc-plated steel bolts
Supplied with 4 galvanized steel screws.

€9.80 (tax included)

€8.10 (tax excl.)

DIAMETERS

Reference:

53020018

Description
Comments

Description

MP2 female swivel mount

Product Details

Reference 53020018

Comments
