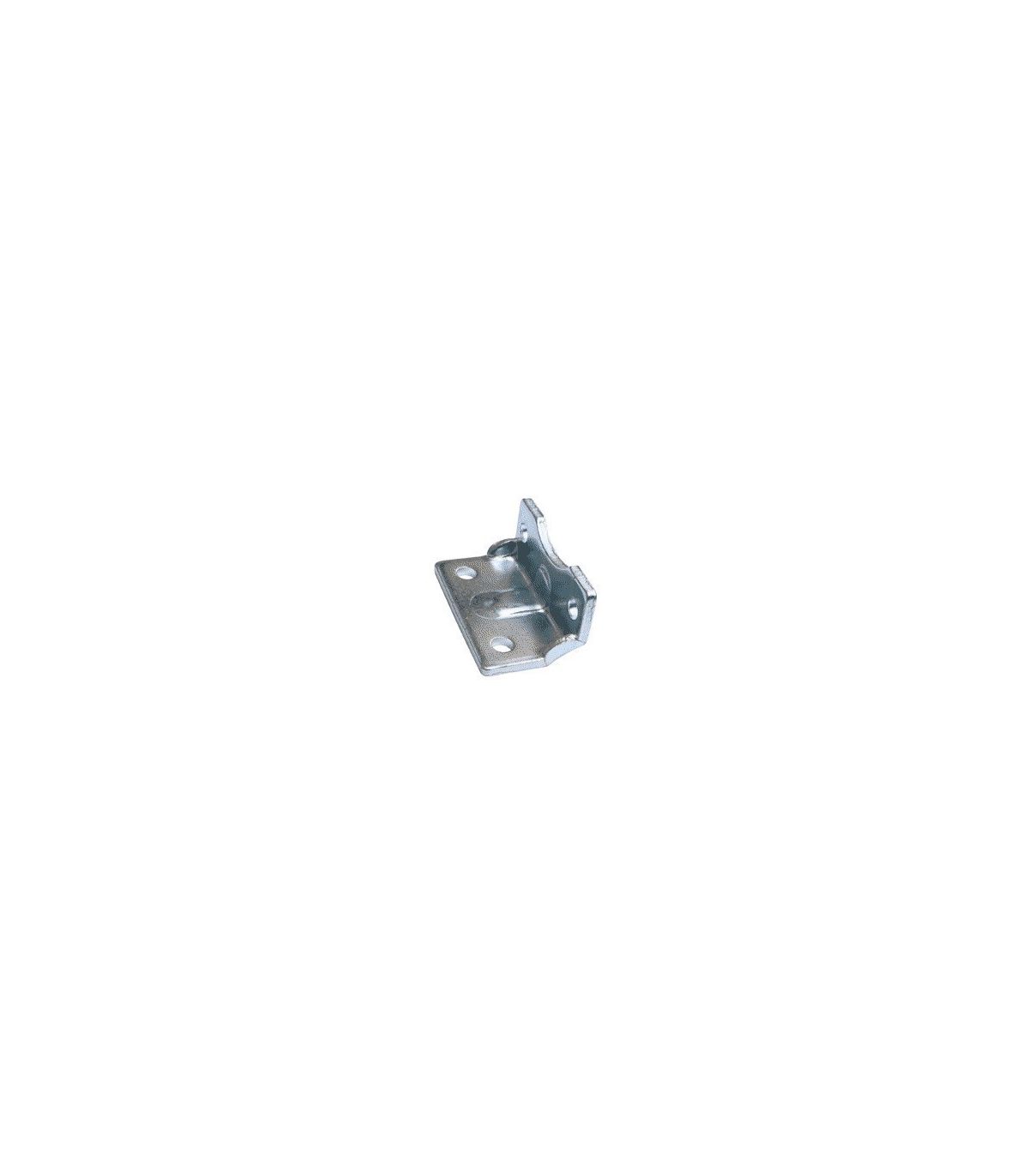

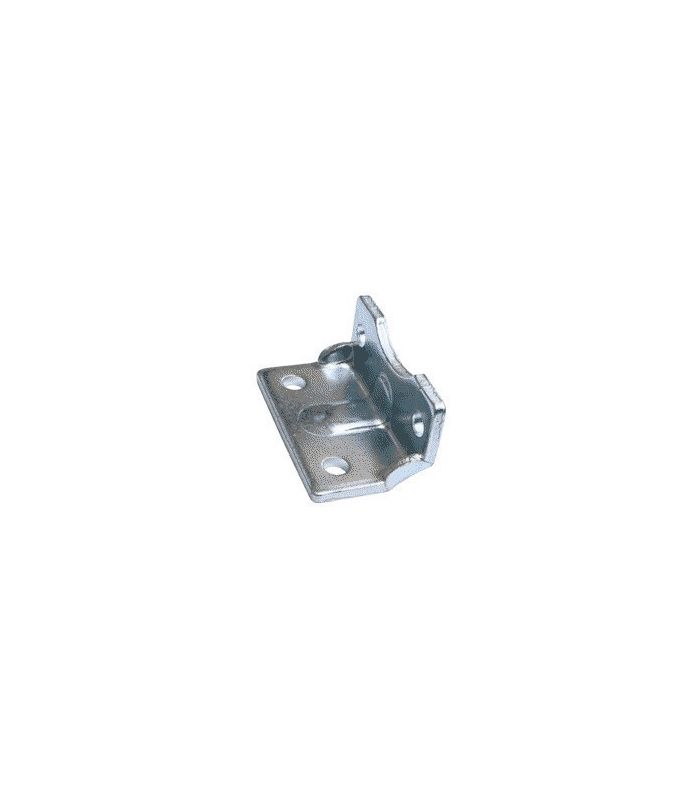

CNOMO PCN low squad

It is a metal accessory that is used to fix pneumatic cylinders on structures or supports.

Its L-shaped design allows the cylinder to be attached to the mounting surface perpendicularly or at an angle, providing stability and rigidity to the installation.

This is a low squad. It is characterized by its arms of equal length, which makes it ideal for installations where a lower profile is required.

Applications: construction, food industry, automotive industry, industrial automation systems.

Data sheet:

  • Low square for CNOMO cylinder
  • Made of steel, a light and economical solution
  • Available in a wide variety of sizes
€9.07 (tax included)
€7.50 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53810019
Description

CNOMO PCN low squad

ESCUADRA CNOMO PCN

Product Details
53810019
