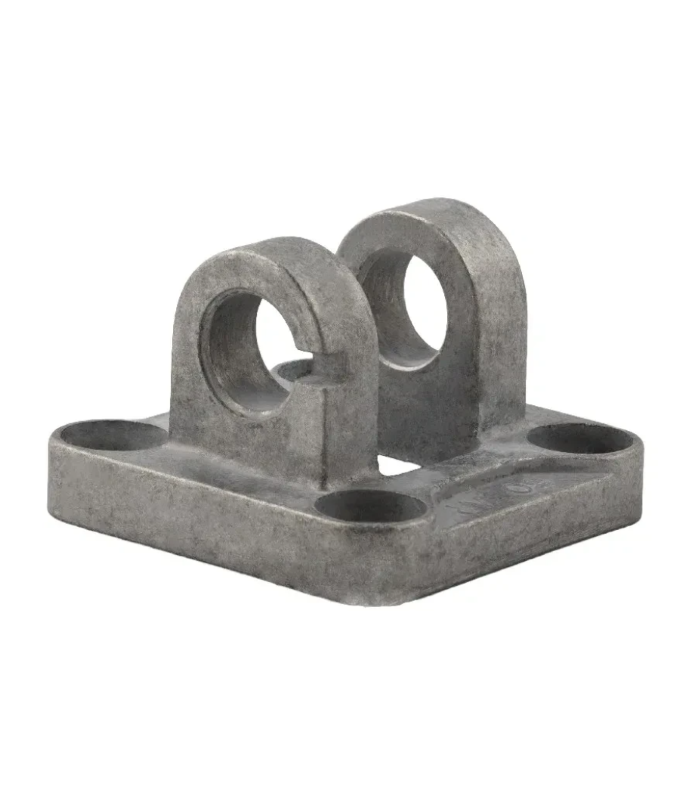

NARROW SWING FIXTURE
NARROW SWING FIXTURE
NARROW SWING FIXTURE
NARROW SWING FIXTURE

NARROW SWING FIXTURE

A narrow swivel fitting is a specialized mounting accessory that allows a pneumatic cylinder to pivotally connect to a structure or machine, but with a more compact design and reduced width. Its function is to allow the cylinder to move angularly to compensate for misalignment or follow curved load paths.

Applications: Packaging machinery, Automation and robotics, Medical equipment, Control panels and cabinets, Automatic doors.

Technical sheet:

  • Based on the standard -ISO 15552 (so far also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Corrosion resistance class KBK -2
  • Ambient temperature -40 / 150 °C
  • RoHS compliant.
  • Made of die-cast aluminum.

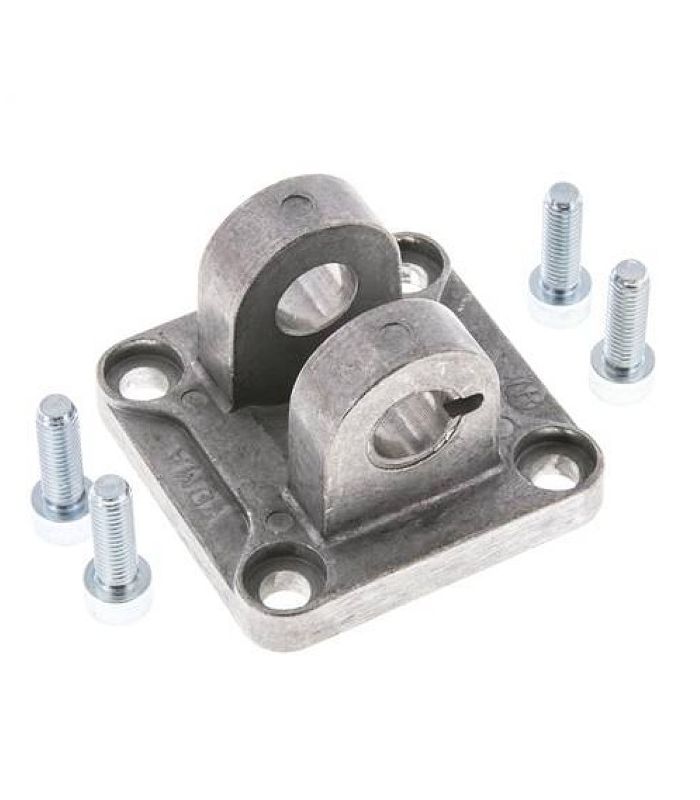

  • Supplied with 4 galvanized steel screws.
€20.37 (tax included)
€16.84 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
Reference:
53110018
Description

narrow swing mount

FIJACION OSCILANTE ESTRECHA

Product Details
53110018
