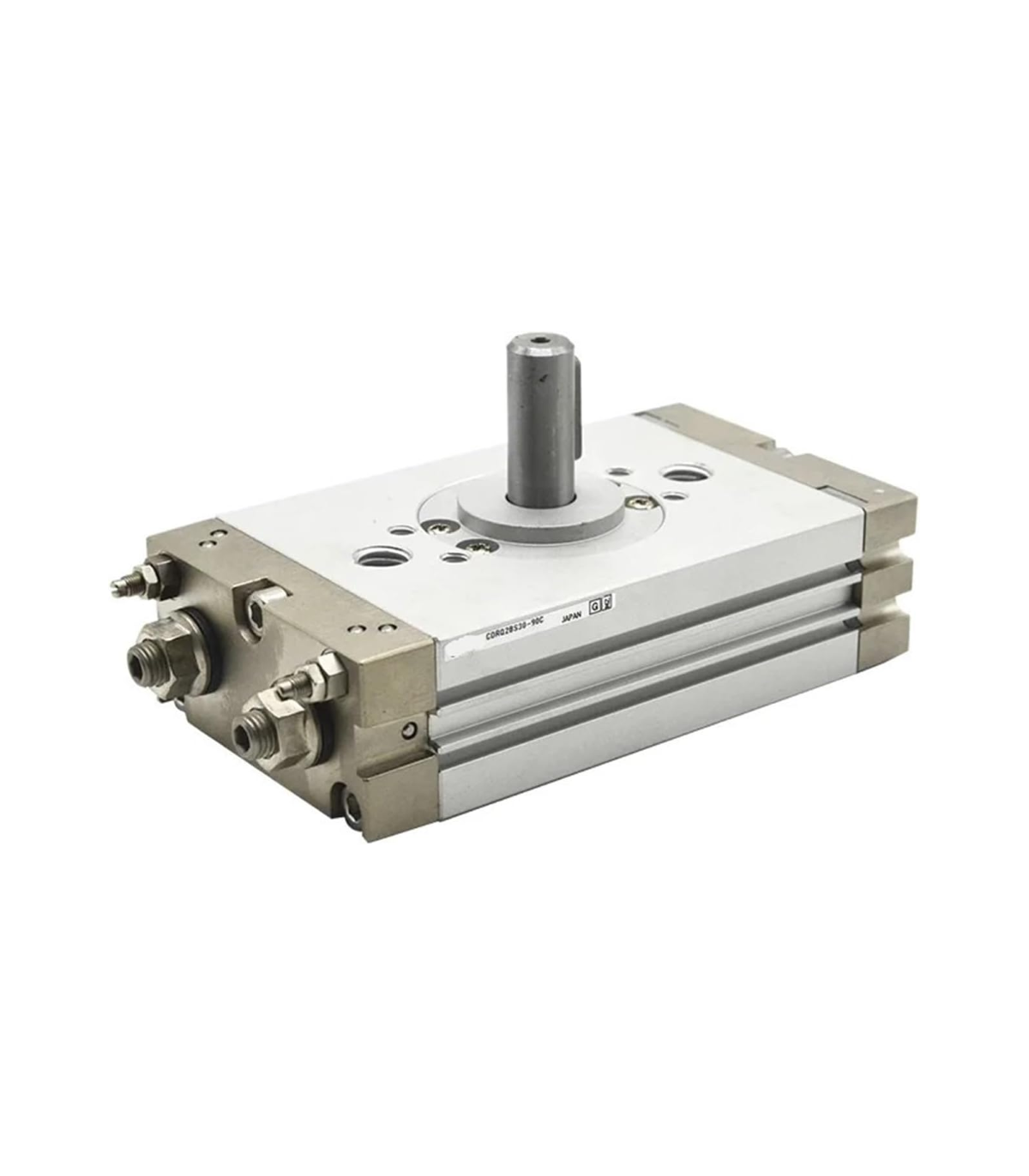

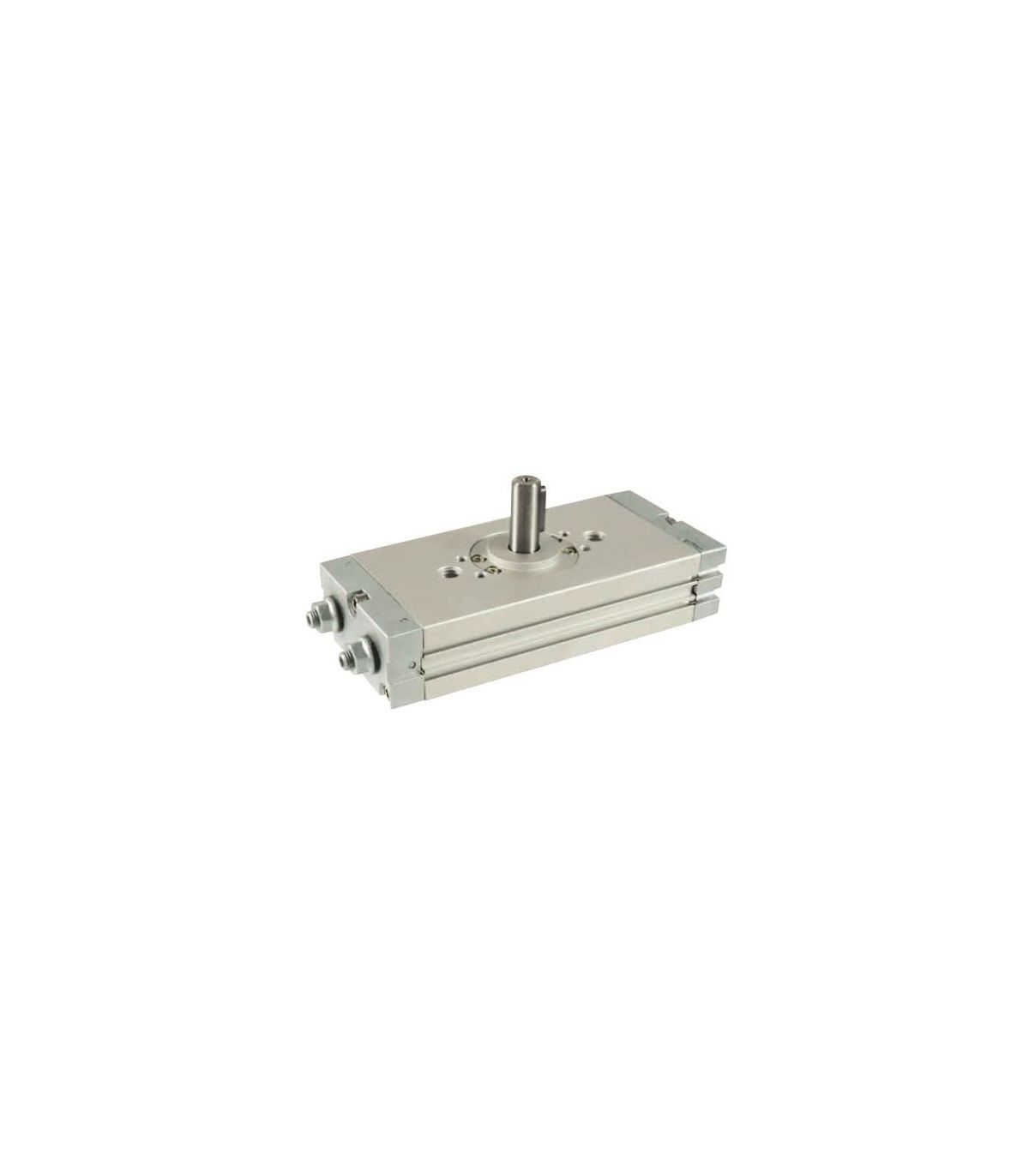

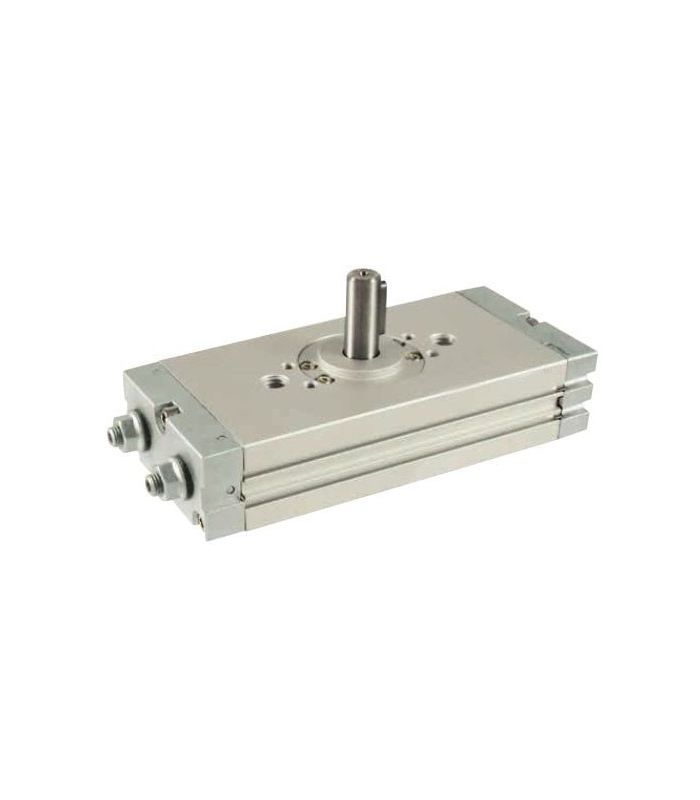

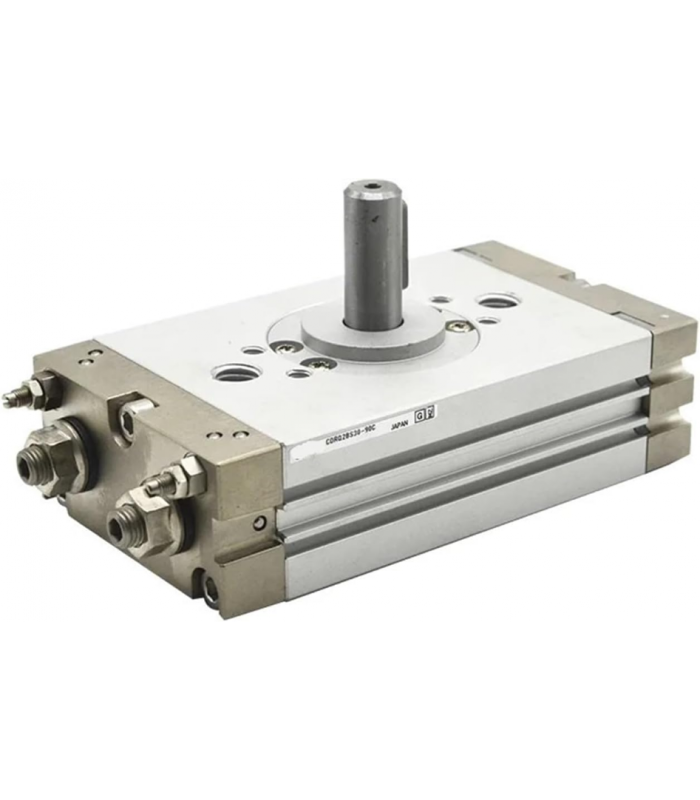

DOUBLE-ACTING COMPACT ROTARY CYLINDER

The compact, double-acting rotary cylinder generates rotary motion in both directions using compressed air. Its double-acting operation allows control of both the extension and retraction of the shaft.

Applications: industrial automation, valve actuation, positioning, handling of parts and mechanisms that require controlled rotation.

Main features:

  • Magnetic detection.
  • Available diameters 10 - 14 - 18 and 20 mm.
  • Possibility of turning in 90º and 180º.
  • Temperature -20 / 70ºC
  • Max. pressure 10 bar.
  • Adjustable +/- 5%
  • Male shaft outlet.
Read moreShow less
€203.86 (tax incl.)
€168.48 (tax excl.)
CHOOSE MODEL/COLOR
  • Ø10-90º
  • Ø10-180º
  • Ø14-90º
  • Ø14-180º
  • Ø18-90º
  • Ø18-180º
  • Ø20-90º
  • Ø20-180º
Reference:
50150010
Description

Compact double-acting rotary cylinder

A compact, double-acting rotary cylinder is designed to transform the energy of compressed air into controlled rotary motion. Its small size allows for installation in confined spaces, making it a suitable solution for industrial automation systems.

Applications

  • Machinery automation.
  • Actuation and positioning of mechanisms.
  • Opening and closing of elements.
  • Handling and orientation of parts.
  • Pneumatic systems where a rotary motion is required.

Technical specifications of a compact double-acting rotary cylinder:

CILINDRO COMPACTO DE GIROCILINDRO COMPACTO DE GIROCILINDRO COMPACTO DE GIROCILINDRO COMPACTO DE GIROCILINDRO COMPACTO DE GIROCILINDRO COMPACTO DE GIRO

Read moreShow less
Product Details
50150010
