GUIDED CYLINDER WITH BRONZE BUSHINGS
GUIDED CYLINDER WITH BRONZE BUSHINGS
GUIDED CYLINDER WITH BRONZE BUSHINGS
GUIDED CYLINDER WITH BRONZE BUSHINGS

GUIDED CYLINDER WITH BRONZE BUSHINGS

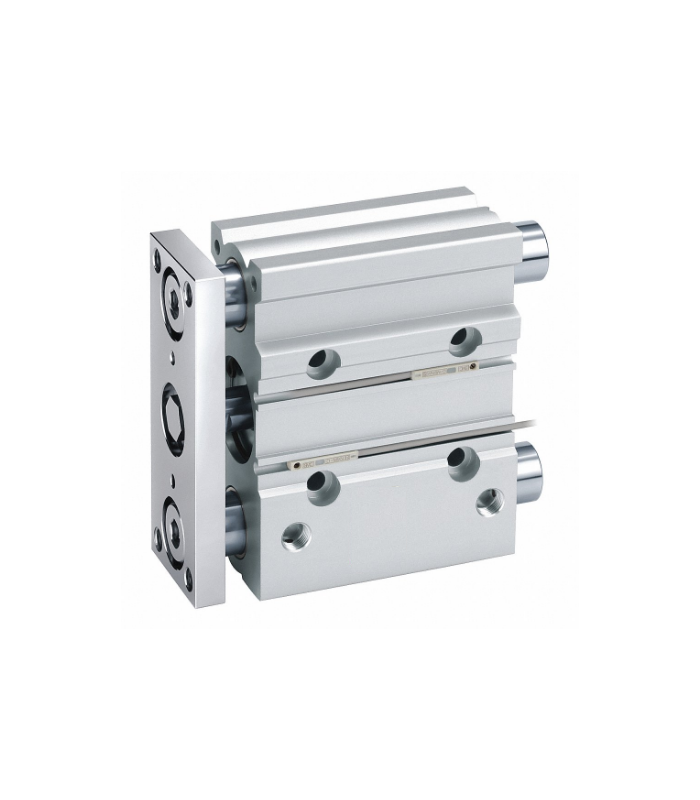

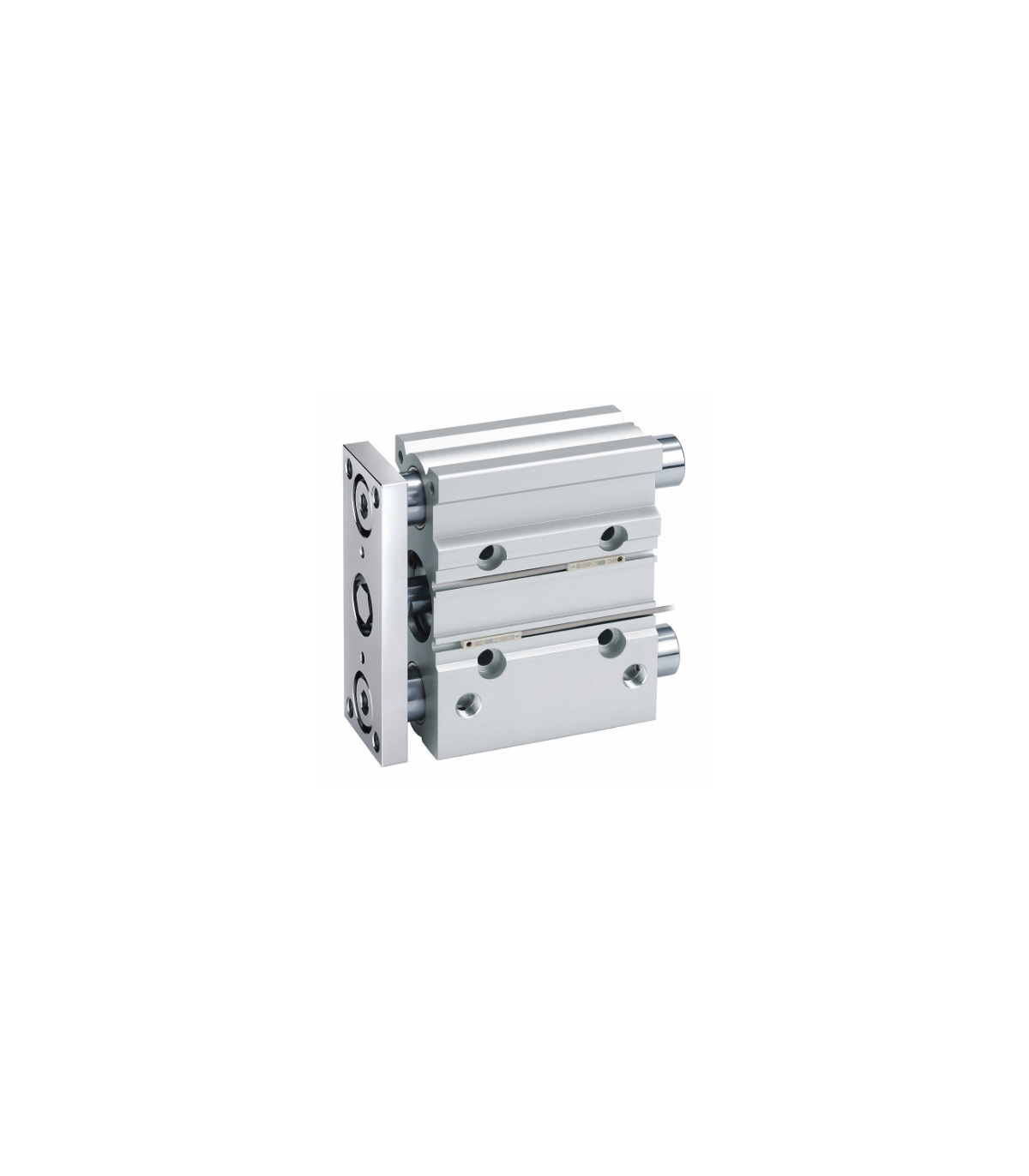

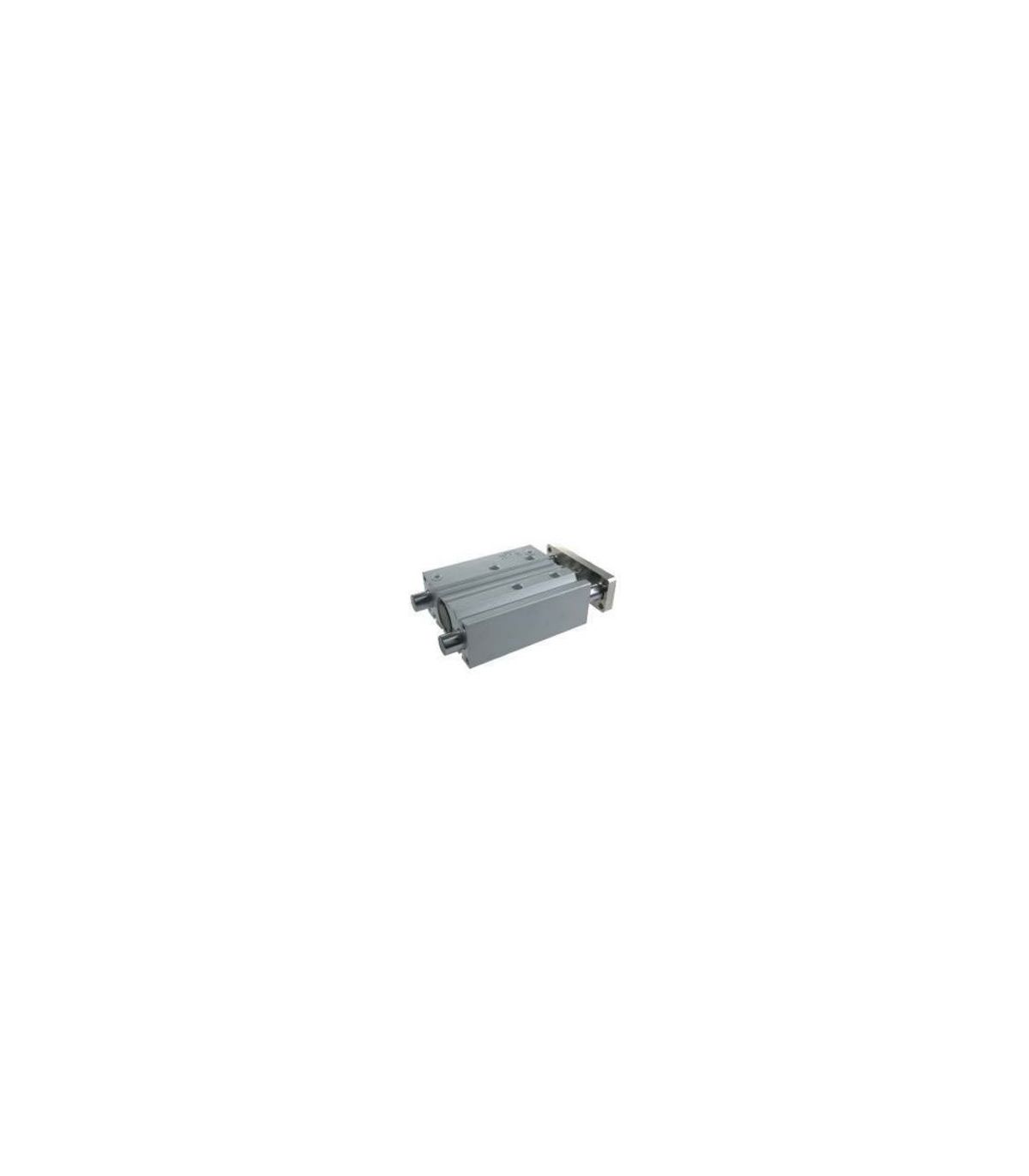

A guided cylinder with bronze bushings is a double-acting pneumatic actuator designed to provide stable, precise, and durable linear motion. The self-lubricating sintered bronze bushings ensure excellent wear resistance and low friction, allowing for smooth, maintenance-free operation over extended periods.

Main features:

  • Excellent resistance to radial loads and torque.
  • Designed for magnetic position detection.
  • The sensors are integrated into the slots of the cylinder body.
  • Maximum working pressure 10 bar.
  • Temperature range: -20ºC / +80ºC
  • It can be supplied with a ball bearing upon request, which offers smoother movement and less friction.

Check out other races or configurations

€76.33 (tax included)
€63.09 (tax excl.)
BORE x STROKE
  • Ø12-10
  • Ø12-25
  • Ø12-50
  • Ø12-75
  • Ø12-100
  • Ø12-125
  • Ø16-10
  • Ø16-25
  • Ø16-50
  • Ø16-75
  • Ø16-100
  • Ø16-125
  • Ø20-20
  • Ø20-25
  • Ø20-30
  • Ø20-40
  • Ø20-50
  • Ø20-60
  • Ø20-75
  • Ø20-100
  • Ø20-125
  • Ø20-200
  • Ø25-20
  • Ø25-25
  • Ø25-30
  • Ø25-40
  • Ø25-50
  • Ø25-60
  • Ø25-75
  • Ø25-100
  • Ø25-125
  • Ø25-200
  • Ø25-250
  • Ø32-25
  • Ø32-30
  • Ø32-40
  • Ø32-50
  • Ø32-60
  • Ø32-75
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø40-25
  • Ø40-30
  • Ø40-40
  • Ø40-50
  • Ø40-60
  • Ø45-70
  • Ø40-100
  • Ø40-125
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø50-25
  • Ø50-30
  • Ø50-40
  • Ø50-50
  • Ø50-60
  • Ø50-75
  • Ø50-100
  • Ø50-125
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø63-25
  • Ø63-30
  • Ø63-40
  • Ø63-50
  • Ø63-60
  • Ø63-75
  • Ø63-100
  • Ø63-125
  • Ø63-160
  • Ø63-200
  • Ø63-250
Reference:
50050021
Description

Guided cylinder with bronze bushings

He guided cylinder with bronze bushings It is a pneumatic actuator of double effect Designed to provide precise and stable linear motion in applications that require high rigidity and lateral strength. Its design incorporates parallel guide shafts which guarantee excellent positioning accuracy and prevent stem rotation, even under off-center loads.

Ideal for industrial automation systems, assembly stations, pneumatic presses and parts handling devices, This cylinder guarantees reliable, precise, and long-lasting operation.

Technical advantages:

  • Precise linear movement without vibrations.
  • High rigidity and wear resistance.
  • Minimal maintenance thanks to self-lubricating bushings.
  • Easy integration with position sensors.
  • Adaptive configuration depending on the application.

Applications:

  • Industrial automation.
  • Assembly and fastening systems.
  • Parts handling equipment.
  • Pneumatic presses and guiding devices.
  • Repetitive positioning processes.

EITHER B C DA F GA GB GC H J K L MM ML NN P PW Q R S T OR V X YY YL YE YH YI Z XF FOR XP XB XC to b c d
16 46 33 8 8 11 8 18 64 5 30 22 M5 12 M5 M5 19 16 54 25 62 46 56 24 M5 10 8

4.5

 4.3 5 24 3 6 3.5 3 7.4 3.7 4.4 6.2
20 53 37 10 10 10.5 8.5 24.5 83 6.5 36 24 M5 13 M5 G1/8 25 18 70 30 81 54 72 28 M6 12 9.5 5.5 5.6 17 28 3 6 3.5 3 8.4 4.5 5.5 7.3
25 53.5 37.5 10 10 11.5 9 25 93 7.5 42 30 M6 15 M6 G1/8 28.5 26 78 38 91 64 82 34 M6 12 9.5 5.5 5.6 17 34 4 6 4.5 3 8.4 4.5 5.5 7.5
32 59.5 37.5 12 12 12.5 9 30.5 112 9 48 34 M8 20 M8 G1/8 34 30 96 44 110 78 98 42 M8 16 11 7.5 6.6 21 42 4 6 4.5 3 10.5 5.5 6.5 9
40 66 44 12 12 14 10 31 120 9 54 40 M8 20 M8 G1/8 38 30 104 44 118 86 106 50 M8 16 11 7.5 6.6 22 50 4 6 4.5 3 10.5 5.5 6.5 9
50 72 44 16 16 14 11 35 148 9.5 64 46 M10 22 M10 G1/4 47 40 130 60 146 110 130 66 M10 20 14 9 8.6 24

66

 5 8 6 4 13.5 7.5 8.5 12
63 77 49 16 16 16.5 13.5 35 162 11 78 58 M10 22 M10 G1/4 55 50 130 70 158 124 142 80 M10 20 14 9 8.6 24 80 5 8 6 4 17.8 10 11 16.5
