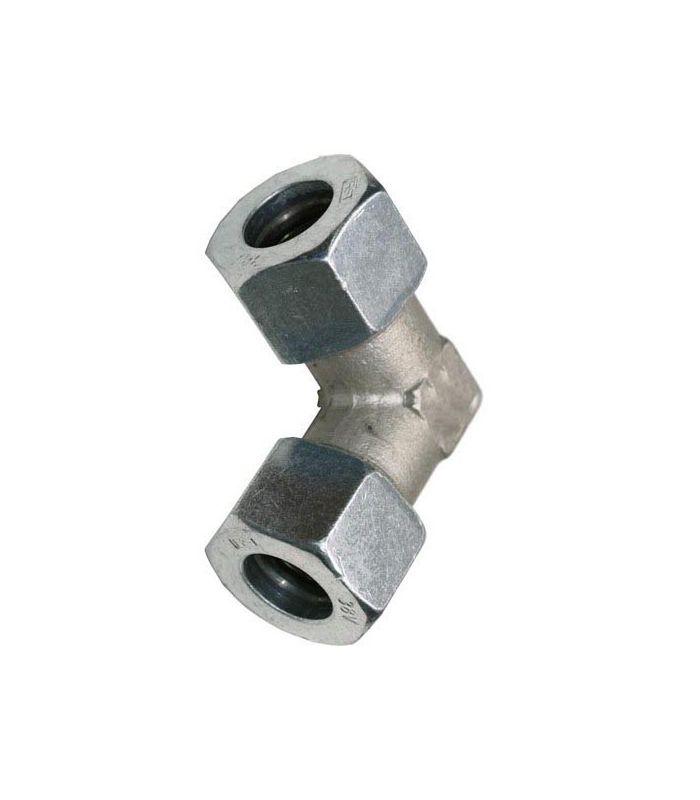

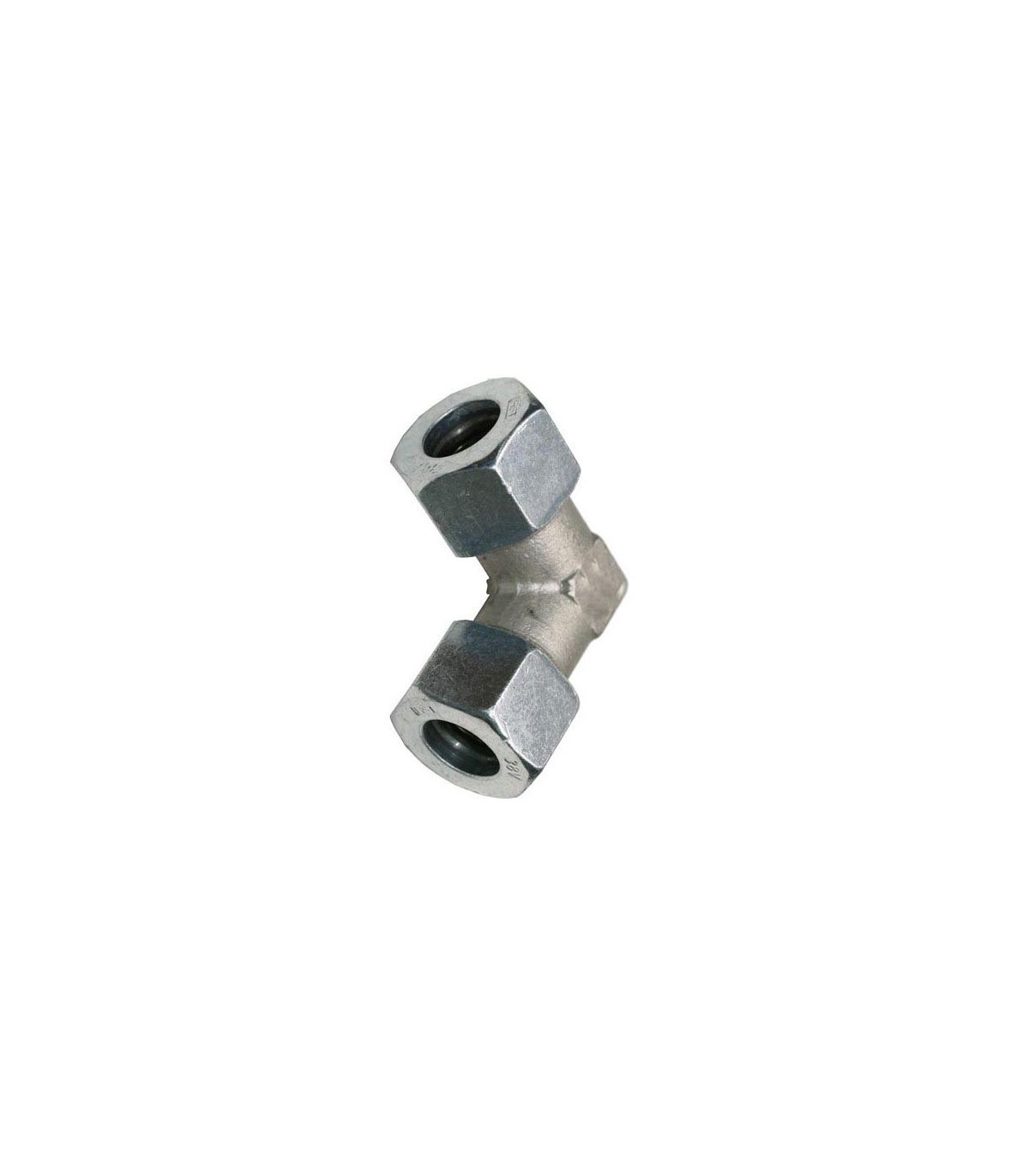

TUBE ELBOW UNION DIN 2353 L

TUBE ELBOW UNION DIN 2353 L

DIN 2353 L elbow pipe union

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€5.43 (tax included)
€4.49 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33010004
Description

DIN 2353 L elbow pipe union

Product Details
33010004
