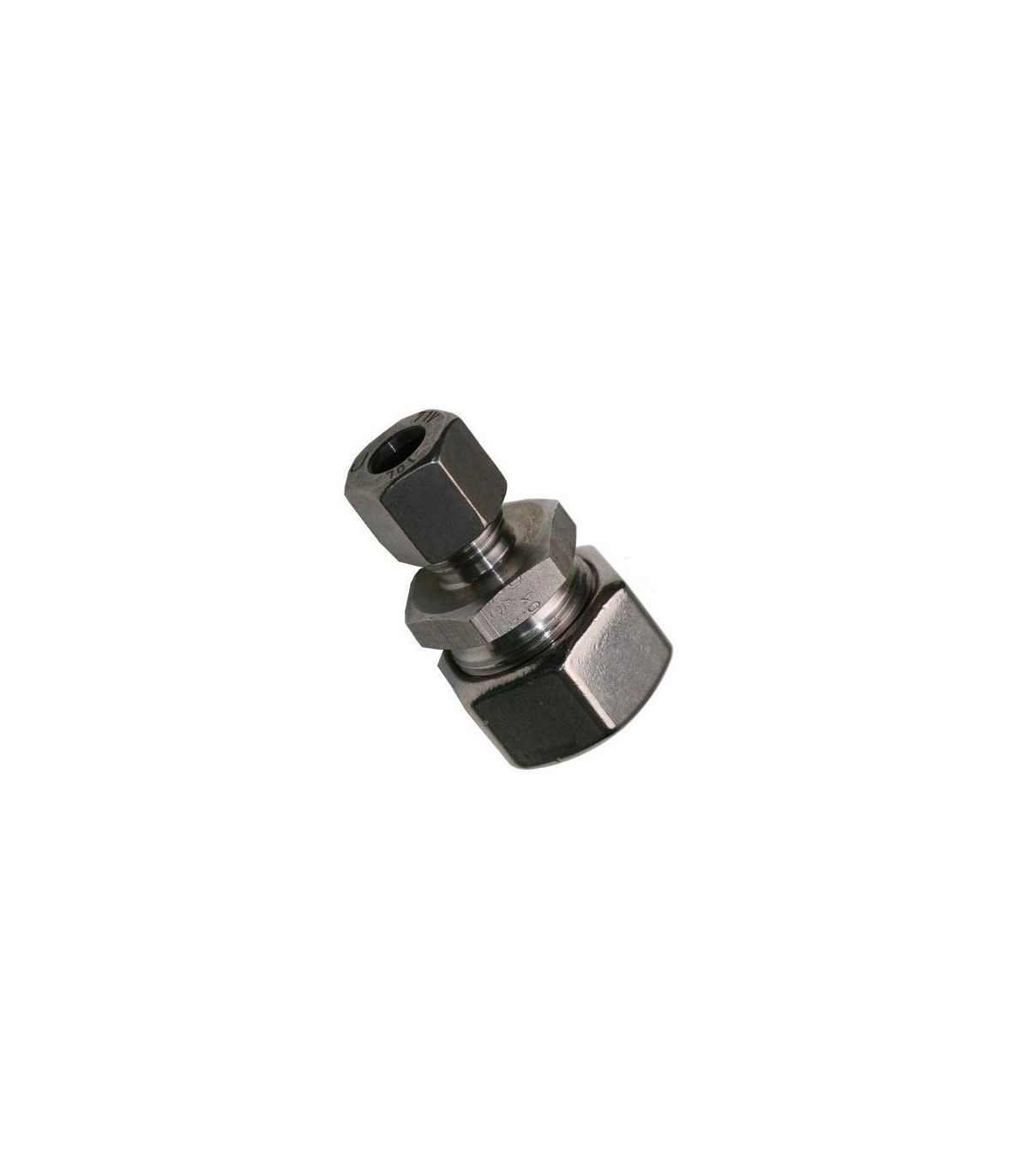

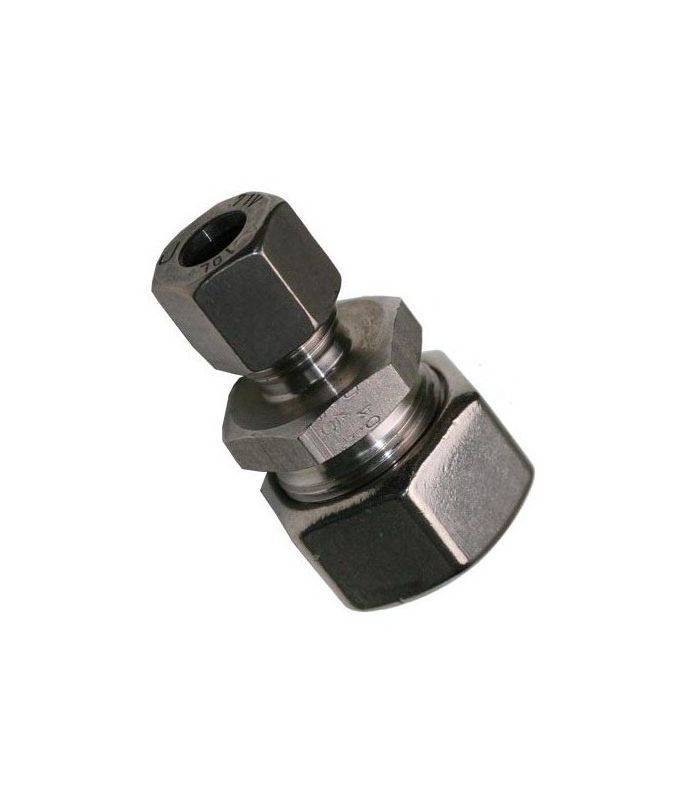

REDUCED STRAIGHT TUBE UNION DIN 2353 L

REDUCED STRAIGHT TUBE UNION DIN 2353 L

Reduced straight pipe fitting DIN 2353 L

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€4.88 (tax included)
€4.03 (tax excl.)
DIAMETERS
  • Ø6-Ø8
  • Ø6-Ø10
  • Ø8-Ø10
  • Ø8-Ø12
  • Ø10-Ø12
  • Ø15-Ø12
  • Ø15-Ø10
  • Ø18-Ø12
  • Ø18-Ø15
  • Ø22-Ø15
  • Ø22-Ø18
  • Ø28-Ø22
  • Ø35-Ø28
Reference:
33030049
Description

Reduced straight pipe fitting DIN 2353 L

Product Details
33030049
