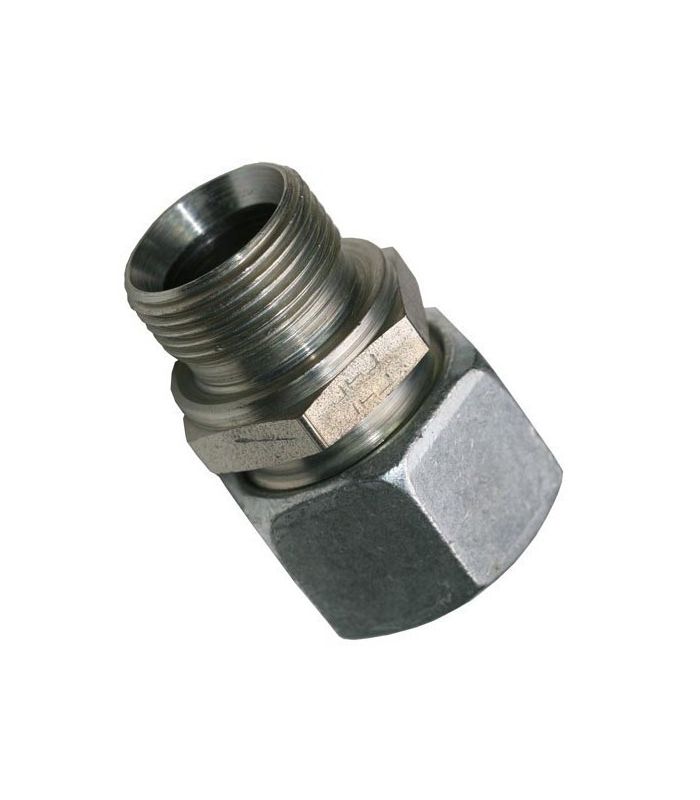

STRAIGHT TUBE UNION CYLINDRICAL THREAD DIN 2353 L

STRAIGHT TUBE UNION CYLINDRICAL THREAD DIN 2353 L

Straight tube union with cylindrical thread DIN 2353 L

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€1.98 (tax included)
€1.64 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 15-1/2
  • Ø 22-1/2
  • Ø 22-3/4
  • Ø 28-1
  • Ø 35-1-1/4
  • Ø 42-1-1/2
Reference:
33160016
Description

Straight tube union with cylindrical thread DIN 2353 L

Product Details
33160016
