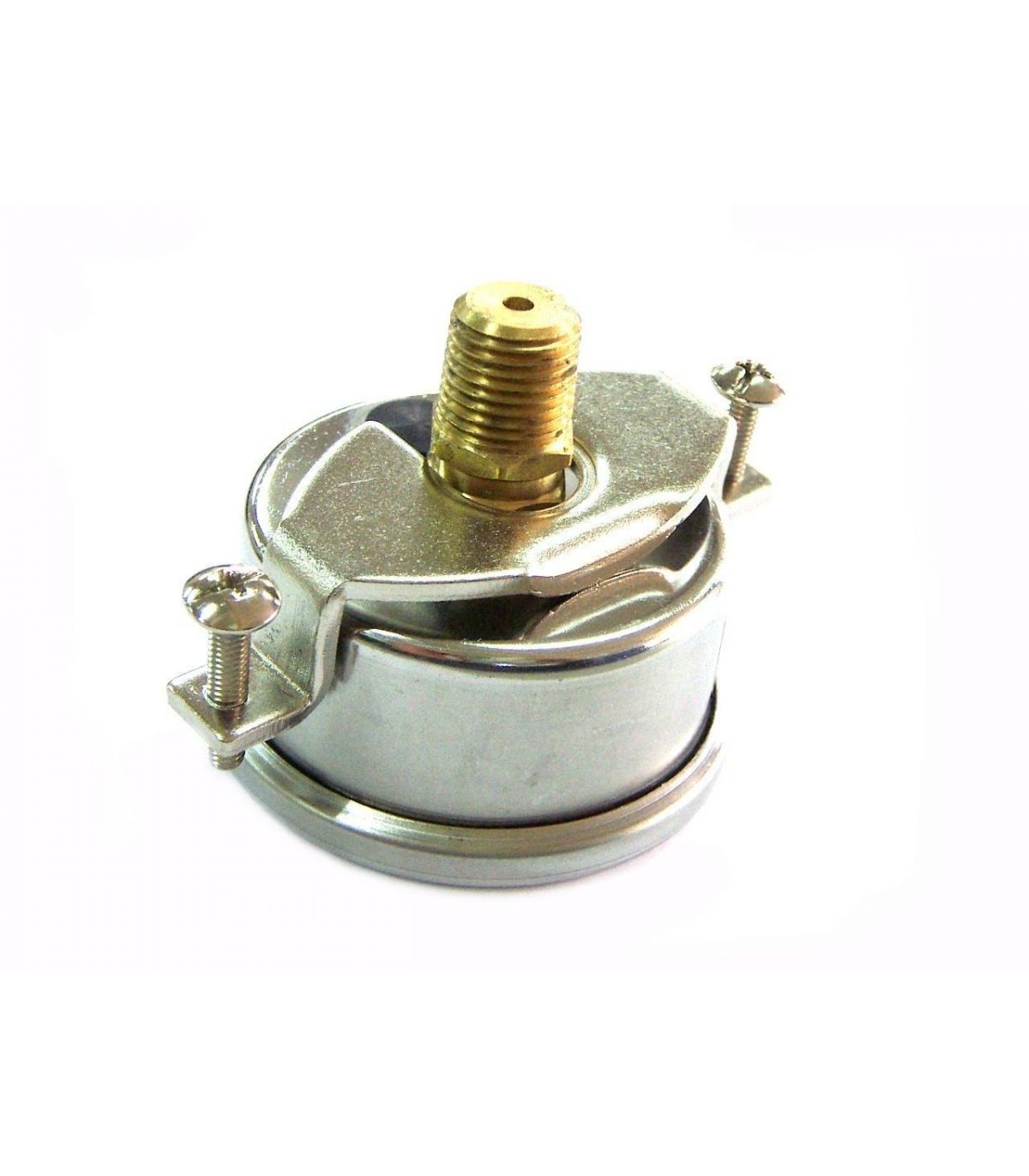

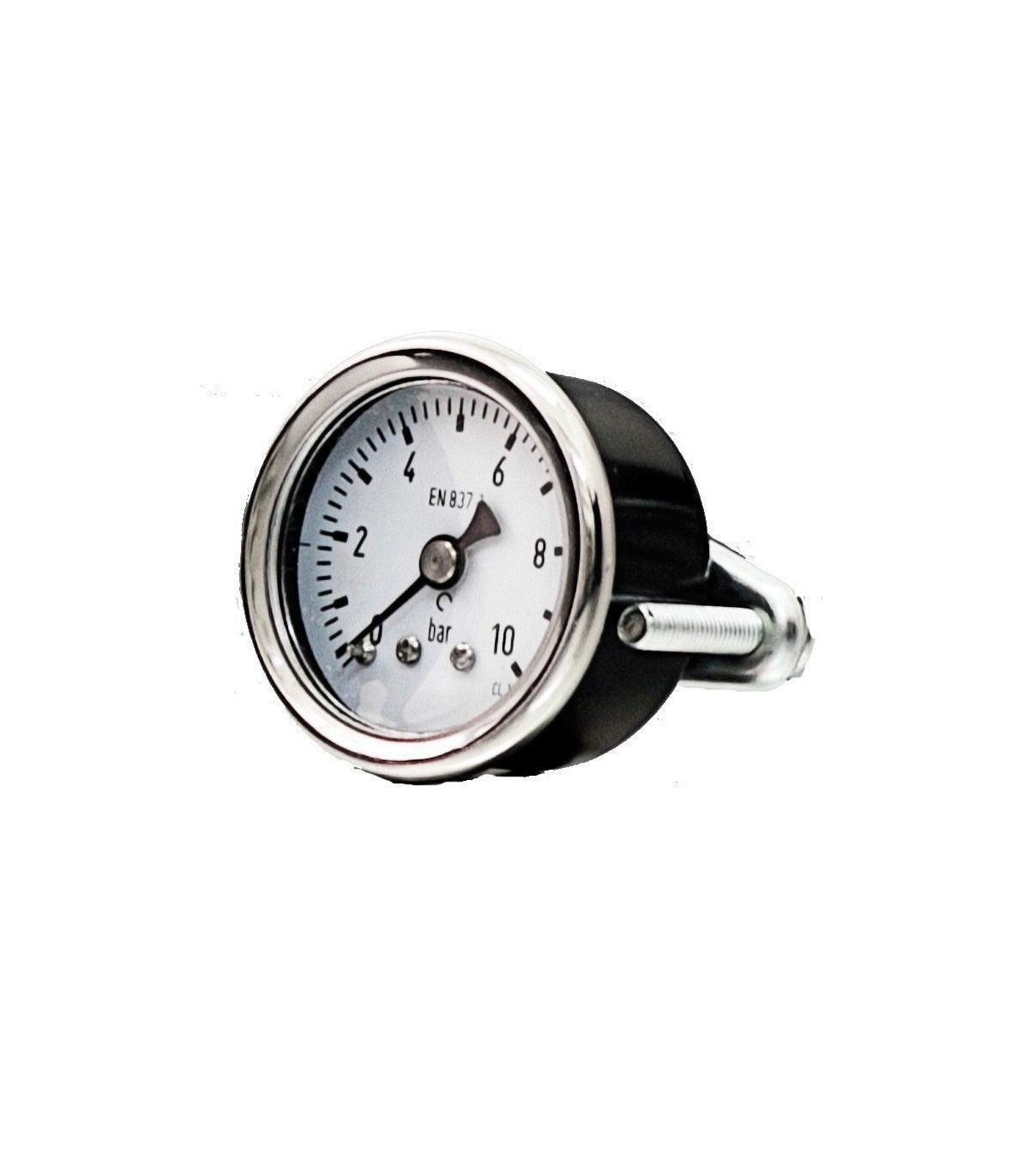

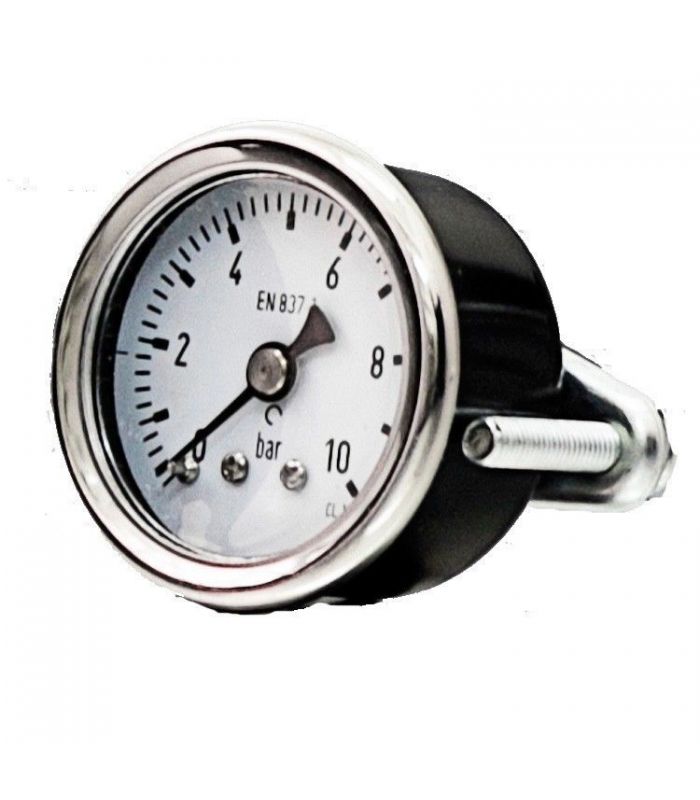

VACUUM GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE
VACUUM GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE
VACUUM GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE
VACUUM GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE

VACUUM GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE

A Ø40 vacuum gauge with a 1/8" center thread and flange is used to measure pressure below atmospheric pressure, i.e., a vacuum. The diameter of the vacuum gauge housing is 40mm.

Applications: Pneumatics industry, Chemical industry or Laboratories

Main features:

  • Vacuum gauge Ø40 rear thread with fixing flange.
  • Case and rim in painted carbon steel.
  • 1/8"-1/4" brass rear fitting.
  • Internal transmission made of copper alloy.
  • Needle in black.
  • Inner sphere in black lacquered aluminum.
  • Transparent polycarbonate screen.
  • Tolerance +/- 1.7%
  • Max. temperature 70ºC
  • IP43 protection rating
€10.16 (tax included)
€8.40 (tax excl.)
Reference:
4124
Description

Vacuum gauge Ø40 with 1/8" center thread and flange

The Ø40 center thread 1/8" flanged vacuum gauge is a compact instrument intended for monitoring the vacuum level in industrial circuits and equipment.

Its 40 mm diameter dial allows for easy reading, while the 1/8" central connection facilitates mounting at the measuring point. The front flange allows for integrated installation in panels or enclosures.

Thanks to its compact format, it is especially suitable for equipment and machinery where available space is limited.

Applications

  • Vacuum systems.
  • Suction equipment.
  • Vacuum pumps.
  • Pneumatic installations.
  • Industrial machinery.
  • Automation.
  • Process equipment.
  • Control panels and displays.

Technical specifications of a Ø40 vacuum gauge with 1/8" center thread and flange:

VACUOMETRO 40 CENTRAL 18 CON BRIDA
