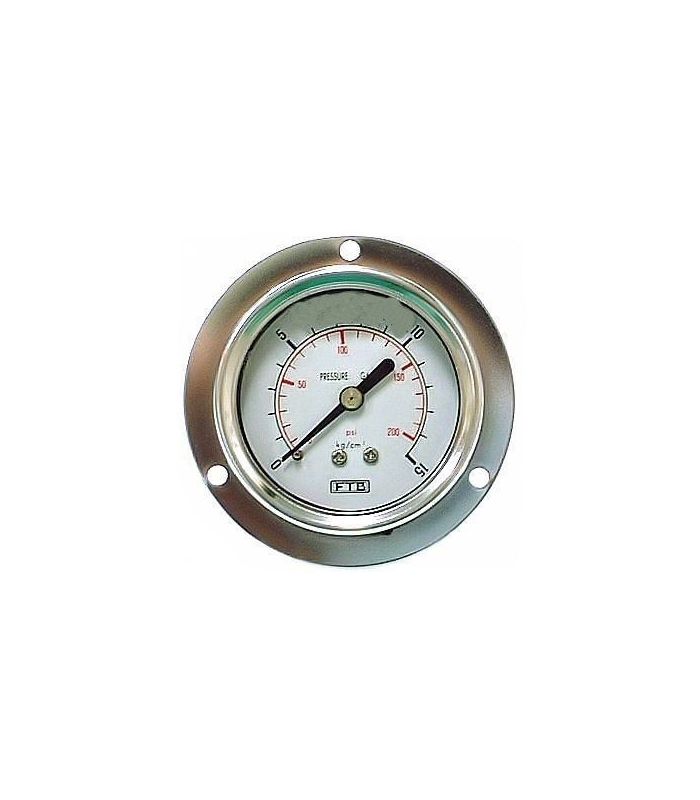

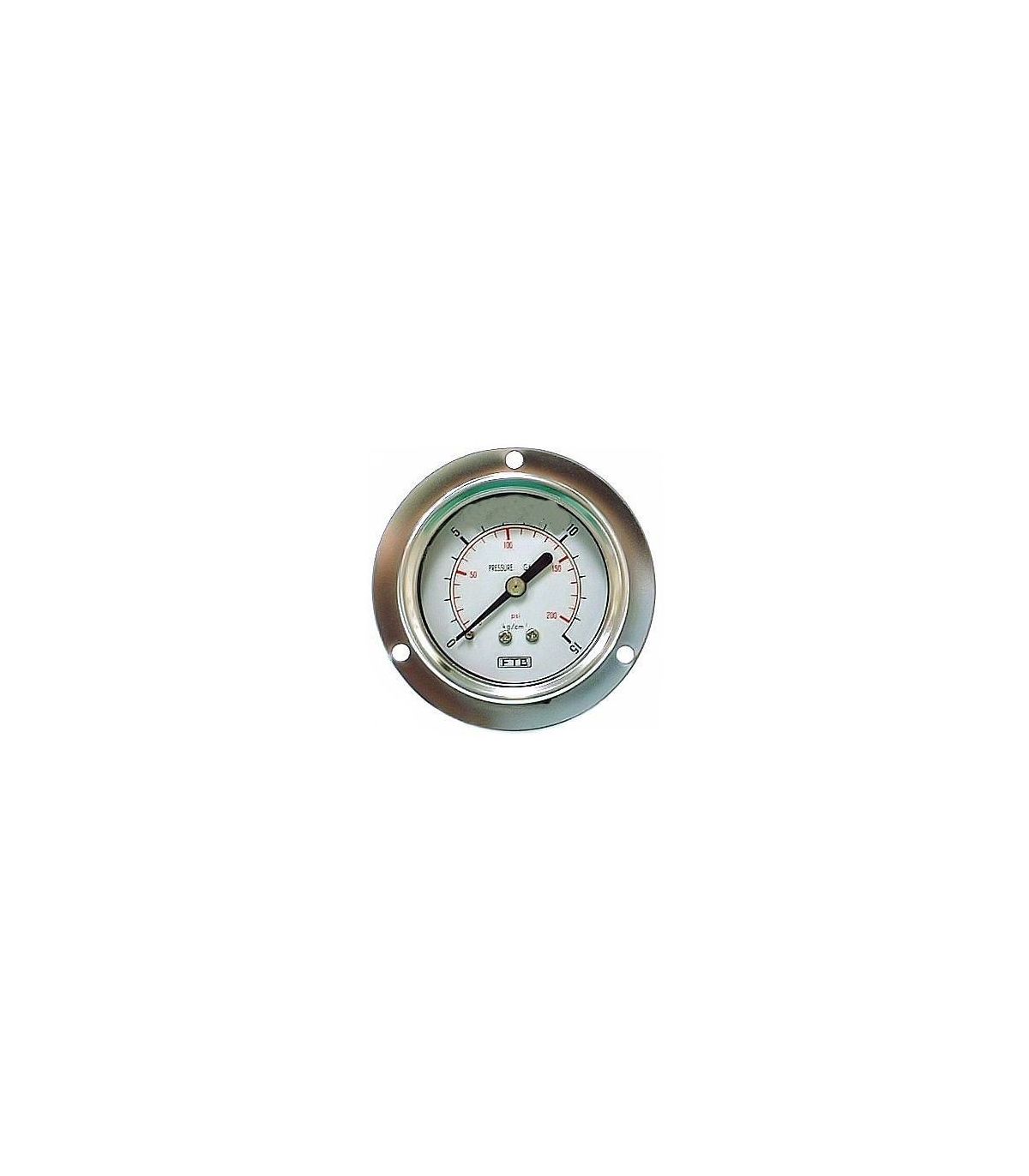

VACUUM GAUGE Ø63 CENTRAL THREAD 1/4" WITH DRY RING

VACUUM GAUGE Ø63 CENTRAL THREAD 1/4" WITH DRY RING

A 63 mm diameter vacuum gauge with a 1/4" center thread and dry ring is used to measure pressure below atmospheric pressure. The internal mechanism does not use liquid (such as glycerin) to dampen the needle's movement.

Applications: pneumatic industry, chemical industry and laboratories.

Technical specifications:

  • Ring with three fixing holes.
  • Case and ring in stainless-304 steel.
  • Brass fitting.
  • Copper alloy transmission.
  • Black needle.
  • White lacquered aluminum sphere.
  • Glass screen.
  • Tolerance +/- 1.7%
  • Temperature 70ºC.
  • IP-65 protection rating.
€9.14 (tax included)
€7.55 (tax excl.)
Reference:
4126
Description

Vacuum gauge Ø63 center thread 1/4" with dry ring

The Ø63 center thread 1/4" vacuum gauge with dry ring is a compact instrument designed to monitor the vacuum level in circuits and equipment.

As it is a dry model, the instrument does not incorporate damping fluid in its casing, making it a suitable option for applications with stable working conditions and no vibrations.

Applications

  • Vacuum systems.
  • Vacuum pumps.
  • Suction equipment.
  • Pneumatic installations.
  • Industrial machinery.
  • Automation.
  • Process equipment.
  • Control panels and equipment.

Technical specifications of a Ø63 vacuum gauge with 1/4" center thread and dry ring:

VACUOMETRO 63 R.CENTRAL SECO 14 ARO

Product Details
4126
