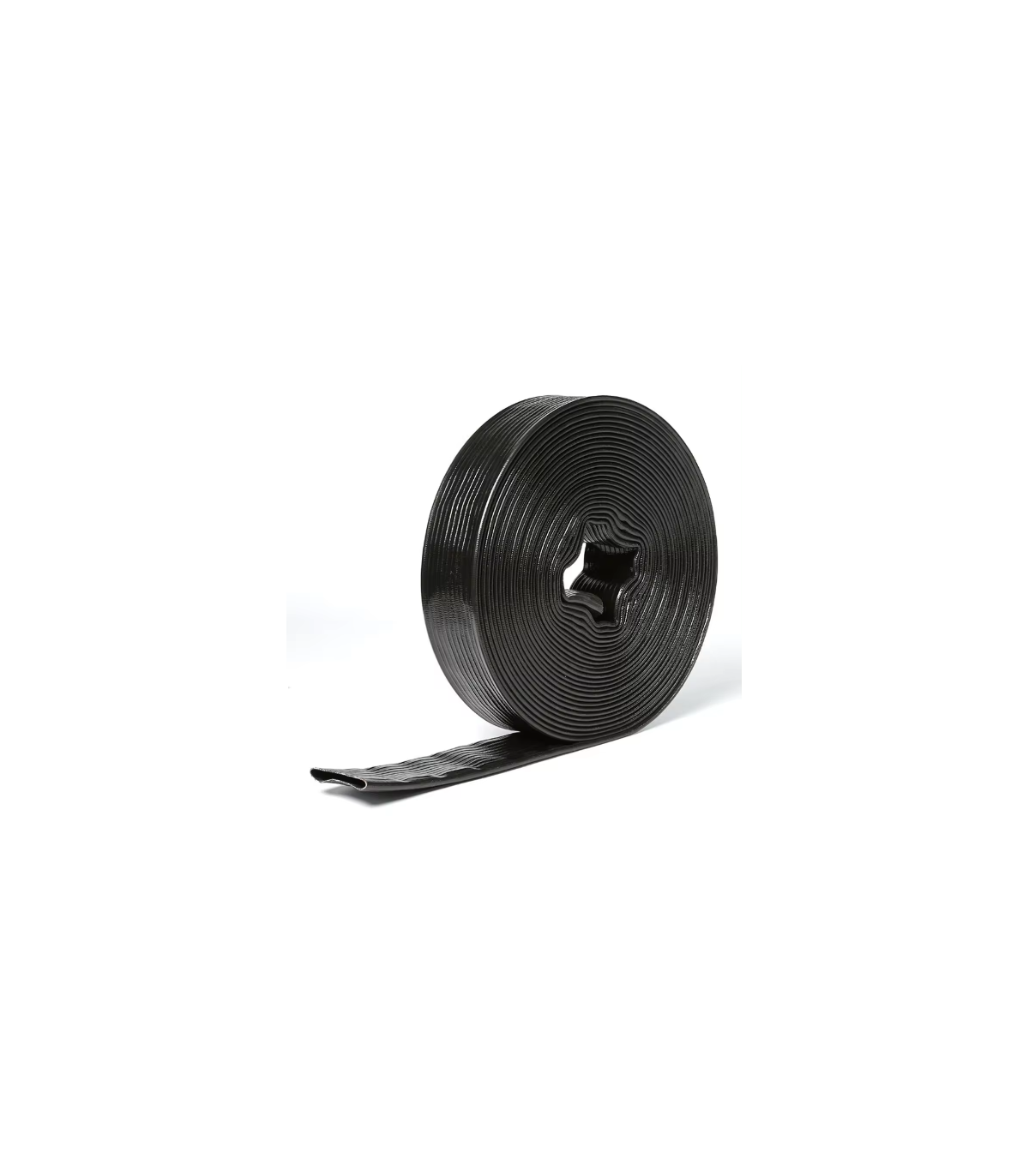

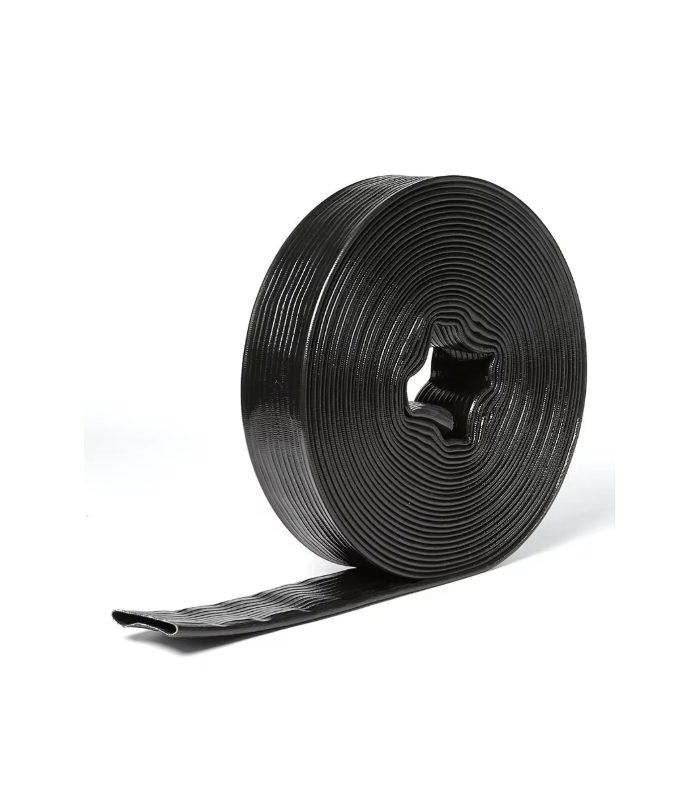

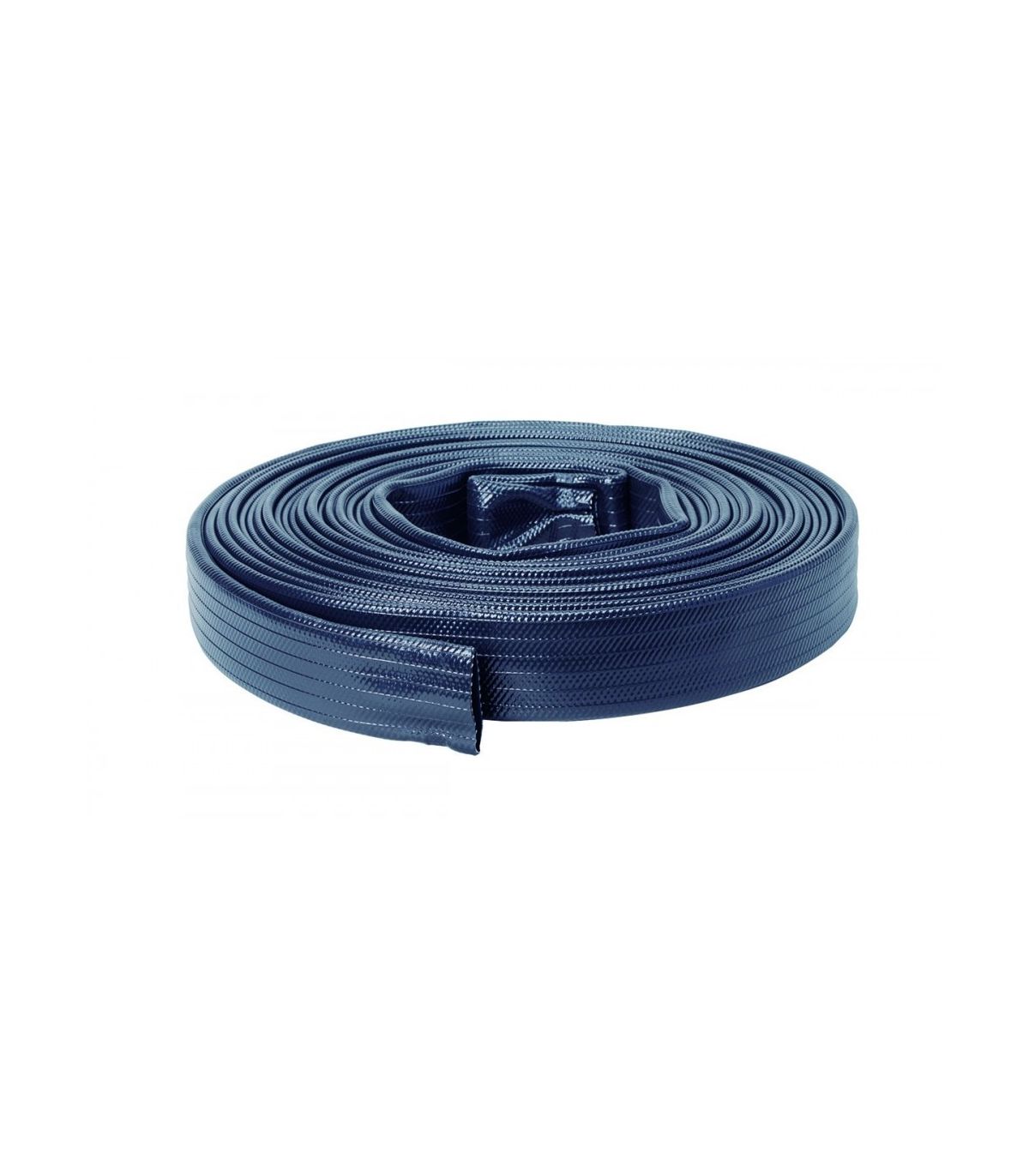

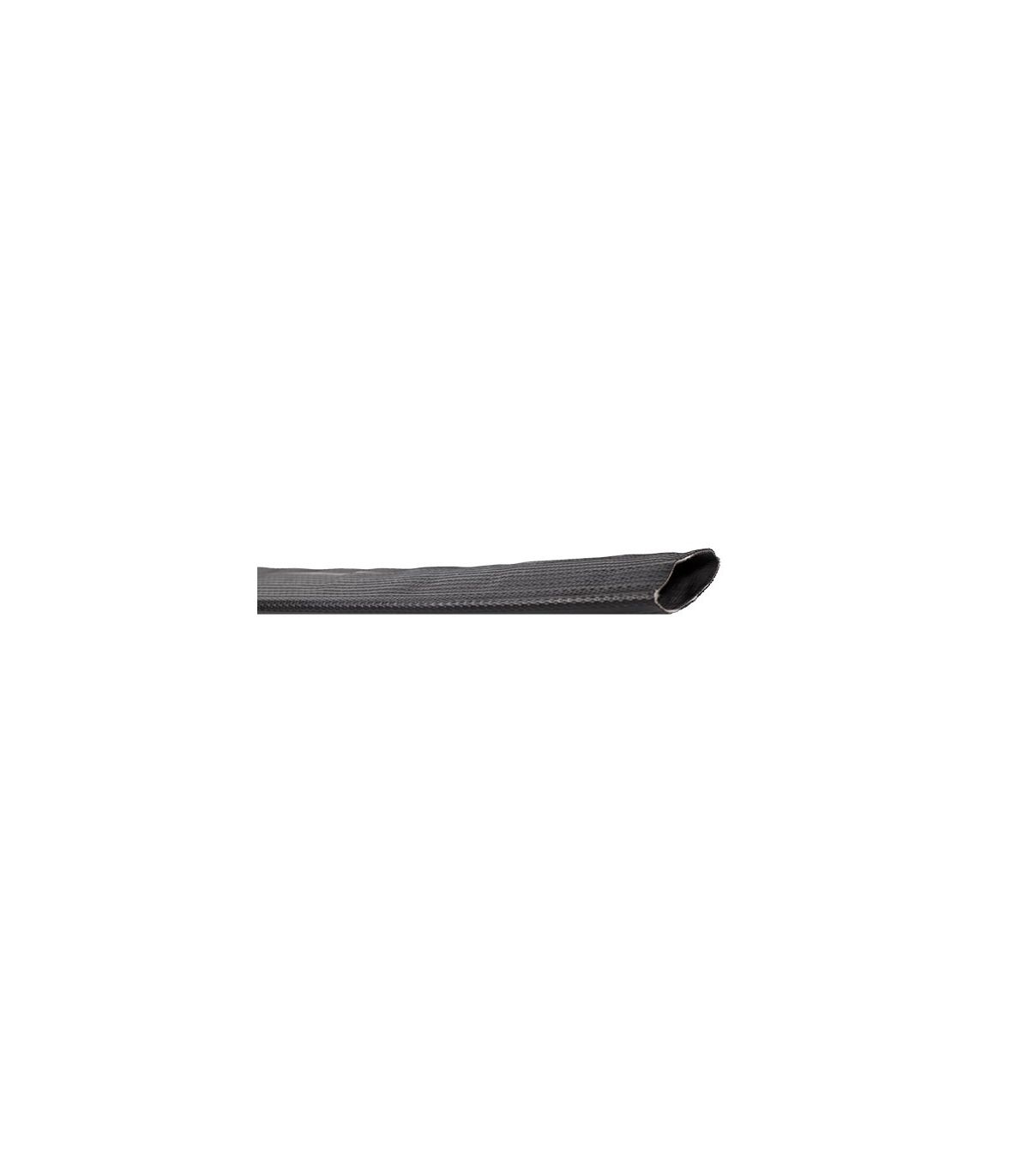

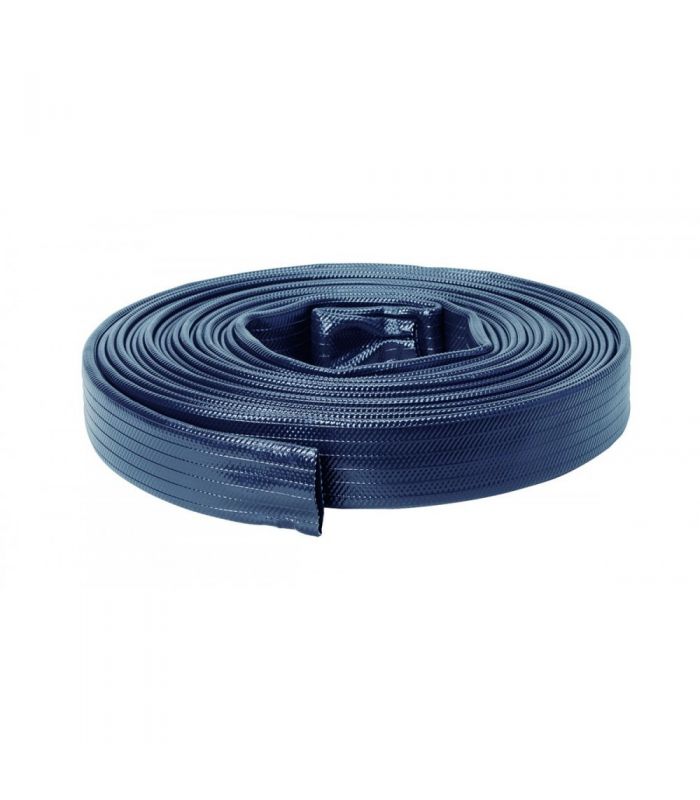

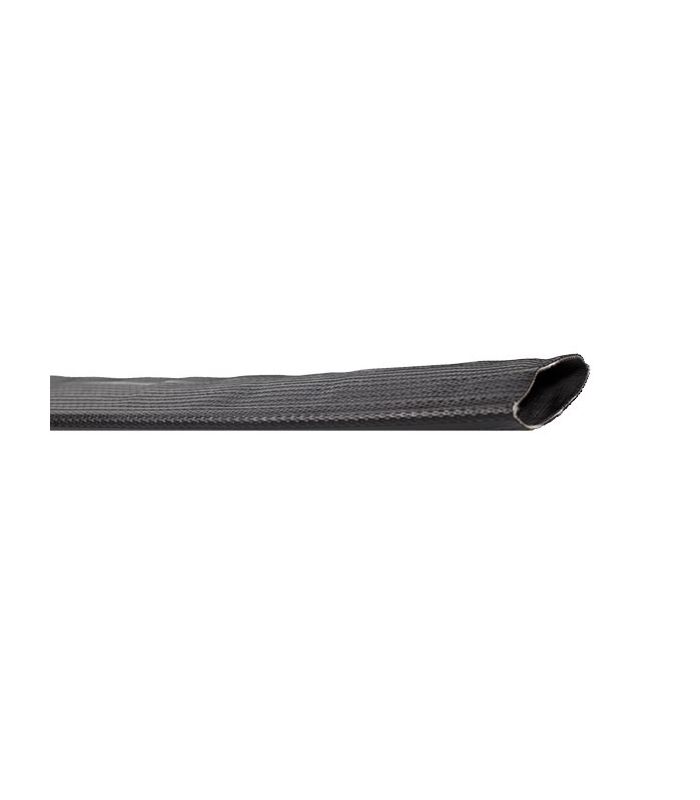

FLAT HOSE 20 BAR
FLAT HOSE 20 BAR
FLAT HOSE 20 BAR
FLAT HOSE 20 BAR
FLAT HOSE 20 BAR
FLAT HOSE 20 BAR

FLAT HOSE 20 BAR

The 20 bar flat hose is a continuously manufactured tube for compressed air and water, offering high performance and abrasion resistance. It is primarily used in compressors for construction projects and drilling equipment, as well as for fluid pumping. It is suitable for transporting liquids at a maximum working pressure of 20 bar.

Technical specifications:

  • Inner tube: Smooth black synthetic rubber.
  • Reinforcement: High-tenacity synthetic braiding and polyester/polyamide textile.
  • Outer cover: Black synthetic rubber resistant to abrasion, weathering and severe usage conditions.
  • They are resistant to abrasion, UV rays and many chemicals.
  • Finished with a fine groove.
  • Temperature -20ºC to +70ºC

The selection is by inner diameter.

The complete rolls are 60 meters long.

* Choose full rolls or linear meters, according to your needs *

€5.76 (tax included)
€4.76 (tax excl.)
DIAMETERS
  • Ø 30
  • Ø 38
  • Ø 45
  • Ø 50
  • Ø 65
  • Ø 70
  • Ø 76
  • Ø 80
  • Ø 90
  • Ø 102
  • Ø 110
  • Ø 127
  • Ø 152
  • Ø 203
DIAMETERS:
metros
metros
Reference:
207301
Description

Flat hose 20 bar

Product Details
207301
