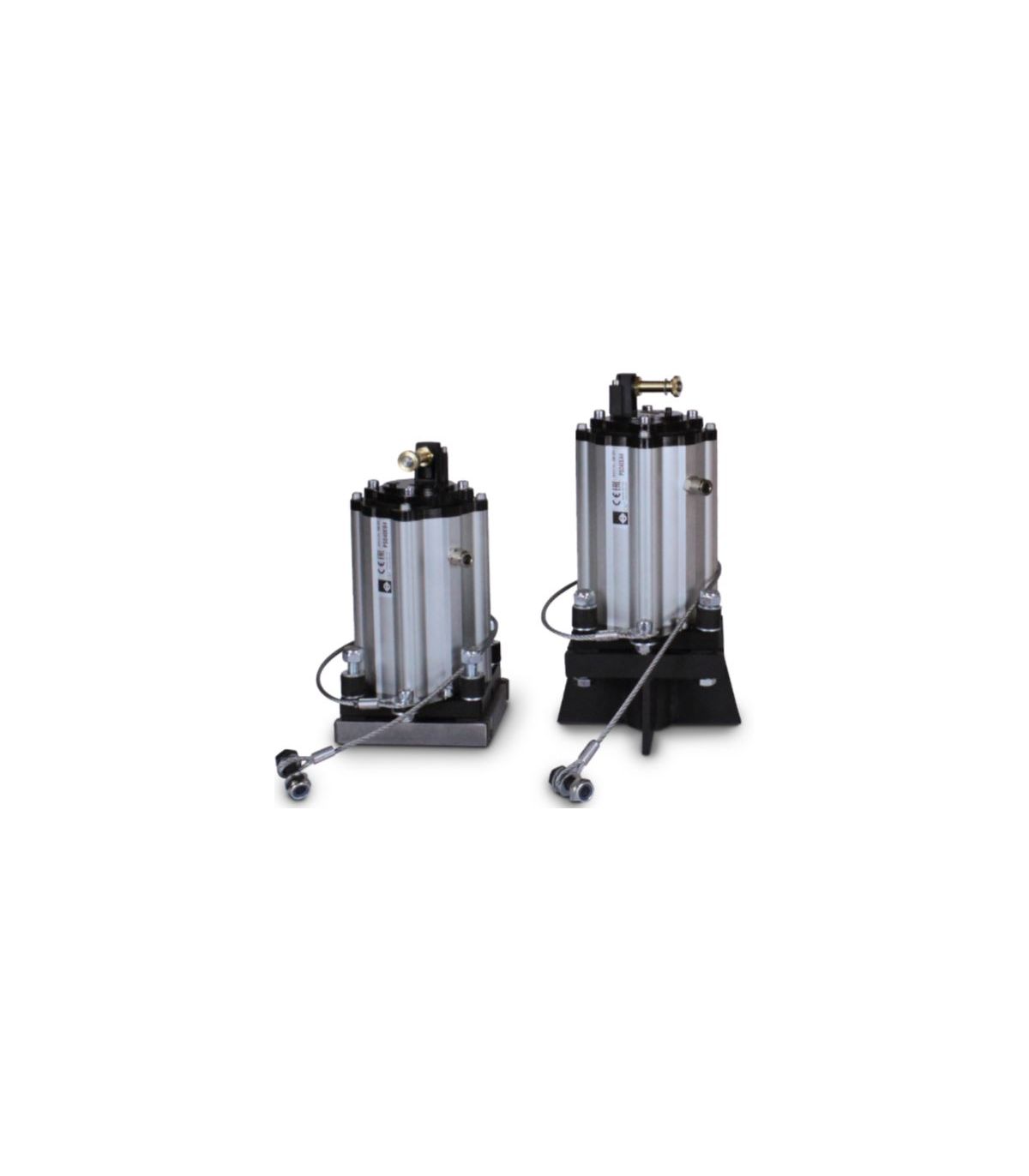

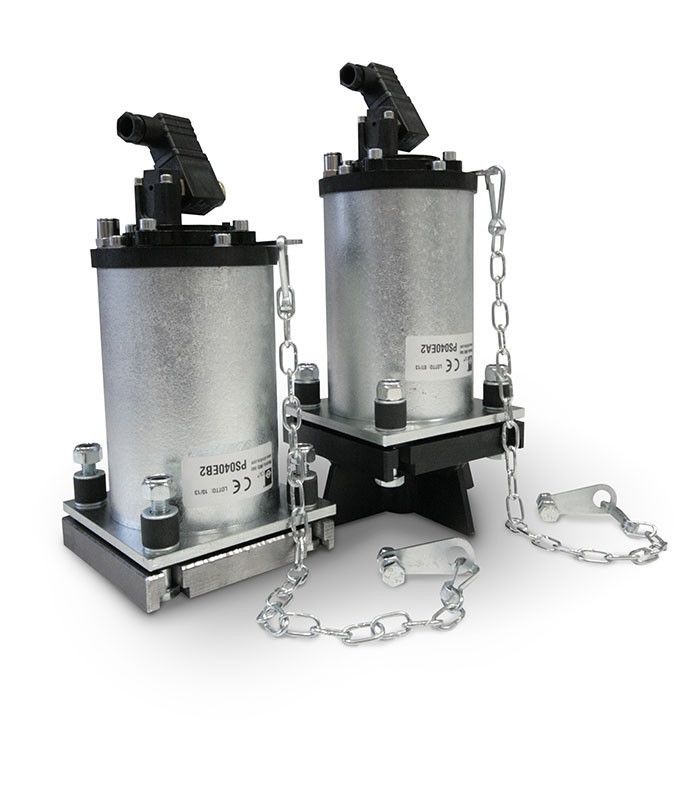

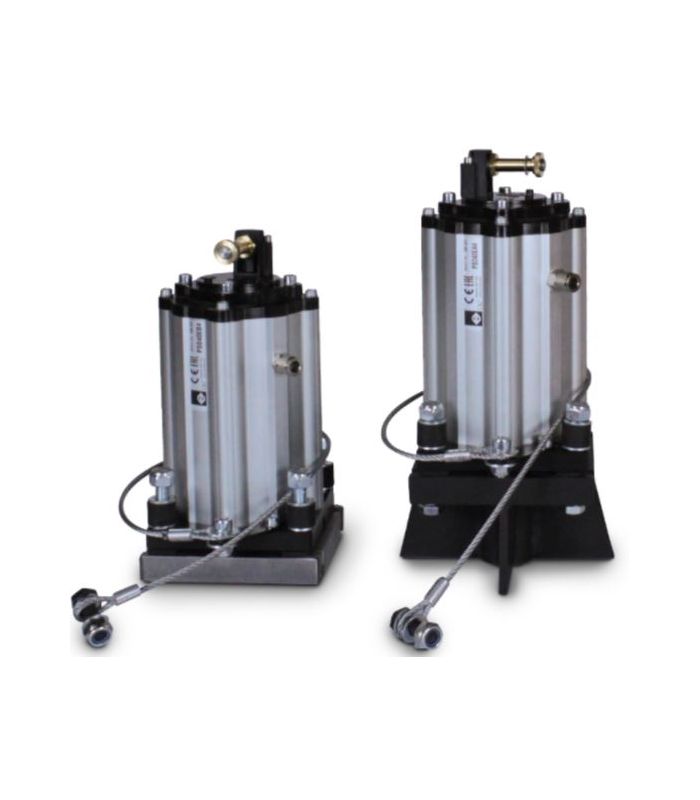

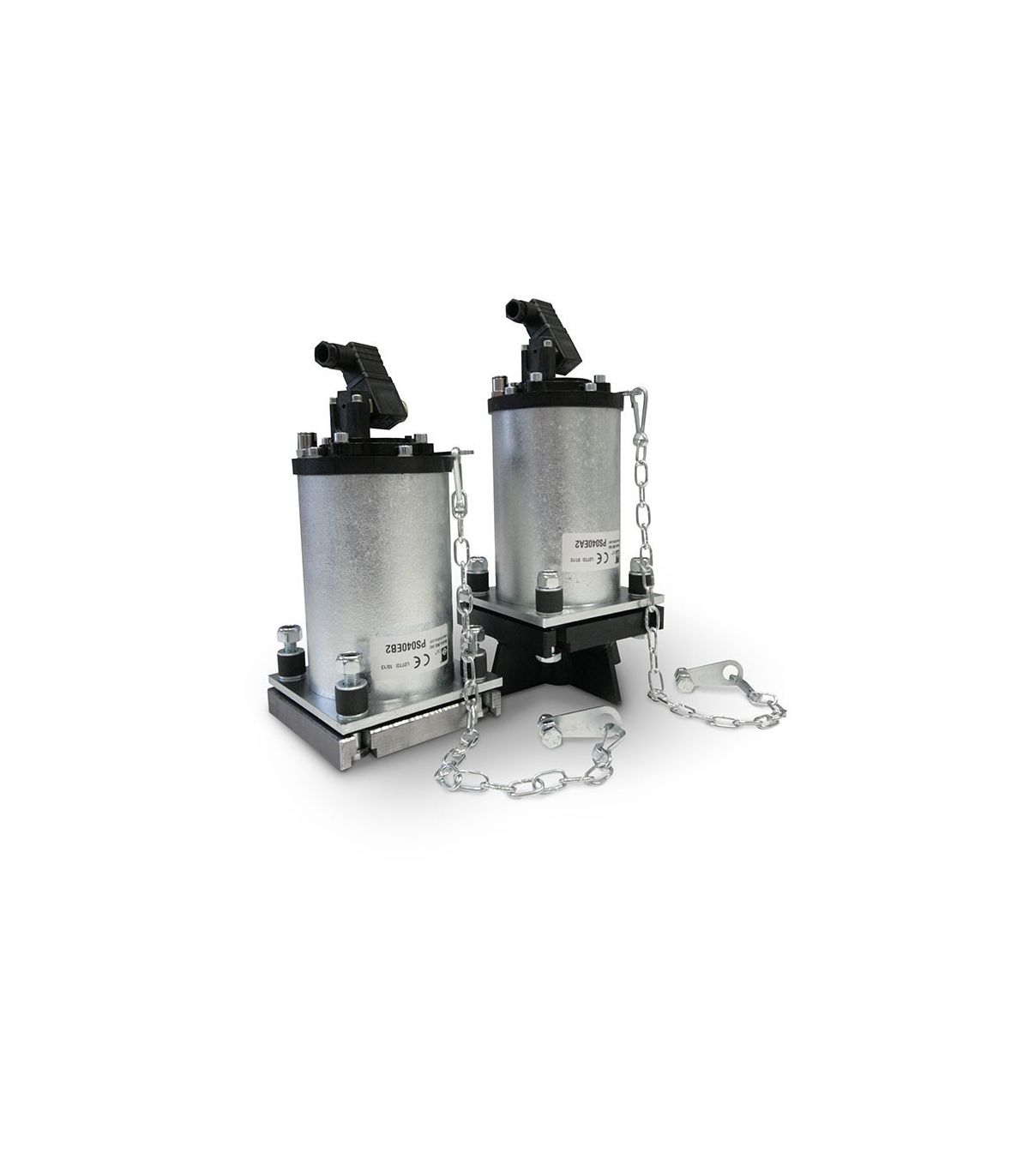

PS SINGLE IMPACT HAMMER

A single-impact PS hammer produces a high impact force through a single impact between the internal piston and the welded metal base on silo and hopper walls. This action is effective in moving dust that tends to compact under pressure or stick to walls, as well as most granular and bulk materials. For this reason, the PS Series is the ideal solution to bridge and rat hole problems.

Technical data sheet:

• Compact design with integrated valve.
• Excellent performance
• Easy installation
• Suitable for operation in potentially explosive atmospheres
• Discontinuous work cycle
• Noise level 125 dB
• Temperature -20ºC / 80ºC
• Working pressure: 3-6 bar (44-87 PSI).
• Direct effect on the product.
• It does not produce tension in the structure.

INDICATE TYPE OF FIXING ACCORDING TO THE THICKNESS OF THE HOPPER, LESS OR GREATER THAN 3 mm (A or B)

PS HAMMER OPERATION
